Honda does not publish sound levels for any water pump models, so no exact figure is available.

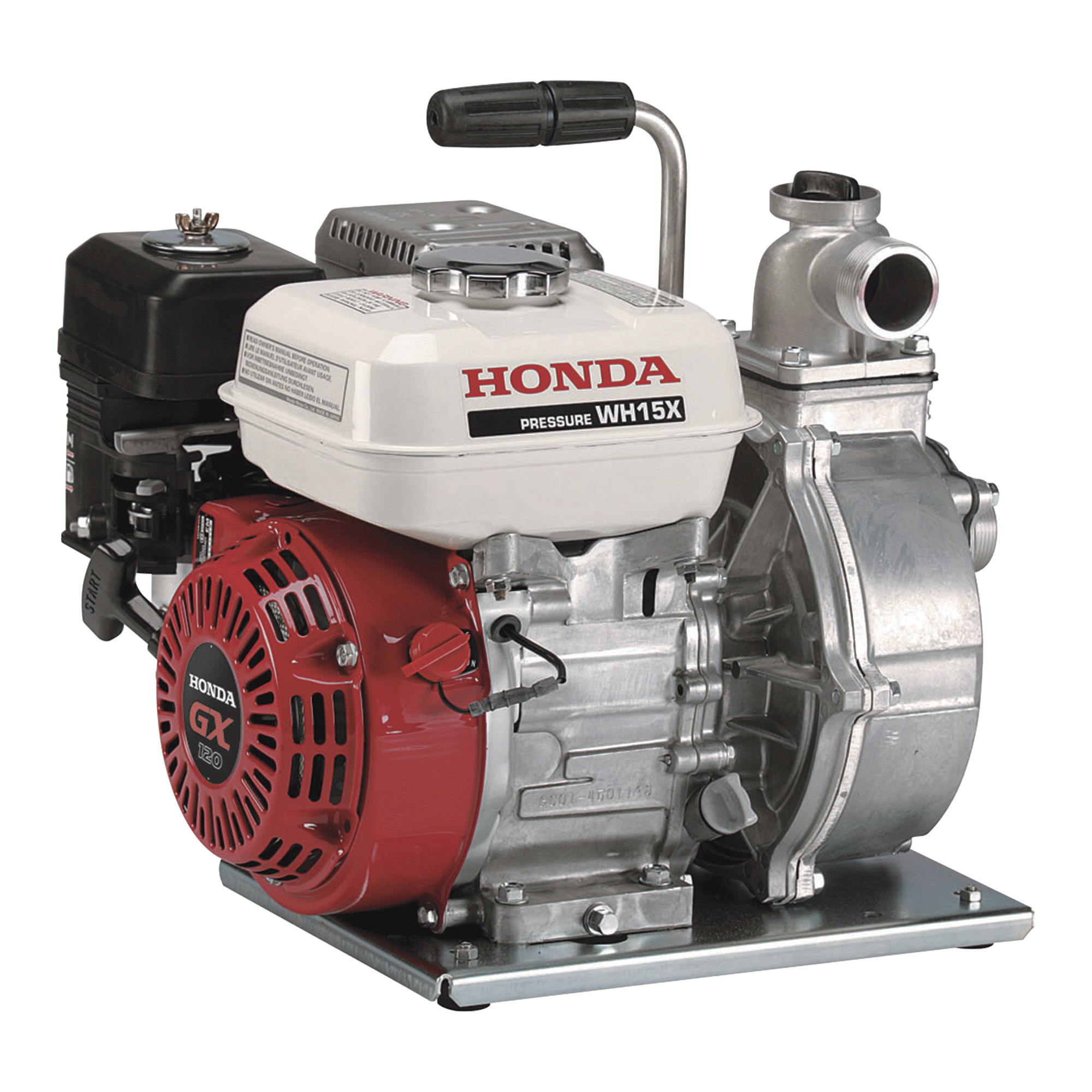

Honda Self-Priming High Pressure Pump, 5,880 GPH, 55 PSI, 1 1/2in. Ports, 120cc Honda GX120 Engine, Model# WH15XT2A
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Durable 118cc Honda GX120 series commercial-grade engine is easy starting and provides ample power for the toughest conditions
- Maximum pressure of 55 PSI, perfect for high-pressure applications like sprinklers and nozzles
- Rigid-mount cast iron volute reduces case wear, increasing the life of the pump
- Handle makes the pump easy to transport wherever you need it
- Lightweight aluminum case
Prop 65 Warning: See Details
See full description
-
How much of noise does it produce? (in decibels)
-
Helpful?
-
Honda does not publish sound levels for any water pump models, so no exact figure is available. Actual noise levels will vary a great deal, depending on the throttle speed, length of the discharge hose, and angle of the engine exhaust port. -Robert@Honda
Helpful?
-
-
What is the Gallons per Hour or per Run, Fuel Consumption?
-
This high-pressure water pump under the best conditions(short suction hose, pump placement is the same elevation as water source, etc.) has a run time of approximately 1-1/2 hours. This water pump has a max output of 6900 gallons per hour. Using a full tank of gas over 1-1/2 hours, its approximate output is 10,350 gallons.
Helpful?
-
-Gionix: The WH15 will move a *maximum* of 115 gallons per minute. Actual rate will be affected by the length of the suction hose, how high up the pump is from the tip of the suction hose, etc. At maximum rate, the 1/2 gallon fuel tank works out to about 1-1/2 hours of run time. That would equal 10,350 gallons. Again, that the max, your results will will vary. -Robert@Honda
Helpful?
-
-
Is there a psi/gpm performance graph for this pump
-
There is a link on the product page for this. Please look below the product manual PDF to view this graph.
Helpful?
-
Yes, here's a link that shows the performance plot: http://tinyurl.com/no6cmh2 -Robert@Honda
Helpful?
-
-
Can we get the safety bars/rack with this pump?
1 answer-
A roll cage or rack is not available for the pump.
Helpful?
-
-
Where is this pump made?
1 answer-
This Honda pump is manufactured in Japan.
Helpful?
-
-
What is the maximum head lift
1 answer-
The suction head lift is 26 feet and the total head lift is 131 feet.
Helpful?
-
-
Shipping weight is 49 pounds, but how much does the pump itself weigh?…I’m packing it in the mountains. Thanks!
1 answer-
The dry weight will be 49 pounds.
Helpful?
-
-
Does the suction screen have a check valve, foot valve, or clapper, so the water you pour into the pump does'nt go back into the pond???
1 answer-
The suction screen has a check valve.
Helpful?
-
-
Does the pump lose pressure as the hose gets longer and longer?
1 answer-
As the pump head increases, the pressure will decrease. The length, type and size of the suction and discharge hoses will effect the output of the pump.
Helpful?
-
-
Are adaptors required for JGB 1 1/2 intake/discharge hoses listed below?
Do the JGB 1 1/2 suction and discharge hoses listed below hook up directly to this pump or are adaptors required? If adaptors are required, what types and where can I get them?
1 answer-
This pump has National Pipe Straight Hose (NPSH) ports. Please view hoses item 49632 and 49489. These do not require an adapter to connect to this pump
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Engine Driven High Pressure Pumps
See All Honda Power Equipment Engine Driven High Pressure Pumps
Currently Viewing This Product
Item # 109407
Shipping: Sold Out
Specifications
Specifications
Honda Self-Priming High Pressure Pump, 5,880 GPH, 55 PSI, 1 1/2in. Ports, 120cc Honda GX120 Engine, Model# WH15XT2A
IPT Self-Priming Single-Stage High-Pressure Pump, 390cc Honda GX390 Engine, 11,000 GPH, 100 PSI, 2-1/2in., Model# 25FP13HR
IPT Self-Priming Two-Stage High-Pressure Pump, 390cc Honda GX390 Engine, 8400 GPH, 139 PSI, 1-1/2in., Model# 2MP13HR
IPT Replacement High Pressure Pump, For Item#s 10997 and 109970, 7,800 GPH, 2in. Ports, Model# 2P5
Max. Flow
Same
5,880 GPM
195 GPM
8,400 GPM
120 GPM
Engine Displacement
Same
118 cc
390 cc
390 cc
0 cc
Port Size
Same
1.5 in
2.5 in
2 in
2 in
Self-Priming
Same
Yes
Yes
Yes
Yes
Max. PSI
Same
55 PSI
100 PSI
139 PSI
-
Housing Material
Same
Aluminum
Aluminum
Cast Aluminum
Cast Aluminum
Product Weight
Same
lb
lb
lb
-
Dimensions L x W x H (in.)
Same
16.3 x 14.2 x 16.3 in
32.0 x 32.0 x 26.0 in
31.0 x 23.0 x 24.0 in
-
Engine Brand
Same
-
Honda
Honda
-
Fuel Tank Capacity
Same
-
1.6 Gal
1.6 Gal
-
Max. Working Temperature
Same
-
200 °F
200 °F
-
Engine Model
Same
-
Honda GX390
-
-
