The wheel and handle kit part# HC50130YG1000AH is available through our sister company Jack's Small Engines. Please visit www.jackssmallengines.com for pricing and availability.

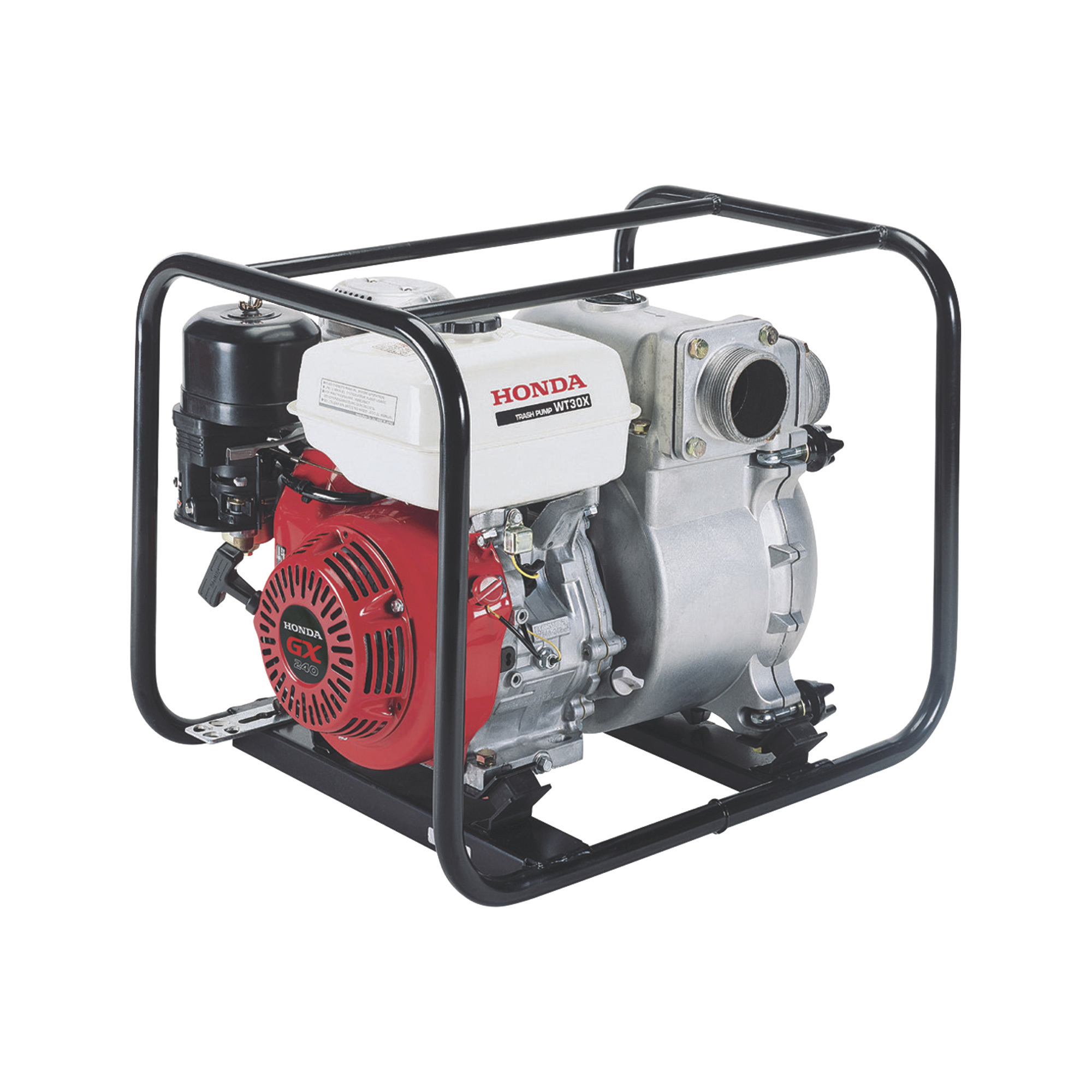

Honda Self-Priming Construction Full Trash Pump, 3in. Ports, 19,020 GPH, 1 1/16in. Solids Capacity, 270cc Honda GX270 Engine, Model# WT30XK4A
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1699.00
- Durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions
- Heavy duty full frame protection protects the pump, while offering a convenient tie down location for transport
- Easy access service port makes clean-out quick
- Replaceable stainless steel wear plate increases durability while reducing maintenance costs
- Includes a convenient multi-tool for easy removal and installation of the pump case, for tightening and removal of the priming plug and drain plug and for tightening and removal of the hose coupling
Prop 65 Warning: See Details
See full description
Price for all three:
$1911.98
-
Is there a wheel and handle kit available for this pump?
I have seen other honda pumps of the same design that have a kit with two wheels and two handles to make it one man portable. I read the manual and checked the accessories tab but didn't find an answer.
-
Helpful?
-
There is a Honda wheel kit available for this pump. Please contact our Parts Department at 1-800-222-5381 for price and availability on part number HC50130YG1000AH.
Helpful?
-
-
Fuel Efficiency
How many gallons per hour of fuel will this pump use?
-
The Honda self-priming construction trash water pump will get about 0.93 gallons per hour
at full capacity.Helpful?
-
The Honda WT30XK4 has a fuel capacity of 1.4 gallons, and when running a maximum discharge (wide open throttle) it will run for about 1.5 hours, so that works out to 0.93 gallons per hour.
-Robert@HondaHelpful?
-
-
can this be hooked up to fuel tank to extend run time
1 answer-
The water pump could not be connected to an additional fuel tank to extend run time.
Helpful?
-
-
How do these hold up with transferring saltwater?
1 answer-
This should not be used with sea water. That can cause corrosion which may cause damage to the pump.
Helpful?
-
-
What does the "K4A" mean in the model number?
1 answer-
“K” is just a letter, the number after that means what rendition. The “A” means it’s designated for sale in America.
Helpful?
-
-
Would this pump work better than a diaphragm pump for pond muck that may have an occasional rock imbedded in the muck?
1 answer-
The full trash pump can be used to remove sludge or muck and can handle solids up to 1 1/6".
Helpful?
-
-
Can this pump run dry without water? I have a tunnel full of wet corn needing pumped out. Looking at this as an investment specifically for that use. And if it has to have water would running water to the trash being picked up via garden hose work?
1 answer-
This pump needs a constant flow of water from a water source (tank, lake, stream, etc.) when operating. Running water to the trash being picked up may not provide enough water to keep the pump cool enough for operation. Running this dry or without enough water flow could also cause the unit to overheat causing damage to the pump and it's components.
Helpful?
-
-
Would this pump be able to handle sewage.
1 answer-
The pump is suited for muddy water and sludge. The solids capacity is 1-1/16".
Helpful?
-
-
I need a trash pump that can lift pond water 30 feet vertically and over a distance of 120 feet maximum. Based on the specs and pump curve I think this pump can do that. Am I correct?
1 answer-
This pump has a maximum suction lift of 26'. That would be the vertical distance. It has a max total head of 82'. At this time, we do not offer a full trash pump that has the maximum lift and total head required for the application.
Helpful?
-
-
Can this be used to transfer water base liquid asphalt at about 150 degrees
1 answer-
The pump would not be recommended to be used with liquid asphalt.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Engine Driven Full Trash Pumps
See All Honda Power Equipment Engine Driven Full Trash Pumps
Currently Viewing This Product
Specifications
Specifications
Honda Self-Priming Construction Full Trash Pump, 3in. Ports, 19,020 GPH, 1 1/16in. Solids Capacity, 270cc Honda GX270 Engine, Model# WT30XK4A

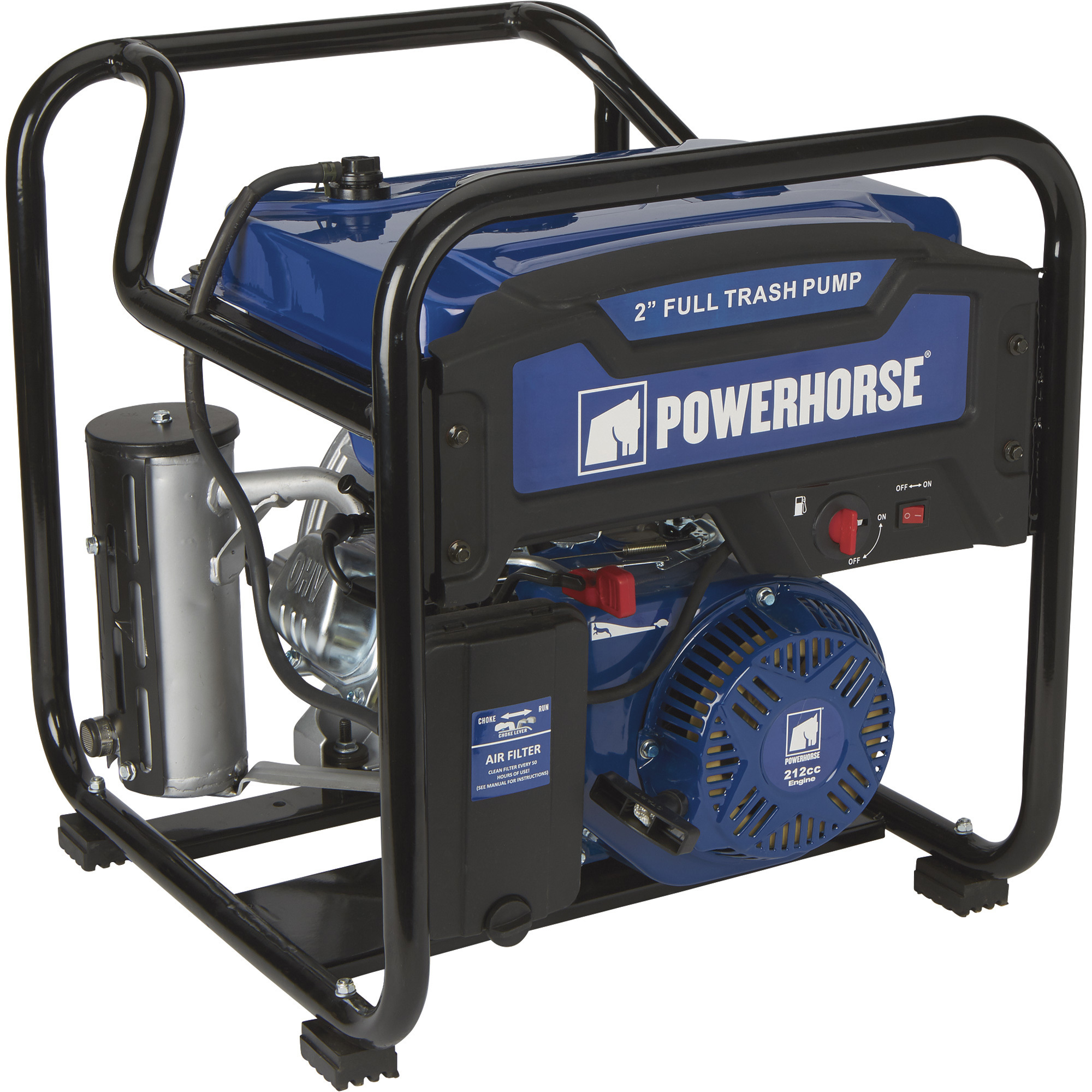

Powerhorse Extended Run Full Trash Pump, 2in. Ports, 11,000 GPH, 3/4in. Solids Capacity, 212cc OHV Engine, Model# DS20W

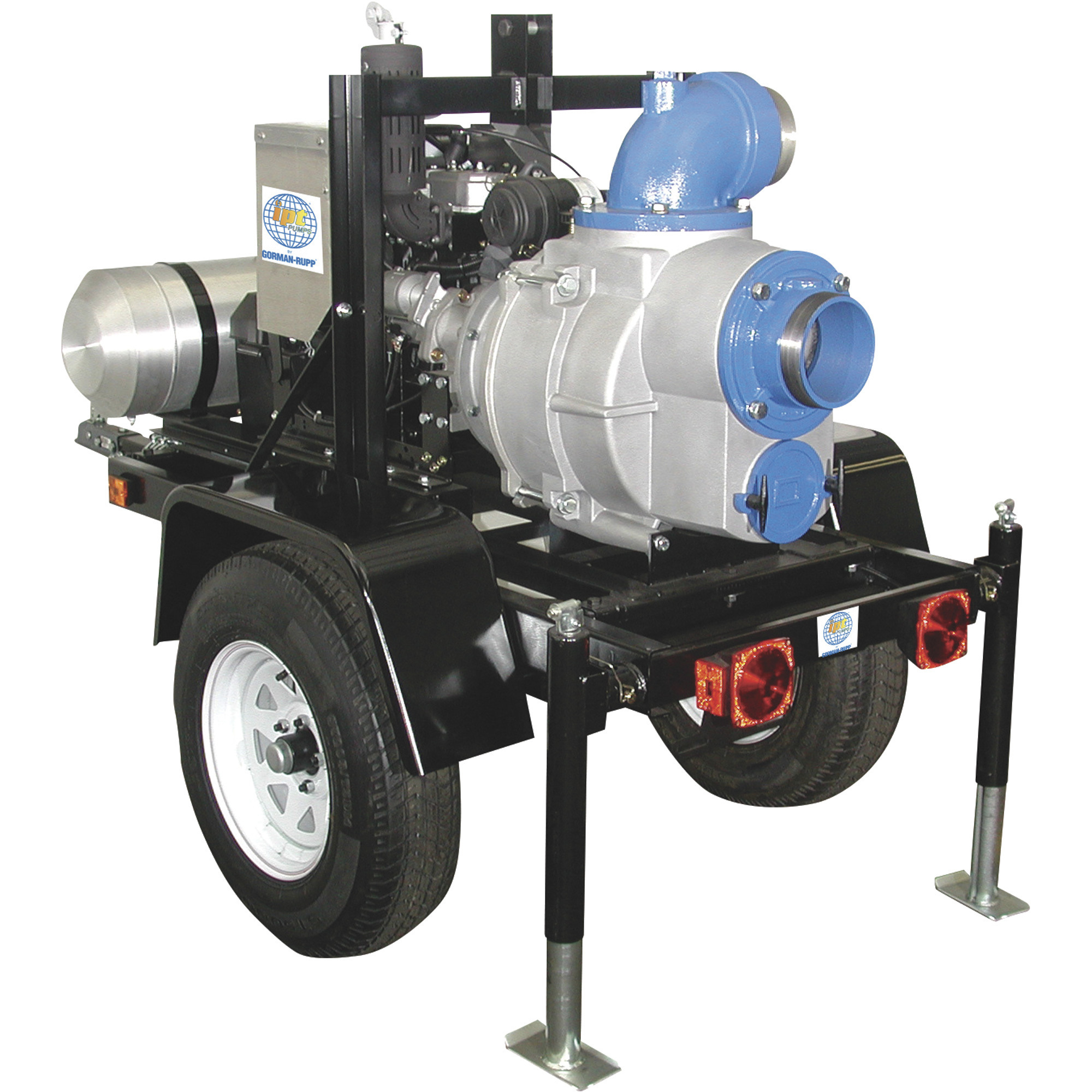

IPT Self-Priming Full Trash Pump, 6in. Ports, 60,000 GPH, 3in. Solids Capacity, 660cc Honda GX660 Engine, Model# 5581-IPT-96
Gol Full Trash Pump, 2in. Ports, 9,245 GPH, 196cc Engine, Model# TG20
Max. Flow
Same
19,020 GPM
11,000 GPM
1,000 GPM
9,245 GPM
Engine Displacement
Same
270 cc
212 cc
660 cc
196 cc
Port Size
Same
3 in
-
6 in
3 in
Self-Priming
Same
Yes
Yes
Yes
Yes
Solids Capacity
Same
1.06 in
0.75 in
3 in
0.55 in
Max. PSI
Same
39 PSI
42 PSI
-
43 PSI
Fuel Tank Capacity
Same
1.4 Gal
3.35 Gal
12 Gal
0.68 Gal
Product Weight
Same
lb
lb
lb
75.0000 lb
Dimensions L x W x H (in.)
Same
26.0 x 19.5 x 20.31 in
21.0 x 19.1 x 20.25 in
93.0 x 52.0 x 49.0 in
21.0 x 19.5 x 19.1 in
Max. Horsepower
Same
-
6 HP
24 HP
6 HP
Housing Material
Same
-
Aluminum
Cast Aluminum
-
Engine Model
Same
-
-
Honda GX690
-
