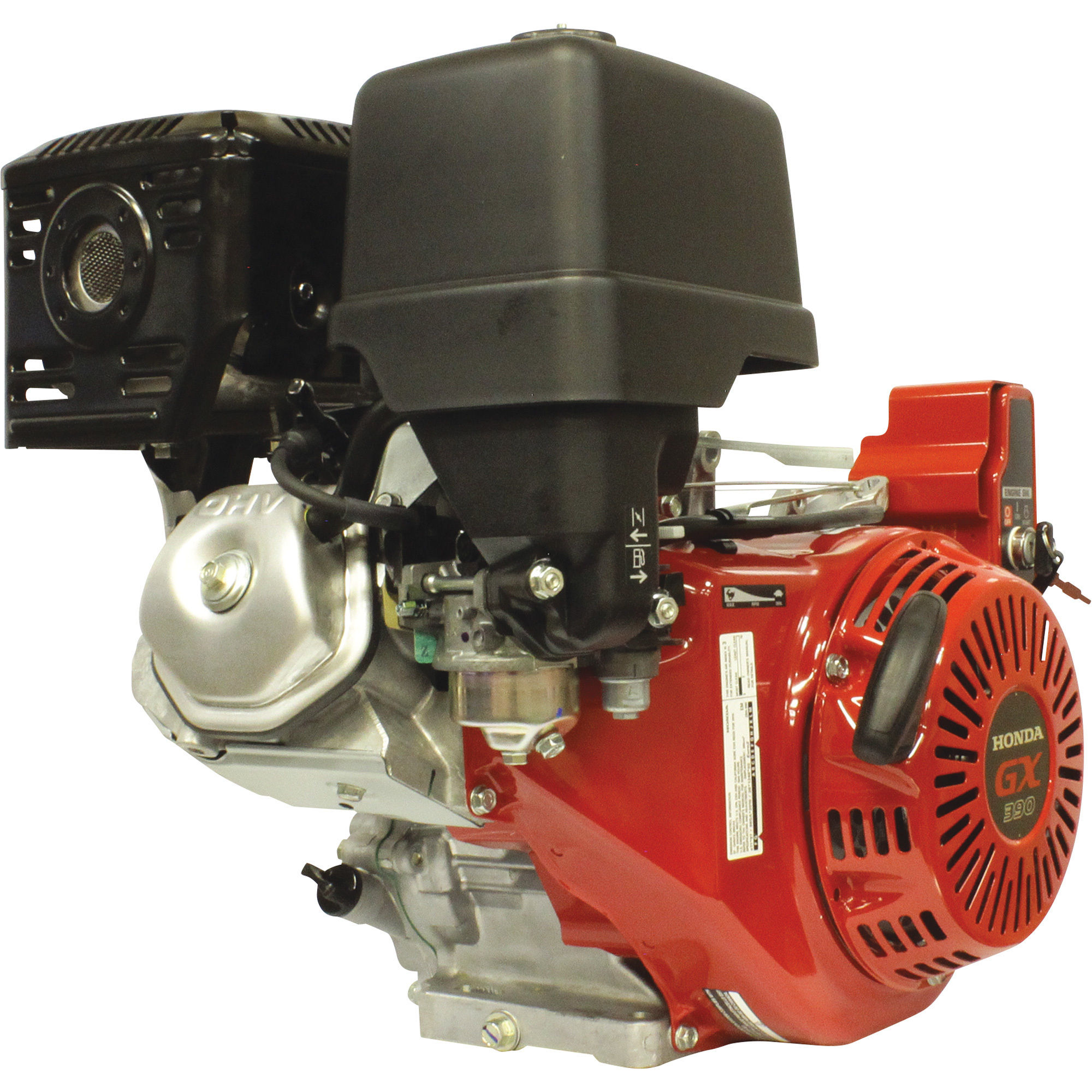

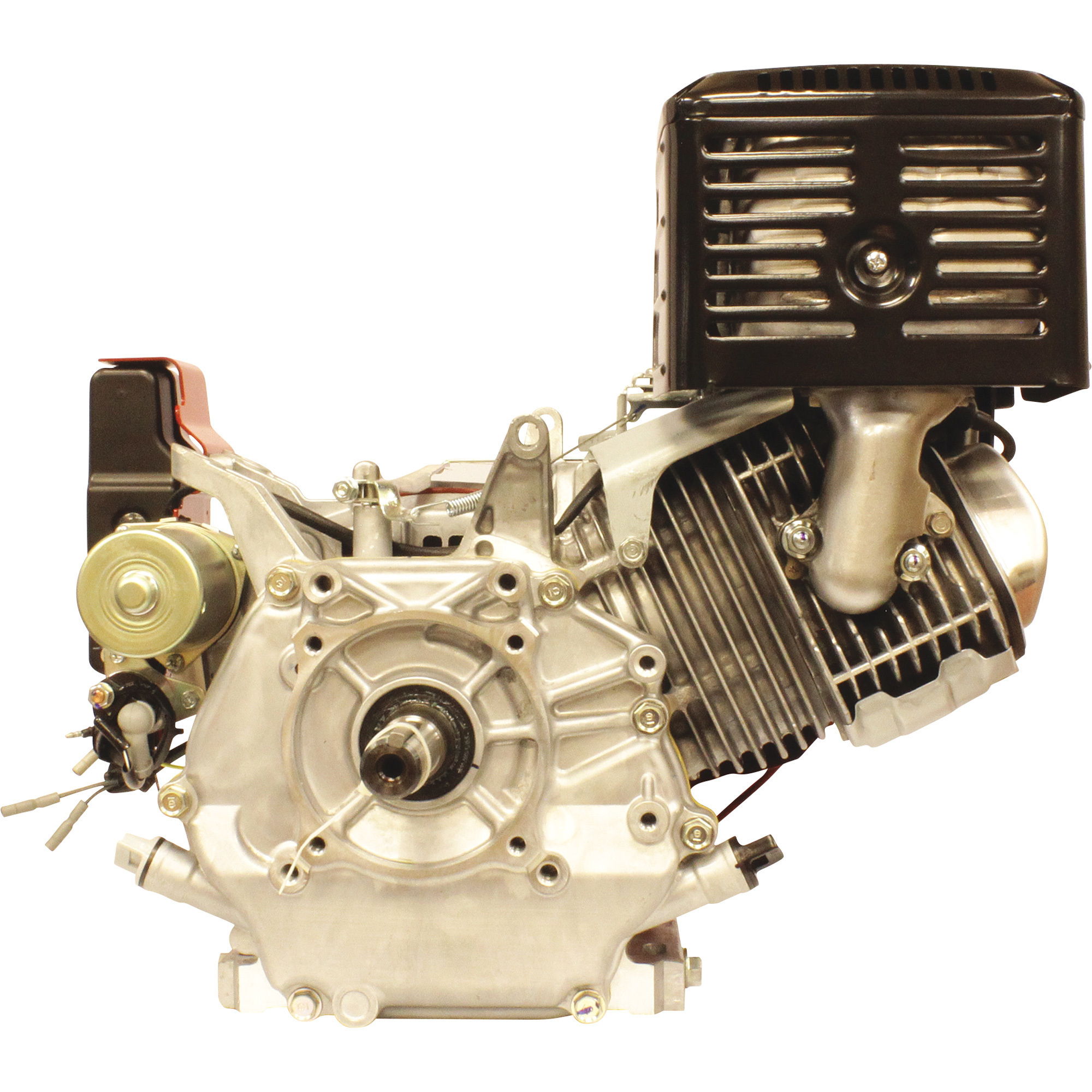

Honda Engines, HONDA 389CC ES 3 AMP W/O TANK, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390RT2QAGN

Item# 102893
Honda Engines, HONDA 389CC ES 3 AMP W/O TANK, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390RT2QAGN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 389CC ES 3 AMP W/O TANK, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390RT2QAGN

Click or Tap image to Zoom

$979.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Honda 389cc GX OHV air-cooled, 4-stroke, horizontal engine
  • Fuel efficient, high-output operation with precision camshaft design and a high-compression ratio
  • OHV design delivers increased efficiency and optimal power transfer
  • Digital CDI ignition system with variable timing
  • Smooth performance and reduced vibration from precision-balanced crankshaft and reduced piston weight

See full description

Complete Your Solution

  • Honda Engines, HONDA 389CC ES 3 AMP W/O TANK, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390RT2QAGN
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$981.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 389cc GX Series OHV commercial-grade 4-stroke air-cooled engine is designed for the most demanding applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cool, fuel-efficient operation and a cast iron cylinder sleeve provides long service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. The perfect choice for use with select pressure washers and more. Ideal engine replacement for the NorthStar® hot water pressure washer (Item# 157117, sold separately).

What's Included

    (1) Engine, Model# GX390RT2QAGN

Downloads

Product Manual

Features + Benefits

  • Honda 389cc GX OHV air-cooled, 4-stroke, horizontal engine
  • Fuel efficient, high-output operation with precision camshaft design and a high-compression ratio
  • OHV design delivers increased efficiency and optimal power transfer
  • Digital CDI ignition system with variable timing
  • Smooth performance and reduced vibration from precision-balanced crankshaft and reduced piston weight
  • Ball bearing-supported crankshaft offers greater stability
  • Aluminum push roads reduce both valve clearance and noise level
  • Muffler, breather valve, case cover, air intake system, rigid crankcase, helical-cut gears and lightweight materials are also designed to reduce noise level
  • Oil alert protects engine
  • Carburetor coating and filter help protect fuel from impurities
  • Cast iron cylinder sleeve
  • Reliability comes from high-quality materials, fit and finish
  • Dual-element air cleaner keeps engine running clean
  • Easy to use and maintain with simple throttle control, large fuel tanks, wide-mouth automotive-style fuel cap, dual oil fills and drains, easy-to-use control box and easily accessible spark plug
  • Get quick starts with the heavy-duty recoil starter with ergonomic design and automatic decompression system
  • Fuel tank and battery cables not included
  • 49-state compliant engine
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

102893

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

90.0 LB

Engine Displacement

389 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

1 in

Fuel Type

Gasoline

Start Type

Electric and Recoil

Shaft Keyway

0.25 in

Crankshaft

Q-type

PTO Height

5.25 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Compression Ratio

8.2:1

Low Oil Shutdown

Yes

Low Oil Alert

Yes
AttributeSpecification

Max. RPM

3,600

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float and External Vent

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Remote

Charging System Amps

3

Muffler Included

Yes

Product Weight

75.0000 lb

Dimensions L x W x H (in.)

15.87 x 17.68 x 17.37 in
