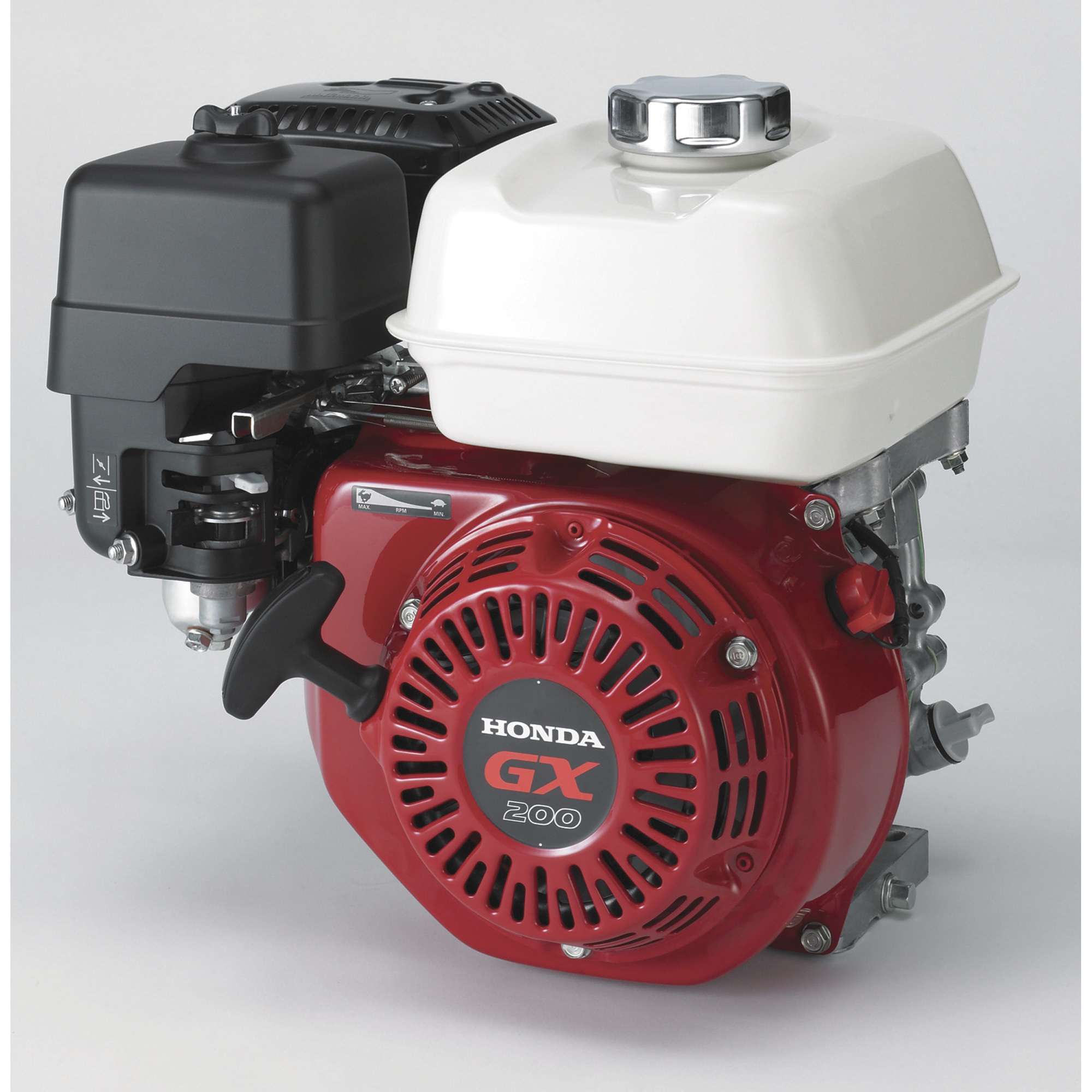

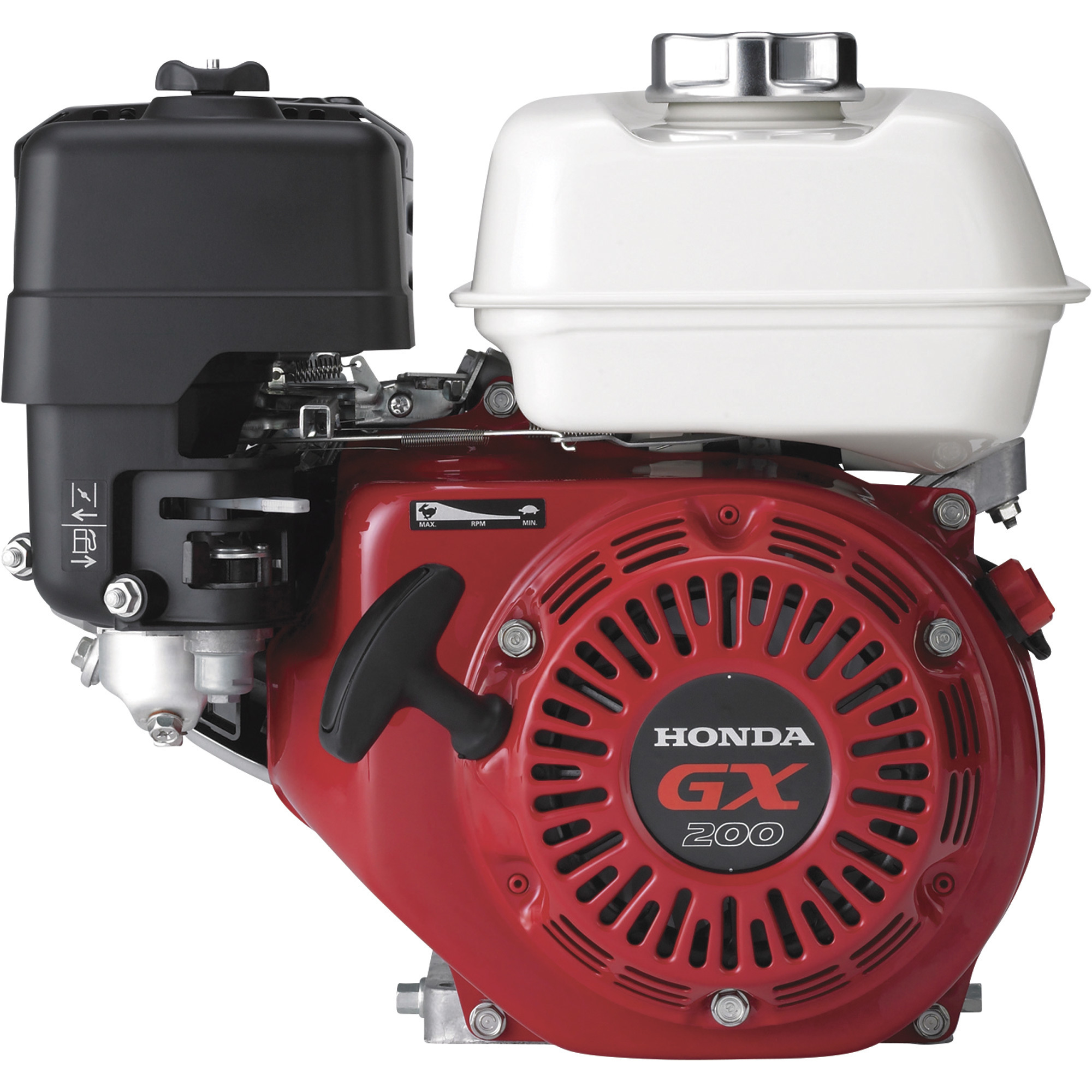

Honda Engines, HONDA GX200 OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX200UT2XRH2

Name: Honda Engines, HONDA GX200 OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX200UT2XRH2
Brand: Honda Engines
SKU: 605990

Item# 605990

Honda Engines, HONDA GX200 OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX200UT2XRH2

Click or Tap image to Zoom

$769.99

Quantity

Save to List

Shipping:
Factory shipped
Store Pickup:
Not available - online only

Automatic decompression for easy starting
Heavy-duty ball bearing supported crankshaft
Double walled heavy-duty tank with in tank fuel strainer
50-state compliant engine

See full description

Complete Your Solution

Price for all four:

$847.96

Frequently Bought Together

This Item: Honda Engines, HONDA GX200 OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX200UT2XRH2$769.99
Honda Power Equipment 10W-30 Motor Oil, 1-Qt. BottleSee Sale Price in Cart
Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT3$32.99
Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1010-C.DRA$34.99

Product Summary

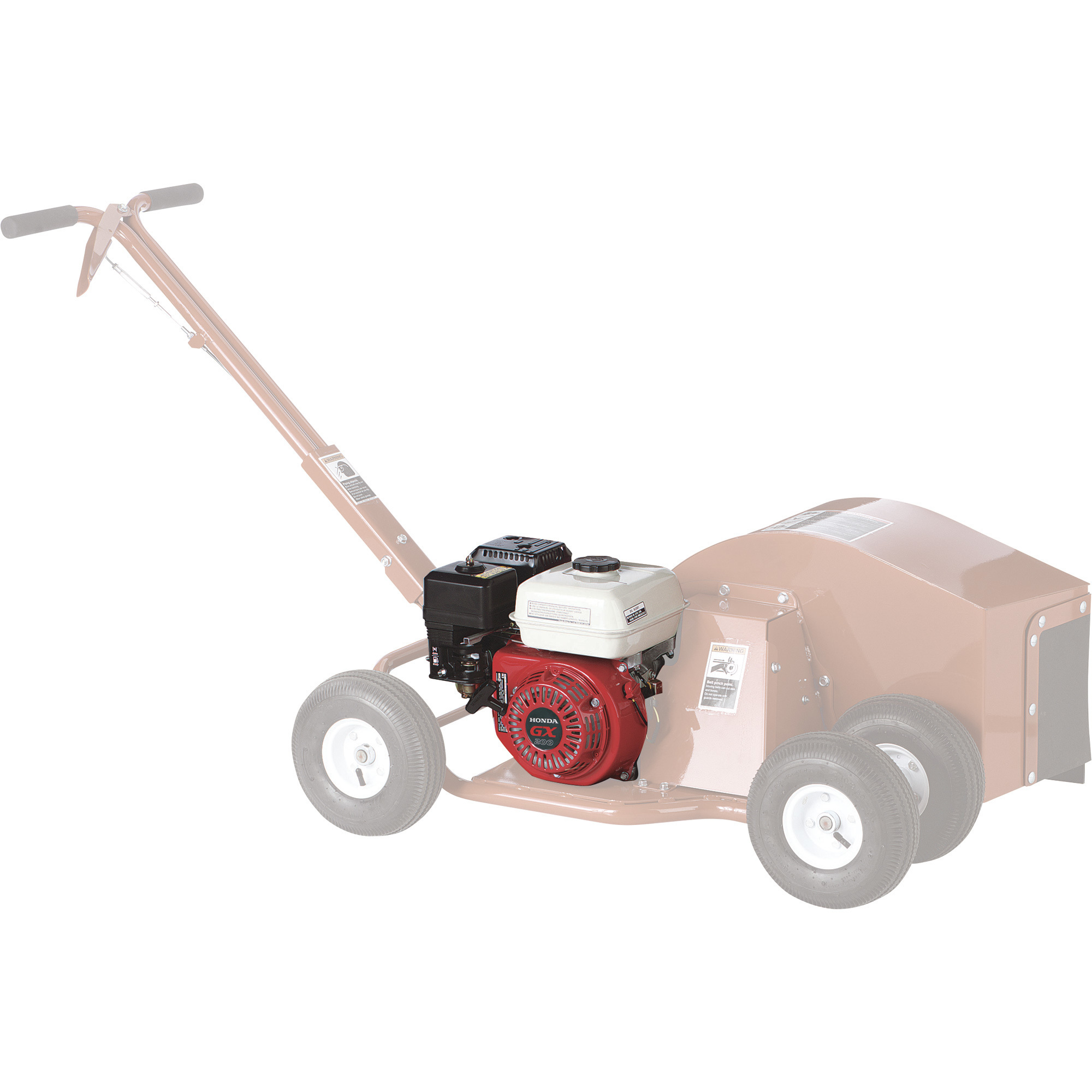

The Honda 196cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include go-karts and farm equipment.

What's Included

(1) Engine, Model# GX200UT2RH2

Downloads

Product Manual

Additional Product Info

Features + Benefits

Automatic decompression for easy starting
Heavy-duty ball bearing supported crankshaft
Double walled heavy-duty tank with in tank fuel strainer
50-state compliant engine

Key Specs

Attribute	Specification
item#	605990
Brand	Honda Engines
Manufacturer's Warranty	3 year limited warranty
Ship Weight	52.0 LB
Engine Displacement	196 cc
Engine Type	GX Series OHV Commercial-duty
Shaft Diameter	7/8 in
Shaft Diameter Metric	22 mm
Shaft Length	2.09 in
Start Type	Recoil
Shaft Keyway	0.25 in
Net Torque	9.1 ft-lbs.
Crankshaft	R-type
PTO Height	4.17 in
Cylinders (qty.)	1
Cylinder Bore	Cast Iron
Net Power Output	5.5 HP

Attribute	Specification
Compression Ratio	8.5:1
Fuel Tank	Yes
Fuel Tank Capacity	3.3 qt
Oil Capacity	0.63 qt
Shaft Rotation (From PTO Shaft Side)	Counter Clockwise
Governor System	Centrifugal Mechanical
Ignition System	Splash
Carburetor	Float
Lubrication System	Splash
Auto Compression Release	Yes
Cooling System	Air
Bore	2.7 in
Stroke	2.1 in
Air Cleaner Type	Dual Element
Choke Control	Manual
Throttle Control	Remote
Muffler Included	Yes

Reviews

Questions & Answers

: 3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions

5 years ago

Is the throttle set up where you can run remotely

1 answer
1. ProductExpert10

  5 years ago

  This model would not use remote start.

  Helpful?
5 years ago

What it the thread size of the internal hole in the end of the horizontal shaft.

1 answer
1. ProductExpert38

  5 years ago

  The crankshaft end tapped size is M8 x 1.25.

  Helpful?
15 years ago

with the 2:1 reduction what is the max rpm at the output shaft?

1 answer
1. ProductExpert5

  15 years ago

  This Honda horizontal engine with 2:1 gear reduction has a maximum of 1,925 RPM at the output shaft.

  Helpful?

Accessories We Recommend

See All Motor Oil + Transmission Fluids

4.9 out of 5 stars. 176 reviews

Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle

Item # 1707002

See Sale Price in Cart

Reg $12.99

See All Small Engine Maintenance Kits

Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT3

4.4 out of 5 stars. 212 reviews

83 of 212 reviewers received a sample product or took part in a promotion

Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT3

Item # 701173

$32.99

See All Misc. Accessories

4.9 out of 5 stars. 21 reviews

Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1010-C.DRA

Item # 7011545

$34.99

See All Hour Meters + Gauges

4.2 out of 5 stars. 35 reviews

GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005

Item # 160595

$37.99

Warranty

Manufacturer's Warranty

3 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Horizontal Engines

See All Horizontal Engines

See All Honda Engines Horizontal Engines

Currently Viewing This Product
Honda Engines, HONDA GX200 OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX200UT2XRH2
Item # 605990
$769.99
- Shipping:
  Factory shipped
- Store Pickup:
  Not available - online only
Save to List
Honda Engines, HONDA V-TWIN HORIZ 630CC HXQZB3 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQZB3
Item # 43824
$2089.99
- Shipping:
  Factory shipped
- Store Pickup:
  Not available - online only
Save to List
Honda Engines, HONDA GC160 ENGINE - BLACK, Engine Displacement 160 cc, Engine Type GC Series OHC Residential-duty, Shaft Diameter 3/4 in, Model# GC160LAMHAB-BLK
Item # 44253
$299.99
- Shipping:
  Factory shipped
- Store Pickup:
  Not available - online only
Save to List
Honda Engines, HONDA GX270 6:1 ELECTRIC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HEA2
Item # 60967
$1219.99
- Shipping:
  Factory shipped
- Store Pickup:
  Not available - online only
Save to List

Specifications

Highlight Differences

Honda Engines, HONDA GX200 OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX200UT2XRH2

Honda Engines, HONDA V-TWIN HORIZ 630CC HXQZB3 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQZB3

Honda Engines, HONDA GC160 ENGINE - BLACK, Engine Displacement 160 cc, Engine Type GC Series OHC Residential-duty, Shaft Diameter 3/4 in, Model# GC160LAMHAB-BLK

Honda Engines, HONDA GX270 6:1 ELECTRIC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HEA2

Engine Displacement

196 cc

688 cc

160 cc

270 cc

Engine Type

GX Series OHV Commercial-duty

GX Series OHV V-twin Commercial-duty

GC Series OHC Residential-duty

GX Series OHV Commercial-duty

Shaft Diameter

7/8 in

1 in

3/4 in

1 in

Shaft Diameter Metric

22 mm

Shaft Length

2.09 in

2.9 in

1.89 in

3.23 in

Start Type

Recoil

Electric

Recoil

Electric and Recoil

Shaft Keyway

0.25 in

0.18 in

0.25 in

Net Torque

9.1 ft-lbs.

35.6 ft-lbs.

6.9 ft-lbs.

14.1 ft-lbs.

Crankshaft

R-type

Q-type

M-type

H-type

PTO Height

4.17 in

5.25 in

4.17 in

5.25 in

Cylinders (qty.)

Cylinder Bore

Cast Iron

Aluminum

Cast Iron

Net Power Output

5.5 HP

20.8 HP

4.6 HP

8.5 HP

Compression Ratio

8.5:1

9.3:1

8.5:1

Fuel Tank

Yes

Fuel Tank Capacity

3.3 qt

1.9 qt

5.6 qt

Oil Capacity

0.63 qt

2.1 qt

0.61 qt

1.16 qt

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Mechanical

Centrifugal Mechanical

Ignition System

Splash

Electrical, Digital CDI W/variable Ignition Timing

Electronic

Carburetor

Float

2 Barrel, Fuel-cut Solenoid, Inner Vent

Float

Float, External Vent

Lubrication System

Splash

Forced Lubrication

Splash

Auto Compression Release

Yes

Cooling System

Air

Bore

2.7 in

3.1 in

2.5 in

3 in

Stroke

2.1 in

2.8 in

2 in

2.3 in

Air Cleaner Type

Dual Element

Single Element

Dual Element

Choke Control

Manual

Throttle Control

Remote

Manual

Remote

Muffler Included

Yes

Low Oil Shutdown

Oil Alert

Low Oil Alert

Yes

Bearing Type

Ball

Standard

Fuel Filter

Yes

Charging System Amps
