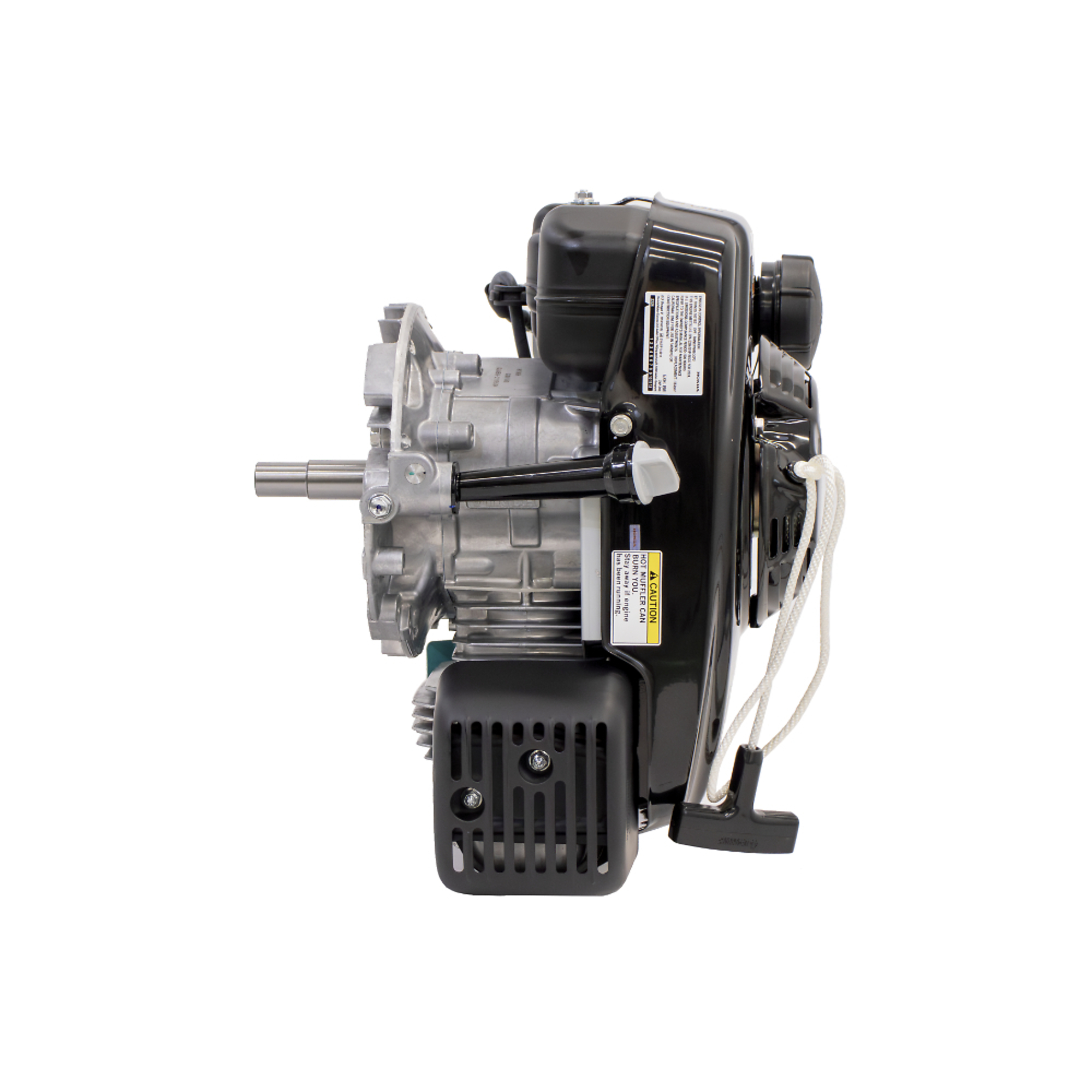

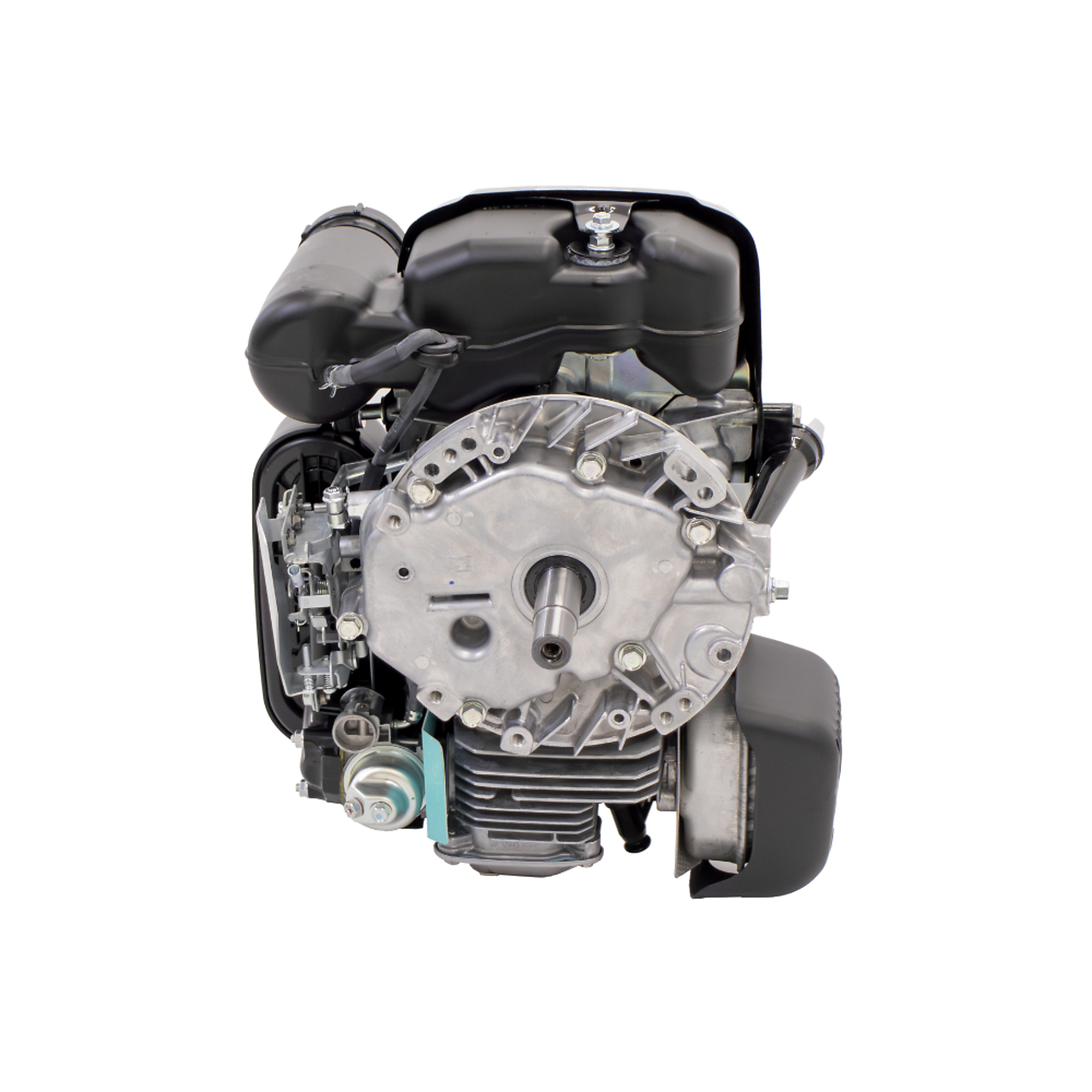

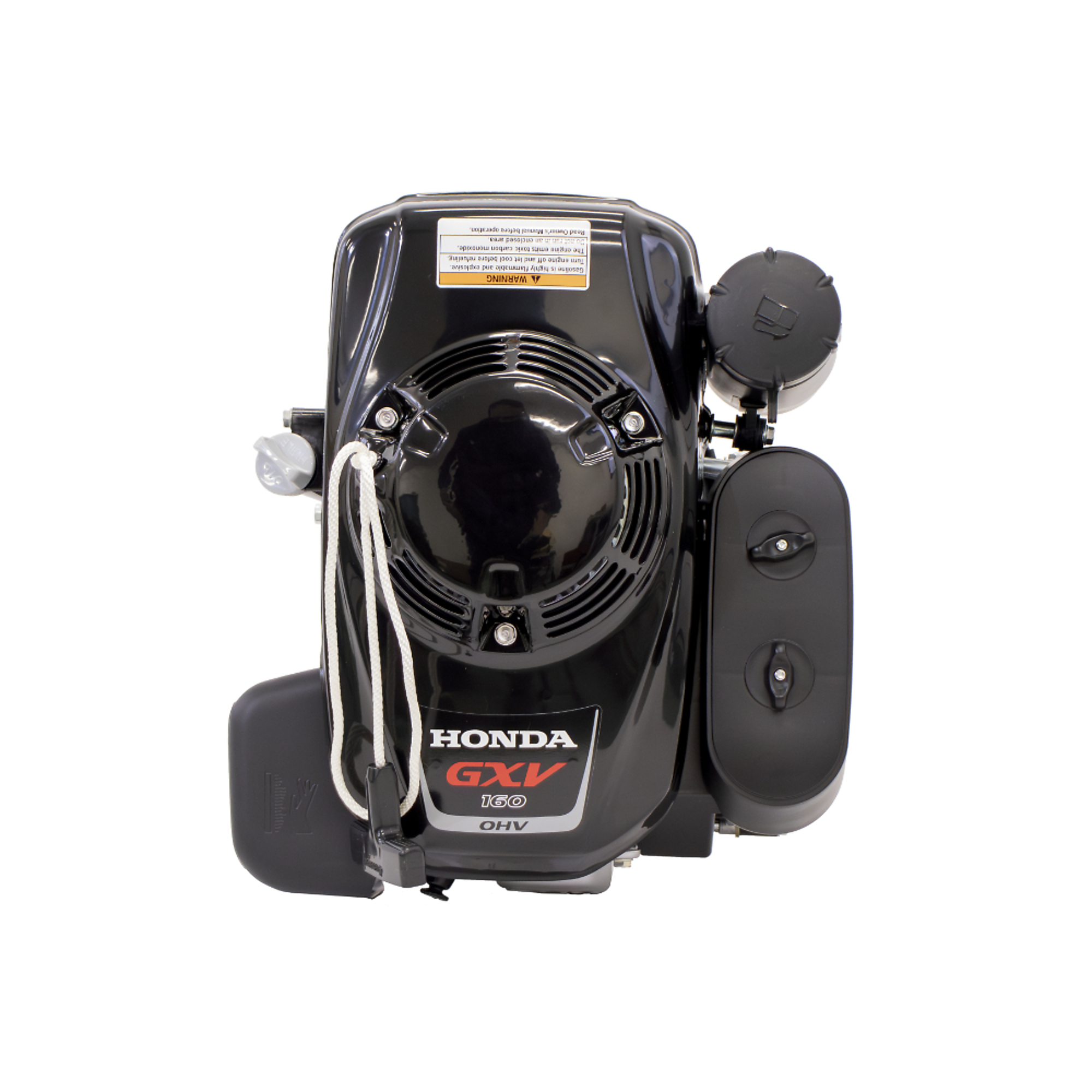

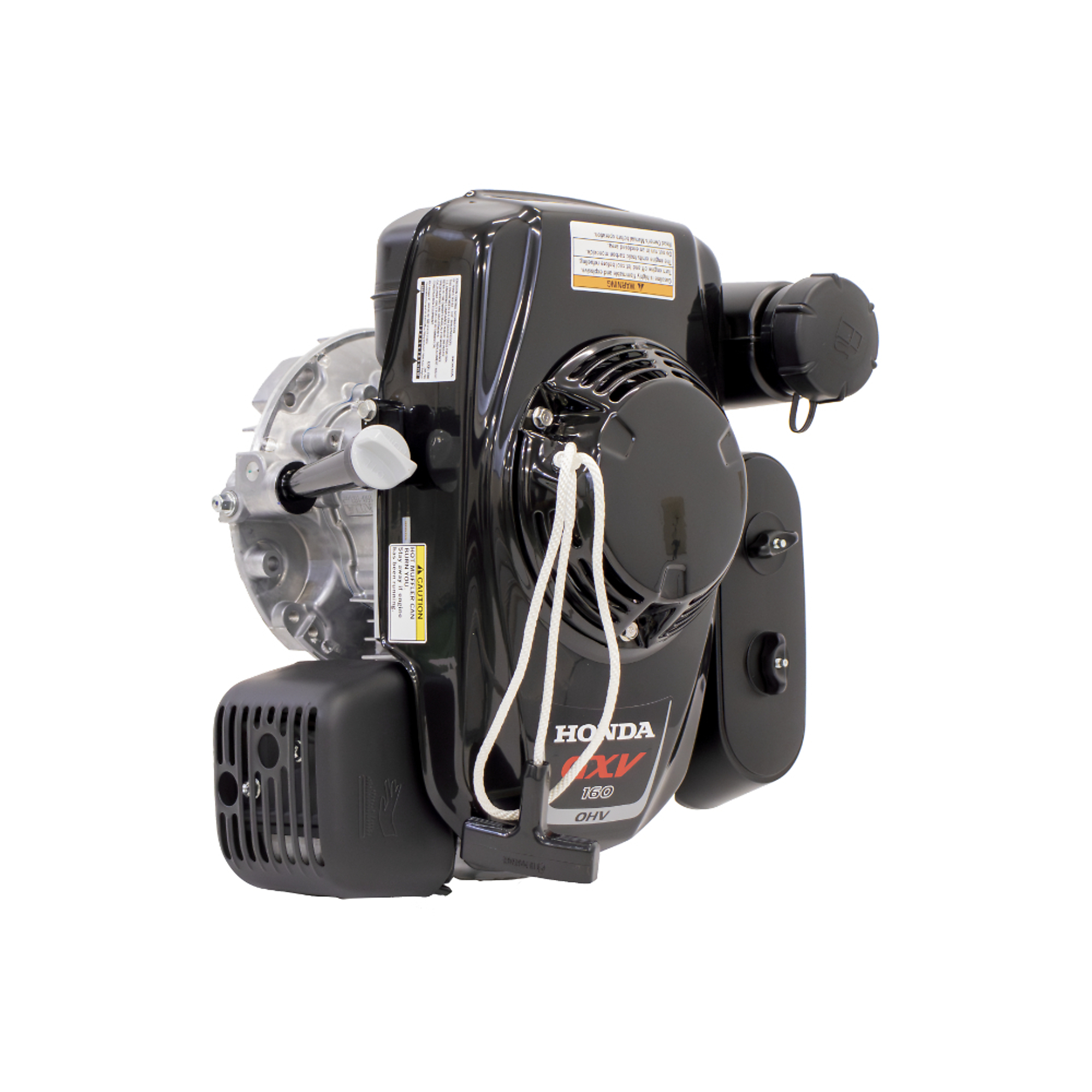

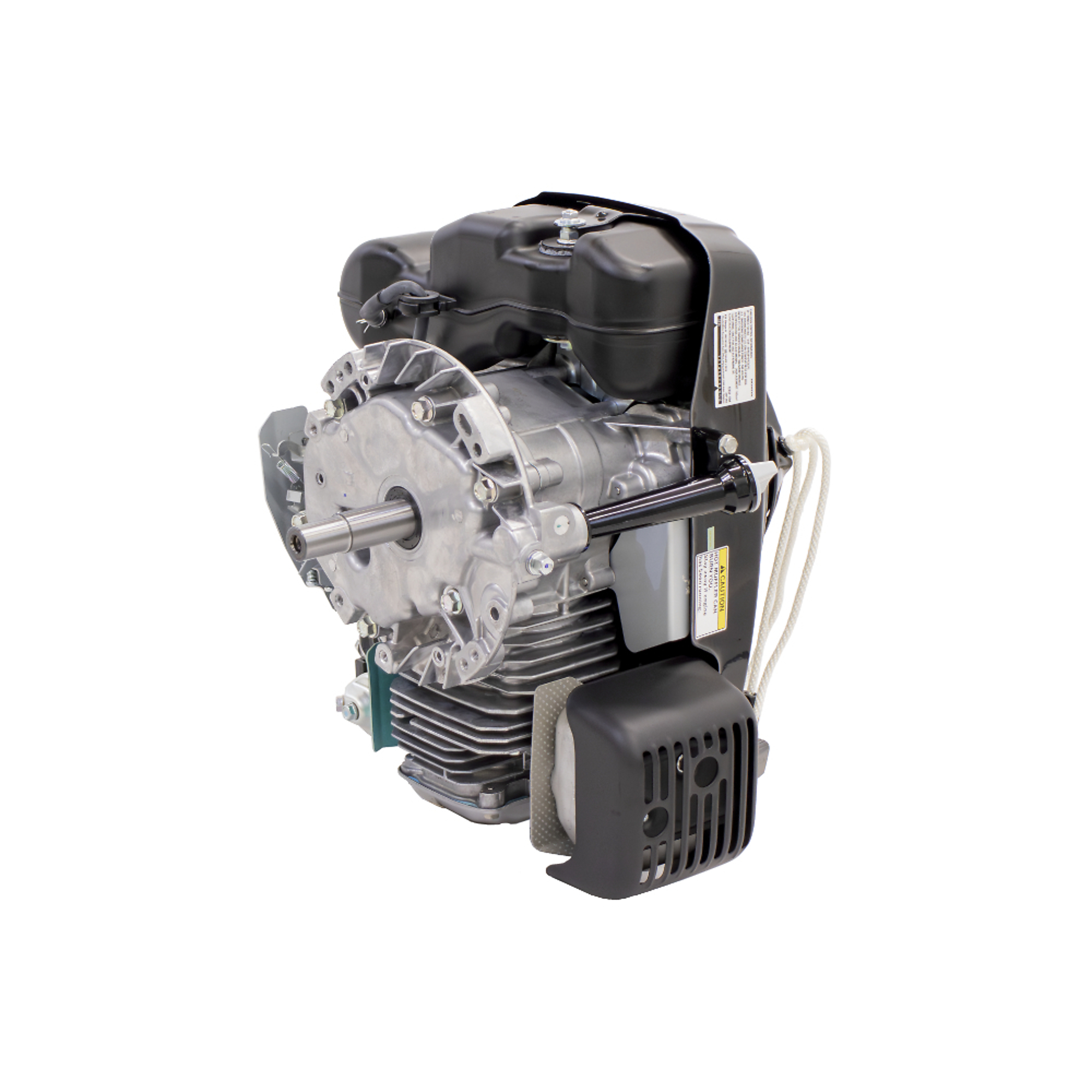

Honda GXV160 OHV Engine — 163cc, Model# GXV160UH2N1XH-BLK

Item# 7113631
Honda GXV160 OHV Engine — 163cc, Model# GXV160UH2N1XH-BLK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda GXV160 OHV Engine — 163cc, Model# GXV160UH2N1XH-BLK

Click or Tap image to Zoom

$571.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fuel Efficient, High Output Operation: Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
  • Smooth Performance: Precision engineered components result in lower vibration
  • Exceptionally Quiet: Large capacity, multi-chamber exhaust system
  • Proven Reliability: High quality materials, fit, and finish
  • Not for sale in California

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Honda’s GXV series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GXV160 lives up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

What's Included

    (1) Engine

Features + Benefits

  • Fuel Efficient, High Output Operation: Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
  • Smooth Performance: Precision engineered components result in lower vibration
  • Exceptionally Quiet: Large capacity, multi-chamber exhaust system
  • Proven Reliability: High quality materials, fit, and finish
  • Not for sale in California

Key Specs

AttributeSpecification

item#

7113631

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

50.0 LB

Engine Displacement

160 cc

Engine Type

Vertical

Shaft Diameter

7/8 in

Shaft Diameter Metric

22.22 mm

Shaft Length

3.15 in

Shaft Length Metric

80.01 mm

Fuel Type

Gasoline

Start Type

Recoil

Net Torque

7.1 ft-lbs.

Crankshaft

N1-Type

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

4.3 HP

Compression Ratio

8.0:1

Fuel Tank

Yes
AttributeSpecification

Fuel Tank Capacity

1.9 qt

Oil Capacity

0.069 qt

Max. RPM

3,600

CARB Approved

No

Governor System

Centrifugal Mass

Ignition System

Transistorized Magneto

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Cooling System

Air

Bore

2.7 in

Stroke

1.8 in

Air Cleaner Type

Dual Element

Choke Control

Remote

Throttle Control

Remote

Fuel Filter

Yes

Muffler Included

Yes

Product Weight

44.0000 lb

Dimensions L x W x H (in.)

16.31 x 14.12 x 13.87 in

Reviews

Questions & Answers

Questions

  1. Does this engine have the same footprint as the gcv 160? Is it a direct replacement for the gcv?

    1 answer

    1. The Honda GXV160 163cc vertical-shaft engine measures approximately 16.31 inches in length, 14.12 inches in width, and 13.87 inches in height. It features a 7/8-inch diameter shaft with a 3.15-inch shaft length and an 8-inch mounting bolt-circle pattern.

      Before considering the GXV160 as a replacement for a GCV160, it is important to verify the exact GCV160 model, shaft diameter and length, crankshaft configuration, blade adapter or pulley, mounting pattern, and available clearance to ensure proper compatibility.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
