Honda Engines, HONDA 160CC VRT OHV ENGINE, Engine Displacement 163 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GXV160UH2A1X2

Item# 70336
"Honda Engines, HONDA 160CC VRT OHV ENGINE, Engine Displacement 163 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GXV160UH2A12"
Honda Engines, HONDA 160CC VRT OHV ENGINE, Engine Displacement 163 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GXV160UH2A1X2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 160CC VRT OHV ENGINE, Engine Displacement 163 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GXV160UH2A1X2

Click or Tap image to Zoom

$539.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Model GXV160UH2A12; 163cc air-cooled, 4-stroke engine with 7/8in.-1in. x 3 3/16in. vertical shaft
  • OHV overhead valve technology
  • Recoil start; flywheel brake
  • Approx. mounting base dim. 8in.
  • Cast iron cylinder

See full description

Complete Your Solution

  • Honda Engines, HONDA 160CC VRT OHV ENGINE, Engine Displacement 163 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GXV160UH2A1X2
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle

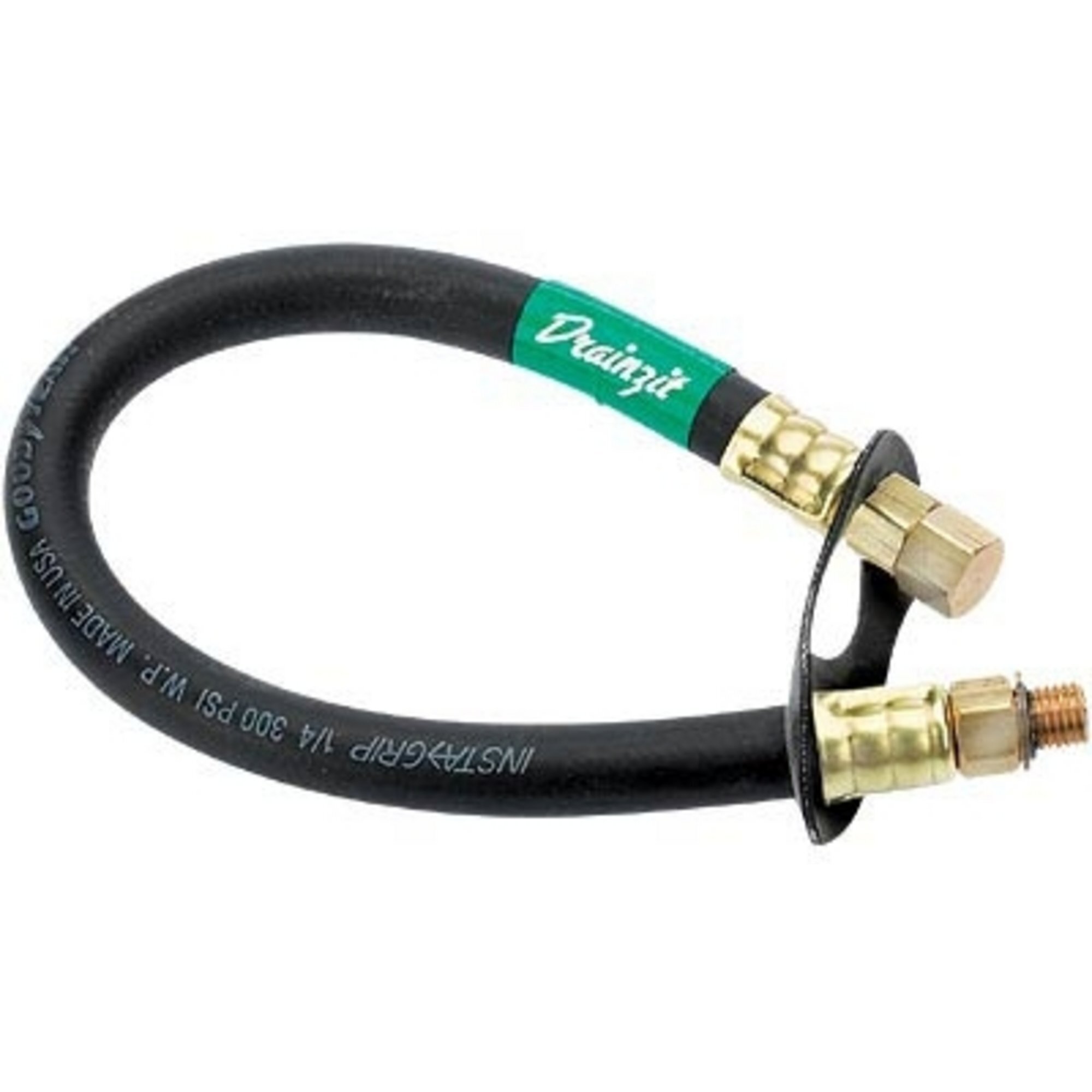

  • Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1420-C.DRA

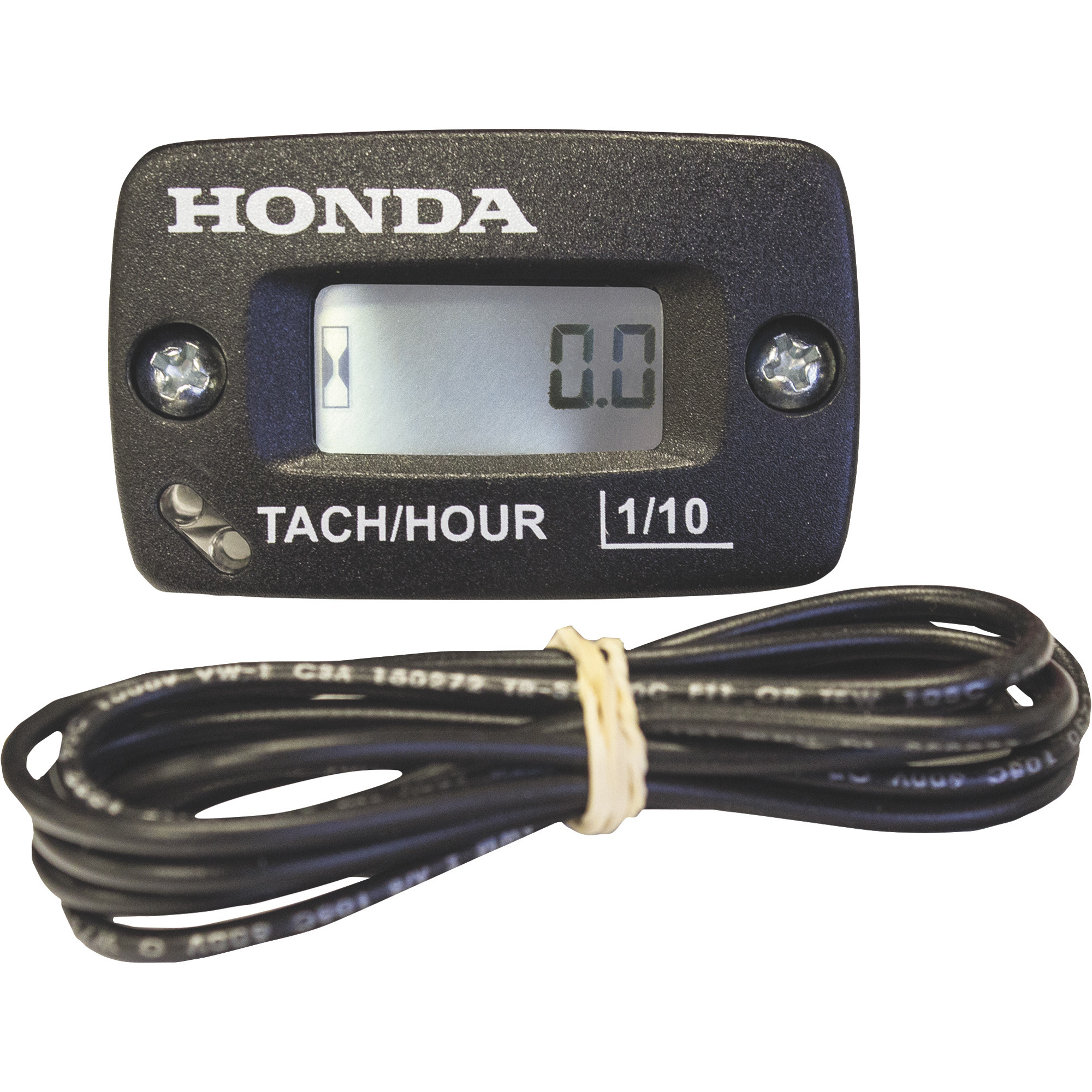

  • Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE
Price for all four:

$665.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 160cc GXV Series OHV engine has been an industry standard for reliability and durability to thousands of people, on thousands of applications. Overhead Valve design offers, cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. Honda GXV Series engines are reliable, start easily and run quietly, allowing you to get to work quickly. Common applications include lawn mowers with flywheel brake. Not for sale in CA.

What's Included

    (1) Engine, Model# GXV160UH2A12

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Model GXV160UH2A12; 163cc air-cooled, 4-stroke engine with 7/8in.-1in. x 3 3/16in. vertical shaft
  • OHV overhead valve technology
  • Recoil start; flywheel brake
  • Approx. mounting base dim. 8in.
  • Cast iron cylinder
  • Excellent replacement engine for lawn mowers
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

70336

Brand

Honda Engines

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

36.8 LB

Engine Displacement

163 cc

Engine Type

GXV Series OHV Commercial-duty

Shaft Diameter

7/8 in

Shaft Length

3.18 in

Fuel Type

Gasoline

Start Type

Recoil

Net Torque

7.1 ft-lbs.

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

4.3 HP

Compression Ratio

8.0:1

Fuel Tank

Yes

Fuel Tank Capacity

1.9 qt

Oil Capacity

0.69 qt
AttributeSpecification

Max. RPM

3,600

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Auto Compression Release

Yes

Cooling System

Air

Bore

2.7 in

Stroke

1.8 in

Air Cleaner Type

Dual Element

Choke Control

Remote

Throttle Control

Manual

Muffler Included

Yes

Bolt Circle

8 in

Product Weight

lb

Dimensions L x W x H (in.)

16.31 x 14.12 x 13.87 in

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. What’s the horse power of this motor

    1 answer

    1. The engine will have a net power output of 4.3 HP.

      Helpful?

  2. Is the Mounting bolt pattern standard

    1 answer

    1. This model uses Honda’s standard horizontal‑shaft 4‑bolt base with an approximate 8‑inch mounting footprint.

      Helpful?

  3. The description indicates a 7/8" diameter shaft while the pdf shows a 1" diameter. What is correct?

    1 answer

    1. This engine would have a 7/8" diameter shaft that is 3 3/16" long.

      Helpful?

  4. Dose have electric start

    1 answer

    1. The engine is recoil start only.

      Helpful?

  5. Does the shaft on this engine have a keyway slot on both sides of the shaft, with one side accepting of a woodruff key and the other side fully slotted?

    1 answer

    1. The GXV160UH2A12 shaft has two Woodruff key slots, one on each side; however, it does not include a full-length keyway.

      Helpful?

  6. Does this motor have a Manuel choke? And Manuel throttle?

    1 answer

    1. This has a remote choke and a manual throttle.

      Helpful?

  7. Does this engine have the driveshaft provision coming out of the rear for the self propelled option on Honda push mowers?

    1 answer

    1. The engine will have a single step down shaft. The shaft will start out at 1" and half way down it will step down at a right angle to 7/8". The overall length of the shaft is 3 3/16".

      Helpful?

  8. Are there 1 or 2 woodruff key slots on the shaft.

    To include a picture of the shaft (with the others) would be beneficial to those looking at this particular engine.

    1 answer

    1. There are two woodruff key slots on the shaft for this engine.

      Helpful?

  9. What is the keyway size on the shaft for this engine?

    1 answer

    1. The keyway is a #6 Woodruff key (5/32" X 5/8").

      Helpful?

  10. What is the suggested idle RPM for this engine

    I need to purchase a clutch to use with this motor and need to know idle RPM.

    1 answer

    1. The idle RPM is 1,700 +/- 150 RPM. This engine is not recommended for use with a clutch because it has a built-in flywheel brake.

      Helpful?
