The size of the fuel line needed for the engine will be 5.5 MM inner diameter.

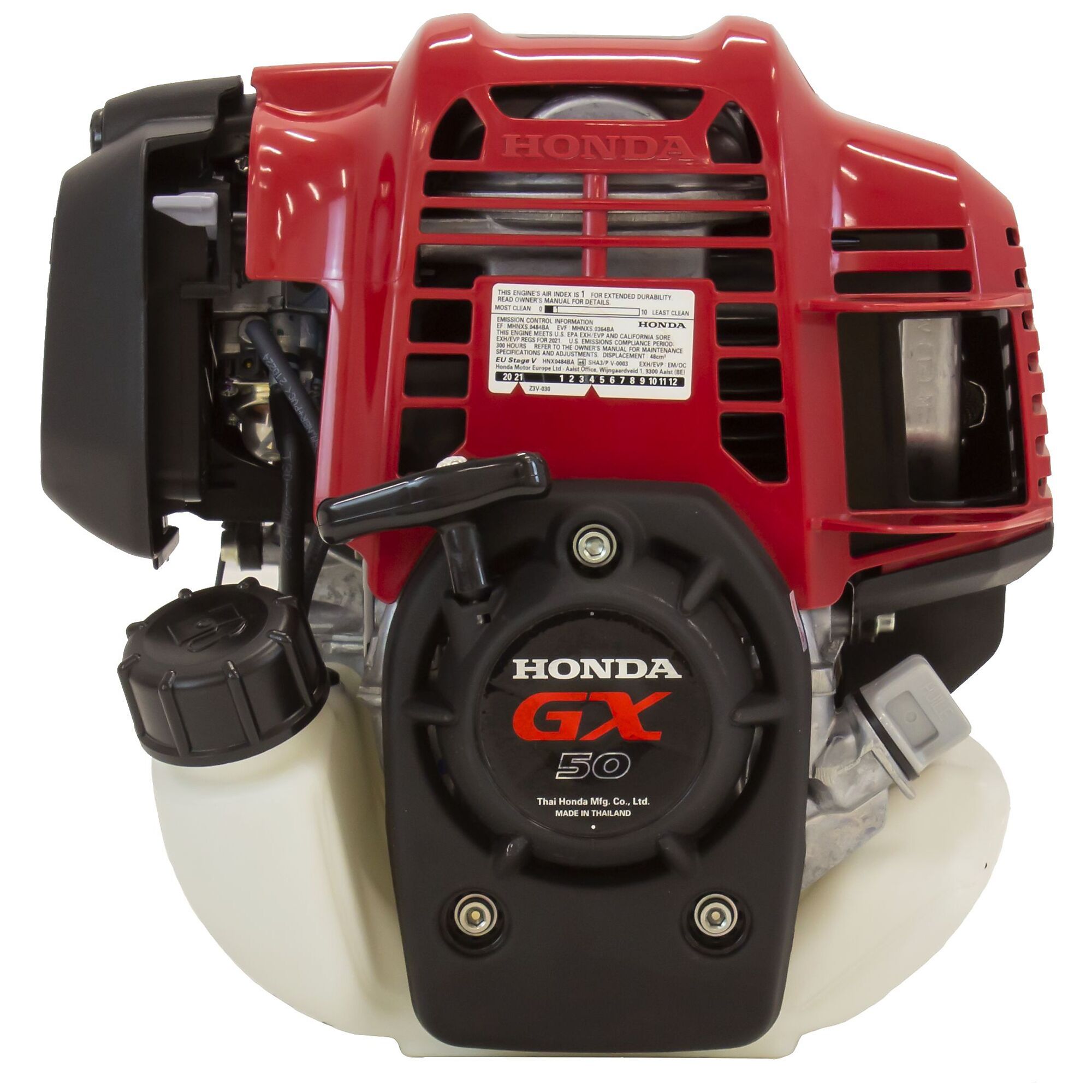

Honda GX Series OHV Engine 47.9cc
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$359.99
- Advanced Technology: 4-stroke - no fuel/oil mixing
- Fuel Efficient, High Output Operation: Approximately half the operating cost of comparable 2-stroke engines
- Smooth Performance: Precision engineered components result in lower vibration
- Exceptionally Quiet: Belt-driven OHC design reduces mechanical noise
- Proven Reliability: High quality materials, fit, and finish
See full description
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda GX Series OHV Engine 47.9cc
Honda Engines, V-TWIN HORIZONTAL 688CC RQAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQAF1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF1
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Engine Displacement
Same
48 cc
688 cc
688 cc
688 cc
Engine Type
Same
Horizontal
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Fuel Type
Same
Gasoline
-
-
-
Start Type
Same
Recoil
Electric
Electric
Electric
Net Torque
Same
1.2 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
Horizontal
Q-type
Q-type
Q-type
Cylinders (qty.)
Same
1
2
2
2
Cylinder Bore
Same
Cast Iron
Integrated
Integrated
Integrated
Net Power Output
Same
2 HP
20.8 HP
20.8 HP
20.8 HP
Compression Ratio
Same
8.0:1
9.3:1
9.3:1
9.3:1
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
0.67 qt
-
-
-
Oil Capacity
Same
0.138 qt
2 qt
2 qt
2 qt
Low Oil Shutdown
Same
No
-
-
-
Low Oil Alert
Same
No
Yes
No
Yes
Max. RPM
Same
7,000
-
-
-
CARB Approved
Same
Yes
-
-
-
Governor System
Same
Centrifugal Mass
Mechanical
Mechanical
Mechanical
Ignition System
Same
Transistorized Magneto
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
Diaphragm (Overflow Return)
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Lubrication System
Same
Crankcase Pressure Driven
Full Pressure
Full Pressure
Full Pressure
Bearing Type
Same
Ball
-
-
-
Cooling System
Same
Air
Air
Air
Air
Bore
Same
1.69 in
3.1 in
3.1 in
3.1 in
Stroke
Same
1.3 in
2.8 in
2.8 in
2.8 in
Choke Control
Same
Manual
Remote
Manual
Remote
Throttle Control
Same
Manual
Remote
Manual
Remote
Fuel Filter
Same
Yes
-
-
-
Muffler Included
Same
Yes
No
No
No
Bolt Circle
Same
3.625 in
-
-
-
Mounting Base Length
Same
6.375 in
-
-
-
Mounting Base Width
Same
3.15 to 3.34 in
-
-
-
Product Weight
Same
16.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
7.84 x 10.24 x 10.35 in
-
-
-
Shaft Diameter
Same
-
1 in
1 in
1 in
Shaft Length
Same
-
2.9 in
2.9 in
2.9 in
Shaft Keyway
Same
-
0.25 in
0.25 in
0.25 in
PTO Height
Same
-
5.25 in
5.25 in
5.25 in
Shaft Rotation (From PTO Shaft Side)
Same
-
Counter Clockwise
Counter Clockwise
Counter Clockwise
Air Cleaner Type
Same
-
Dual Element
Dual Element
Dual Element
Charging System Amps
Same
-
20
17
3
