It's a variable speed controlled by a cable/wire mounted on the handle bar of the machine it is mounted onto, just like almost all trimmers and mowers. I just used the original cable that was already on the DR Trimmer.

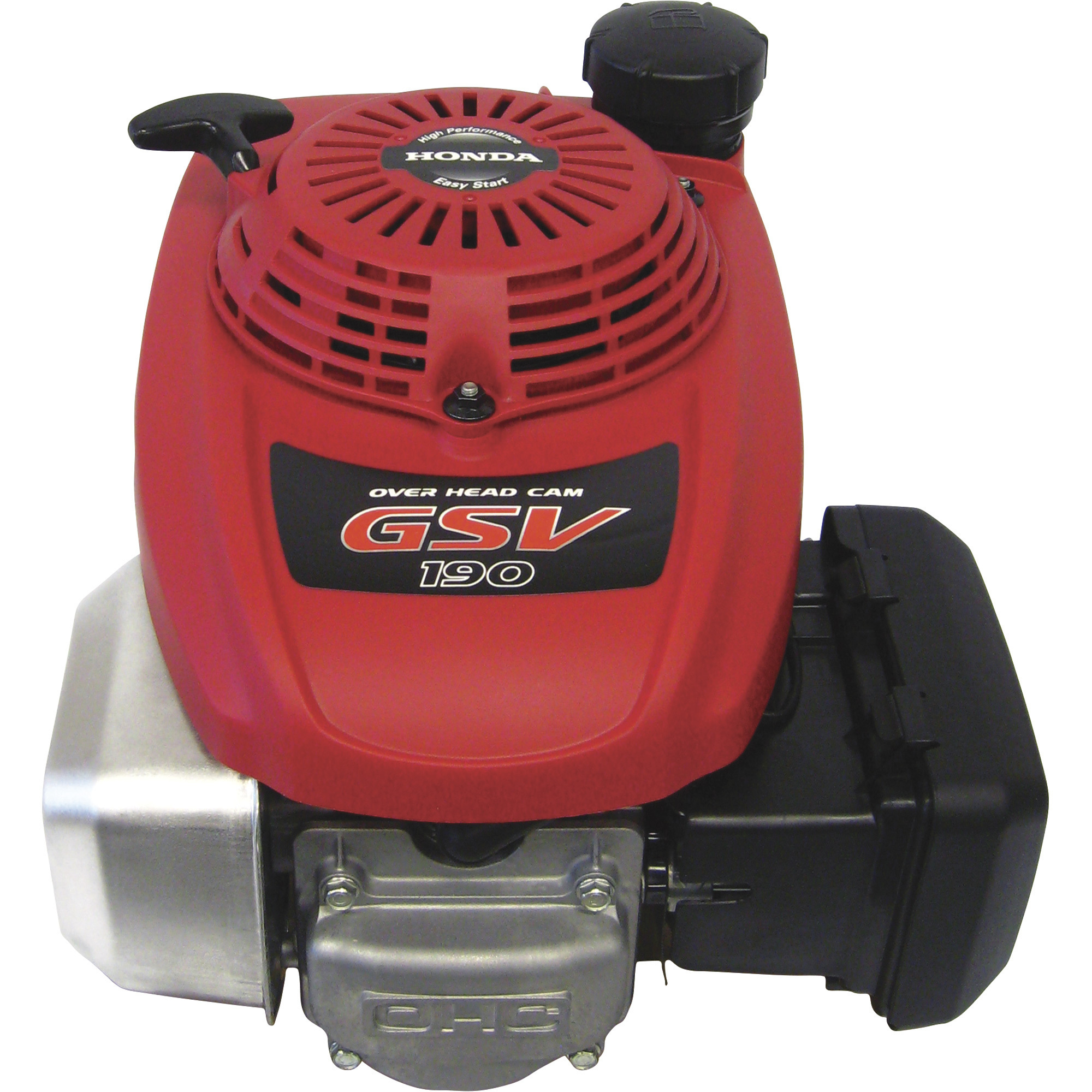

Honda Engines, HONDA GSV190 VERTICAL ENGINE, Engine Displacement 187 cc, Engine Type GSV Series OHC, Shaft Diameter 7/8 in, Model# GSV190LAN1L
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Model# GSV190LAN1L compact, lightweight, air-cooled 4-stroke single cylinder engine with 7/8in. x 3 5/32in. vertical shaft
- Overhead cam technology
- Electronic ignition
- 8in. flange mount bolt circle
- Cast iron cylinder liner
See full description
-
Is this a variable speed or constant speed that requires extra throtal & running cables
-
Helpful?
-
According to the owner's manual there are several throttle configurations for the GSV190, one of which is fixed-speed, but the GSV190LAN1L that I got from Northern is variable speed. At the high end of the mechanism's travel the choke is closed, and at the low end the ignition shutoff is actuated. Yes, you will need a throttle control and cable. See my review for more comments on throttle setup.
Helpful?
-
This engine has variable speed through cable remote control.
Helpful?
-
-
Is the mounting bolt circle really 8.5" as listed or is it the standard 8"? All the drawings for similar honda engines show 8".
-
The GSV190LAN1L that I got from Northern has an 8" bolt circle, which is what the description said at the time I ordered it. The four holes are about .350" diameter, not tapped, and not equally spaced.
Helpful?
-
This engine's mounting bolt circle is 8".
Helpful?
-
-
What are the differences between GSV190LAN1L vs GSV190AS1A? All the specs according to the Northern website seem to be the same.
-
The GSV190LAN1L has a N1-type crankshaft end, 5.34 x .86" and does not have a flywheel brake and the GSV190AS1A has a A-type crankshaft end 5.34" X .98" and has a flywheel brake.
Helpful?
-
The LAN1L has both an N1-type crankshaft end, 5.34 x .86" and no flywheel brake, while the AS1A has an A-type crankshaft end 5.34" X .98" and has a flywheel brake. -Robert@Honda
Helpful?
-
-
Is this throttle controled
1 answer-
Yes, this engine has remote throttle control.
Helpful?
-
-
Does this motor have a tapped ( threaded) shaft?
1 answer-
The shaft end is tapped and threaded. 3/8"-24.
Helpful?
-
-
what are the torque and HP rating for this engine?
1 answer-
This Honda engine would be rated at 6.5 HP. The torque rating is 8.3 foot pounds.
Helpful?
-
-
Where is this engine manufactured?
1 answer-
This engine is manufactured in the United States.
Helpful?
-
-
What size spark plug?
1 answer-
Recommended Spark Plug:
NGK BPR6ES - Pressure washer applications
NGK BPR5ES - All other applicationsHelpful?
-
-
Is there any reason why this Engine will not work on a log splitter
1 answer-
The GSV model engines are not equipped with a heavy fly wheel, so although it could work, the GCV model engines would be better suited for use on a log splitter. We do offer item 704363 which can be ordered through our parts department by calling 1.800.657.0516.
Helpful?
-
-
Is a keyway included with the engine?
1 answer-
This Honda engine has a 3/16 inch keyway cut into the shaft. You will need to provide your own key stock.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Vertical Engines
See All Honda Engines Vertical Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, HONDA GSV190 VERTICAL ENGINE, Engine Displacement 187 cc, Engine Type GSV Series OHC, Shaft Diameter 7/8 in, Model# GSV190LAN1L
Briggs & Stratton Vertical OHV Engine, 724cc, 1 1/8in. x 4 19/64in. Shaft, Model# 44S977-0033-G1
Briggs & Stratton Intek Vertical OHV Engine, 344cc, 1in. x 3 5/32in. Shaft, Model# 21R807-0072-G1
Briggs & Stratton Vertical OHV V-Twin Engine, 25HP, 724cc, 1in. x 3 5/32in. Shaft, Model# 44T977-0009-G1
Engine Displacement
Same
187 cc
724 cc
344 cc
724 cc
Engine Type
Same
GSV Series OHC
Professional Series OHV
Intek OHV
V-twin OHV
Shaft Diameter
Same
7/8 in
1-1/8 in
1 in
1 in
Shaft Length
Same
3.15 in
4.29 in
3.15 in
3.15 in
Fuel Type
Same
Gasoline
Gasoline
Gasoline
Gasoline
Start Type
Same
Recoil
Electric
Electric and Recoil
Electric
Shaft Keyway
Same
0.43 in
0.25 in
0.25 in
0.25 in
Net Torque
Same
8.3 ft-lbs.
-
-
-
Crankshaft
Same
N1 Type
Vertical
1 x 3.15 In
Vertical
Cylinders (qty.)
Same
1
2
1
2
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Net Power Output
Same
5.1 HP
25 HP
11.5 HP
25 HP
Compression Ratio
Same
8.5:1
-
-
-
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
0.98 qt
-
-
-
Oil Capacity
Same
0.58 qt
2 qt
1.5 qt
2 qt
Max. RPM
Same
3,600
3,400
3,300
3,300
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Horizontal Butterfly Valve
Yes
Yes
Yes
Lubrication System
Same
Splash
Full Pressure
Splash
Full Pressure
Bearing Type
Same
Ball
Ball
Plain
Ball
Auto Compression Release
Same
Yes
Yes
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.7 in
3.12 in
3.44 in
3.12 in
Stroke
Same
2 in
2.89 in
2.26 in
2.89 in
Air Cleaner Type
Same
Dual Element
Single Element
Single Element
Single Element
Choke Control
Same
Remote
Automatic
Automatic
Automatic
Throttle Control
Same
Remote
Remote
Remote
Remote
Fuel Filter
Same
Yes
Yes
Yes
Yes
Muffler Included
Same
Yes
No
Yes
No
Bolt Circle
Same
8 in
-
-
-
Product Weight
Same
lb
87.0000 lb
72.0000 lb
91.0000 lb
Dimensions L x W x H (in.)
Same
14.6 x 13.5 x 13.8 in
16.0 x 19.0 x 18.0 in
16.5 x 16.0 x 13.0 in
19.12 x 18.0 x 15.5 in
Low Oil Shutdown
Same
-
No
No
No
Low Oil Alert
Same
-
No
No
No
CARB Approved
Same
-
No
No
No
Charging System Amps
Same
-
16
3
16
