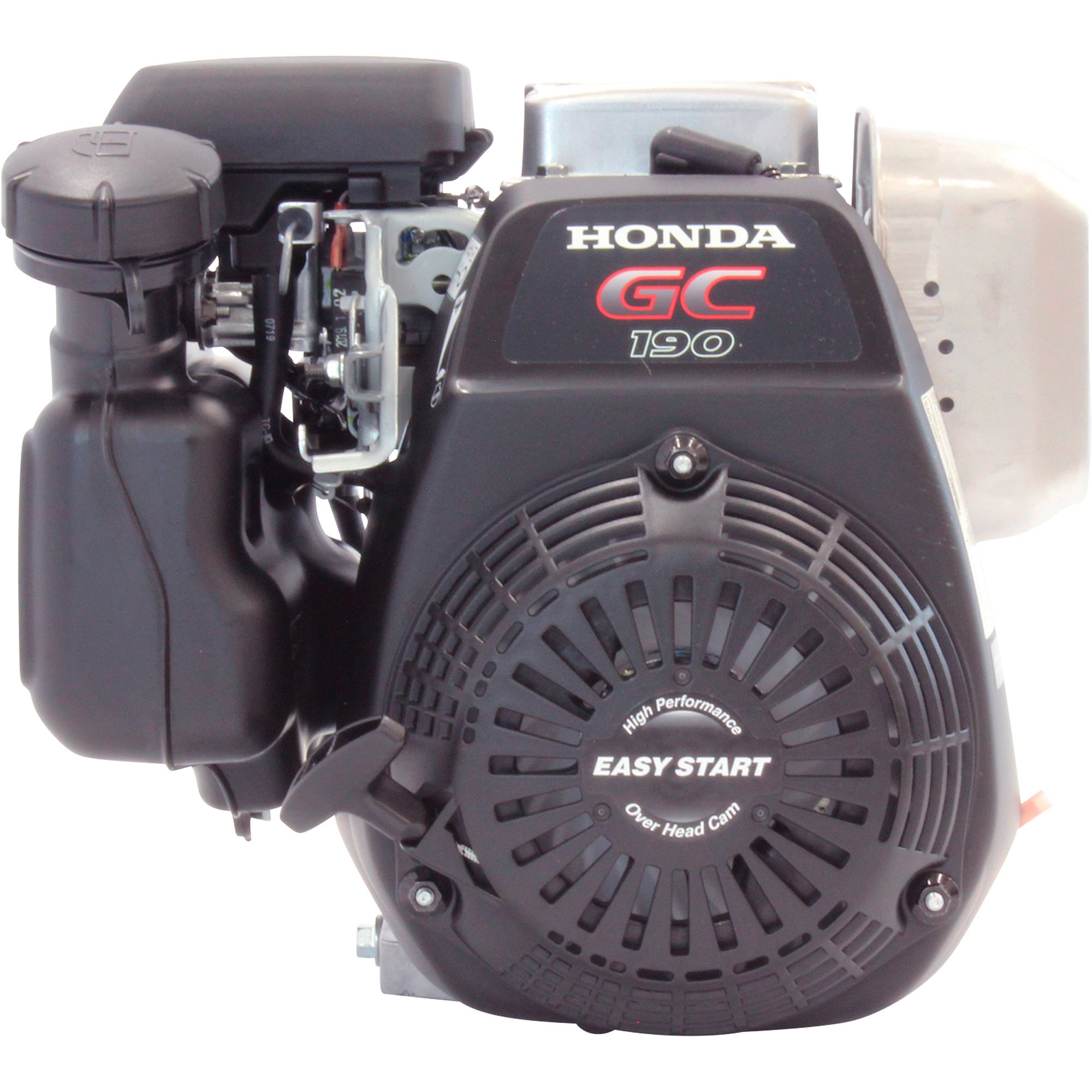

Honda GC Series Horizontal OHC Engine — 187cc, 3/4in. x 1 13/16in. Shaft, Model# GC190LAXMHA2-BLK

Item# 44256
Honda GC Series Horizontal OHC Engine — 187cc, 3/4in. x 1 13/16in. Shaft, Model# GC190LAXMHA2-BLK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda GC Series Horizontal OHC Engine — 187cc, 3/4in. x 1 13/16in. Shaft, Model# GC190LAXMHA2-BLK

Click or Tap image to Zoom

  • Honda 187cc OHC air-cooled, 4-stroke, horizontal engine
  • Compact and lightweight design
  •  Compact combustion chamber, overhead cam design and uniblock construction to reduce fuel consumption
  •  Powerful torque across a wide RPM range to help reduce engine speed drop from sudden load increases
  •  Tough resin overhead cam for durability and low noise level

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Honda 187cc premium residential, horizontal shaft engine features overhead cam technology. The GC Series is incredibly quiet and utilizes the world's first internal timing belt. Honda has taken their technology one step further with the development of the GC Series, a line of rugged, powerful and economical overhead cam engines designed specifically for home-use and recreational applications. Common applications: pressure washers, compressors, log splitters and chipper/shredders. Not for sale in CA.

What's Included

  •  (1) Engine, Model# GC190LAXMHA2-BLK

Downloads

Product Manual

Features + Benefits

  • Honda 187cc OHC air-cooled, 4-stroke, horizontal engine
  • Compact and lightweight design
  •  Compact combustion chamber, overhead cam design and uniblock construction to reduce fuel consumption
  •  Powerful torque across a wide RPM range to help reduce engine speed drop from sudden load increases
  •  Tough resin overhead cam for durability and low noise level
  •  Internal timing belt for quiet operation
  •  Easy access oil drain and fill
  •  Dura-Lube system for superior engine lubrication
  •  Easily accessible spark plug
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

44256

Brand

Honda Engines

Manufacturer's Warranty

24 months consumer / 90 day commercial

Ship Weight

30.0 LB

Engine Displacement

187 cc

Engine Type

GC Series OHC residential-duty

Shaft Diameter

3/4 in

Shaft Length

1.81 in

Start Type

Recoil

Shaft Keyway

0.18 in

Net Torque

8.3 ft-lbs.

Crankshaft

M-type

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Aluminum alloy

Net Power Output

5.2 HP

Compression Ratio

8.5:1

Fuel Tank

Yes
AttributeSpecification

Fuel Tank Capacity

1.9 qt

Oil Capacity

0.61 qt

Shaft Rotation (From PTO Shaft Side)

Counterclockwise

Governor System

Centrifugal mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Standard

Auto Compression Release

Yes

Cooling System

Air cooled

Bore

2.7 in

Stroke

2 in

Air Cleaner Type

Dry (paper)

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

In line

Muffler Included

Yes

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What is the horsepower rating of this motor? I am trying to replace a 5HP motor at that spec is not listed.

    1. Yes this will work great in place of that 5hp. Just be sure to measure the crankshaft size and length to get the proper fit.

      Helpful?

    2. The net power output for this engine would be 5.2 HP at 3600 RPM.

      Helpful?

  2. How do you drain the carburetor  The owner’s manual does not match the engine

    1 answer

    1. Per the manual, Use a siphon pump (commercially available) and siphon the fuel
      out of the fuel tank into an approved gasoline container. Place an approved gasoline container below the carburetor, and use a funnel to avoid spilling fuel. Loosen the carburetor drain screw and drain the carburetor into an approved gasoline container. After draining is completed, tighten the carburetor drain screw.

      Helpful?

  3. What country is this made in?

    1 answer

    1. This Honda GC engine is made in the USA.

      Helpful?

  4. Honda GC 190

    Is this engine set up so a throttle cable can be used, or is it a fixed RPM Motor???

    1 answer

    1. This engine has a manual throttle and not a remote throttle. A remote throttle would allow a cable to be attached for control. A manual throttle means you cannot connect a cable and the throttle control is located on the outside of the engine. Though you may be able to adjust the throttle, it is recommended to be run at fast speed or wide open only on this engine.

      Helpful?
