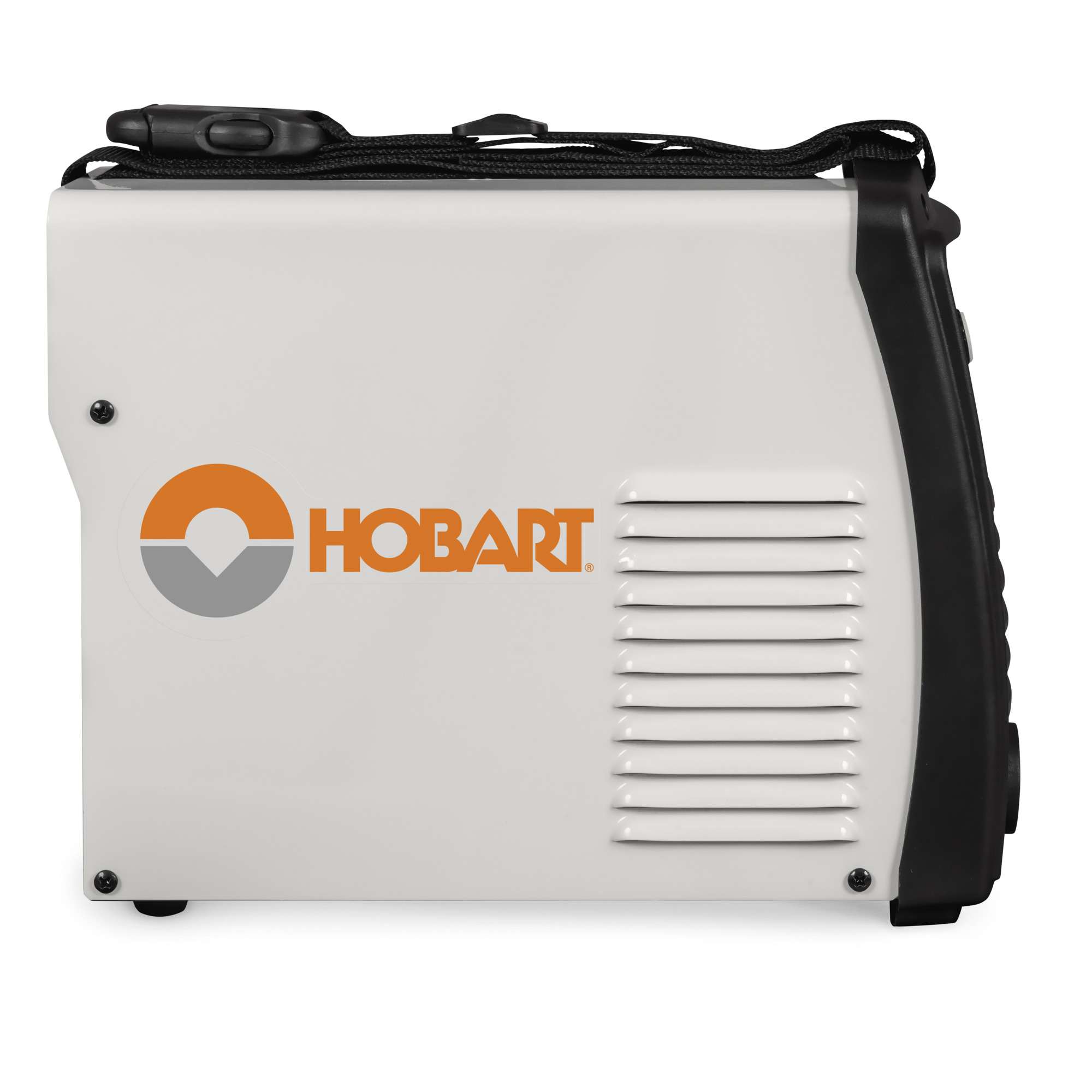

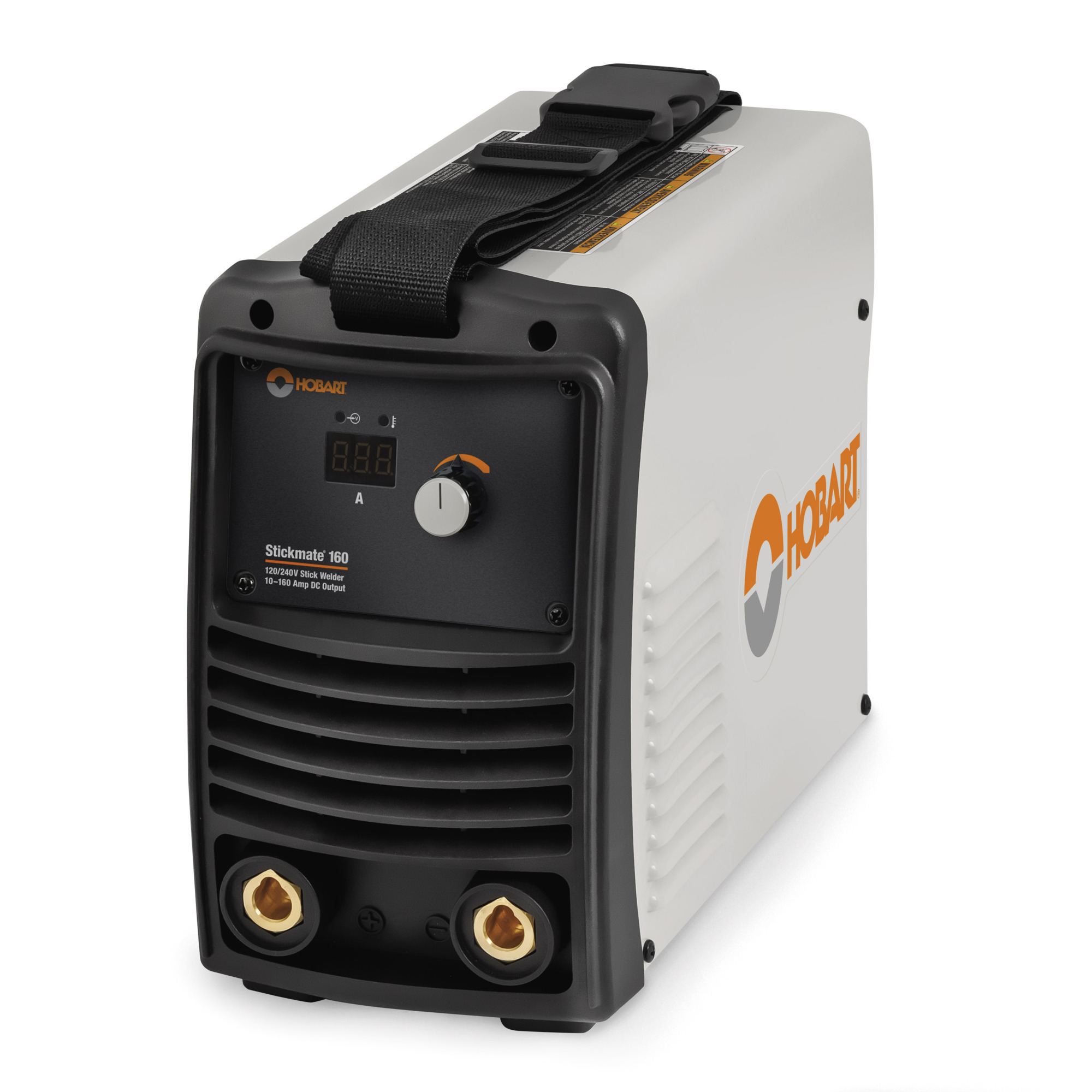

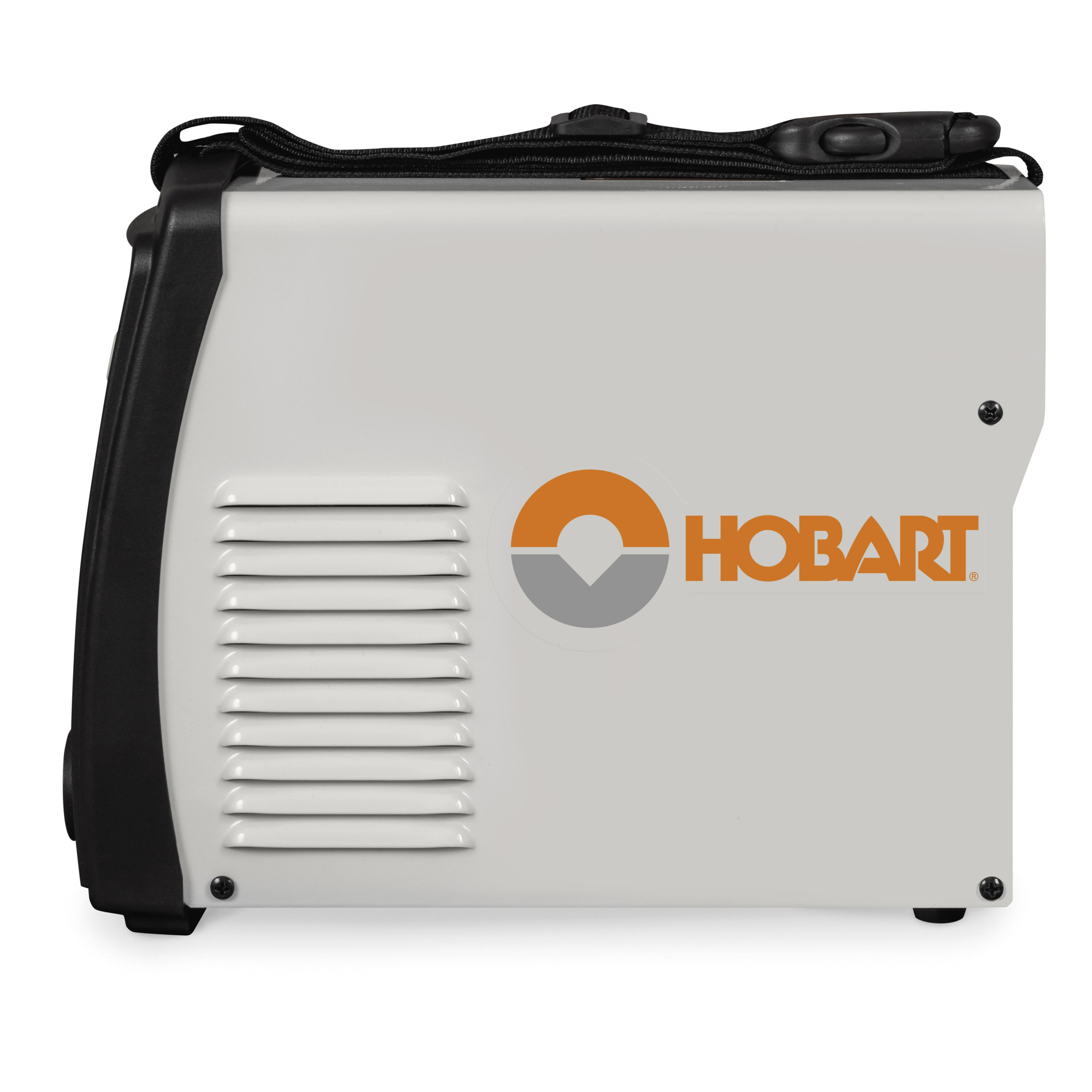

Hobart Stickmate 160 DC Stick Welder, 120/240V, 160 Amps Max., Model# 500585

Item# 6167899
"Hobart Stickmate 160 DC Stick Welder, 120/240V, 160 Amps Max., Model# 500585"
Top Seller
Hobart Stickmate 160 DC Stick Welder, 120/240V, 160 Amps Max., Model# 500585

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Stickmate 160 DC Stick Welder, 120/240V, 160 Amps Max., Model# 500585

Click or Tap image to Zoom

$549.99

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Hot Start technology: Provides easy, quick and reliable arc starts.
  • Simple user interface: Digital display and single knob increase fine tuning and reduce complexity when setting weld parameters
  • Dual-voltage: Allows connection to 120 or 240 V receptacles without tools.
  • Adjustable shoulder strap: Easy to carry and move.
  • Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

From the brand you know comes the most dependable, portable, powerful stick welder — even if you don’t use it every day. The Hobart Stickmate 160i is easy, quick and reliable arc starts with Hot Start™ technology. Preferred DC output for the stick welding process means fewer arc outages, less sticking, less spatter and best arc control. Nearly 100 pounds lighter means you can work smarter not harder by bringing the welder to the work. Its portability makes it easier to carry and store. More powerful — up to 85 more amps — compared to leading competitive machine so you can weld thicker materials. Applications DIY Metal art, Farm/ranch, and maintenance/repair.

What's Included

    (1) Hobart Stickmate 160 DC Stick Welder

Downloads

Product Manual

Features + Benefits

  • Hot Start technology: Provides easy, quick and reliable arc starts.
  • Simple user interface: Digital display and single knob increase fine tuning and reduce complexity when setting weld parameters
  • Dual-voltage: Allows connection to 120 or 240 V receptacles without tools.
  • Adjustable shoulder strap: Easy to carry and move.
  • Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).
  • Convenient polarity changeover with tip holder offers you flexibility to use small or large spools of wire to better suit your welding needs.
  • Convenient polarity changeover with tip holder access makes it quick and easy to change polarity for solid or tubular wire. Includes convenient storage holes for spare tips.
  • Quick Select drive roll makes setup quicker by offering three grooves — two for different sizes of solid wire and a third for flux-cored wire.
  • 10 ft. (3 m) electrode cable with heavy-duty holder 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector 6.5 ft. (2 m) power cord with MVP plugs for 120V and 240V
  • Input Power: 120/240V
  • Output Amperage Max: 160 A
  • Rated Output: 120V: 80 A @ 15% duty cycle 240V: 160 A @ 15% duty cycle
  • Hobart 5/3/1 industrial warranty is five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).

Key Specs

AttributeSpecification

item#

6167899

Brand

Hobart

Manufacturer's Warranty

5 year limited warranty

Ship Weight

19.8 LB

Volts

120/240

Max. Amps

160
AttributeSpecification

Power Type

DC

Duty Cycle

120V: 80 A @ 15% duty cycle; 240V: 160 A @ 15% duty cycle

Min. Amps

10

Product Weight

10.6000 lb

Dimensions L x W x H (in.)

12.6 x 6.3 x 10.24 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Is the Hobart stickmate 160 model# 500585 an inverter welder?

    1 answer

    1. The welder in an inverter-based DC stick welder.

      Helpful?

  2. Can I run 50 amps through this welder? Or just 30.

    1 answer

    1. It is recommended to set the welder up on a 30 amp breaker. If the breaker should trip, the welder is protected from damage. It could be set up on 5 amp breaker but does not have as much protection from damage to the welder.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
