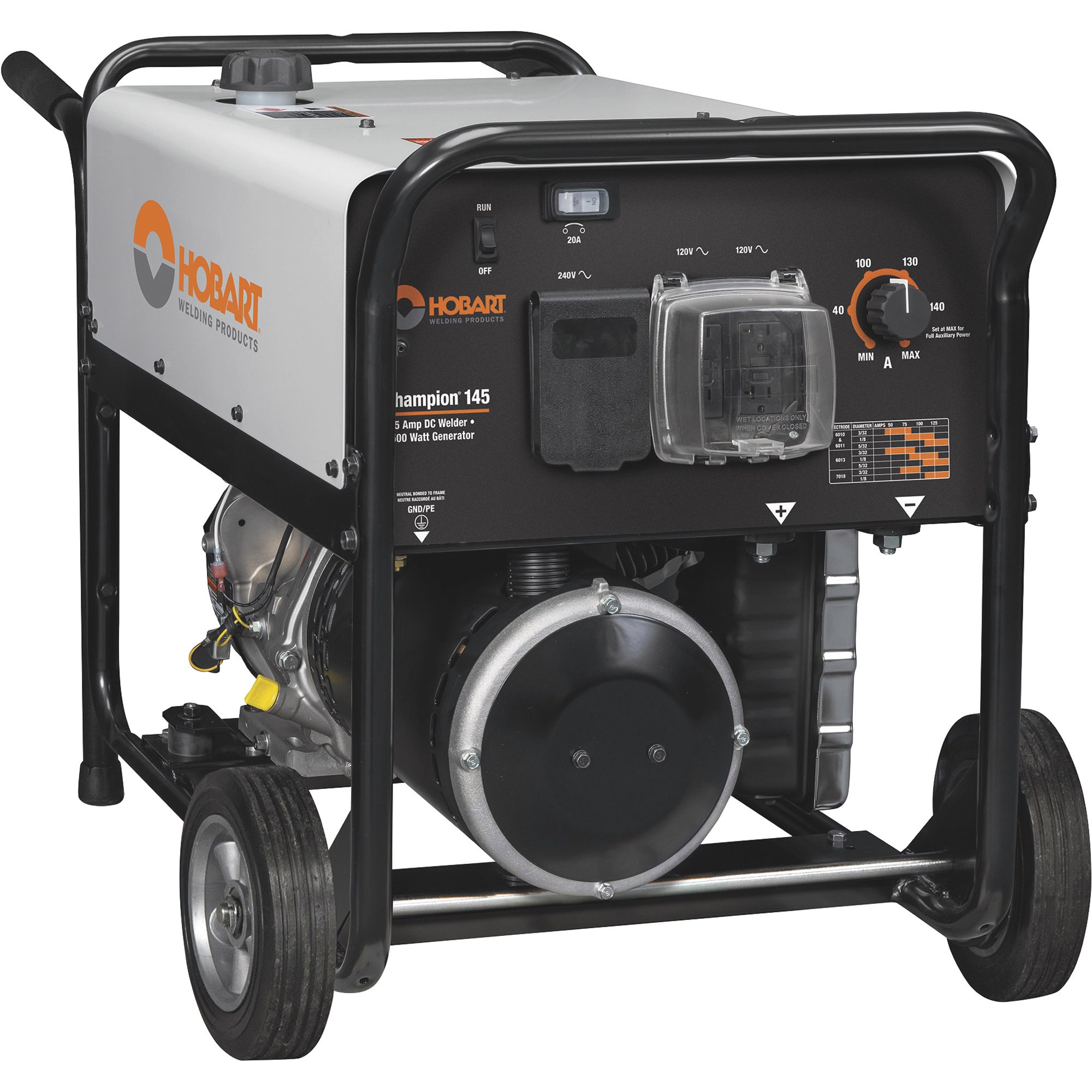

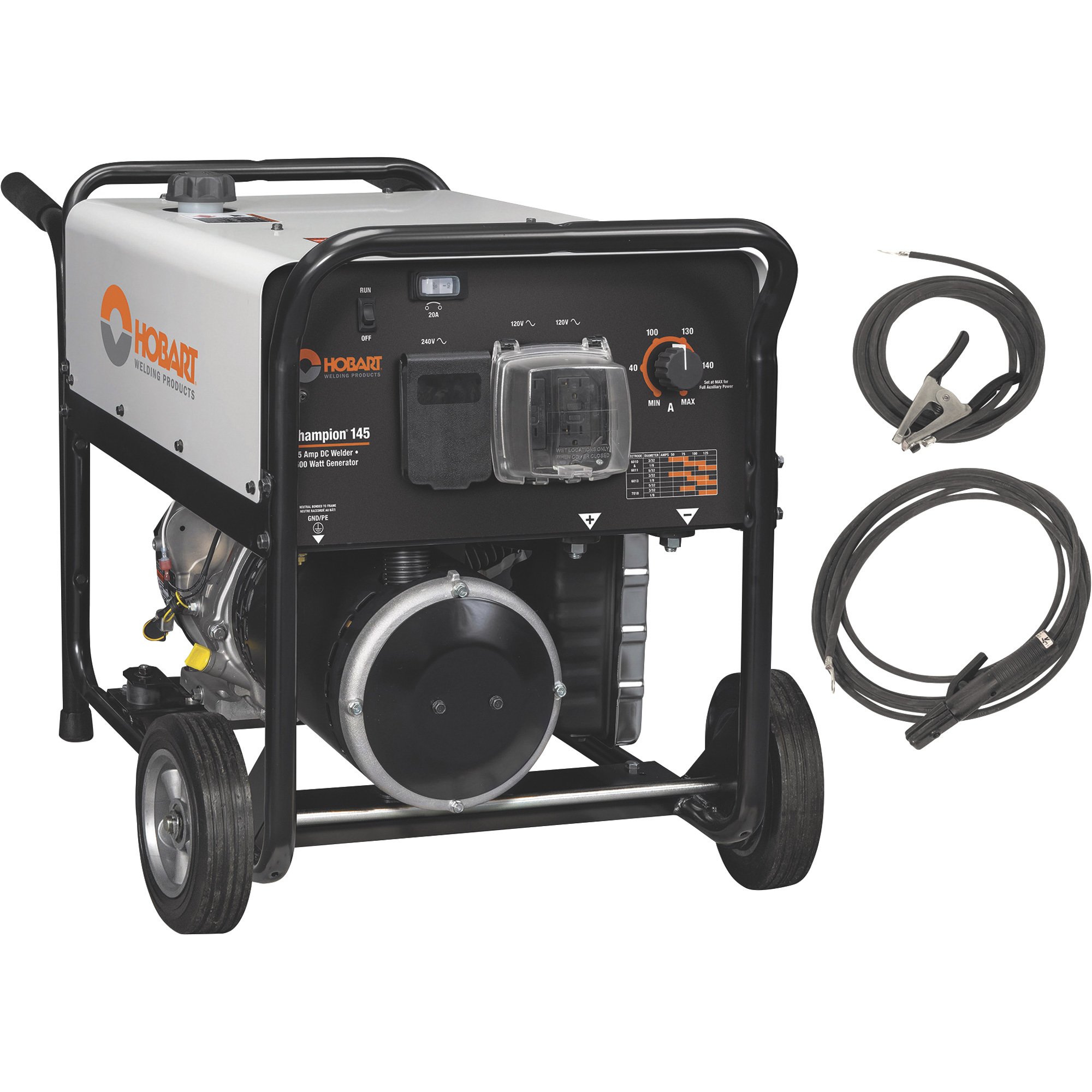

Hobart Champion 145 Arc Welder/Generator Package with 305CC Briggs & Stratton Gas Engine, Wheel Kit and Cable Set — 145 Amp DC Output, 4500 Watt AC Power

Item# 81625
Hobart Champion 145 Arc Welder/Generator Package with 305CC Briggs & Stratton Gas Engine, Wheel Kit and Cable Set — 145 Amp DC Output, 4500 Watt AC Power

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Champion 145 Arc Welder/Generator Package with 305CC Briggs & Stratton Gas Engine, Wheel Kit and Cable Set — 145 Amp DC Output, 4500 Watt AC Power

Click or Tap image to Zoom

  • Generator produces 4,500 Watt surge power; 4,000 Watts continuous power
  • Briggs & Stratton® 305cc, 10 HP 4-cycle OHV engine
  • 40–145 Amp DC weld output for excellent stick welding performance
  • 6.25 gal. gas tank provides vastly superior run times
  • 6-50R 20 Amp, 240V AC outlet and four 20 Amp, 120V AC GFCI outlets provide ample auxiliary power

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Hobart® Champion™ 145 Arc Welder/Generator Package is an ideal choice for maintenance and repair projects. It easily handles 5/32in. electrodes to weld steel, stainless steel and cast iron up to 1/4in. thick. The welder comes bundled with a 4-ga. cable set that includes a 15ft., 300 Amp ground cable and 20ft., 200 Amp electrode cable, so it's ready to put to work. 30% duty cycle @ 130 Amps, 25V. It includes a 6-50R 20 Amp, 240V AC outlet and four 20 Amp, 120V AC GFCI outlets, providing ample auxiliary power for equipment and accessories or emergency backup power. Hobart 5/3/1 limited warranty. U.S.A.

What's Included

  • (1) Welder/generator
  • (1) Running gear
  • (1) 15ft. ground cable with 300 Amp ground clamp
  • (1) 20ft. electrode cable assembly with 200 Amp electrode holder

Features + Benefits

    Welder/Generator Features
  • Generator produces 4,500 Watt surge power; 4,000 Watts continuous power
  • Briggs & Stratton® 305cc, 10 HP 4-cycle OHV engine
  • 40–145 Amp DC weld output for excellent stick welding performance
  • 6.25 gal. gas tank provides vastly superior run times
  • 6-50R 20 Amp, 240V AC outlet and four 20 Amp, 120V AC GFCI outlets provide ample auxiliary power
  • All outlets have protective covers to keep moisture, dust and grime out
  • Includes running gear and durable roll bar frame for added protection
  • Large pancake-style muffler for quiet operation
  • Sight fuel gauge lets you check fuel levels at a glance

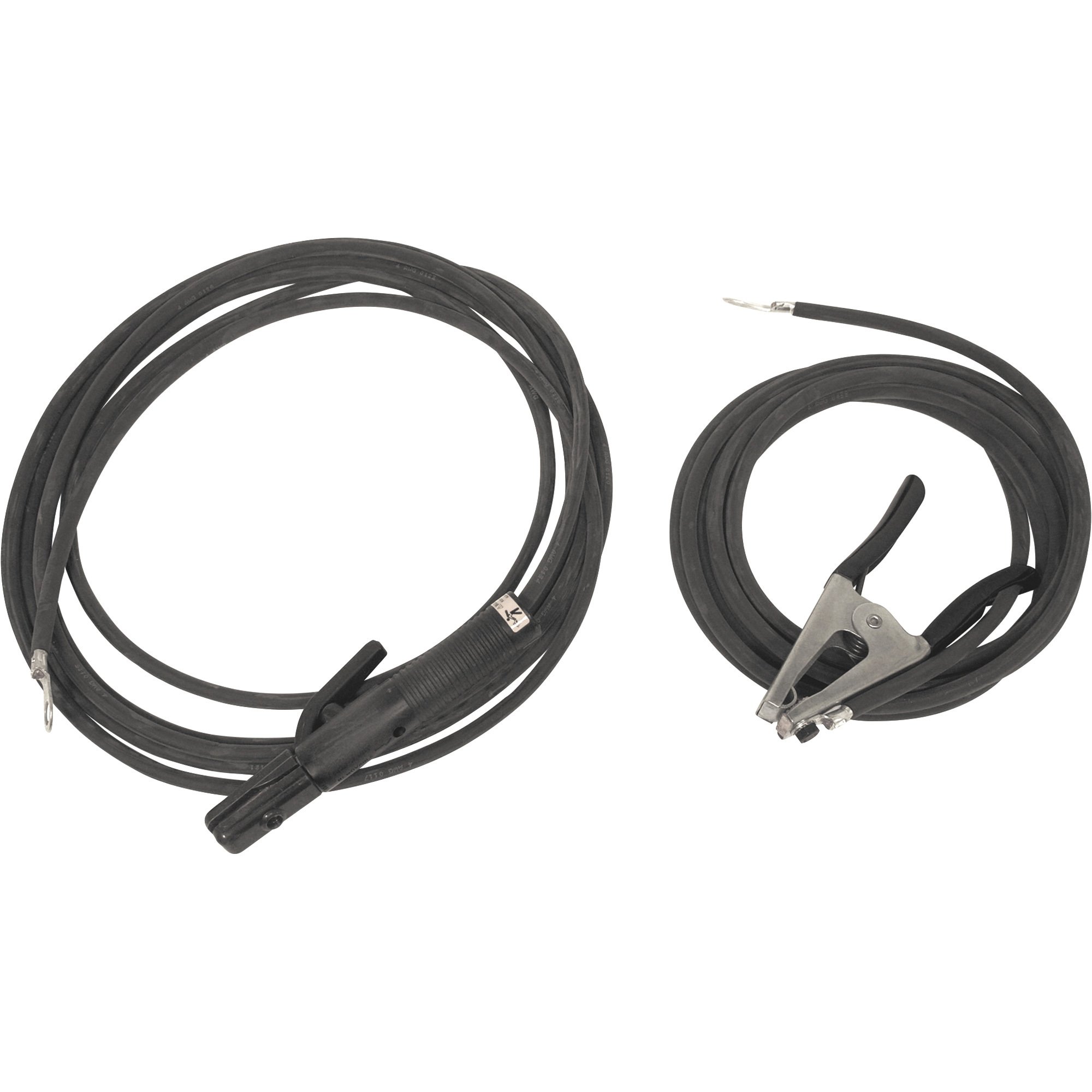

    Cable Set Features
  • Includes one 15ft. ground cable with 300 Amp ground clamp, plus one 20ft. electrode cable assembly with 200 Amp electrode holder
  • Heavy 4-gauge cable on both for durability and dependability
  • Both cables include 1/2in. eyelet lugs crimped on

Key Specs

AttributeSpecification

item#

81625

Brand

Hobart

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

275.0 LB

Max. Weld Thickness

0.25 in
AttributeSpecification

Duty Cycle

30% at 130A

Weldable Materials

Steel, stainless steel, cast iron

Min. Amps

40

Clamp Cable Length

15 ft

Electrode Cable Length

20 ft

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Can this welder burn 1/8 electrorods of 7018

    1 answer

    1. The welder/generator will not work with 1/8" rod. It will work with 7018 5/32" rod.

      Helpful?

  2. can you tig w/ this machine?

    1 answer

    1. You would not be able to TIG weld with this welder. It is for stick welding only.

      Helpful?

  3. The description contradicts itself, in 2 places it says weld cable are included but spec sheet says sold separately. So are weld cables included?

    1 answer

    1. The cable set listed is included with this machine.

      Helpful?
