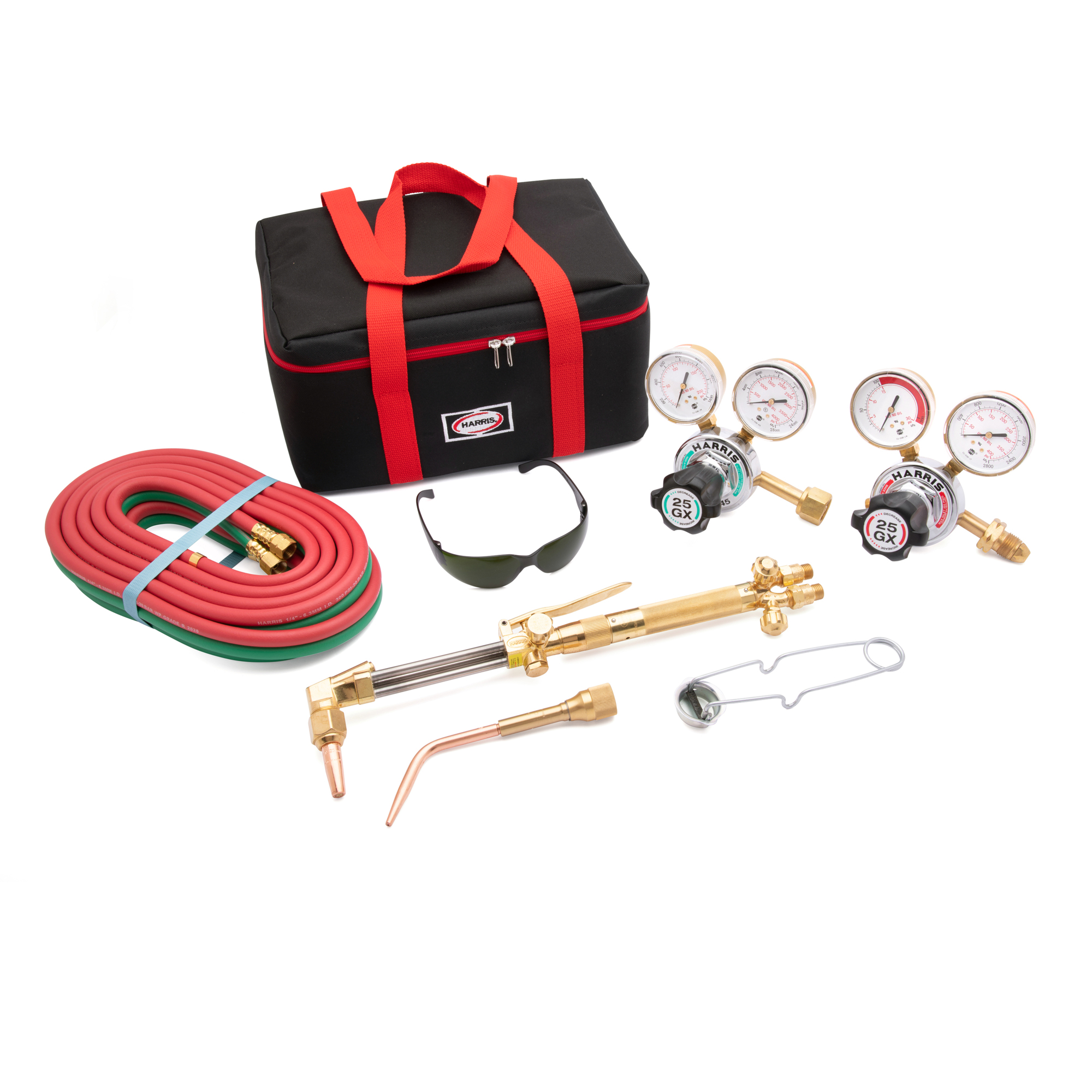

Harris, Model HHD 25GX Deluxe Ironworker Outfit for CGA 540/510 Max. Inlet Pressure 500 PSIG, Model# 4400367

Item# 6143416
Harris, Model HHD 25GX Deluxe Ironworker Outfit for CGA 540/510 Max. Inlet Pressure 500 PSIG, Model# 4400367

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris, Model HHD 25GX Deluxe Ironworker Outfit for CGA 540/510 Max. Inlet Pressure 500 PSIG, Model# 4400367

Click or Tap image to Zoom

$267.10

  • Shipping:

    Not available

  • In Store Only:

  • Heavy Duty 3-tube design outfit to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene model 25GX with easy-to-read dual scale 2.5 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen regulator that delivers up to 145 psi and acetylene regulator delivers up to 15 psi.
  • Torch handle Model 85 that silver-brazed connections and is equipped with external replaceable FlashGuard® check valves.
  • Cutting attachment model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included: 6290-1AC cutting tip, D85 mixer and 23A90-5 welding tip.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Model 25GX Deluxe Ironworker® outfit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 5in. (127mm) and is supplied with a tip to cut up to 1in. (25.4mm) plate. The kit can braze up to 3in. (76.2) diameter copper tube and is supplied with a size tip for brazing copper up to 1 1/2in. (38.1mm) tube. The kit is capable of welding up to 1/2in. (12.7mm) and is supplied with a tip that welds up to 1/16in. (1.6mm) plate.

What's Included

    (1) Model 25GX-15-510 Fuel Gas Regulator (1) Model 25GX-145-540 Oxygen Regulator (1) Model 85 Torch Handle (1) Model 72-3 Cutting Attachment (1) Model D-85 Mixer Assembly (1) Model 6290-1AC Cutting Tip (1) Model 23A90-5 Welding Tip (1) 1/4 in. x 20 ft. Twin B&B R-Grade Oxy-Acetylene Hose (1) Safety Glasses Shade 5 (1) Handheld Ignitor (1) Harris Insulated Tool Kit Bag (1) Trilingual Kit Manual (1) Tip Chart

Features + Benefits

  • Heavy Duty 3-tube design outfit to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene model 25GX with easy-to-read dual scale 2.5 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen regulator that delivers up to 145 psi and acetylene regulator delivers up to 15 psi.
  • Torch handle Model 85 that silver-brazed connections and is equipped with external replaceable FlashGuard® check valves.
  • Cutting attachment model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included: 6290-1AC cutting tip, D85 mixer and 23A90-5 welding tip.
  • Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag.
  • Model D85 E-equal or positive pressure mixing system resists damage due to flashback
  • Kit includes Model 62901AC cutting tip and Model 23A905 welding/brazing tip
  • Accessories include Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20' twin R-grade hose and Harris black and red insulated tool kit bag
  • Cuts up to 5 in. (127.0mm) plate with optional tip(s);Welds up to 1/2 in. (12.7mm) plate with optional tip(s). Optional tips sold separately.

Key Specs

AttributeSpecification

item#

6143416

Brand

Harris

Manufacturer's Warranty

84 Months Limited

Ship Weight

7.0 LB

Max. Inlet Pressure

500 PSIG

Max. Delivery Pressure

30 PSIG

Body Material

Brass

Gas Service

Acetylene

Welding Process

Gas
AttributeSpecification

Gauge Size

2.5 in

Stages

Single

Diaphragm Material

Neoprene

Supply Pressure Gauge

400 PSIG

Inlet Connection

Model 25GX-145-540 CGA 540, Model 25GX-15-510 CGA 510

Outlet Connection

Model 25GX-145-540: 9/16 in.-18 RH, Model 25GX-15-510: 9/16 in.-18 LH

Product Weight

7.0000 lb

Dimensions L x W x H (in.)

14.88 x 10.25 x 8.44 in
