Harris, REG,HP742-125-580-A, Max. Inlet Pressure 3000 PSIG, Model# HP742-125-580-A

Item# 87694
Harris, REG,HP742-125-580-A, Max. Inlet Pressure 3000 PSIG, Model# HP742-125-580-A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris, REG,HP742-125-580-A, Max. Inlet Pressure 3000 PSIG, Model# HP742-125-580-A

Click or Tap image to Zoom

$1179.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2in. dual scale stainless steel gauges (psi/bar)
  • Mountable on the front panel
  • Maximum inlet pressure of 3000 PSIG
  • Suitable for corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems
  • 1 11/16in. 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Harris, REG,HP742-125-580-A, Max. Inlet Pressure 3000 PSIG, Model# HP742-125-580-A
  • Hobart Welding Goggles, #5 Shade, Flip-Up Front, Oxyacetylene, Model# 770095
Price for all two:

$1198.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

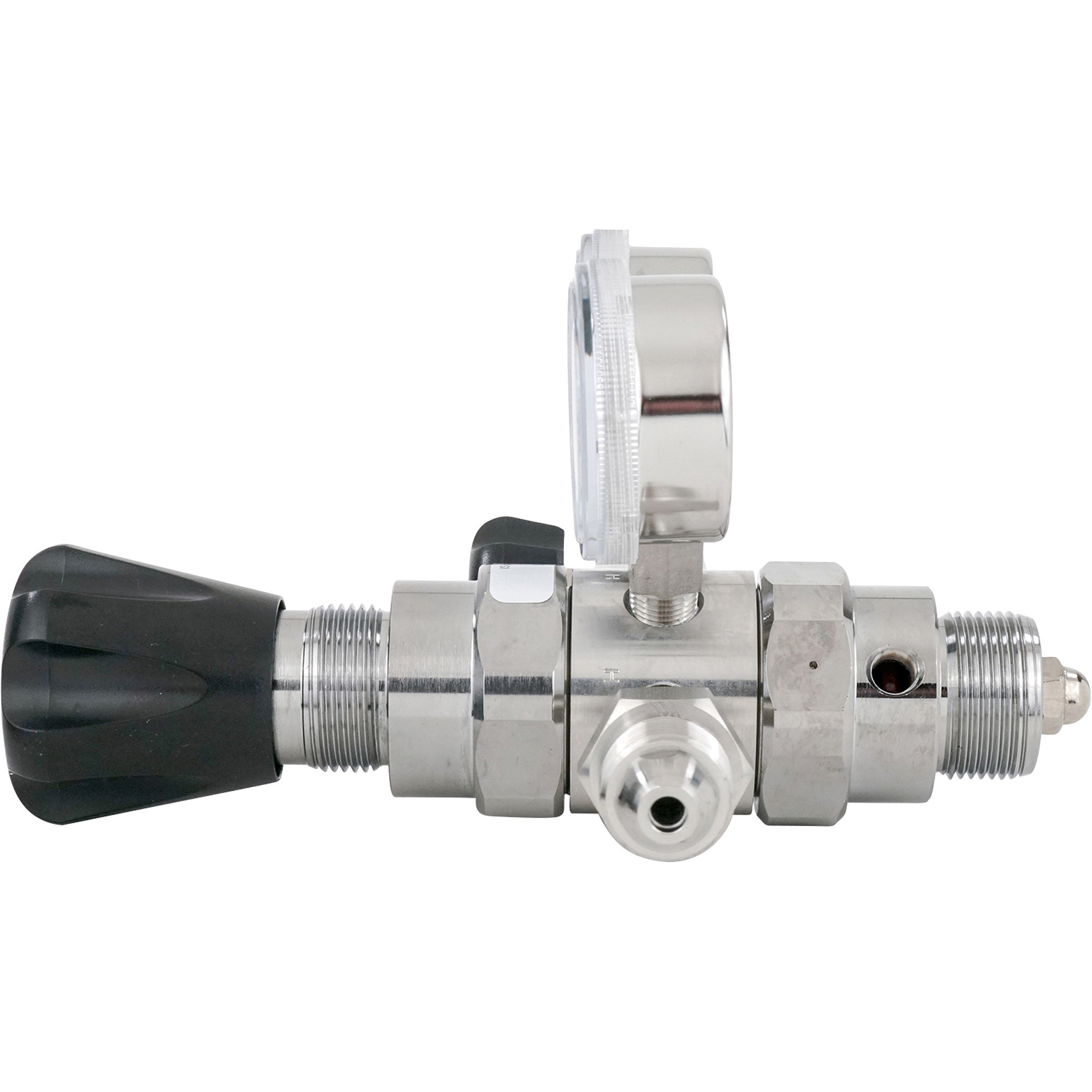

This high-purity two-stage cylinder Harris® Argon, Helium, Nitrogen Specialty Gas Lab Regulator is constructed of stainless steel barstock for constant delivery pressure from full to near empty cylinder conditions. The Model HP742 is suitable for corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems. The 200 PSIG delivery pressure gauge features a delivery pressure range of 0 to 125 PSIG.

What's Included

    (1) Two-stage cylinder regulator with CGA inlet connection and outlet diaphragm valve

Features + Benefits

  • 2in. dual scale stainless steel gauges (psi/bar)
  • Mountable on the front panel
  • Maximum inlet pressure of 3000 PSIG
  • Suitable for corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems
  • 1 11/16in. 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • Designed to 1 x 10-9cc/sec. inboard helium leak rate to maintain gas purity levels
  • One-piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • Chrome-plated brass bonnet, 316L stainless steel body and fittings
  • Cleaned per CGA G4.1

Key Specs

AttributeSpecification

item#

87694

Brand

Harris

Manufacturer's Warranty

3 month limited warranty

Ship Weight

6.11 LB

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

125 PSIG

Body Material

Stainless Steel
AttributeSpecification

Gas Service

Argon, Helium and Nitrogen

Welding Process

Gas

Supply Pressure Gauge

4,000 PSIG

Inlet Connection

CGA 580

Product Weight

6.1100 lb

Dimensions L x W x H (in.)

9.5 x 9.5 x 9.5 in
