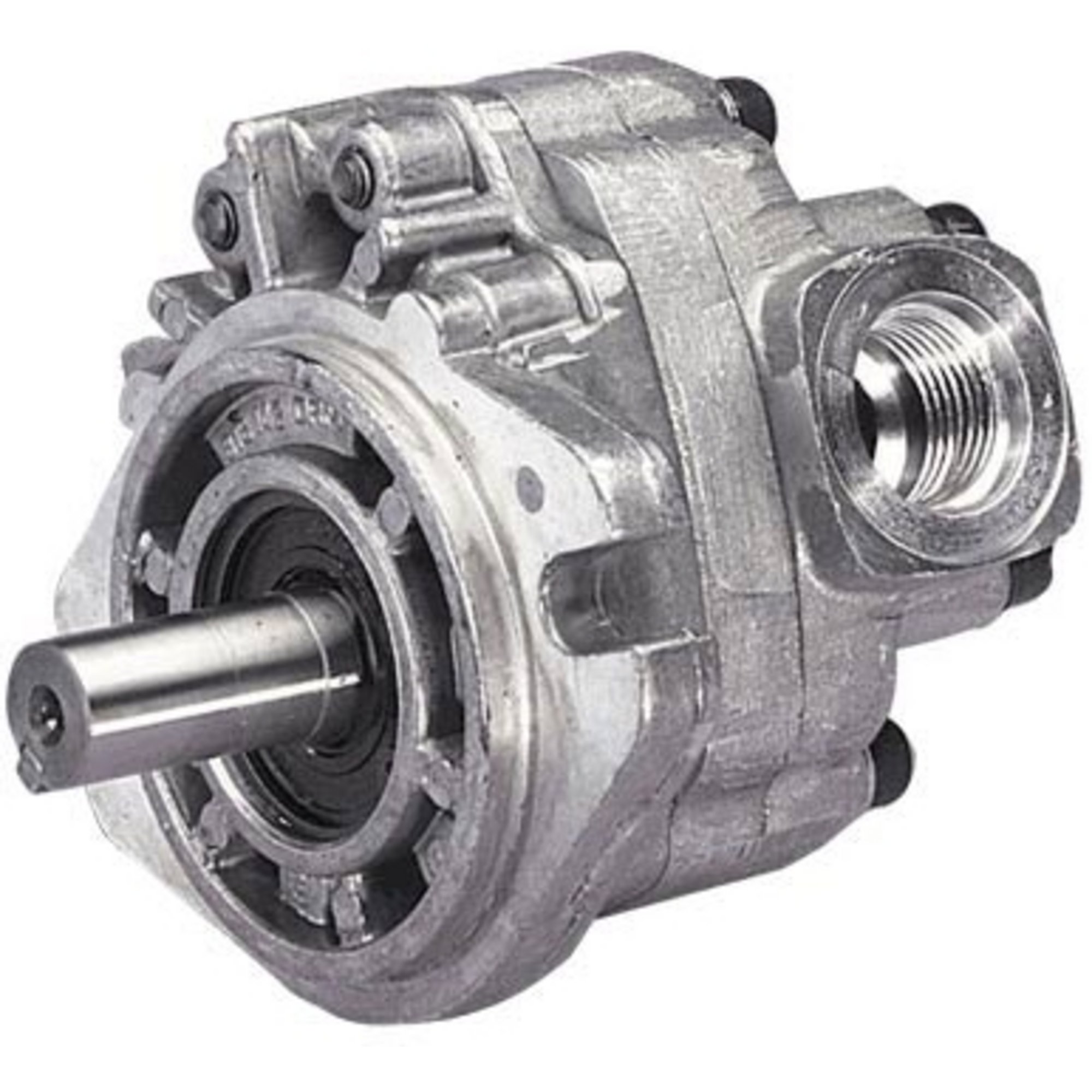

Haldex Barnes Pressure-Balanced High Pressure 4.75 cubic in. Gear Pump with ccw rotation

Item# 10573
Haldex Barnes Pressure-Balanced High Pressure 4.75 cubic in. Gear Pump with ccw rotation

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Haldex Barnes Pressure-Balanced High Pressure 4.75 cubic in. Gear Pump with ccw rotation

Click or Tap image to Zoom

  • Haldex Barnes
  • Cubic Inch Size: .61
  • Rotation: CCW
  • Flow at 1800 RPM: 4.75
  • Flow at 3600 RPM: 9.50

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

High pressure capability pump operates at up to 4000 RPM. Built of high strength aluminum, it is similar to Webster YC Series, Parker H Series, Rexroth S15S, Cross 40P, Cessna 24300, Ultra 1PXC and Commercial P315. Standard SAE 2-bolt A flange, 3.25in. diameter pilot with 3/4in. x 1 3/4in. shaft, 3/16in. square key. SAE O-ring ports: inlet 11/16in.-12, outlet 3/4in.-16. Rotates in one direction. 95% efficient. U.S.A.

Features + Benefits

  • Haldex Barnes
  • Cubic Inch Size: .61
  • Rotation: CCW
  • Flow at 1800 RPM: 4.75
  • Flow at 3600 RPM: 9.50
  • Max. PSI: 3625

Key Specs

AttributeSpecification

item#

10573

Brand

Haldex

Manufacturer's Warranty

18 months parts / 18 months labor

Ship Weight

5.95 LB
AttributeSpecification

Max. PSI

3,625

Shaft Diameter

1.75 in

Material

Aluminum

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

18 months parts / 18 months labor
