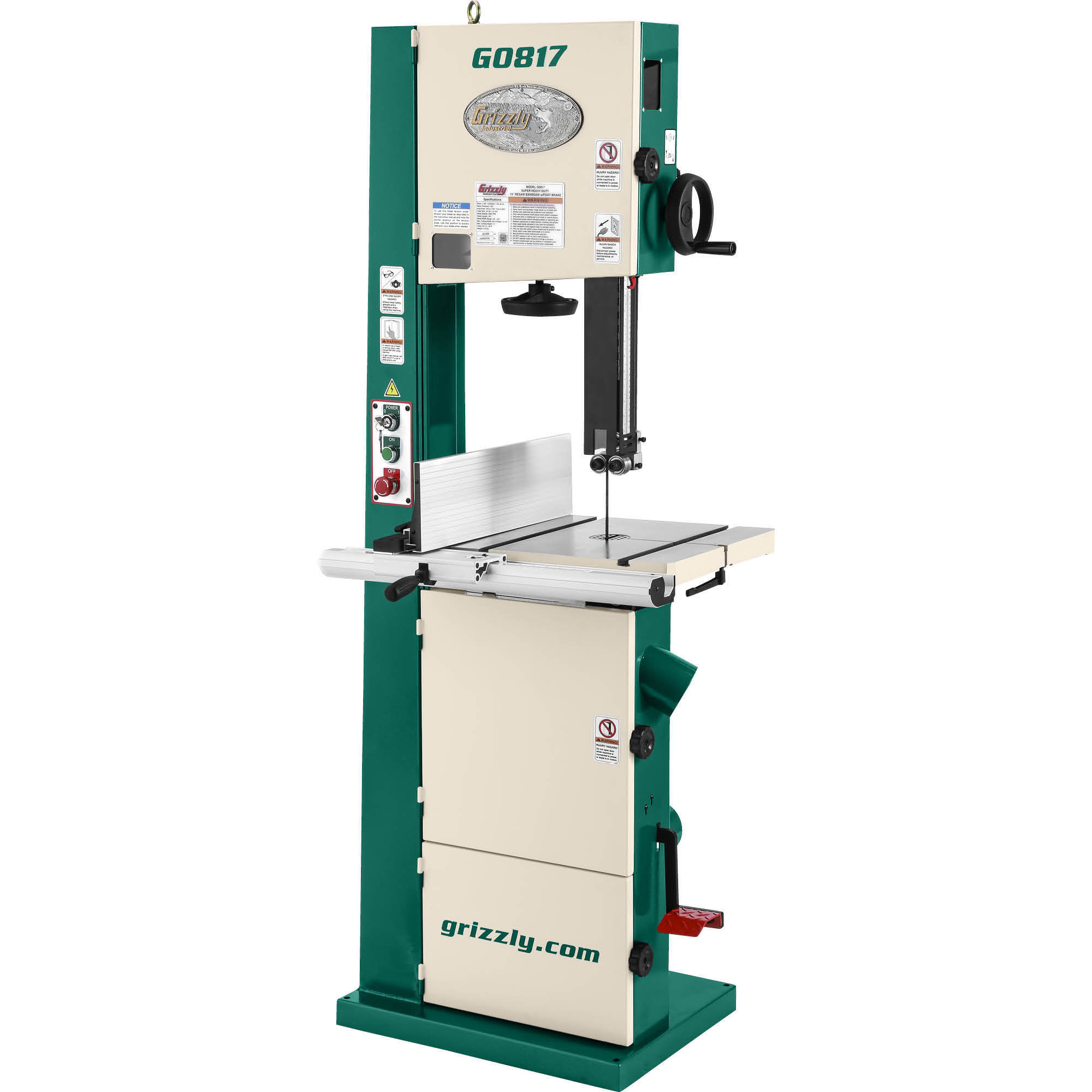

Grizzly G0817 - 14" Super HD 2 HP Resaw Bandsaw w/ Foot Brake

Item# 7511461
New
Grizzly G0817 - 14" Super HD 2 HP Resaw Bandsaw w/ Foot Brake

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G0817 - 14" Super HD 2 HP Resaw Bandsaw w/ Foot Brake

Click or Tap image to Zoom

$1899.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 14" Resaw Capacity
  • 2 HP, 110V/220V (Prewired 110V), Single-Phase

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Nicknamed the "Resaw Pro" for good reason, this Heavy-Duty 14in. Bandsaw features an industry-leading 14in. resaw capacity, 2 HP motor, one-piece reinforced steel frame, ultra-solid rack and pinion upper guide post, and a deluxe 2-position 6in. tall resaw fence. This saw is also equipped with heavy cast iron wheels, heavy-duty cast iron table trunnions, and a foot brake that stops the wheels in seconds, improving both the safety and efficiency of your work. Also featured is an exclusive interchangeable blade guide system that allows you to easily change from the included dual-bearing blade guides to an optional Euro-style roller-disc guide. The hinge-open design of the blade guard also makes it quicker and easier than ever to change blades and make routine adjustments to the blade guides and support bearings. Last, but not least, dual 4in. dust ports provide nearly perfect dust collection, and there is a special storage area at the bottom to keep extra blades or the included miter gauge when not in use. Specifications:
  • Motor: 2 HP, 110V/220V (prewired 110V), single-phase, TEFC, 1720 RPM
  • Amps: 19A at 110V, 9.5A at 220V
  • Table size: 21-3/4in.L x 16-1/8in.W
  • Table tilt: 5°, 45°
  • Floor to table height: 37in.
  • Max cutting width: 13-1/2in.
  • Max cutting height: 14in.
  • Blade size: 120in. (1/8in. to 3/4in. widths)
  • Blade speeds: 2820 FPM
  • Overall size: 29in.W x 32-1/2in.D x 76in.H
  • Footprint: 24in.L x 18in.W
  • Approximate shipping weight: 388 lb.

    • What's Included

      (1) Vertical Wood Bandsaws

    Features + Benefits

    • 14" Resaw Capacity
    • 2 HP, 110V/220V (Prewired 110V), Single-Phase

    Key Specs

    AttributeSpecification

    item#

    		7511461

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		388.0 LB

    Volts

    		110

    Power Type

    		Corded

    Motor Type

    		Brushless

    Phase

    		Single-phase
    AttributeSpecification

    Variable Speed

    		No

    Table Tilt Left Max. Degrees

    		5

    Table Tilt Right Max. Degrees

    		45

    Case Included

    		No

    No Tool Blade Change

    		No

    Horsepower

    		2 HP

    Product Weight

    		388.0000 lb

    Dimensions L x W x H (in.)

    		32.5 x 29.0 x 76.0 in

    Reviews

    Questions & Answers

    24 Reviews This action will navigate to reviews.

    Questions

    1–10 of 17 Questions
    Sort by:

    1. Regarding voltage conversion, the manual states "voltage conversion procedure requires purchasing/installing the 220V Conversion Kit (Grizzly Part #P0817161V2)." I don't find that conversion kit on your website. Is it available for purchase? Where?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate you reaching out. Yes, the P0817161V2 Switch Assembly is available. If you’re having trouble locating it, please contact our Customer Service team at (800) 523-4777, and they’ll be happy to assist you.

    2. Do push blocks come with this saw? Thanks.

      1 answer
      Originally posted on grizzly.com

      1. We appreciate you reaching out. Push blocks are not included and must be purchased separately.

    3. One of the previous questions, (asked 9 months ago) asked about this machinery being equipped with 220V kit at the factory. The answer said you were looking into that option. Do you have an answer?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for your question. We’re unable to provide this as a service at this time. However, you can find the conversion procedures outlined on page 14 of the manual. We also offer technical support over the phone. For your safety and to protect property, we recommend consulting a licensed electrician if you’re unsure about wiring practices or local electrical codes.

    4. Can the fence be put on the opposite side of the blade?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for your inquiry. Yes, but it can only be mounted in a way that the back of the fence faces the blade.

    5. Can this machine run on a 20 amp circuit?

      1 answer
      Originally posted on grizzly.com

      1. Thanks for reaching out. This bandsaw required a minimum circuit of 20A at 110V or 15A at 220V.

    6. What do I need to connect a 4” Y-connector so I only need one hose connected from dust collection system? The Dust Right Y-connector I just bought, won’t work as it is 4” as well. Is there an adapter I need to connect Y to lower dust port on G0817 bandsaw

      1 answer
      Originally posted on grizzly.com

      1. Thanks for reaching out. We suggest connecting the dust port on the bandsaw to 4" hose that would then run to your dust collector. You will also need hose clamps to ensure the hose is secured on both sides.

    7. Does this saw have blade guide bearings below the bed?

      1 answer
      Originally posted on grizzly.com

      1. Thanks for contacting us. Yes, this does have blade guide bearings below the table.

    8. Can this saw be purchased with the 220V Kit (P0817161V2) installed from the factory? If not, it should be offered as an option.

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. We are still evaluating this option. In the meantime, we recommend contacting Product Support to verify proper wiring during the conversion process.

    9. what is the width blade max?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for your question. The standard blade length is 120". The blade width can be within the range of 1/8 inch to 3/4 inch.

    10. what blade comes with the saw?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. This bandsaw is equipped with the P0817023 blade, measuring 120" x 3/8" with 6 TPI (teeth per inch) in a hook pattern.

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
