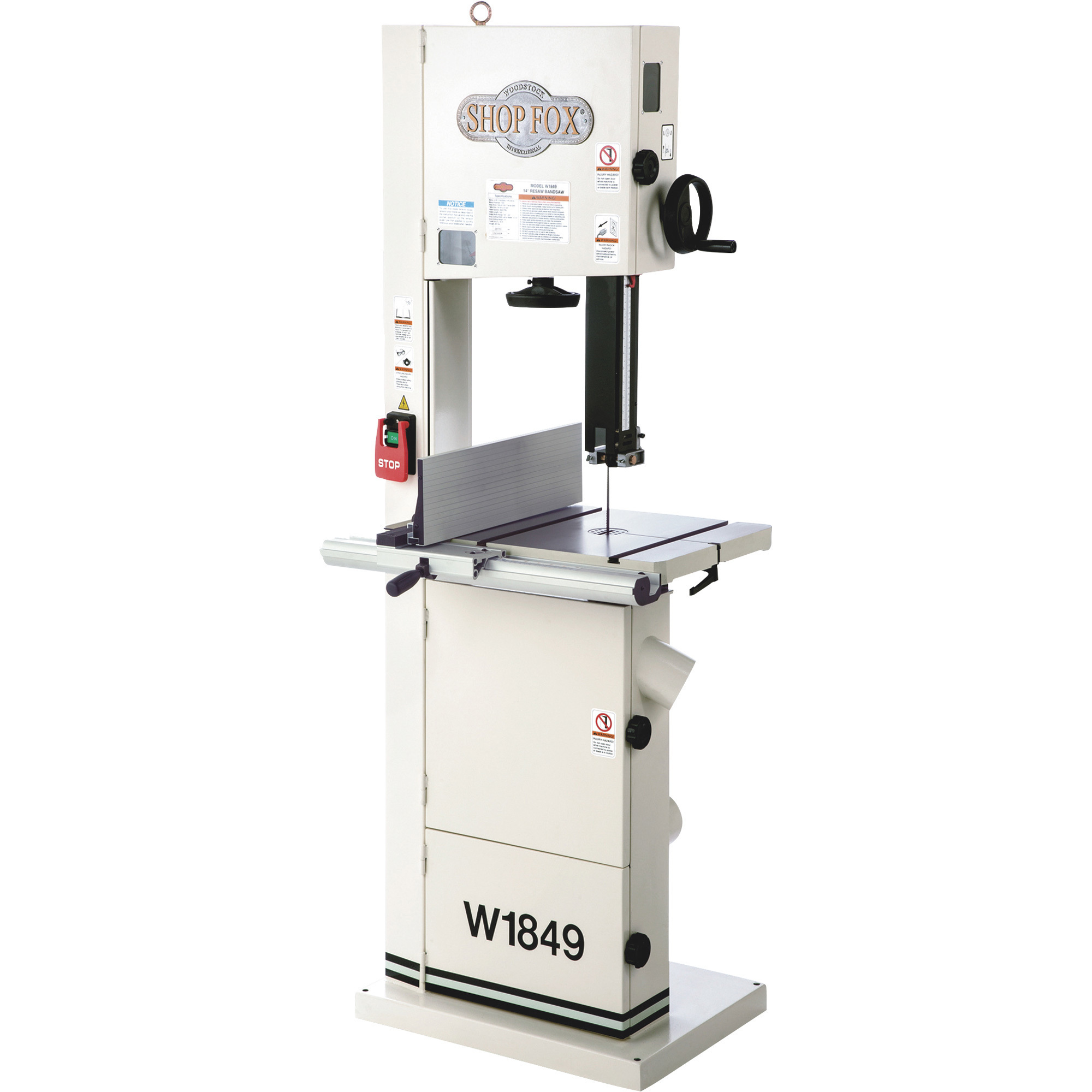

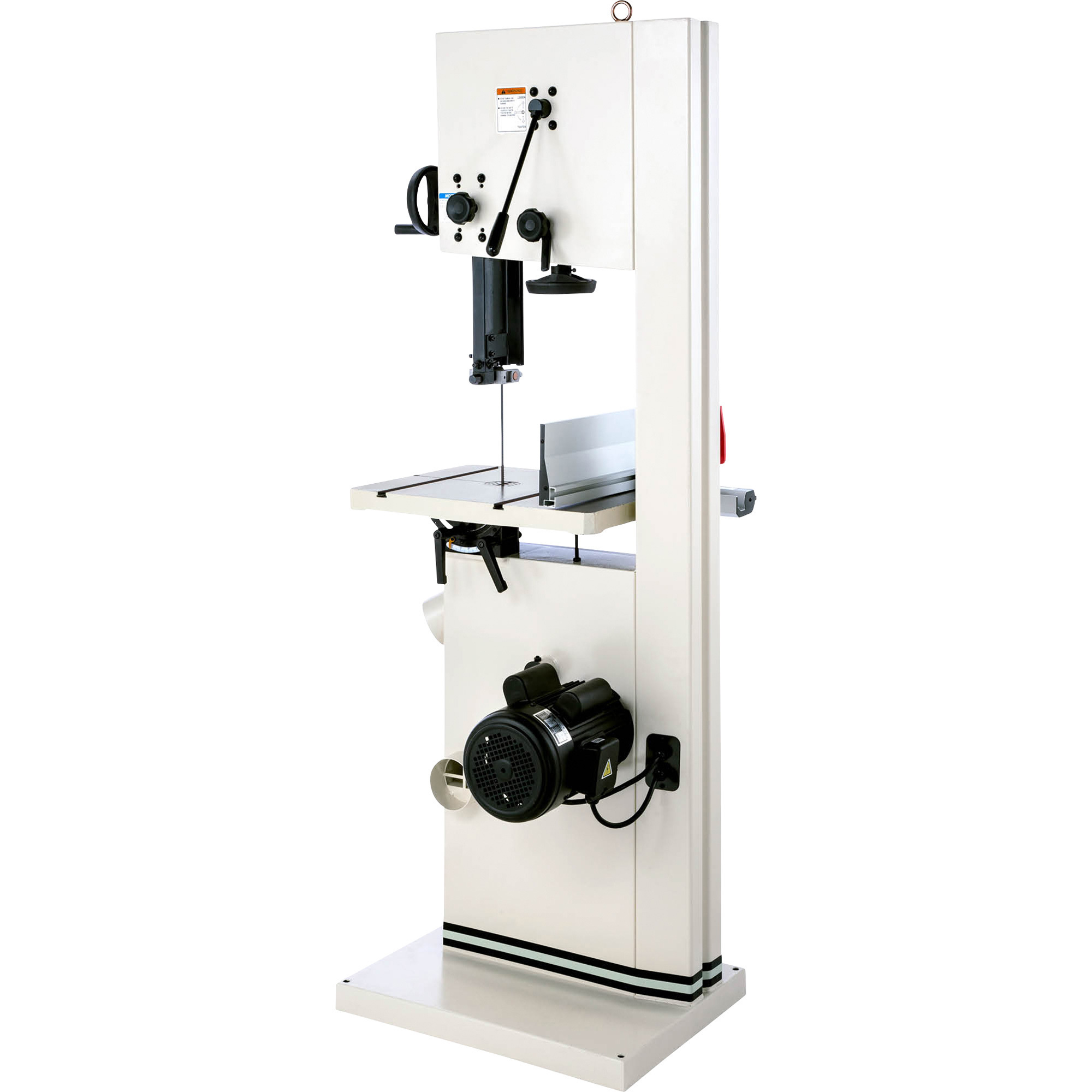

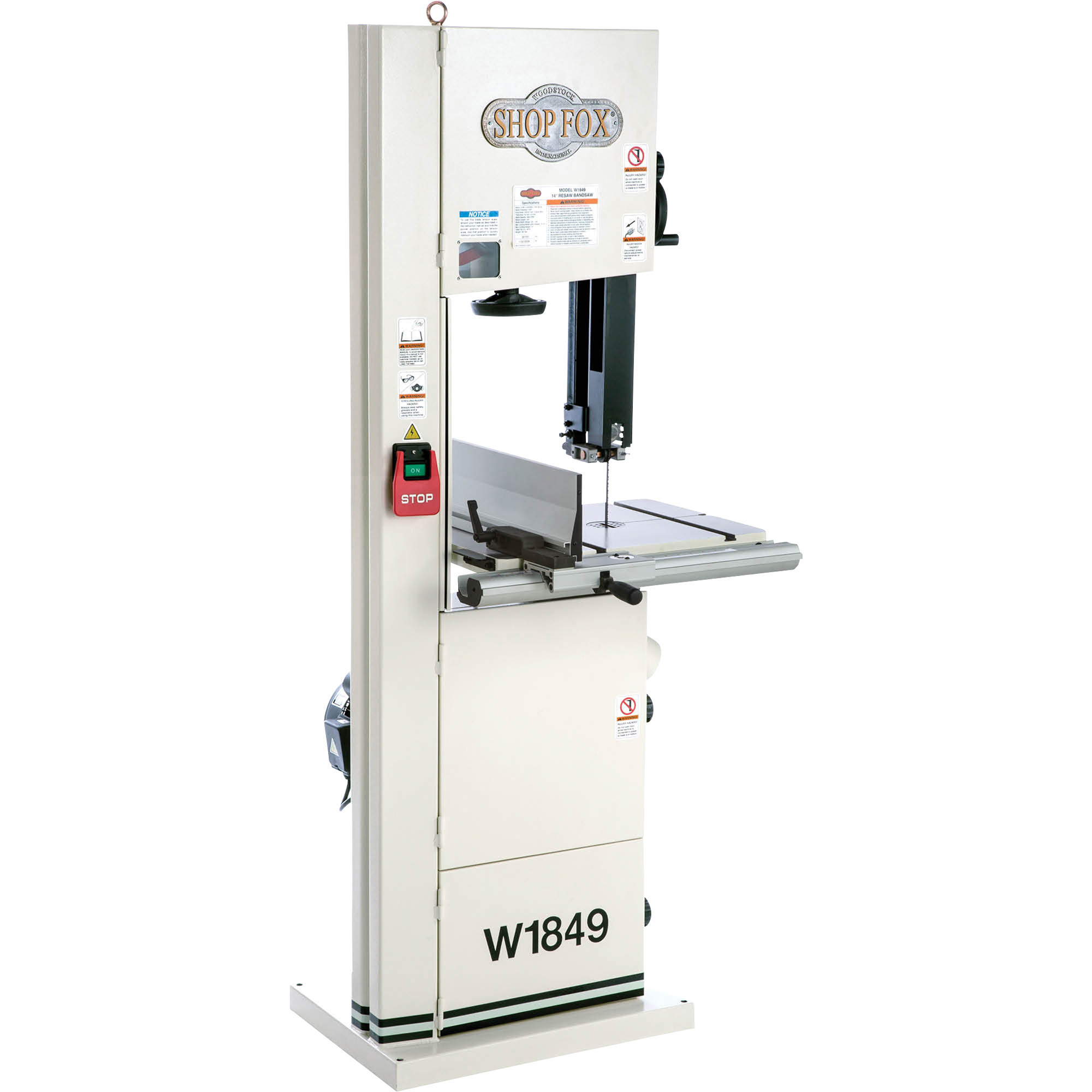

Shop Fox 14in. Resaw Bandsaw, Model# W1849

Item# 81966
Shop Fox 14in. Resaw Bandsaw, Model# W1849

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox 14in. Resaw Bandsaw, Model# W1849

Click or Tap image to Zoom

$1775.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor: 2 HP, 110V/220V (prewired 110V)
  • Amps: 15A at 110V, 7.5A at 220V
  • Table size: 21 3/4in.L x 16 1/8in.W
  • Table tilt: 5°, 45°
  • Floor to table height: 37in.

See full description

Complete Your Solution

  • Shop Fox 14in. Resaw Bandsaw, Model# W1849
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all three:

$1794.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Versatility, capacity, strength and exceptional value are key features of the Shop Fox® 14in. Resaw Bandsaw. European design elements, such as roller disc blade guides, steel column box-frame with rigid W-shaped spine and a hinged blade guard enclosure are extras that make this saw a pleasure to use. With Shop Fox, you don't pay more for important accessories like the premium, dual-height fence with a hairline indicator scale. The cast iron and aluminum extruded fence can be set to the low (1/2in.) position for close-in detail work, or at 6in. for extra support when resawing taller pieces. Add in a storage cabinet for blades, super-efficient dual-port dust collection, a quick-release blade tension lever and viewing windows for tracking and blade tension settings, and you've got a feature-packed machine with a small footprint and super-sized performance.

What's Included

    (1) Shop Fox 14in. Resaw Bandsaw, Model# W1849

Downloads

Product Manual

Features + Benefits

  • Motor: 2 HP, 110V/220V (prewired 110V)
  • Amps: 15A at 110V, 7.5A at 220V
  • Table size: 21 3/4in.L x 16 1/8in.W
  • Table tilt: 5°, 45°
  • Floor to table height: 37in.
  • Max cutting height: 14in.
  • Max cutting width: 13 1/2in.
  • Blade size: 120in. (1/8in. to 3/4in. widths)
  • Blade speeds: 2820 FPM
  • Overall size: 29in.W x 32 1/2in.D x 76in.H
  • Deluxe 2-height resaw fence and drift bar
  • Computer-balanced cast-iron wheels
  • Blade tension and tracking windows

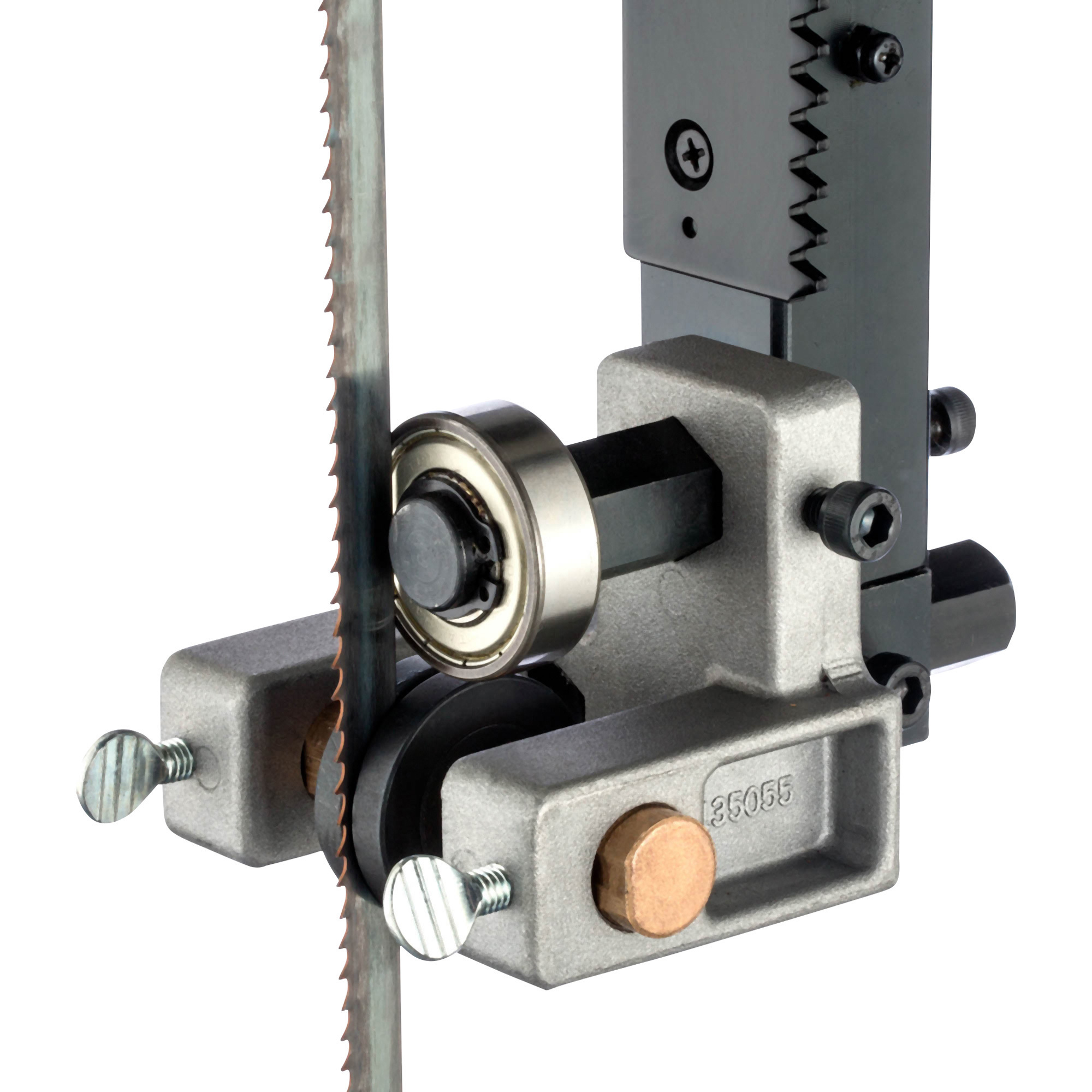

  • Euro-style roller-disc guides
  • Dual 4in. dust ports

Key Specs

AttributeSpecification

item#

81966

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

376.0 LB

Volts

Multi

Max. Cutting Capacity

2,820 SFPM

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. When should extensions rods be used in conjunction with a mobile base and when are they not necessary when using a mobile base. The product description is not clear. (It says they MAY be necessary.)

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your inquiry. The D2246A Mobile Base has four corners with rectangular receiver tubes for the bars that connect them using bolts. It can adjust to fit a range of footprints, from 20" x 20" up to 29-1/2" x 29-1/2". If your equipment falls within that range, it should work fine. For machines with a wide and narrow frame, such as a jointer base, you can use the D2246A, which adjusts in one direction to a range of 26" to 44" wide.

  2. Can I run this at 110 V plugged into a 20 Amp GFCI outlet (required by code)?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for getting in touch with us. The bandsaw operates on 110V and is prewired for this voltage. A 20A breaker is required, but please note that the machine may not function properly with a GFCI outlet due to the high inrush current during startup. The GFCI's sensitive safety mechanism may trip. We recommend consulting a licensed electrician for alternative solutions while ensuring compliance with local electrical codes.

  3. Where is it made?

    What Country?

    1 answer

    1. The unit is made in Taiwan.

      Helpful?

  4. Does this come with any blades?

    1 answer

    1. The bandsaw will come with a pre installed blade.
