Grizzly G0759 - 7" x 27" 1 HP Mill/Drill w/ Stand & DRO

Item# 7511479
New
Grizzly G0759 - 7" x 27" 1 HP Mill/Drill w/ Stand & DRO

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G0759 - 7" x 27" 1 HP Mill/Drill w/ Stand & DRO

Click or Tap image to Zoom

$3299.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

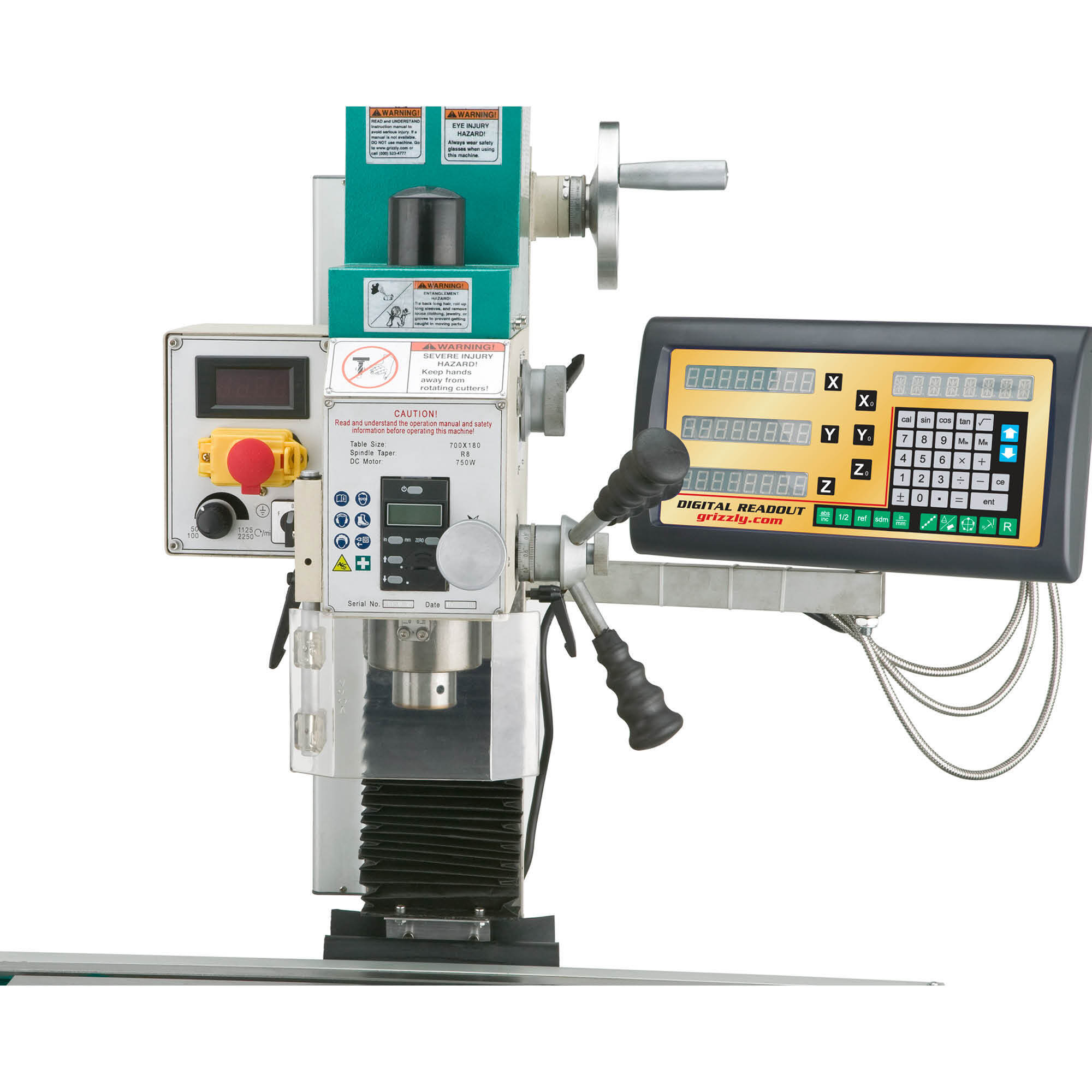

  • Digital spindle scale reads metric, inches, zero, set, on/off
  • Forward/reverse switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

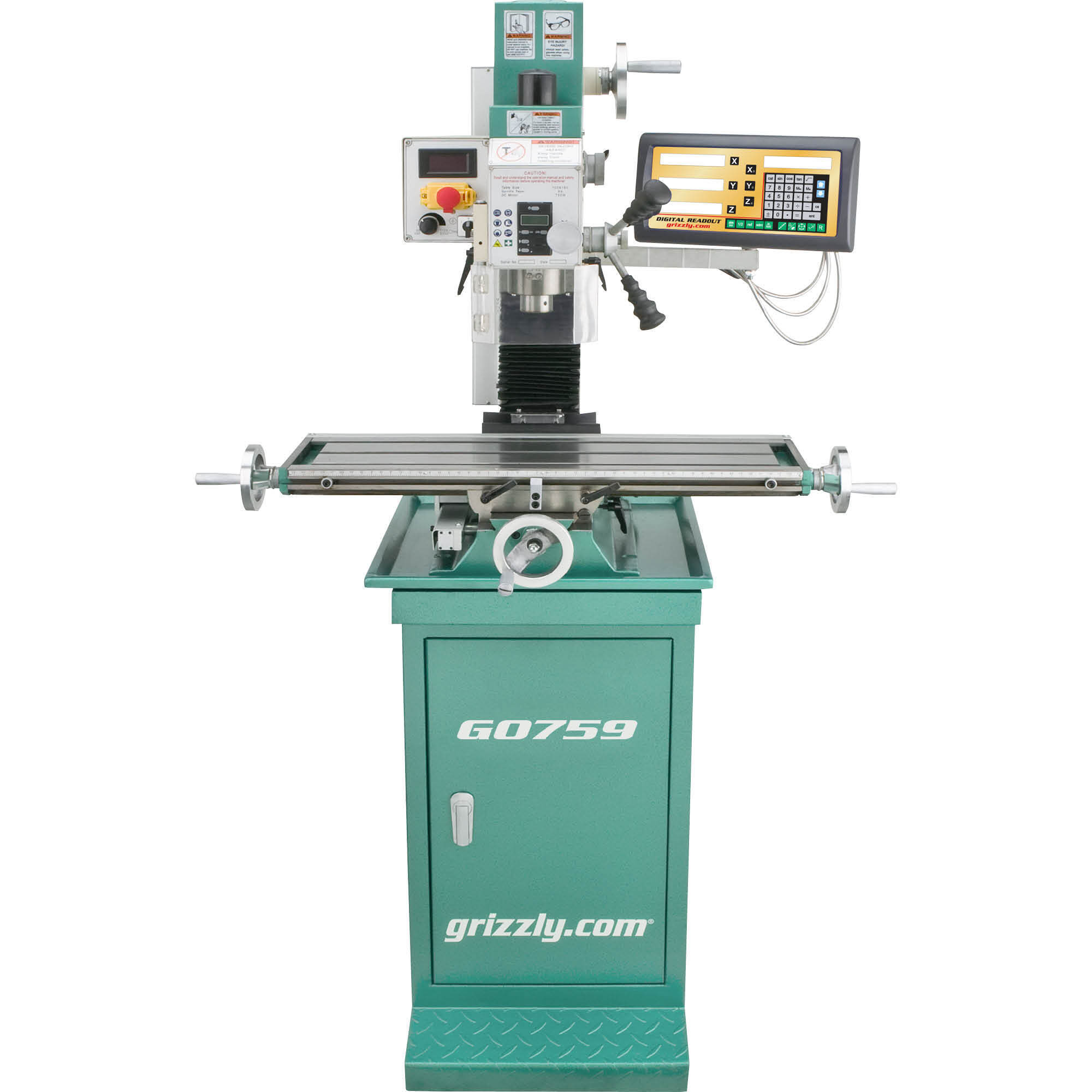

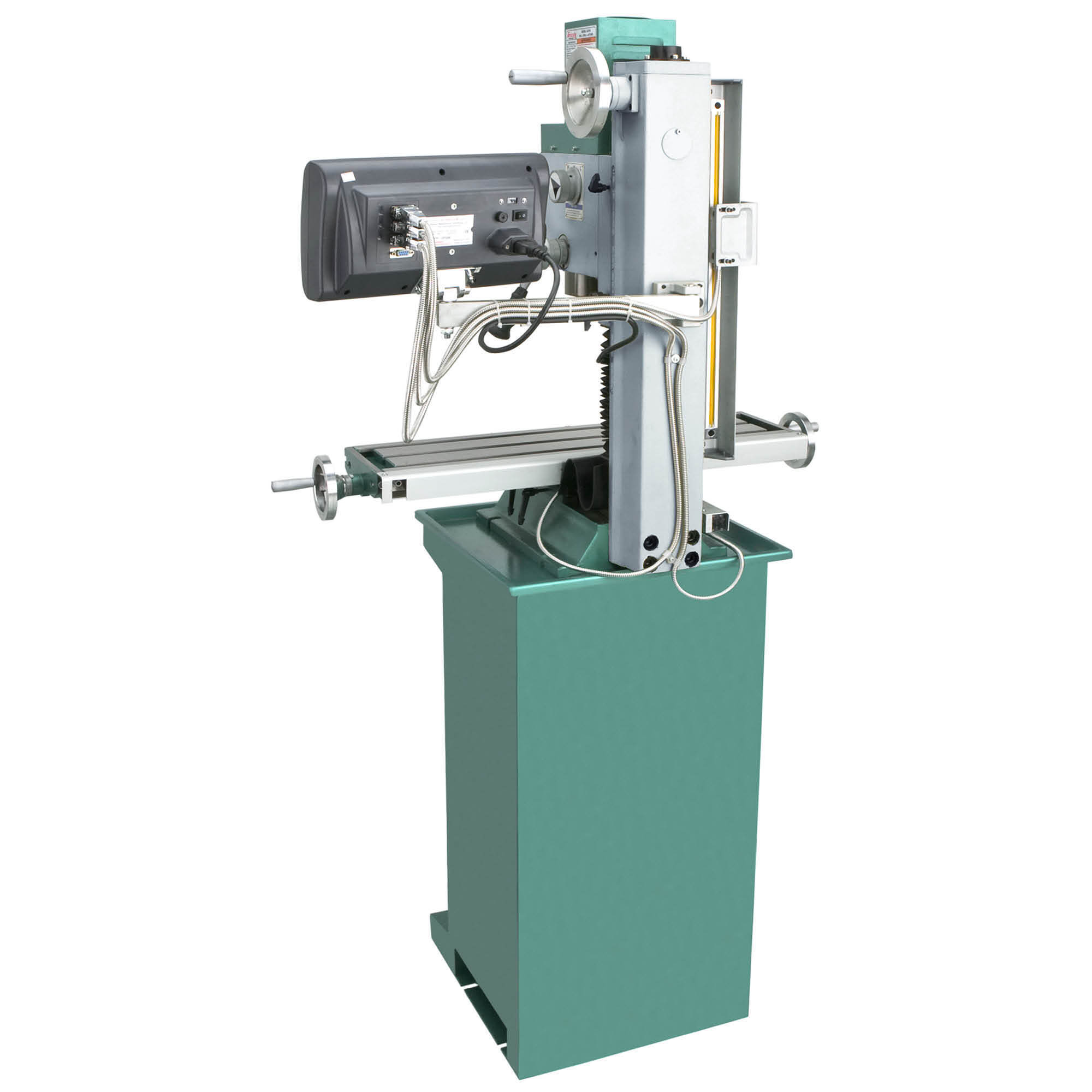

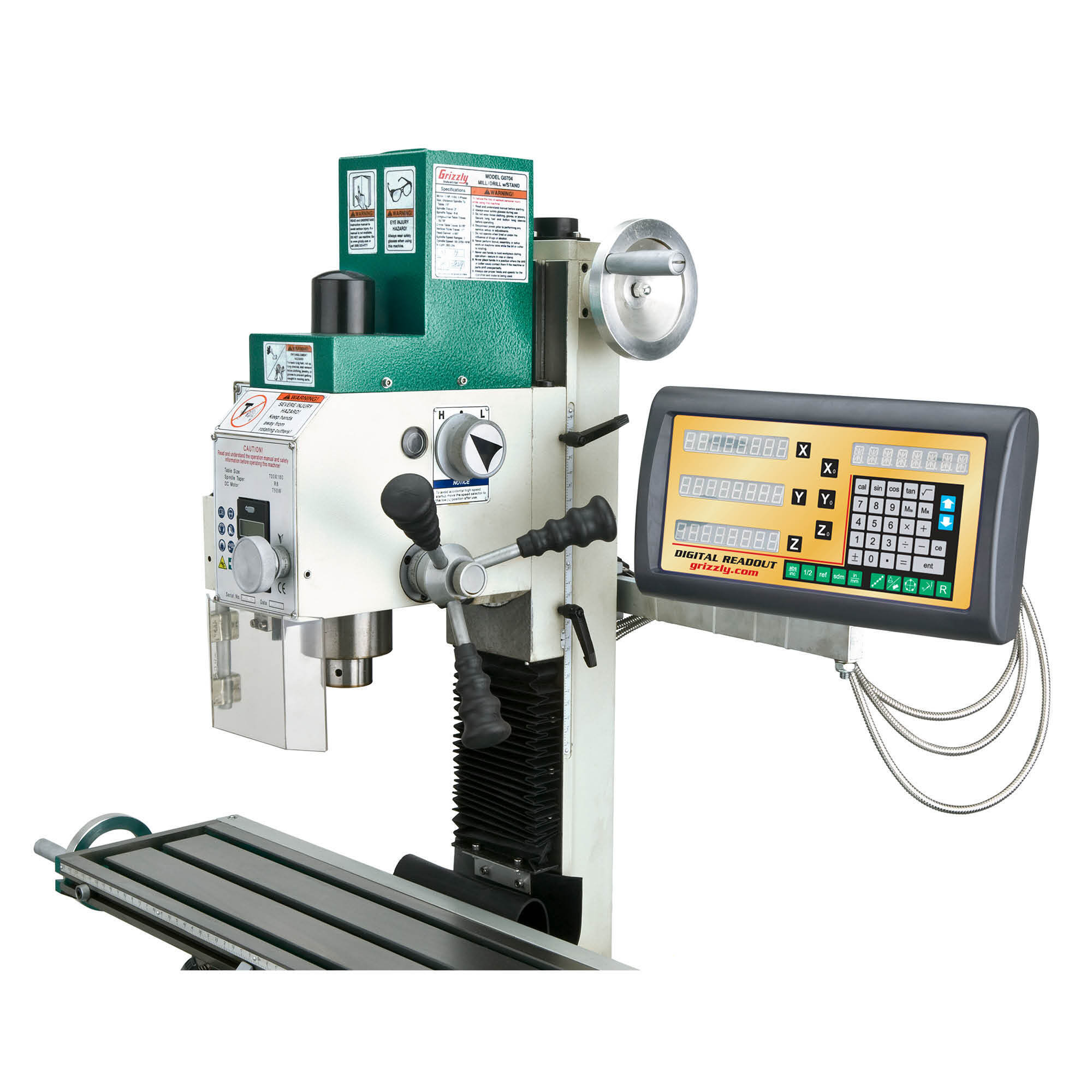

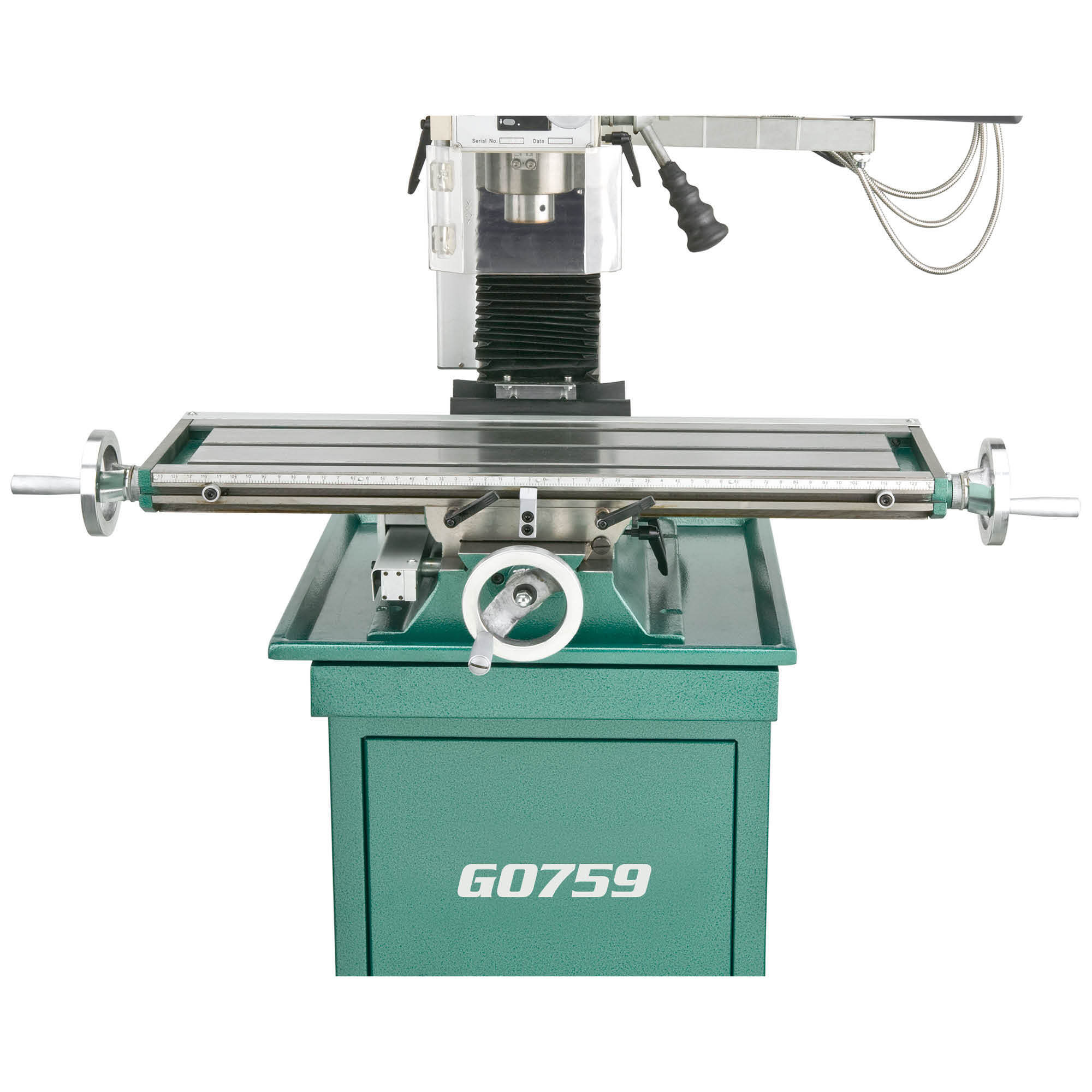

This great little machine sports some of the same features found on much larger mill/drills: dovetail column, variable speed 1 HP motor, R-8 spindle with digital read out, tapered gibs with double locks, large 7-1/16in. x 26-5/8in. table and it comes with its own stand! This is an excellent value and great for just starting out or even as a dedicated, single-purpose machine in the shop! Specifications:
  • Motor: 1 HP, 110V, 12A, single-phase
  • Spindle taper: R-8
  • Spindle travel: 2in.
  • T-slots: 3 2-1/2in. centers, 7/16in. wide
  • Head travel: 11in.
  • Head tilt: 90° left right
  • Max. distance spindle to table: 13in.
  • Swing: 15in.
  • Table travel (longitudinal): 18-7/8in.
  • Table travel (cross): 6-7/8in.
  • Table size: 7-1/16in. x 26-5/8in.
  • Spindle speed: 50–2250 RPM
  • 3-Axis DRO
  • Approximate shipping weight: 392 lbs. Features:
  • Dovetail column
  • Safety shut off switch
  • DRO on spindle
  • Fine feed head control
  • 2-Speed gearbox
  • Clear guard on spindle
  • Rubber chip guards on ways
  • Zero setting dials
  • Dials read inches
  • Forward/Reverse switch
  • Floor-to-table height: 37-1/2in.
  • Stand footprint: 15-3/4in. x 16-1/2in.

    • What's Included

      (1) Mill Drills

    Features + Benefits

    • Digital spindle scale reads metric, inches, zero, set, on/off
    • Forward/reverse switch

    Key Specs

    AttributeSpecification

    item#

    		7511479

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		409.0 LB

    Horsepower

    		1 HP

    Volts

    		110

    Max. Speed

    		2,000 rpm

    360 Degree Head Swivel

    		No

    Speeds (qty.)

    		2

    Product Type

    		Milling Machine/Drill Press

    Vertical Stroke

    		18-1/8 in
    AttributeSpecification

    Drilling Capacity

    		3/4 in

    Light Included

    		No

    Stand Included

    		Yes

    Min. Speed

    		70 rpm

    Variable Speed

    		Yes

    Max. Spindle Distance

    		13 in

    Draw Bar

    		No

    Swing

    		15 in

    Product Weight

    		392.0000 lb

    Dimensions L x W x H (in.)

    		67.0 x 38.0 x 24.0 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
