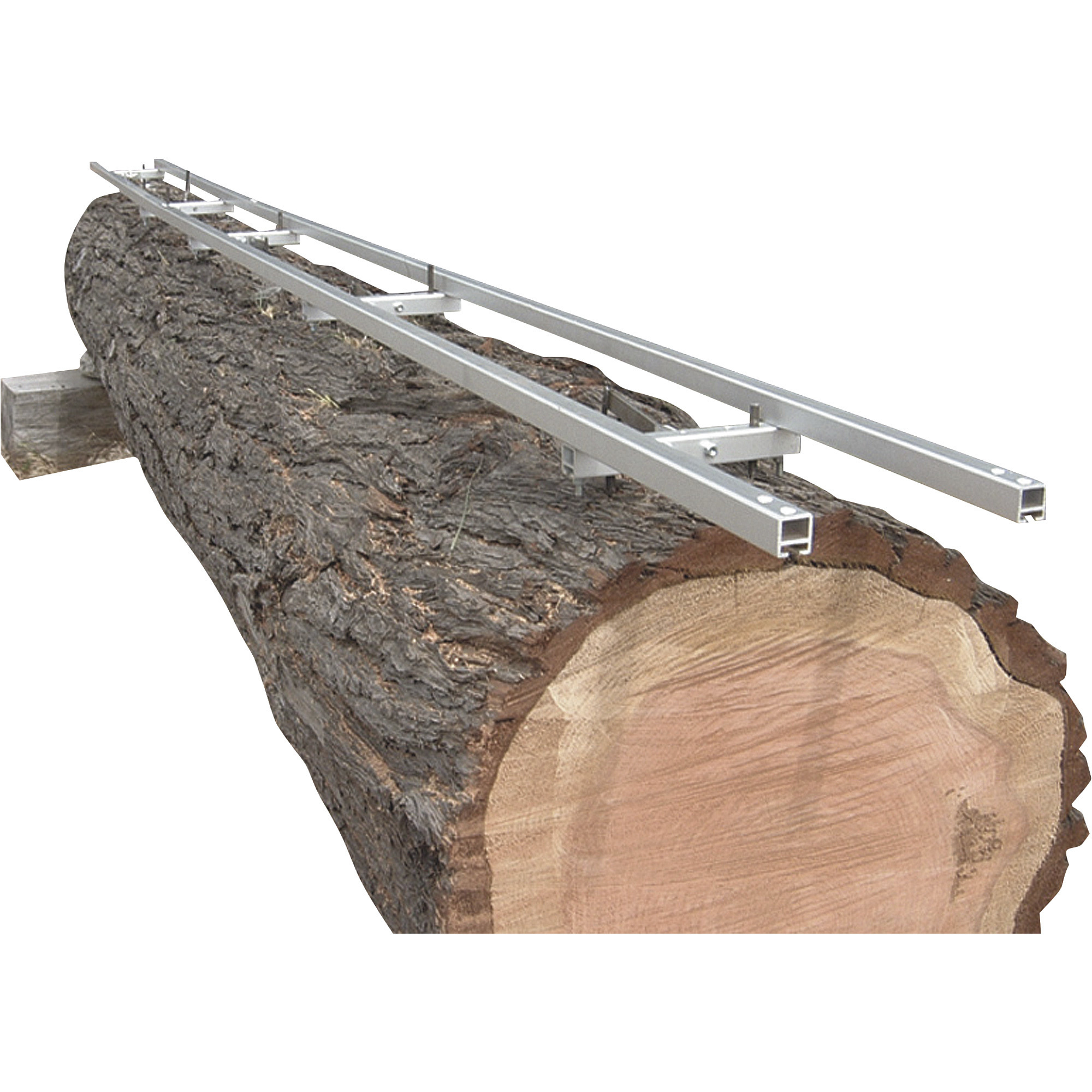

Granberg EZ Rail Sawmill Guide System, 5Ft., 2 Crossbar Kits, Model# G1085

Item# 11880
Granberg EZ Rail Sawmill Guide System, 5Ft., 2 Crossbar Kits, Model# G1085

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Granberg EZ Rail Sawmill Guide System, 5Ft., 2 Crossbar Kits, Model# G1085

Click or Tap image to Zoom

$133.00

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Includes rails and crossbar kits with leveling screws and log dogs
  • Can be used with logs 12in. dia. and larger

See full description

Complete Your Solution

  • Granberg EZ Rail Sawmill Guide System, 5Ft., 2 Crossbar Kits, Model# G1085
  • Granberg EZ Rail Sawmill Connector Kit, Fits EZ Rail 5ft. and 9ft. Guide Systems, Model# G1090
  • Husqvarna Forest Protective Chainsaw Chaps, Size 36-38, Model# 585488004
  • Timber Tuff Timber Log Peeler, Model# TMW-58
Price for all four:

$490.48

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The EZ Rail System -- in combination with the Grandberg Alaskan™ sawmill (Item# 11879, sold separately) -- creates a straight and level first cut along a log. Connector kit #11882, sold separately, connects any combination of 9ft. or 5ft. guide systems together.

What's Included

    (1) Rail sawmill guide system (2) Crossbar kits

Features + Benefits

  • Includes rails and crossbar kits with leveling screws and log dogs
  • Can be used with logs 12in. dia. and larger

Key Specs

AttributeSpecification

item#

11880

Brand

Granberg

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

10.0 LB
AttributeSpecification

Product Type

Other

Rail Material

Aluminum

Rail Size

60 in

Dimensions L x W x H (in.)

60 x 4 x 6

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Can you quarter saw lumber with this system?

    I have several oak trees that I would like to convert into picture framing material. Would like to quarter saw them to give an interesting grain effect. Can I use the EZ Mill and Guide rail system to rough cut lumber using a Quater Saw technique?

    Thank-you

    1. Yes, you can, although time-consuming you can do it.

      Helpful?

    2. You can mill down to 1" thick boards, which after drying could be planed and shaped for framing material. Quarter sawing would capture the flashy grain from oak's radial rays, and yes, you can do this, but you will leave behind a lot of nice oak. You can also mill thicker slabs (2-3") of full width, and after drying, rip the central portions on a band saw or table saw to select the grain pattern you desire, then plane.

      Helpful?

    3. Great for 1st cut but you will also need the mini mill to do the 2nd cut square.

      Helpful?

    4. This is just the guide and would require the Alaskan MK III portable lumber mill to complete the system. The lumber mill is available to work with 20", 24", 30" or 36" chainsaws. The item number for these are 11879, 11871, 11872 and 11873. You would be able to quarter cut with this system although it could be difficult. You would need to rotate your log 90 degrees for the quarter cut.

      Helpful?

  2. Will the EZ Rail system work with the Model G777?

    1. It sure will, perfect match.

      Helpful?

    2. This rail system will work model G777 which is our item #11879.

      Helpful?

  3. Do I need two rail systems to mill an 8 ft log?

    1 answer

    1. Two 5' guides can be connected together using the connector kit, item #11882. We also offer a 10' guide system, item #70635.

      Helpful?

  4. Do you have these in 12' sections and 9' sections

    1 answer

    1. The Granberg saw mill system will cut up to 5'. With item 11882, you can connect this 5' system with a second 5' system. A 12' option is not currently offered.

      Helpful?

  5. Are there actually two five foot sections that can be combined for a total of ten feet or just one five foot rail.

    1 answer

    1. This is one 5' system. With item 11882, you can connect this 5' system with a second 5' system.

      Helpful?

  6. is this kit 2) 5' sections?

    1 answer

    1. This kit includes (1) 5 foot section with (2) crossbar kits.

      Helpful?

  7. Does this work with the MK IV?

    1 answer

    1. The extension kit will work with the small log mill model numbers G778 and G777. The extension kit does require the model number G1090 connection kit.

      Helpful?

  8. What rail size should I buy with a 24” chainsaw.

    1 answer

    1. The rail kit will work with the model G778-24 (item number 58035) 24" portable chain saw mill. The mill will work with chainsaws up to 24" bar and 50 CC or greater displacement.

      Helpful?

  9. I want to mill logs that are 4-10 inches in diameter. Will the EZ Rail work for them?

    1 answer

    1. This item may only be used with logs that are 12" diameter and larger.

      Helpful?

  10. So, it's 2- 5' sections of crossbar rail, for a total of 10', or no?

    1 answer

    1. This is for two 5 foot rail bars for a total of one complete 5 foot rail section. It comes with two cross bars to attach the two rail bars together.

      Helpful?
