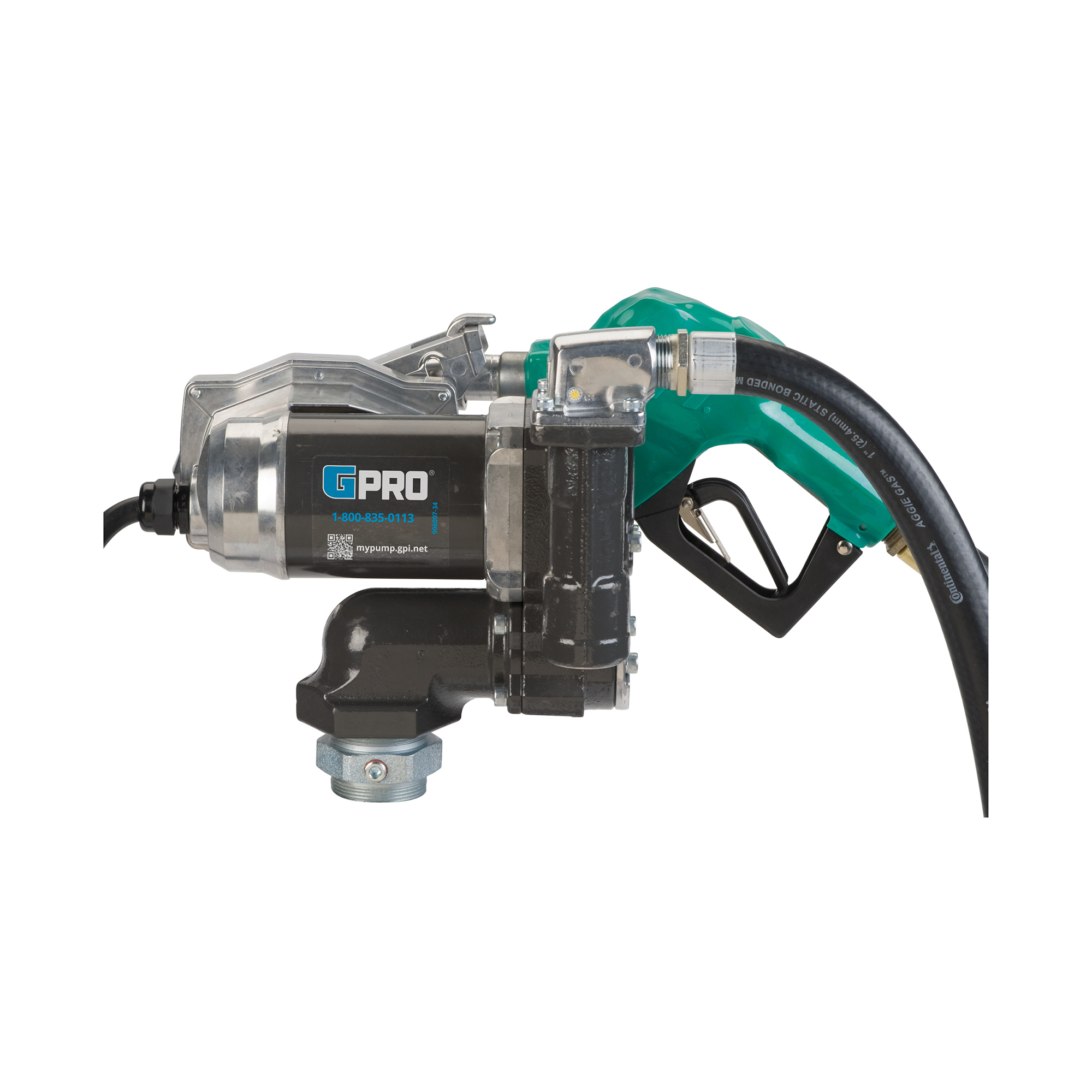

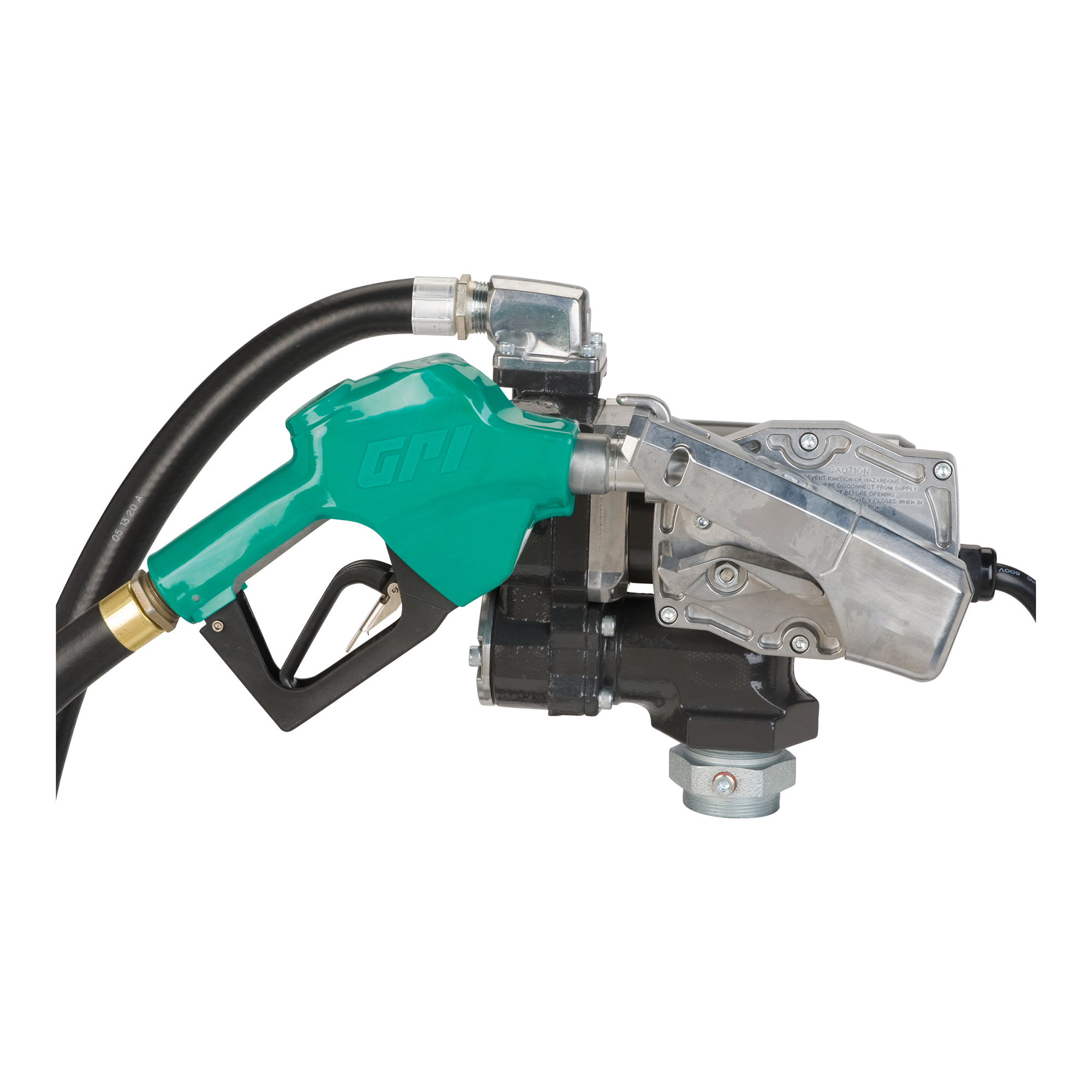

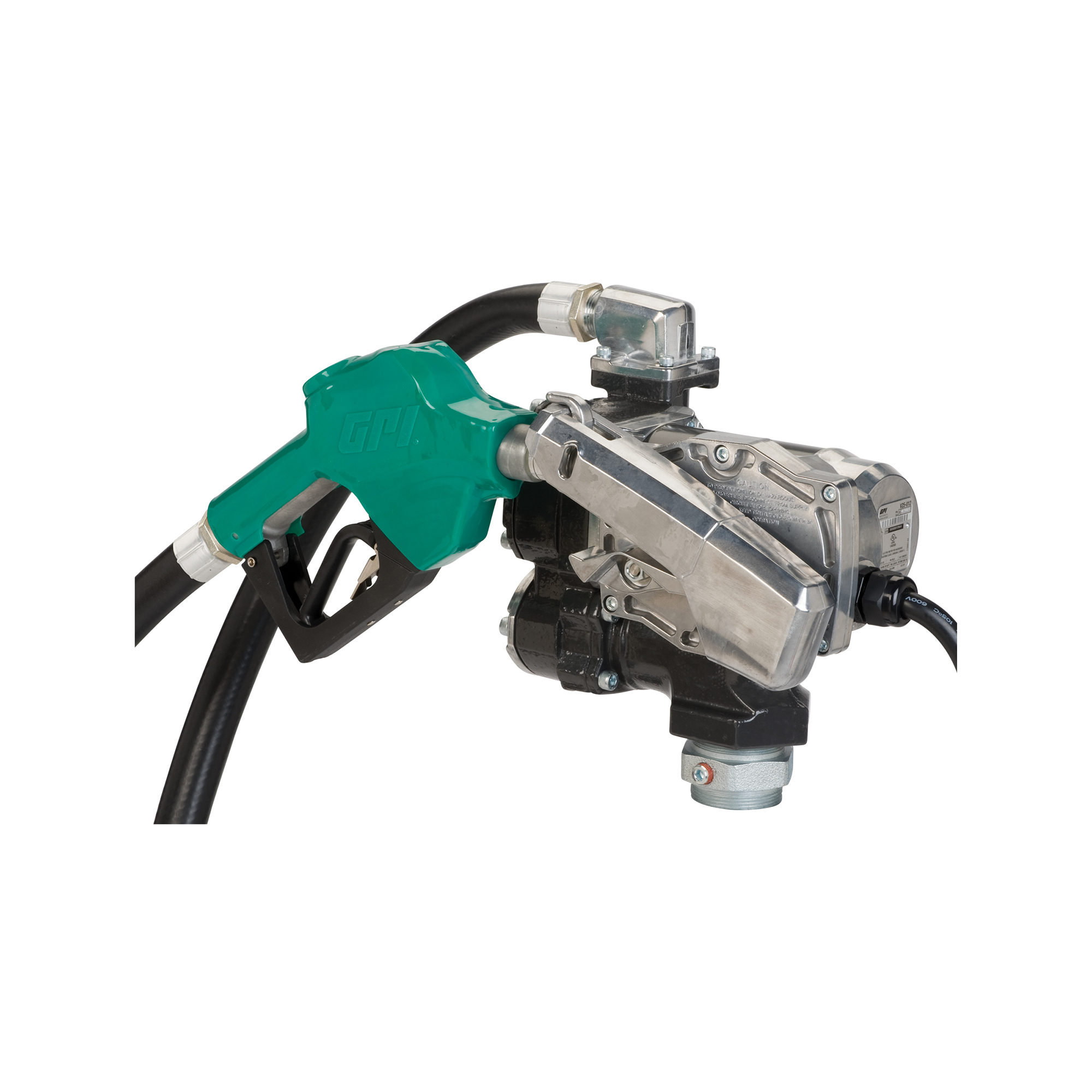

GPRO 25GPM 12V Fuel Transfer Pump with Auto Diesel Nozzle

Item# 103490
GPRO 25GPM 12V Fuel Transfer Pump with Auto Diesel Nozzle

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPRO 25GPM 12V Fuel Transfer Pump with Auto Diesel Nozzle

Click or Tap image to Zoom

$1109.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • True flow rate ensures the pump dispenses 25 GPM at the nozzle
  • Includes automatic dispensing diesel nozzle with drip catch and 1in. x 18t. dispensing hose
  • Safe Stop system has 30-minute auto power down with easy reset
  • System can pump up to 750 gallons uninterrupted
  • Made with materials selected to prevent rust and survive all weather conditions

See full description

Complete Your Solution

  • GPRO 25GPM 12V Fuel Transfer Pump with Auto Diesel Nozzle
  • GPI QUICK-FIT 25 GPM, 10 Micron Filter and Adapter Kit
  • GPI 5-30 GPM Modular Mechanical Fuel Meter
  • GPI 1-inch Fuel Hose Swivel
Price for all four:

$1564.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This GPRO® Professional Grade Fuel Transfer Pump Kit is designed, tested, and approved for use with gasoline blends (up to E15), diesel fuel blends (up to B20), and kerosene. The pump is equipped with Safe Stop 30-minute auto power down with easy reset and can pump up to 750 gallons uninterrupted. Includes automatic nozzle and dispensing hose.

What's Included

    (1) 25 GPM fuel transfer pump with drip catch nozzle cover (1) 1in. automatic shutoff diesel nozzle (1) 1in. x 18ft. dispensing hose (1) 15-40in. telescoping suction pipe (1) 18ft. Factory-installed power cord (1) 2in. tank adapter (1) Fuse assembly (1) Set of hardware

Features + Benefits

  • True flow rate ensures the pump dispenses 25 GPM at the nozzle
  • Includes automatic dispensing diesel nozzle with drip catch and 1in. x 18t. dispensing hose
  • Safe Stop system has 30-minute auto power down with easy reset
  • System can pump up to 750 gallons uninterrupted
  • Made with materials selected to prevent rust and survive all weather conditions
  • Molded coverplate seal keeps moisture out and stays in place
  • Cast iron pump head, carbon vanes, and all metal pump drive components provide trouble-free performance and longer pump life
  • Quick-Fit modular design easily attaches a filter, meter, or both; just remove 4 bolts and an O-ring for fast, leak-free installation of optional outlet fittings
  • Innovative product advancements are engineered to deliver exceptional performance and are backed by an industry-leading 4-year warranty
  • For use with gasoline (alcohol blends up to E15), diesel fuel (bio-diesel blends up to B20) and kerosene
  • 18ft. factory-installed power cord
  • Includes 1in. dia. suction pipe that telescopes from 15in. to 40in.

Key Specs

AttributeSpecification

item#

103490

Brand

GPRO

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

56.0 LB

GPM

25

Nozzle Type

Automatic

Max. Suction Lift

15 ft

Max. Total Head

18 ft

Amps

35

Watts

420

Inlet Port

1 in

Outlet Port

1 in

Inlet Port (in.)

1
AttributeSpecification

Discharge

18 ft

Self-Priming

Yes

Hose Length

18 ft

Outlet Port (in.)

1

Speed

1,620 rpm

Discharge (ft.)

18

Duty Cycle

30 min

Bypass Valve

Yes

Hose (in. x ft.)

1 x 18

Product Weight

53.6000 lb

Dimensions L x W x H (in.)

10.86 x 11.38 x 12.11 in

Speed (RPM)

1,620

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Is this pump 12v?

    1 answer

    1. The pump is 12 volt DC.

      Helpful?

  2. Will this pump thread onto a standard 55 gallon oil drum?

    1 answer

    1. The pump will come with a 2 inch threaded tank adapter to attach to the top of a 55 gallon drum.
