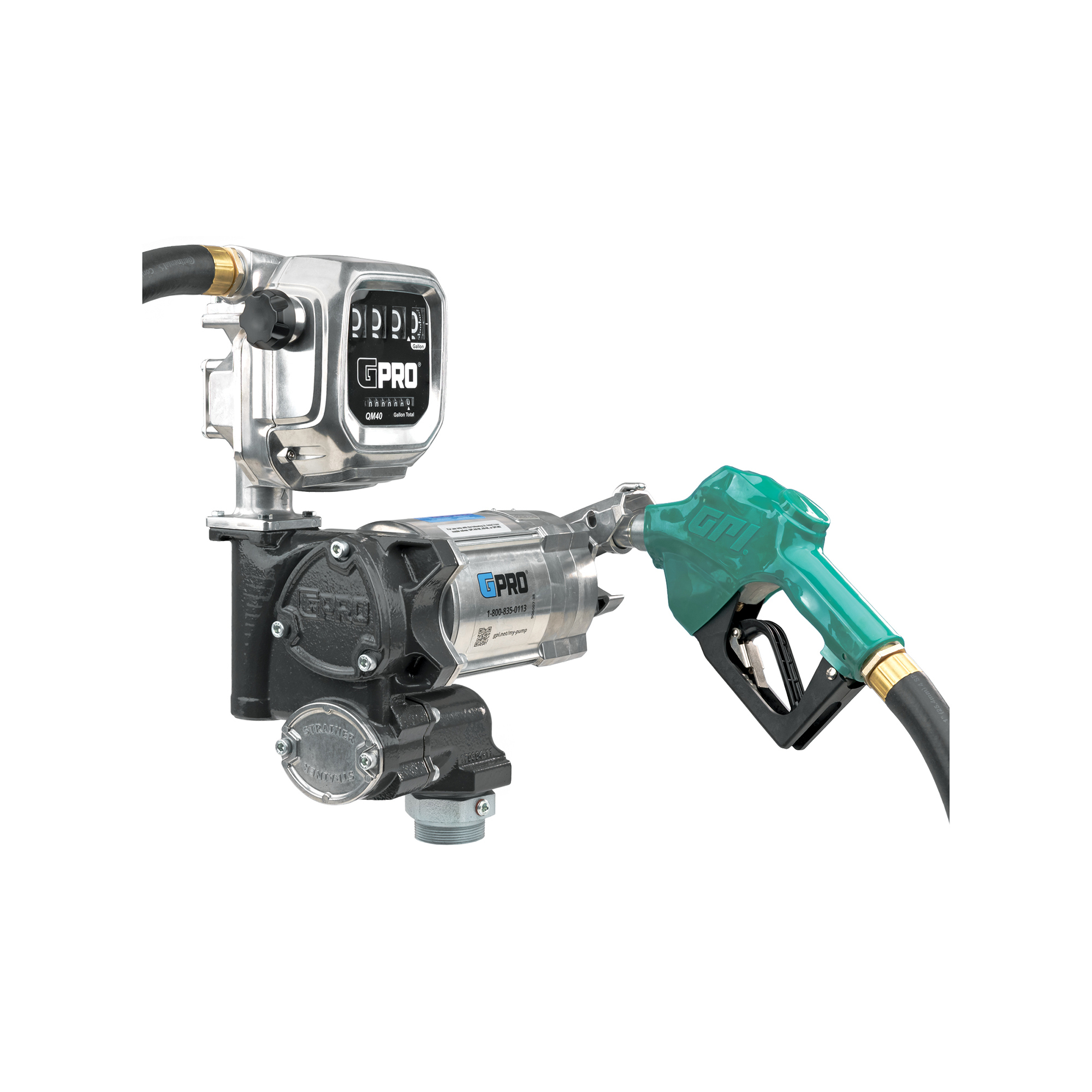

GPRO Fuel Transfer Pump with 2–40 GPM Fuel Meter, 115V AC, 1in. Outlet, Model# V20-115AD+QM40-G8N

Item# 6581299
GPRO Fuel Transfer Pump with 2–40 GPM Fuel Meter, 115V AC, 1in. Outlet, Model# V20-115AD+QM40-G8N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPRO Fuel Transfer Pump with 2–40 GPM Fuel Meter, 115V AC, 1in. Outlet, Model# V20-115AD+QM40-G8N

Click or Tap image to Zoom

$1489.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
  • High Pressure Performance ideal with hose reel. 1-inch outlet for fueling large diesel equipment
  • Multidirectional 90 degree outlet to adapt easily for your application
  • QM40 Meter - Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM
  • QM40 Meter has Magnetic Drive eliminates drive shaft leaks

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The GPRO V20-115 series is the next-generation modular vane pump for stationary applications fueling large equipment. The V20 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 115V AC motor delivers up to 20 GPM (76 L/min). It’s fast and flexible; able to load up to 600 gallons of fuel.  Includes a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process. The GPRO QM40 Mechanical Fuel Meter provides precision fuel measurements for more accurate readings for fleet operations, heavy equipment, and agricultural applications. It features a magnetic drive mechanism that is nearly frictionless; less friction results in more flow. The QM40 easily attaches to the new modular fuel transfer pumps with the Quick-Fit Modular feature, simple four-bolt connections.

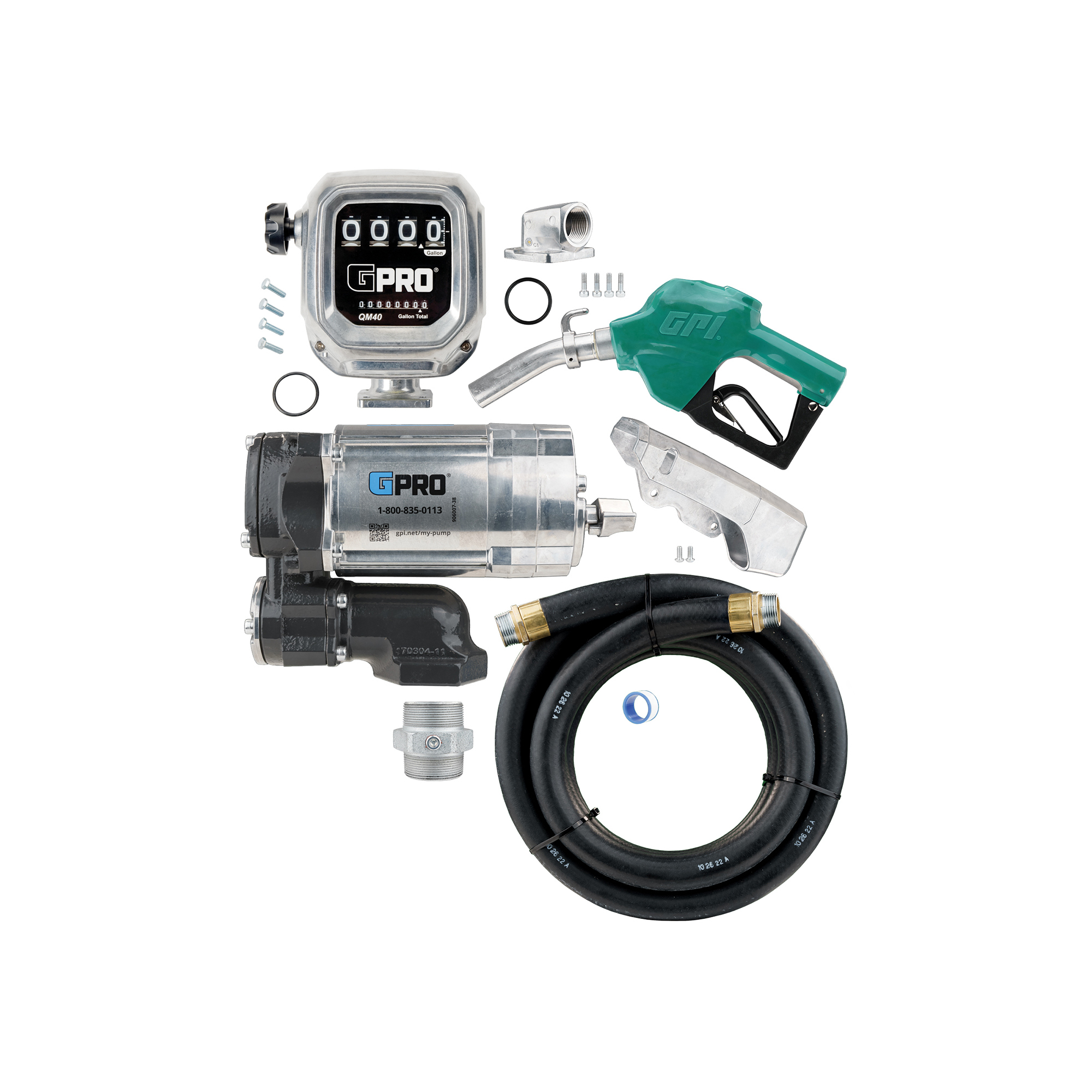

What's Included

    (1) V20-115AD Fuel transfer pump, Lockable nozzle holder, Automatic shut-off diesel nozzle, Dispensing hose, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owner manual, QM40-G8N Fuel meter with GALLON register, Hardware, Owners manual

Features + Benefits

  • Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
  • High Pressure Performance ideal with hose reel. 1-inch outlet for fueling large diesel equipment
  • Multidirectional 90 degree outlet to adapt easily for your application
  • QM40 Meter - Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM
  • QM40 Meter has Magnetic Drive eliminates drive shaft leaks

Key Specs

AttributeSpecification

item#

6581299

Brand

GPRO

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

65.0 LB

GPM

20

Volts

115

Nozzle Type

Automatic

Max. Suction Lift

15 ft

Amps

5.2

Watts

1

Inlet Port

1 in
AttributeSpecification

Outlet Port

1 in

Discharge

18 ft

Self-Priming

Yes

Hose Length

18 ft

Speed

1,690 rpm

Duty Cycle

30 min

Bypass Valve

Yes

Horsepower

0.5 HP

Product Weight

65.0000 lb

Dimensions L x W x H (in.)

15.74 x 8.27 x 19.36 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
