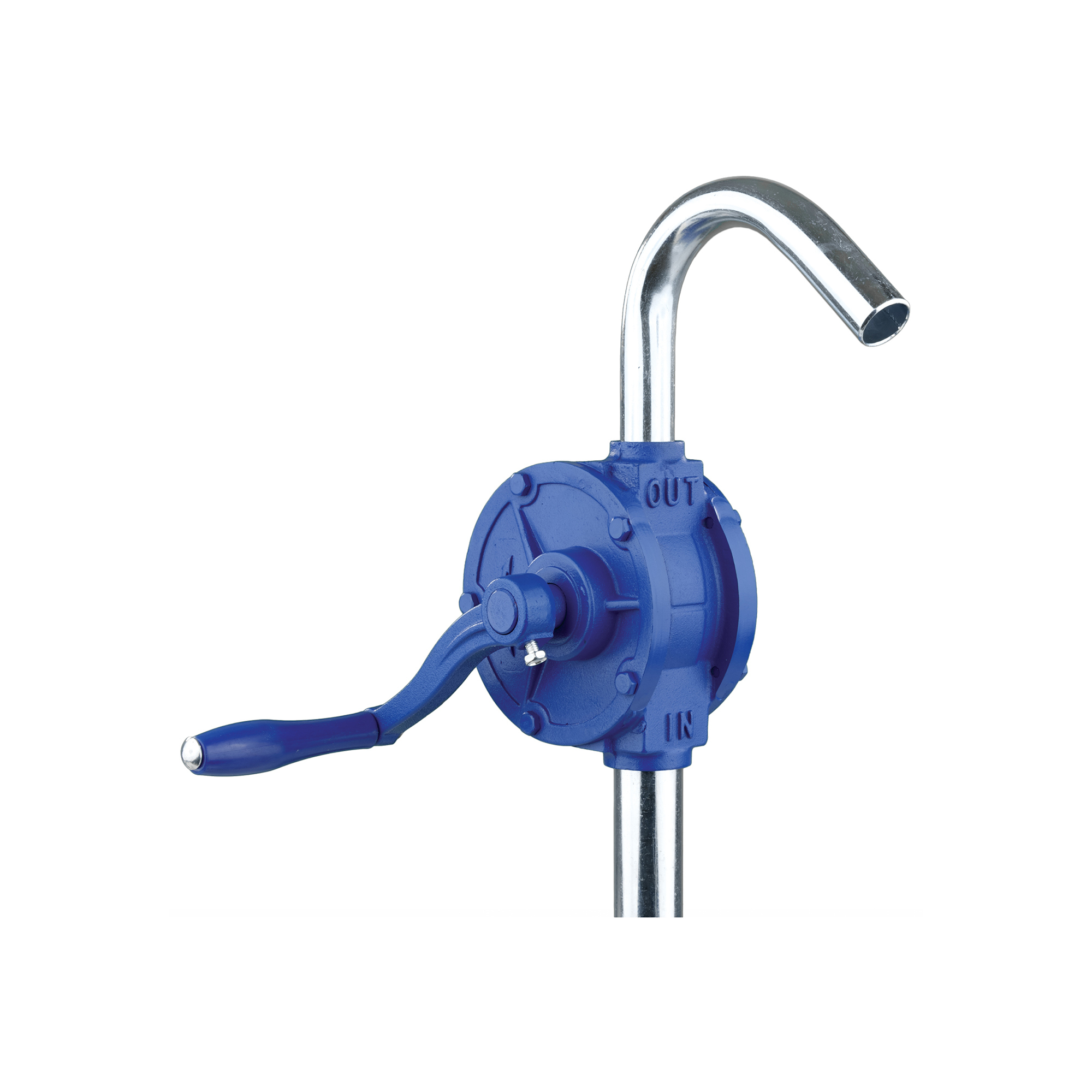

GPI Rotary Action Fluid Transfer Hand Pump — 8 Gal. per 90 Revolutions, Model# RP-5

Item# 5988185
GPI Rotary Action Fluid Transfer Hand Pump — 8 Gal. per 90 Revolutions, Model# RP-5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI Rotary Action Fluid Transfer Hand Pump — 8 Gal. per 90 Revolutions, Model# RP-5

Click or Tap image to Zoom

$84.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Approved for use with Petroleum-based fluids having a flashpoint above 100 F (38 C). Diesel fuel and kerosene. Light oil (up to 10W) and hydraulic fluid. DO NOT USE WITH GASOLINE.
  • Comes complete, includes adjustable spout, easy spin handle and three-piece suction pipe. Installs in minutes.
  • The RP-5 is an economical model for light-duty in a rotary hand pump
  • Fits a standard 55-gallon barrel

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The GPI RP-5 fluid transfer pump is a light-duty rotary action pump designed to deliver up to 8 gallons (30 Litres) per 90 revolutions for use with diesel, petroleum-based fluids, kerosene, light oil, and hydraulic fluids. This hand-operated transfer pump is not compatible with gasoline.

What's Included

    (1) Includes the RP-5 up to 8 GPM per 90 revolutions hand pump, three-piece metal suction pipe, bung adapter, polyethylene seal, owner's manual.

Features + Benefits

  • Approved for use with Petroleum-based fluids having a flashpoint above 100 F (38 C). Diesel fuel and kerosene. Light oil (up to 10W) and hydraulic fluid. DO NOT USE WITH GASOLINE.
  • Comes complete, includes adjustable spout, easy spin handle and three-piece suction pipe. Installs in minutes.
  • The RP-5 is an economical model for light-duty in a rotary hand pump
  • Fits a standard 55-gallon barrel

Key Specs

AttributeSpecification

item#

5988185

Brand

GPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.0 LB

Pump Style

Rotary

GPM

8

Tube Length

39.25 in
AttributeSpecification

For Use With

Diesel Fuel up to B20, Kerosene, Hydraulic Fluid, Up to 10W Oil

Fits Drum Sizes

55 Gal

Inlet Port

1-1/8 in

Outlet Port

1 in

Material

Cast Iron

Product Weight

12.0000 lb

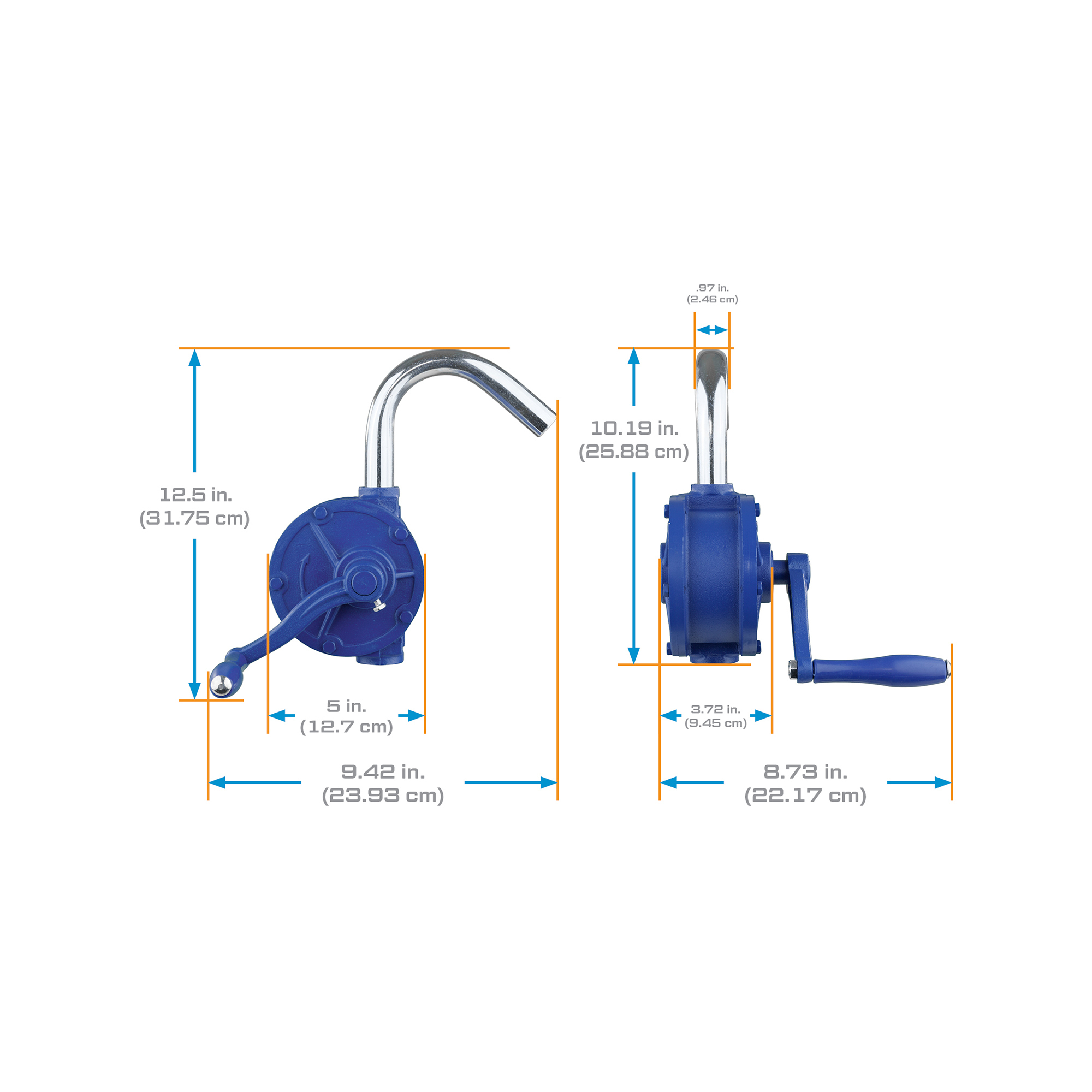

Dimensions L x W x H (in.)

15.5 x 6.0 x 9.0 in

Reviews

Questions & Answers

Questions

  1. What is the thread on the pipe going out the bottom of the pump? My pipe got broke and I can’t find a replacement.

    1 answer

    1. The bottom of the pump would have a 1" NPT connection.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
