GPI Fuel Transfer Pump — 20 GPM, 12V, Cast Aluminum, Model# G20-012PO

Item# 73122
GPI Fuel Transfer Pump — 20 GPM, 12V, Cast Aluminum, Model# G20-012PO

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI Fuel Transfer Pump — 20 GPM, 12V, Cast Aluminum, Model# G20-012PO

Click or Tap image to Zoom

$499.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • True flow rate ensures the pump dispenses 20 GPM at the nozzle
  • Quick-fit modular design makes it easy to attach a filter, meter, or both to build your own custom system
  • Lightweight die-cast aluminum housing weighs just 19 lbs. to reduce stress on the tank
  • Powder-coat body finish helps prevent rust and survives all weather conditions
  • Drip catch lockable nozzle holder keeps your truck and tanks clean while helping to prevent fuel theft

See full description

Complete Your Solution

  • GPI Fuel Transfer Pump — 20 GPM, 12V, Cast Aluminum, Model# G20-012PO
  • GPI QUICK-FIT 25 GPM, 10 Micron Filter and Adapter Kit
  • GPI 5-30 GPM Modular Mechanical Fuel Meter
Price for all three:

$889.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The new GPI® G20 high flow fuel transfer pump delivers a true 20 GPM flow rate at the nozzle. The G20 12 Volt DC pump was designed with modularity in mind making it easy to customize by adding accessories such as a filter and meter. Made from cast aluminum, this rotary gear pump weighs only 19 lbs., has a long working life and is virtually maintenance free for regular use. Motor is UL listed. The pump only model features a convenient spin collar mount and lockable nozzle cover. Accessories sold separately. The built-in pump strainer filters large particles from fuel to protect the pump's internal components. For use with gasoline (alcohol blends up to E15), diesel fuel (bio-diesel blends up to B20) and kerosene.

What's Included

    (1) Fuel transfer pump (1) Modular fitting with hardware (1) Lockable nozzle holder (1) Tank adapter (1) Fuse assembly

Features + Benefits

  • True flow rate ensures the pump dispenses 20 GPM at the nozzle
  • Quick-fit modular design makes it easy to attach a filter, meter, or both to build your own custom system
  • Lightweight die-cast aluminum housing weighs just 19 lbs. to reduce stress on the tank
  • Powder-coat body finish helps prevent rust and survives all weather conditions
  • Drip catch lockable nozzle holder keeps your truck and tanks clean while helping to prevent fuel theft
  • Rotary gear design uses fewer moving parts, creating less friction and wear on components and requiring minimal maintenance while promoting long pump life
  • Spin collar mount fits any 2in. NPT tank, making installation and pump orientation easy
  • For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20), and kerosene
  • UL Listed motor to US and Canadian standards
  • Add a GPI filter kit (Item# 88981) and fuel meter (Item# 89061, both sold separately) to build your own custom system

Key Specs

AttributeSpecification

item#

73122

Brand

GPI

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

22.6 LB

GPM

20

Volts

12

Max. Suction Lift

9 ft

Max. Total Head

37 ft

Amps

34

Watts

410

Inlet Port

1 in

Outlet Port

1 in

Inlet Port (in.)

1
AttributeSpecification

Discharge

28 ft

Self-Priming

Yes

Outlet Port (in.)

1

Speed

1,900 rpm

Discharge (ft.)

28

Duty Cycle

30 min

Bypass Valve

Yes

Hose (in. x ft.)

None

Horsepower

0.4 HP

Product Weight

lb

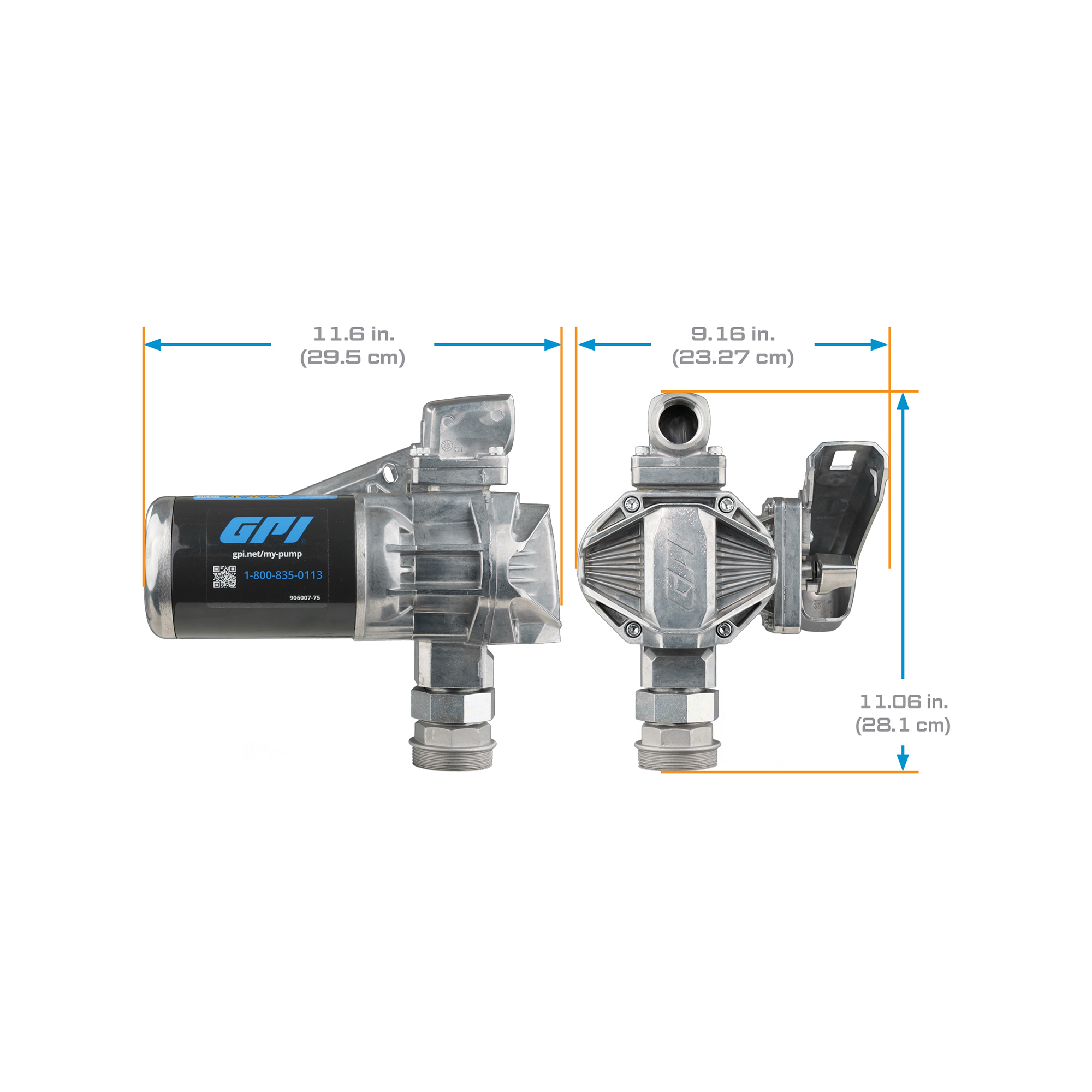

Dimensions L x W x H (in.)

12.0 x 15.0 x 11.0 in

Speed (RPM)

1,900

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. Can we buy metal replacement impeller gears for this pump

    1 answer

    1. Metal gears are not available for this pump. Replacement impeller gears would be available through the manufacturer.
