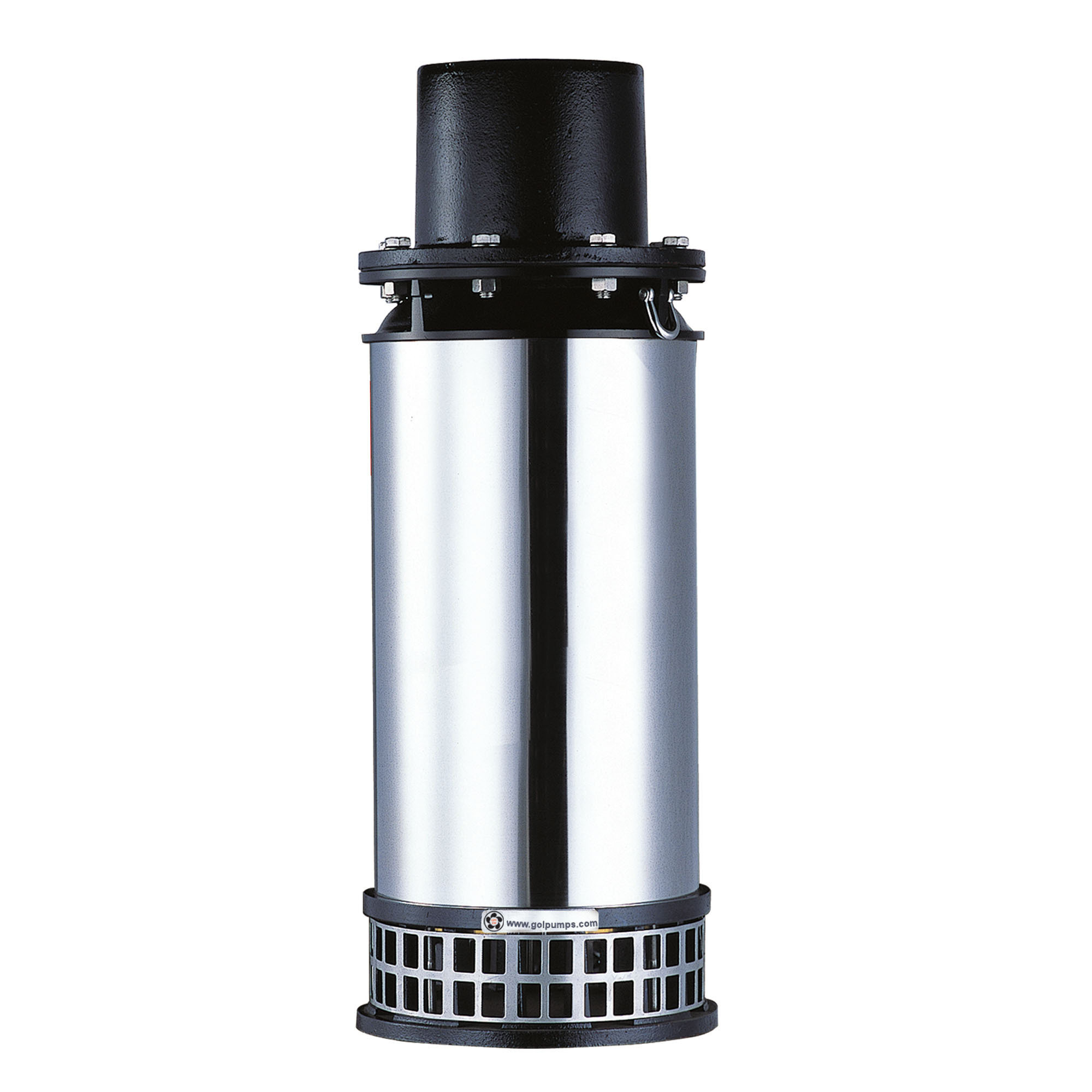

Gol Pumps Axial Flow Drainage Pump,106,200GPH,10HP,460V,3Ph, Max. Flow 106200 GPH, Horsepower 10 HP, Port Size 10 in, Model# GKL-1032L

Item# 4936121
Gol Pumps Axial Flow Drainage Pump,106,200GPH,10HP,460V,3Ph, Max. Flow 106200 GPH, Horsepower 10 HP, Port Size 10 in, Model# GKL-1032L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps Axial Flow Drainage Pump,106,200GPH,10HP,460V,3Ph, Max. Flow 106200 GPH, Horsepower 10 HP, Port Size 10 in, Model# GKL-1032L

Click or Tap image to Zoom

$6712.81

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Turbo Jet-Like impeller designed to improve extra-output water volume with almost no vibration and noise.
  • 3D-design Impeller adopts ALBC3(Aluminum Bronze) which has superior wear resistant and anti corrosion capability while working in the seawater or brine.
  • Motor headcover, upper bracket, motor lower cover and suction cover use BC6 material to endure the erosion of seawater.
  • The unique EPOXY cable sealing base prevents the motor against water penetration.
  • Double Mechanical Seal and separate Sand-Proof Trap or Oil Seal.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Gol Pumps Axial Flow Drainage Pump is a high-performance solution designed for efficient and reliable water management. With an impressive maximum flow rate of 106,200 gallons per hour, this pump is ideal for large-scale drainage applications. Powered by a robust 10 horsepower motor, it operates on 460 volts and 3-phase power, ensuring powerful and consistent performance. The pump features a 10-inch port size, facilitating substantial water flow and minimizing energy consumption. Engineered to save energy, this axial flow drainage pump is suitable for various industrial and commercial settings, providing a dependable and efficient solution for all your drainage needs.

What's Included

    (1) Pump

Features + Benefits

  • Turbo Jet-Like impeller designed to improve extra-output water volume with almost no vibration and noise.
  • 3D-design Impeller adopts ALBC3(Aluminum Bronze) which has superior wear resistant and anti corrosion capability while working in the seawater or brine.
  • Motor headcover, upper bracket, motor lower cover and suction cover use BC6 material to endure the erosion of seawater.
  • The unique EPOXY cable sealing base prevents the motor against water penetration.
  • Double Mechanical Seal and separate Sand-Proof Trap or Oil Seal.
  • UL Approved
  • 1800 rpm

Key Specs

AttributeSpecification

item#

4936121

Brand

Gol Pumps

Manufacturer's Warranty

1 year limited warranty

Ship Weight

394.0 LB

Max. Flow

106,200 GPH

Port Size

10 in

Volts

460

Solar Powered

No
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

30 ft

Amps

11.5

Power Cord Length

396 in

Housing Material

Cast-Iron

Product Weight

364.0000 lb

Dimensions L x W x H (in.)

17.0 x 17.0 x 41.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
