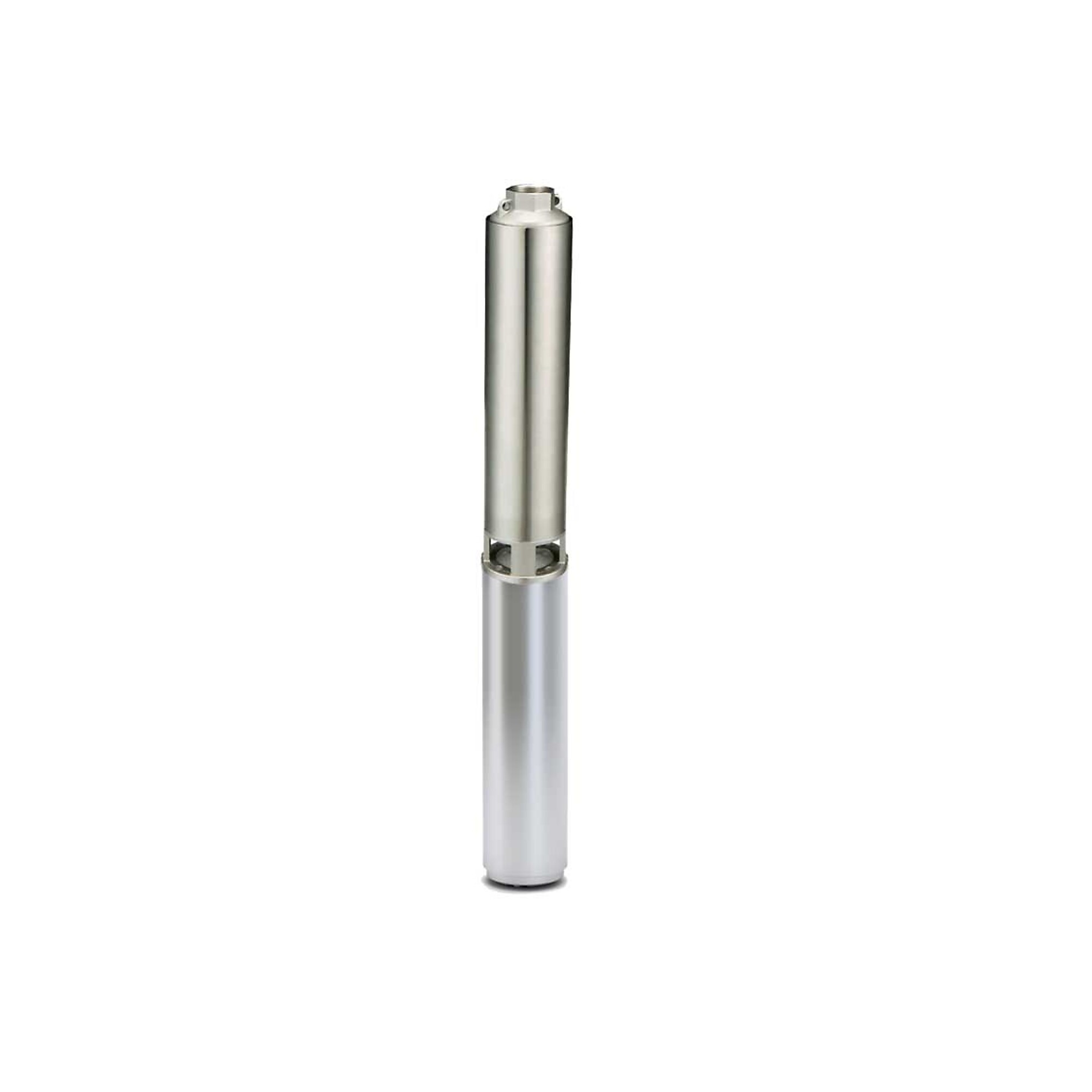

Gol Pumps, 4in. Deep Well Submersible Pump, Max. Flow 4740 GPH, Horsepower 3 HP, Port Size 2 in, Model# ST 5509

Item# 4476719
1 of 6 reviewers received a sample product or took part in a promotion
Gol Pumps, 4in. Deep Well Submersible Pump, Max. Flow 4740 GPH, Horsepower 3 HP, Port Size 2 in, Model# ST 5509

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps, 4in. Deep Well Submersible Pump, Max. Flow 4740 GPH, Horsepower 3 HP, Port Size 2 in, Model# ST 5509

Click or Tap image to Zoom

$1129.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motosr shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Gol Pumps 4in. Deep Well Submersible Pump is a powerful and efficient solution designed to deliver a maximum flow rate of 4740 gallons per hour, making it ideal for a variety of water transfer applications. With a robust 3 horsepower motor, this pump ensures reliable and consistent performance, even under demanding conditions. The 2in. port size allows for easy connection and integration into existing systems. Built with durability and energy efficiency in mind, this submersible pump helps you save money and protect your land by providing a dependable water source while minimizing energy consumption. Whether used for irrigation, livestock watering, or general water supply, the Gol Pumps Deep Well Submersible Pump offers a reliable and cost-effective solution for all your water pumping needs.

What's Included

    (1) Pump (1) motor

Features + Benefits

  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motosr shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.
  • Pump Shaft is made from hex 304 stainless steel bas material for high corrosion resistance.
  • Beating is made with Polyacetal for strong wear and abrasive resistance.
  • CSA and NSF certified
  • Pump body is covered by a 1.5mm thick 304 polished stainless steel.

Key Specs

AttributeSpecification

item#

4476719

Brand

Gol Pumps

Manufacturer's Warranty

6 month limited warranty

Ship Weight

73.0 LB

Max. Flow

4,740 GPH

Port Size

2 in

Volts

230
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

250 ft

Amps

10.6

Max. Working Temperature

104 °F

Housing Material

Stainless Steel

Product Weight

66.5700 lb

Dimensions L x W x H (in.)

26.0 x 8.0 x 4.0 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

  1. How is gallons per minutes?

    1 answer

    1. This will pump at a max of 79 gallons per minute.

      Helpful?

Warranty

Manufacturer's Warranty

6 month limited warranty
