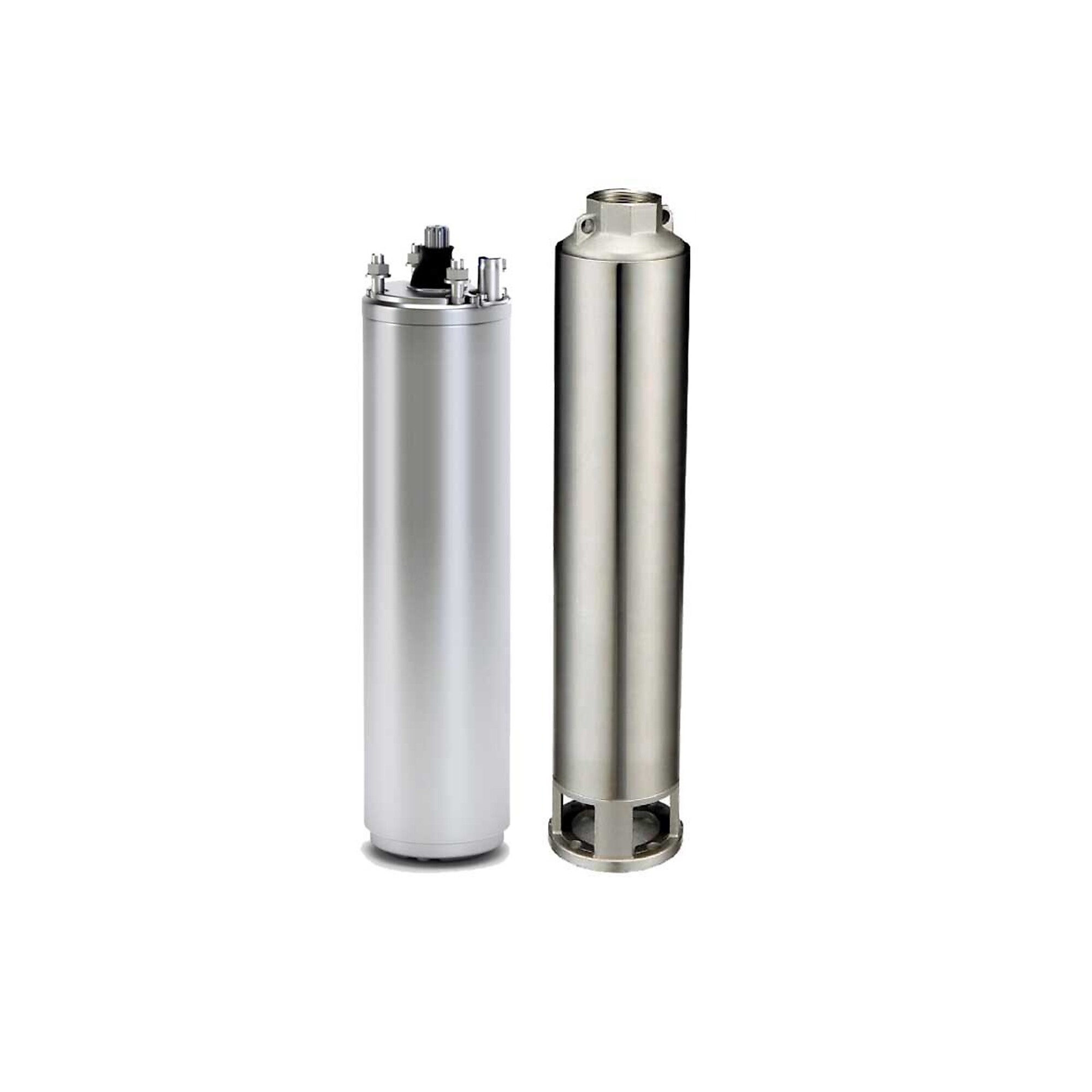

Gol Pumps, 4in. Deep Well Submersible Pump, Max. Flow 1260 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1335

Item# 4477674
Gol Pumps, 4in. Deep Well Submersible Pump, Max. Flow 1260 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1335

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps, 4in. Deep Well Submersible Pump, Max. Flow 1260 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1335

Click or Tap image to Zoom

$2085.32

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Gol Pumps 4in. Deep Well Submersible Pump is a powerful and efficient solution designed to deliver reliable water flow in deep well applications. With a maximum flow rate of 1260 GPH and a robust 5 HP motor, this pump ensures optimal performance while saving energy and reducing operational costs. The 1.25 in. port size facilitates easy connections, making installation straightforward and hassle-free. Built to protect your land and resources, this submersible pump offers a dependable and long-lasting solution for a variety of water pumping needs. Whether for agricultural, residential, or commercial use, the Gol Pumps Deep Well Submersible Pump combines durability, efficiency, and ease of use to provide a high-quality water pumping experience.

What's Included

    (1) Pump (1) motor

Features + Benefits

  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.
  • Pump Shaft is made from hex 304 stainless steel bas material for high corrosion resistance.
  • Beating is made with Polyacetal for strong wear and abrasive resistance.
  • CSA and NSF certified
  • Pump body is covered by a 1.5mm thick 304 polished stainless steel.

Key Specs

AttributeSpecification

item#

4477674

Brand

Gol Pumps

Manufacturer's Warranty

6 month limited warranty

Ship Weight

67.0 LB

Max. Flow

1,260 GPH

Port Size

1.25 in

Volts

460
AttributeSpecification

Phase

Three-phase

Max. Head Pressure

1,023 ft

Amps

9.5

Max. Working Temperature

104 °F

Housing Material

Stainless Steel

Product Weight

62.1000 lb

Dimensions L x W x H (in.)

57.0 x 3.9 x 3.9 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

6 month limited warranty
