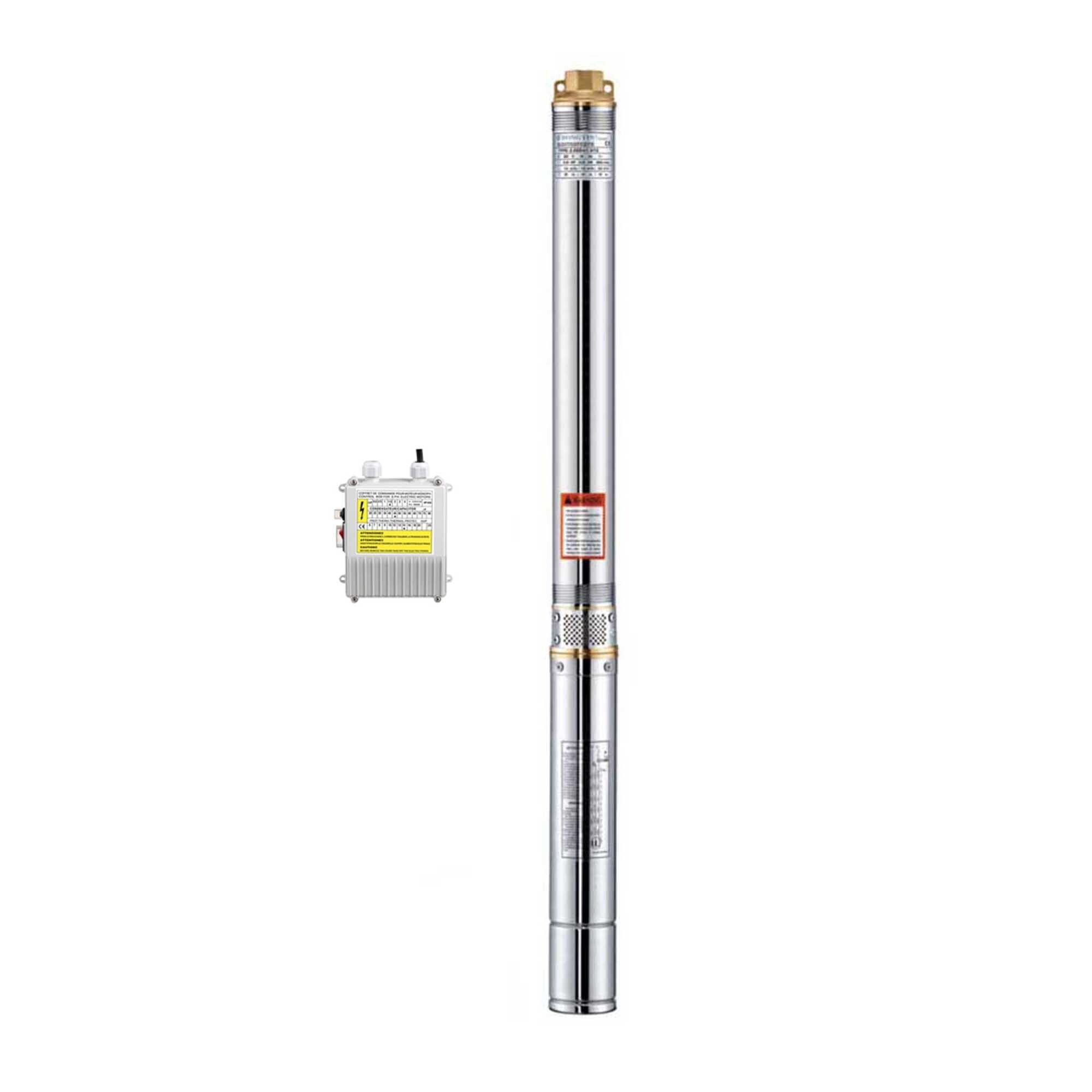

Gol Pumps, 2.5in. 3-Wire Deep well Submersible Pump, Max. Flow 780 GPH, Horsepower 3/4 HP, Port Size 1 in, Model# 2.5SDM2/22

Item# 4477607
Gol Pumps, 2.5in. 3-Wire Deep well Submersible Pump, Max. Flow 780 GPH, Horsepower 3/4 HP, Port Size 1 in, Model# 2.5SDM2/22

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps, 2.5in. 3-Wire Deep well Submersible Pump, Max. Flow 780 GPH, Horsepower 3/4 HP, Port Size 1 in, Model# 2.5SDM2/22

Click or Tap image to Zoom

$500.33

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Maximum fluid temperature up to + 95F
  • Maximum sand content: 0.25%
  • Equip with start control box or digital-auto control box
  • Pump external casing AISI 304 SS
  • Motor external casing AISI 304 SS

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Gol Pumps 2.5in. 3-Wire Deep Well Submersible Pump is a highly efficient and reliable solution designed to provide optimal water flow and energy savings for your well system. With a maximum flow rate of 780 GPH (gallons per hour) and powered by a robust 3/4 HP motor, this submersible pump ensures consistent and powerful performance for various water extraction needs. The 1-inch port size allows for easy connectivity and integration with your existing setup. Engineered to save both money and energy, this pump is an excellent choice for protecting your land and ensuring a steady water supply. Its durable construction and advanced design make it suitable for deep well applications, providing long-lasting service and peace of mind. Whether for agricultural, residential, or commercial use, the Gol Pumps Deep Well Submersible Pump delivers exceptional efficiency and dependability, making it a valuable addition to any water management system.

What's Included

    (1) Pump (1) motor (1) Control box

Features + Benefits

  • Maximum fluid temperature up to + 95F
  • Maximum sand content: 0.25%
  • Equip with start control box or digital-auto control box
  • Pump external casing AISI 304 SS
  • Motor external casing AISI 304 SS

Key Specs

AttributeSpecification

item#

4477607

Brand

Gol Pumps

Manufacturer's Warranty

6 month limited warranty

Ship Weight

31.0 LB

Max. Flow

780 GPH

Port Size

1 in

Volts

220
AttributeSpecification

Phase

Single-phase

Max. Head Pressure

292 ft

Amps

3.8

Max. Working Temperature

104 °F

Housing Material

Other

Product Weight

29.0000 lb

Dimensions L x W x H (in.)

70.0 x 2.6 x 2.6 in

Reviews

Questions & Answers

Questions

  1. Does this pump have a check valve

    1 answer

    1. The pump has a plastic check valve.

      Helpful?

Warranty

Manufacturer's Warranty

6 month limited warranty
