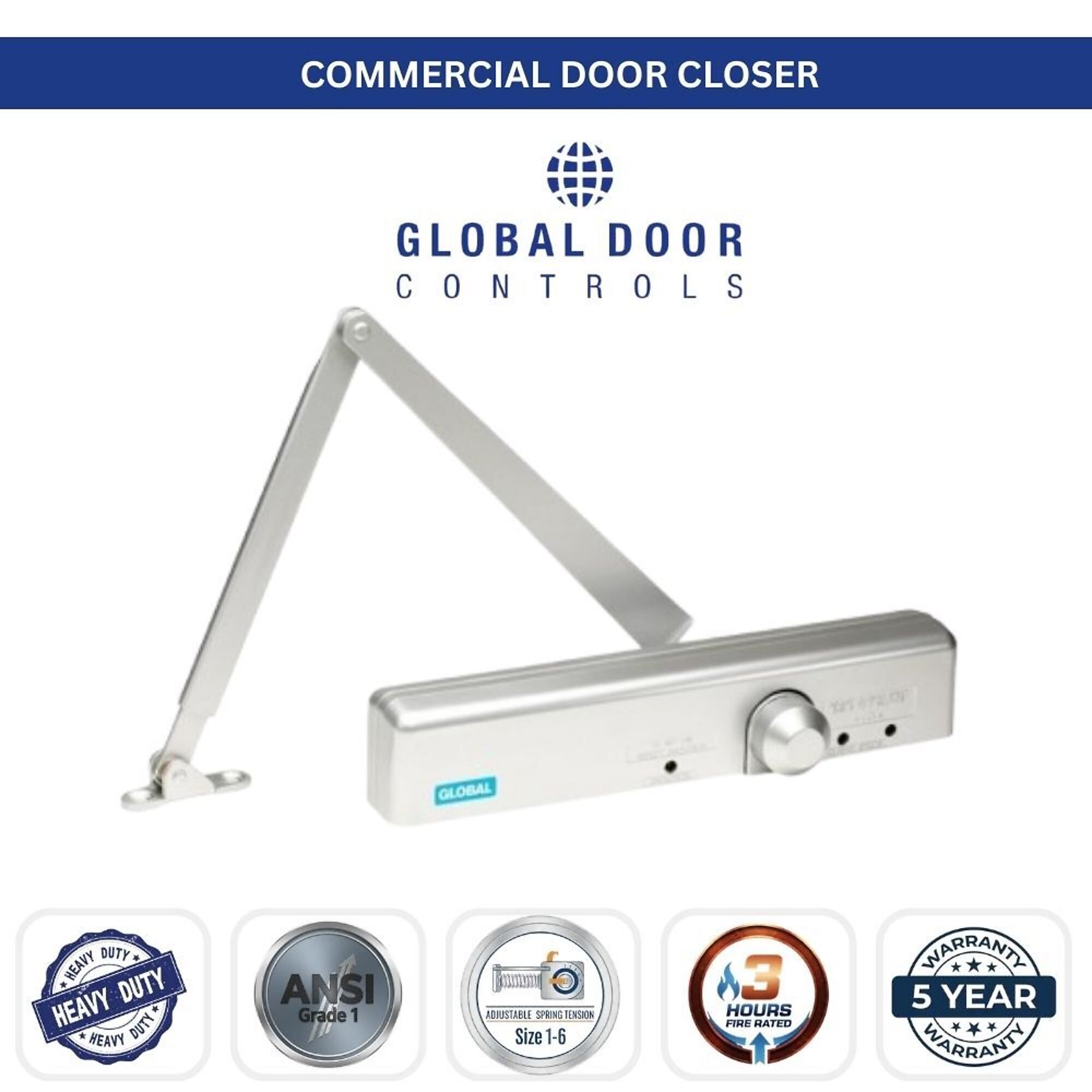

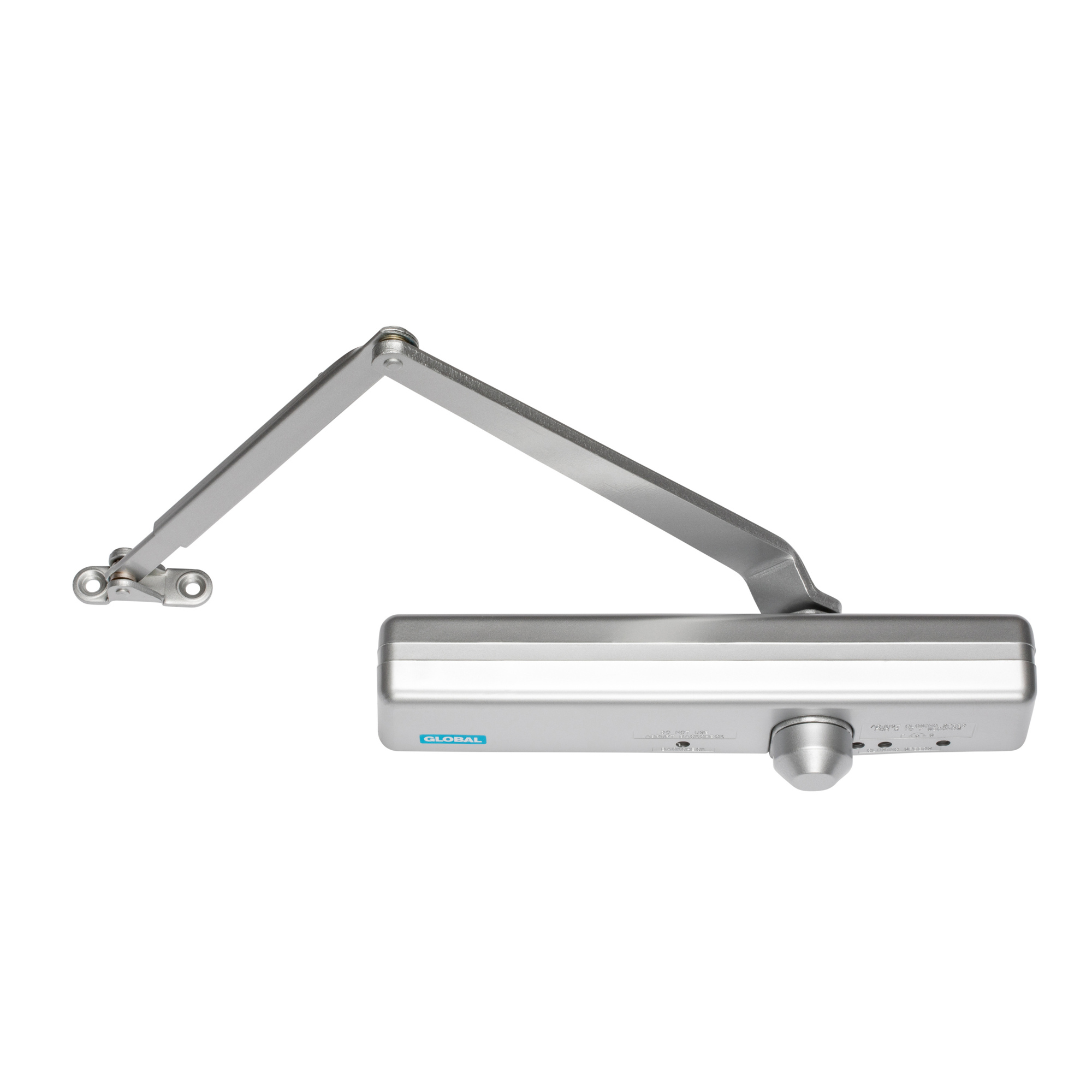

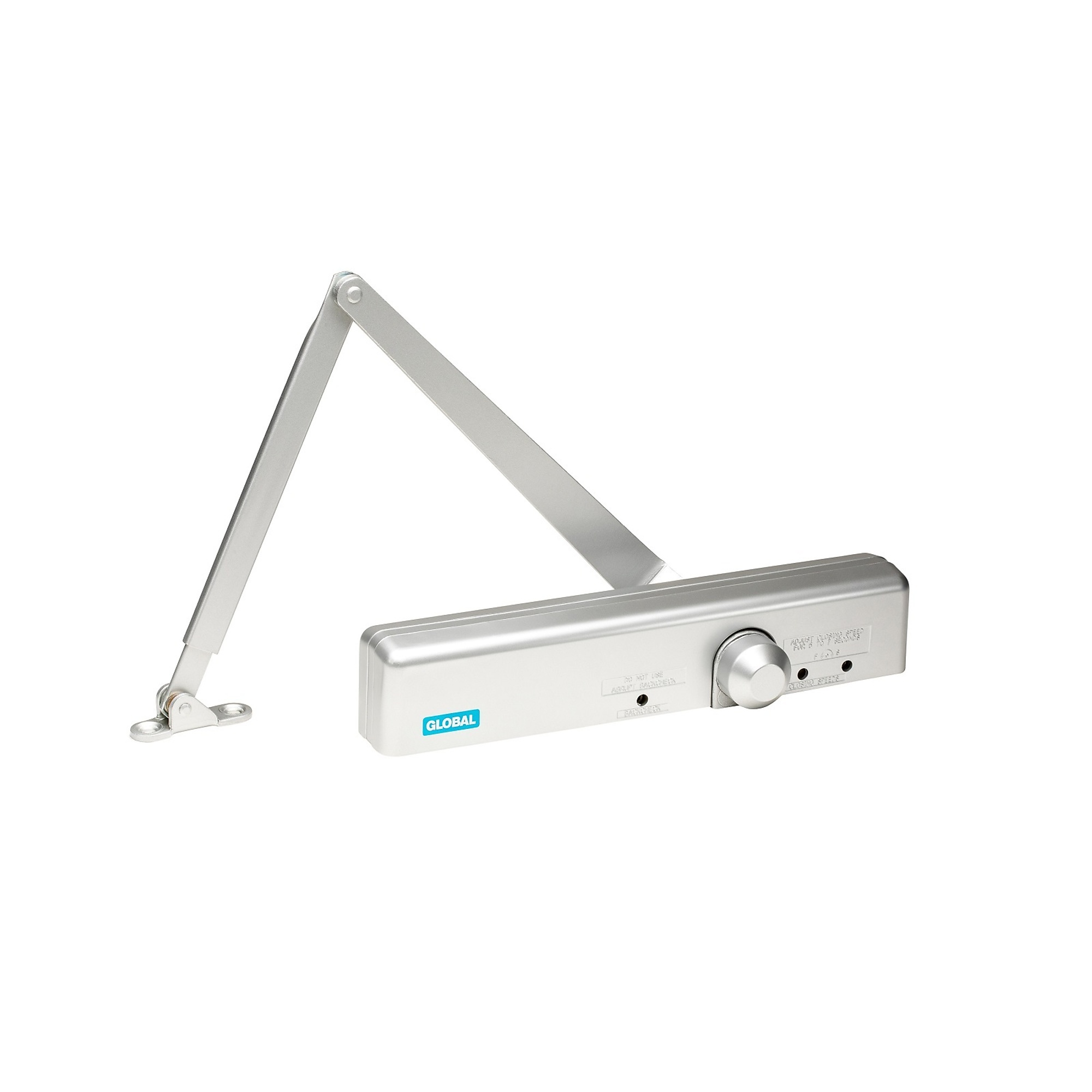

Global Door Controls, Slimline Heavy Duty Commercial Grade 1 Door Closer in Aluminum - Sizes 1-6, #TC4361-AL

Item# 83904
Global Door Controls, Slimline Heavy Duty Commercial Grade 1 Door Closer in Aluminum - Sizes 1-6, #TC4361-AL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls, Slimline Heavy Duty Commercial Grade 1 Door Closer in Aluminum - Sizes 1-6, #TC4361-AL

Click or Tap image to Zoom

  • Heavy-duty aluminum construction
  • Independent latch, sweep and back-check
  • Meets the performance standards of Grade 1 and ANSI A156.2
  • Recommended for use on heavy duty commercial, architectural and institutional applications
  • Ideal for new construction and renovations

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Global Door Controls TC4361 series is considered as heavy duty closer. It has a full selection of accessories to accommodate the requirements of any application. The series is tri-packed standard. Closers with non-hold open arms are UL listed for “A” label fire doors. In addition, these are fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

What's Included

    (1) Door Closer

Downloads

Product Manual

Features + Benefits

  • Heavy-duty aluminum construction
  • Independent latch, sweep and back-check
  • Meets the performance standards of Grade 1 and ANSI A156.2
  • Recommended for use on heavy duty commercial, architectural and institutional applications
  • Ideal for new construction and renovations
  • Made from aluminum alloy body
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door

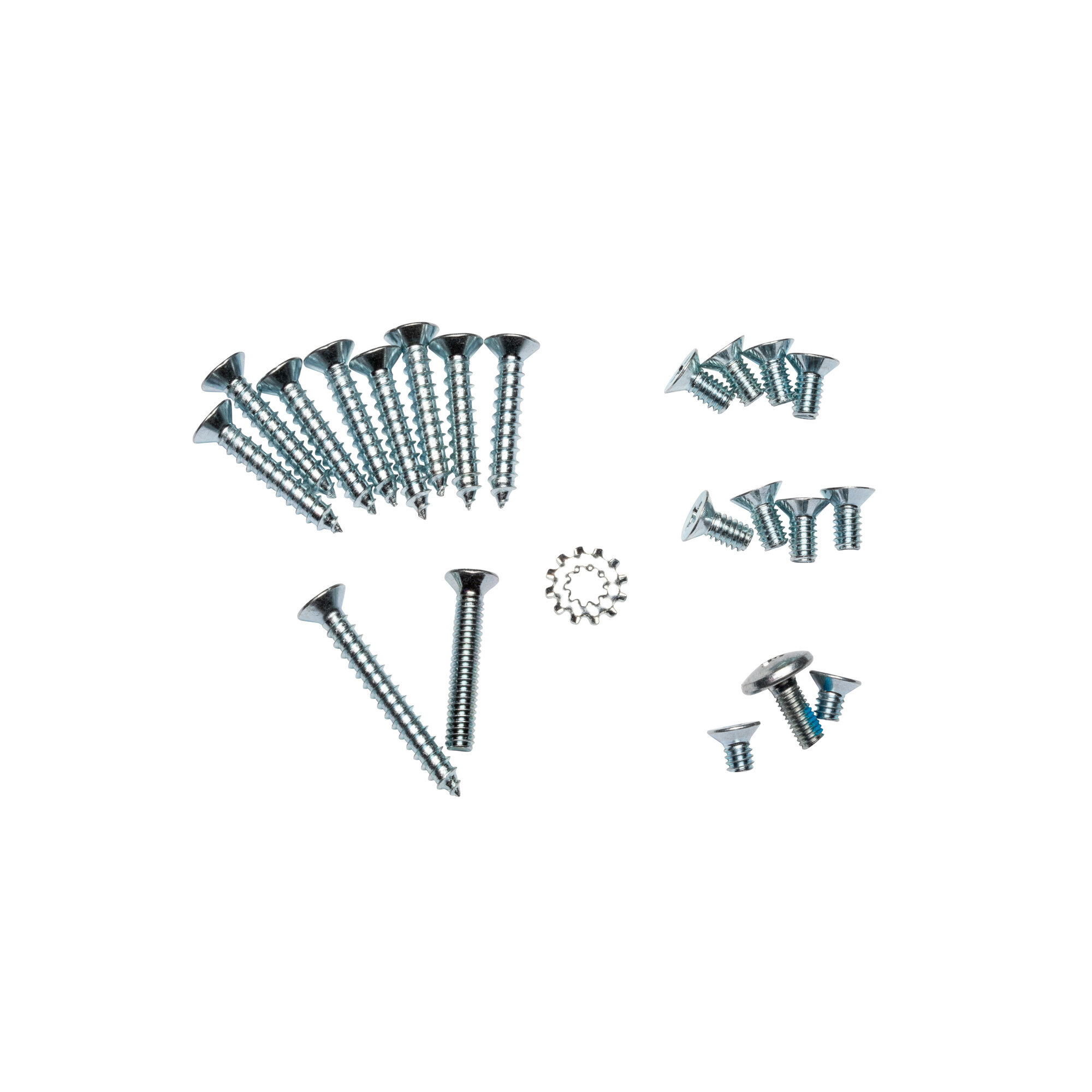

  • Supplied with both wood and machine screws

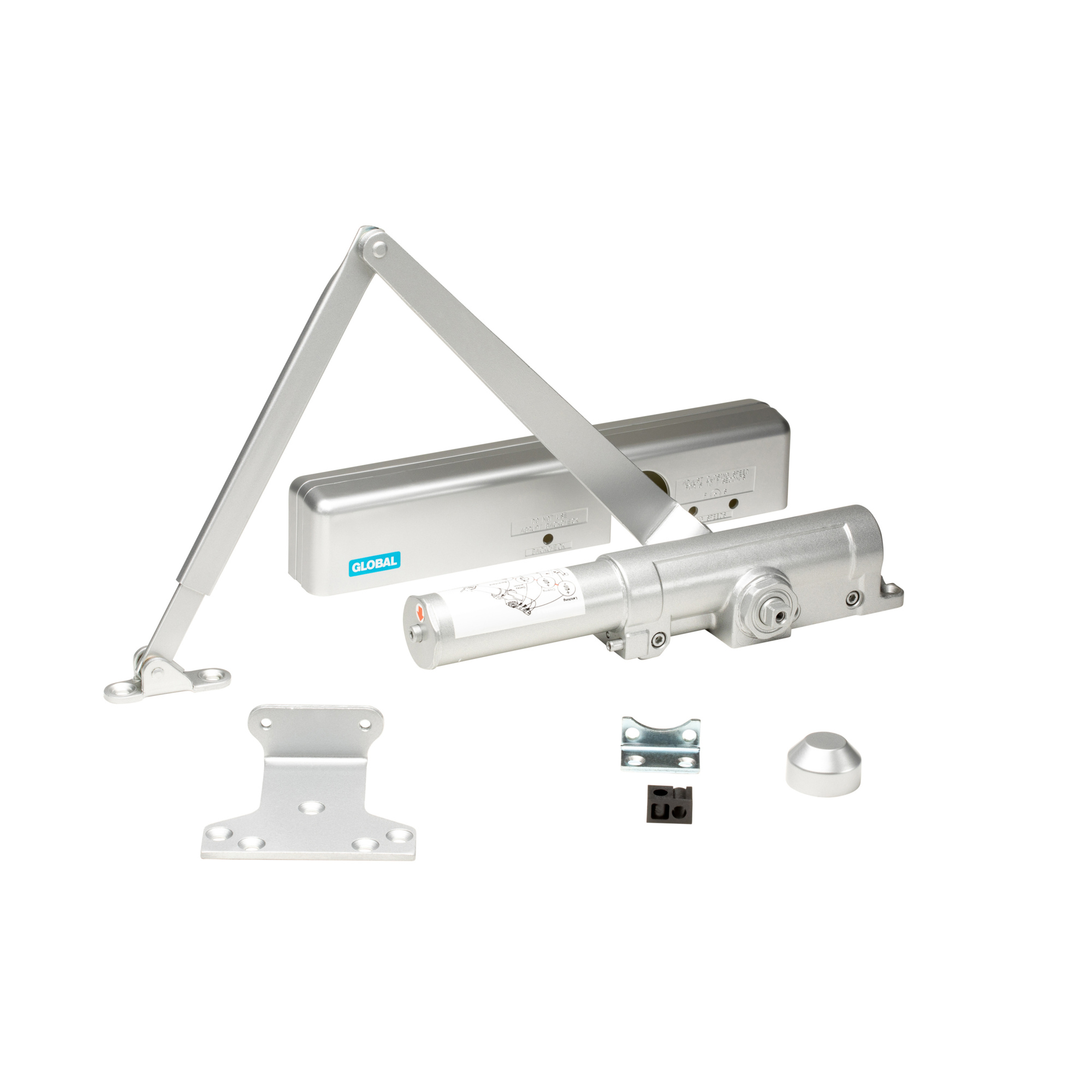

  • Tri-packed - regular, top jamb, parallel arm mount
  • Includes independent latch, sweep and backcheck
  • Includes a slimline cover
  • 5-year mechanical warranty
  • Aluminum finish
  • UL listed R13255
  • ADA compliant
  • Length of closer body: 9-3/4 in.
  • Horizontal mounting holes: 9-1/6 in.
  • Vertical mounting holes: 3/4 in.
  • Height of closer body: 1-3/4 in.
  • Projection from door: 2-7/8 in.

Key Specs

AttributeSpecification

item#

83904

Brand

Global Door Controls

Manufacturer's Warranty

5 year limited warranty

Ship Weight

7.4 LB

Size

Adjustable

Load Capacity

258 lb

Closer Type

Non-Hold Open
AttributeSpecification

Product Type

Door Closer

Material

Aluminum

Finish

Other

Mounting Type

Flat Surface

Hand Orientation

Non Handed

Product Weight

7.4000 lb

Dimensions L x W x H (in.)

13.0 x 13.0 x 3.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
