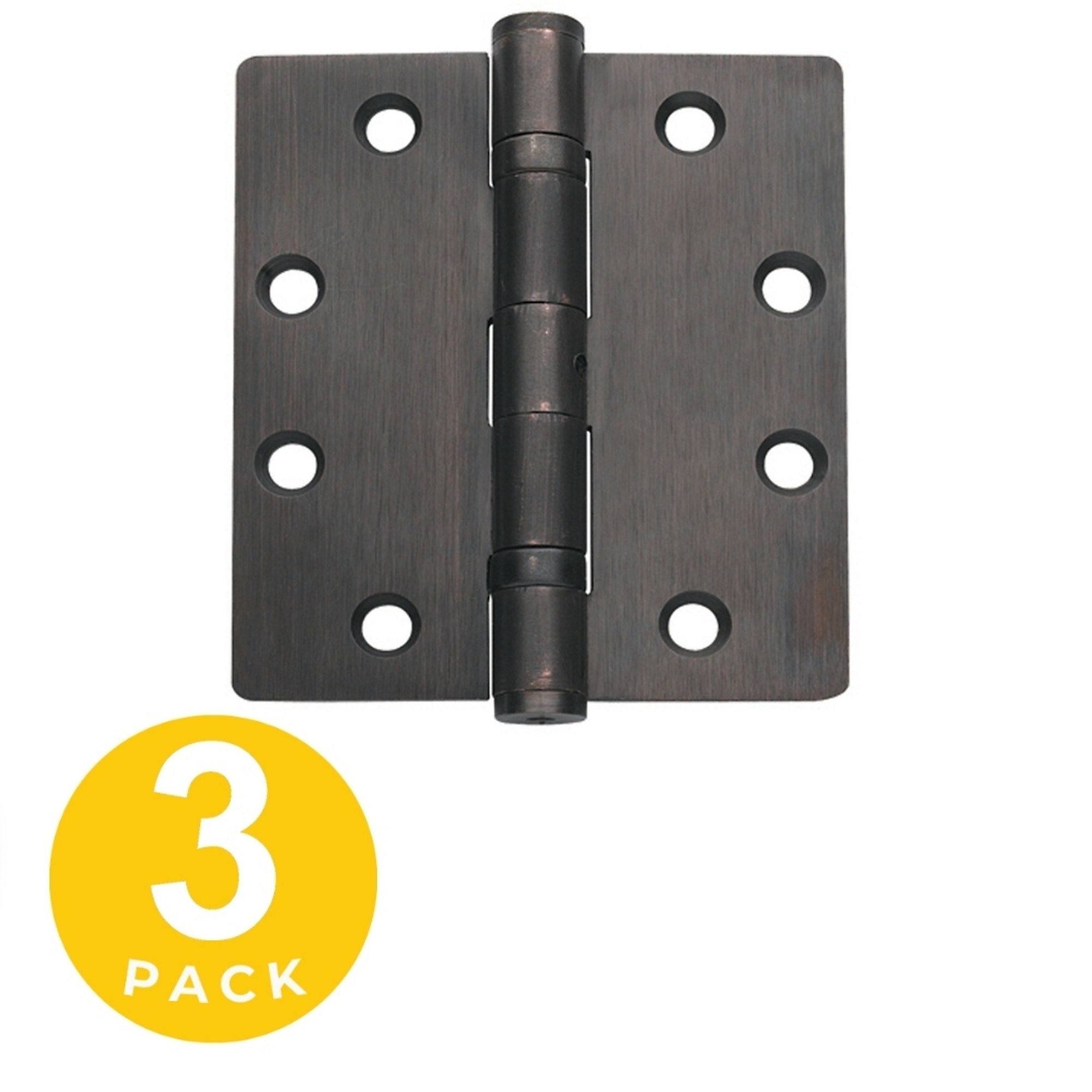

Global Door Controls Full Mortise Ball Bearing Hinge Set — 4.5in. x 4in., 5/32in. Radius, Oil Rubbed Bronze, Non-Removable Pin, 3 Pcs, Model# CS4540BBRNRP10B-3

Item# 83614
"Global Door Controls, 4.5 in. x 4 in. Oil Rubbed Bronze Full Mortise 5/32 in. Radius Ball Bearing Hinge with Non-Removable Pin - Set of 3, #CS4540BBRNRP10B-3"
Global Door Controls Full Mortise Ball Bearing Hinge Set — 4.5in. x 4in., 5/32in. Radius, Oil Rubbed Bronze, Non-Removable Pin, 3 Pcs, Model# CS4540BBRNRP10B-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Global Door Controls Full Mortise Ball Bearing Hinge Set — 4.5in. x 4in., 5/32in. Radius, Oil Rubbed Bronze, Non-Removable Pin, 3 Pcs, Model# CS4540BBRNRP10B-3

Click or Tap image to Zoom

$58.28

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Commercial door hinge for medium weight doors
  • Made from stainless steel for more durability and hardness
  • 5/32 in. radius hinge with fixed pin - pack of 3
  • Commercial full mortise hinge
  • Intended for medium weight doors

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This model of Global Door Controls is considered as a ball bearing full mortise commercial door hinge. It's highly recommended for use on aluminum frame storefront doors. Moreover, it's advised for medium to heavy weight doors. This type sized 4.5 x 4in. comes with 5/32in. radius in its corner, bundled with a fixed pin. Item is available in two finishes: Stainless Steel and Oil Rubbed Bronze.

What's Included

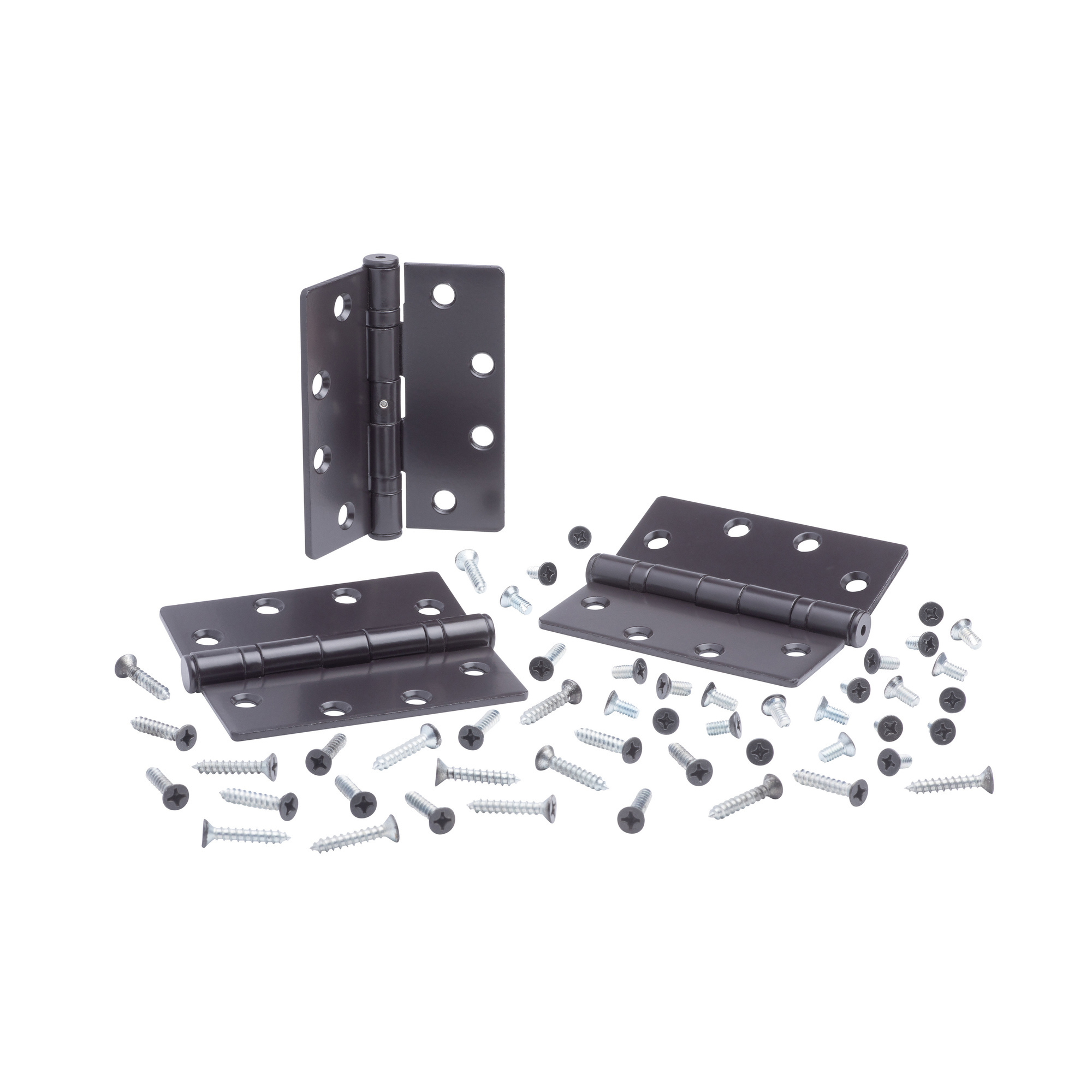

    (3) Hinges, each with screws

Features + Benefits

  • Commercial door hinge for medium weight doors
  • Made from stainless steel for more durability and hardness
  • 5/32 in. radius hinge with fixed pin - pack of 3
  • Commercial full mortise hinge
  • Intended for medium weight doors
  • Ball bearing steel fixed pin
  • Stainless Steel base material
  • Corner: 5/32 in. radius
  • Thickness: 0.134 in.
  • Installation: template screw hole locations
  • Easy installation
  • Packed with wood and machine screws (self tapping)
  • Conforms to ANSI A5112 for stainless steel bearing
  • Oil Rubbed Bronze finish

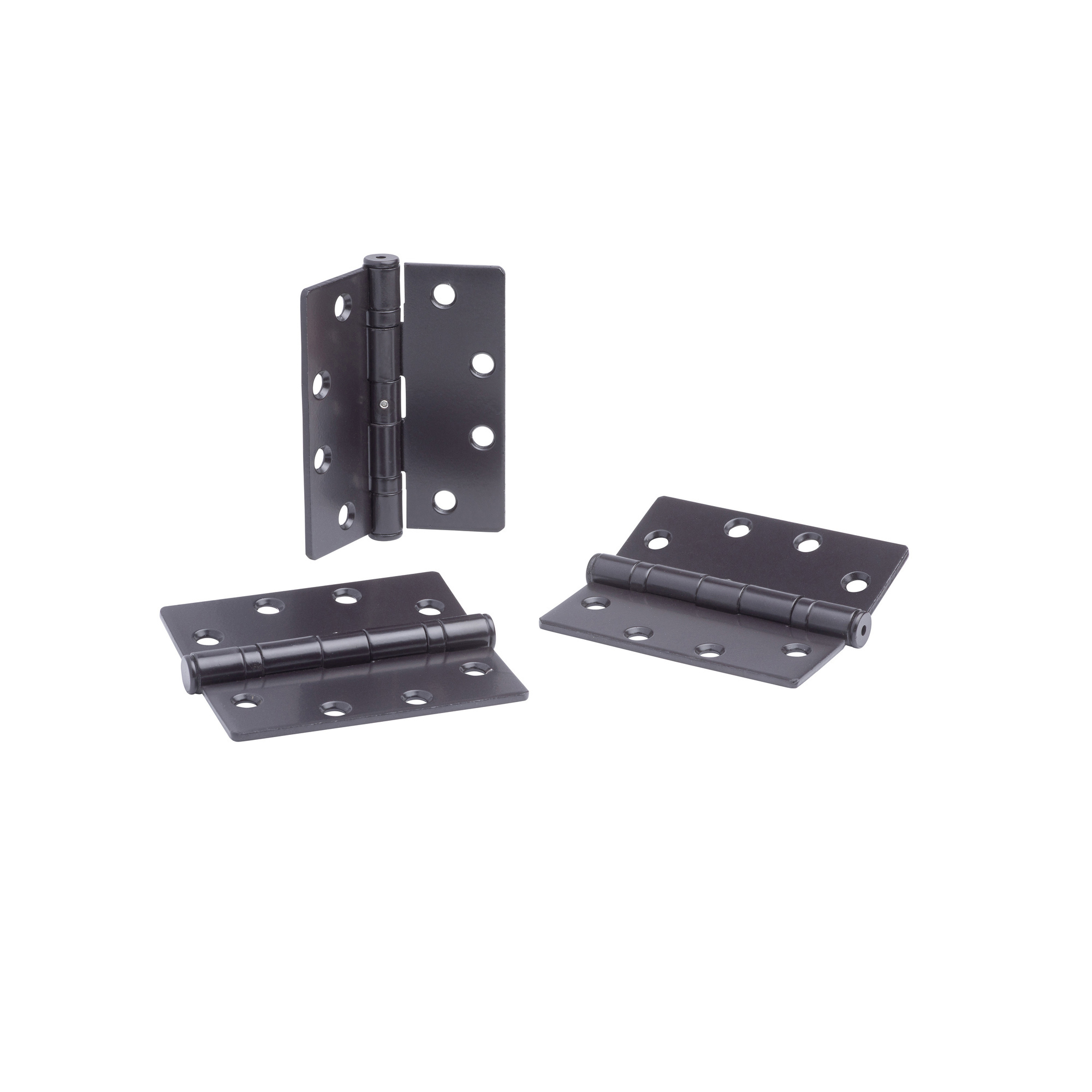

  • Sold as a set of 3 hinges
  • 1 Year mechanical and finish warranty
  • Sold as a set of 3 hinges

Key Specs

AttributeSpecification

item#

83614

Brand

Global Door Controls

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.84 LB

Product Type

Hinge
AttributeSpecification

Material

Steel

Finish

Other

Mounting Type

Screw

Product Weight

2.8400 lb

Dimensions L x W x H (in.)

6.5 x 6.5 x 1.75 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
