The actuator extends at about 1.5 inches per second with no load and around 1.1 inches per second under its full 1000 pound load.

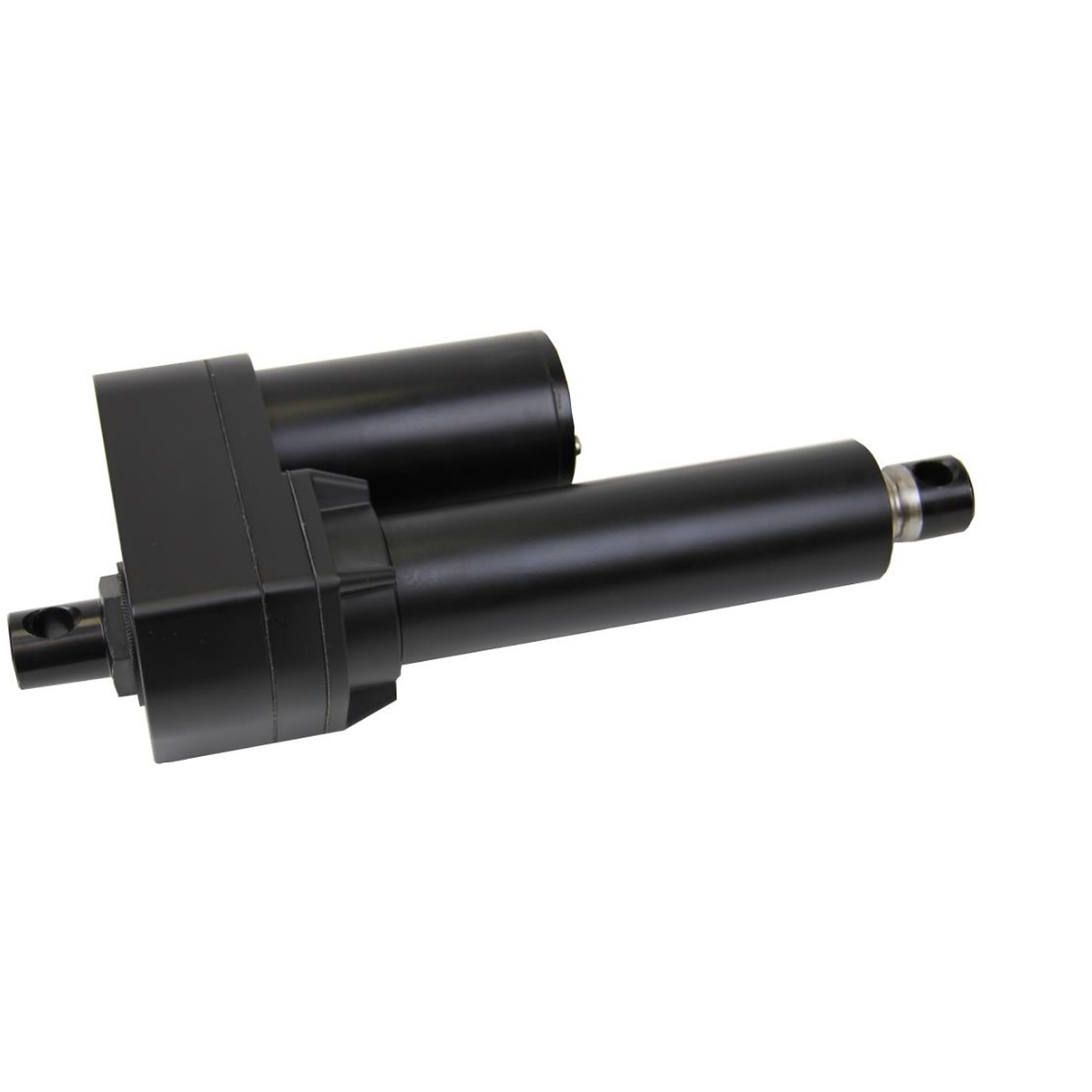

Glideforce, High Perf. Ind. Actuator 1000 Lb rating, Stroke Length 6.02 in, Model# GF17-121006-1-65
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$459.99
- 6 inch stroke
- Steel frame
- 10:1 Gear ratio
- 12 Volt
- Torque Limiter Std.
See full description
See All Electric Actuators
See All Glideforce Electric Actuators
Currently Viewing This Product
Specifications
Specifications
Glideforce, High Perf. Ind. Actuator 1000 Lb rating, Stroke Length 6.02 in, Model# GF17-121006-1-65
Glideforce 110-Lb. Capacity Linear Actuator by Concentric, 12in. Light Duty, 11.81in. Stroke, Model# LACT12
Glideforce 110-Lb. Capacity Linear Actuators by Concentric, 6in. Light Duty, 5.91in. Stroke, Model# LACT6
Glideforce 110-Lb. Capacity Linear Actuator by Concentric, 2in. Light Duty, 1.97in. Stroke, Model# LACT2
Stroke Length
Same
6.02 in
11.81 in
5.90 in
1.95 in
Dynamic Load Capacity
Same
1,012 lb
107 lb
107 lb
107 lb
Static Load Capacity
Same
3,057 lb
500 lb
500 lb
500 lb
Product Type
Same
Linear Actuator
Linear Actuator
Linear Actuator
Linear Actuator
Gear Ratio
Same
10:1
20:1
20:1
20:1
Length Retracted
Same
17.7 in
16.26 in
10.23 in
6.218 in
Length Extended
Same
23.7 in
28.07 in
16.14 in
8.18 in
Volts
Same
12 DC
12
12
12
Amps
Same
25
-
-
-
Frame Material
Same
Carbon Steel
Multiple
Multiple
Multiple
Wireless Range
Same
0 ft
-
-
-
Cable Length
Same
0.82 ft
-
-
-
Product Weight
Same
13.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
20.0 x 5.0 x 7.0 in
-
-
-
