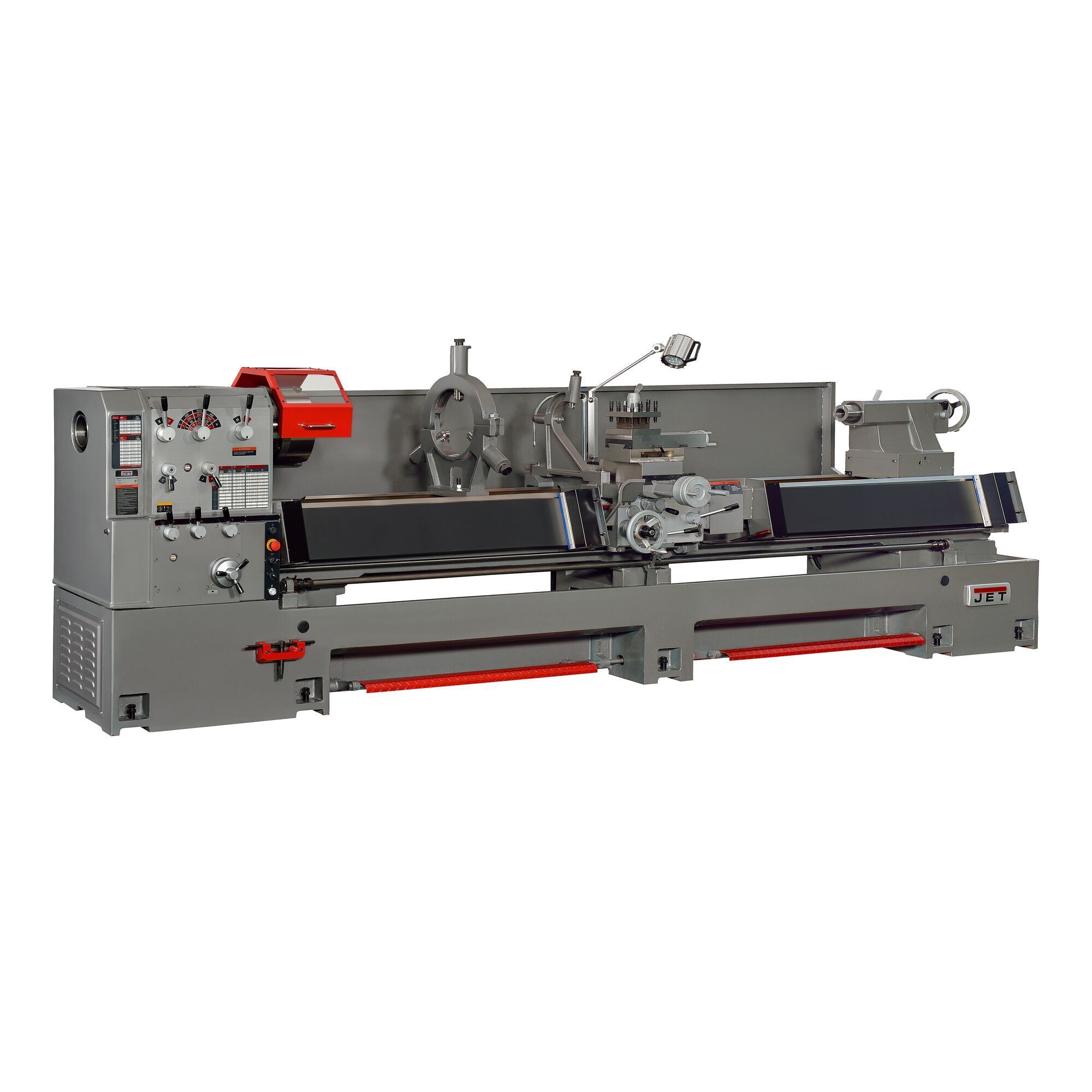

GH-2680ZH, Large Spindle Bore Gear Head Lathe

Item# 7078396
GH-2680ZH, Large Spindle Bore Gear Head Lathe

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GH-2680ZH, Large Spindle Bore Gear Head Lathe

Click or Tap image to Zoom

Product Summary

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2in. Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

What's Included

    (1) GH-2680ZH, Large Spindle Bore Gear Head Lathe

Features + Benefits

  • 3 Jaw scroll chuck with top reversing jaws
  • Steady and follow rest with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on Carriage for added safety
  • Electronic Chuck Key Holder

Key Specs

AttributeSpecification

item#

7078396

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Horsepower

15 HP

Volts

230

Distance Between Centers

80 in

Swing Over Bed

26 in

Product Type

Other
AttributeSpecification

Carriage Travel

73.62 in

Phase

Three-phase

Variable Speed

Yes

Max. Speed

1,000 rpm

Spindle Mount

Yes

Spindle Bore Size

4.5 in

Product Weight

6724.0000 lb

Dimensions L x W x H (in.)

142.1 x 45.3 x 77.2 in
