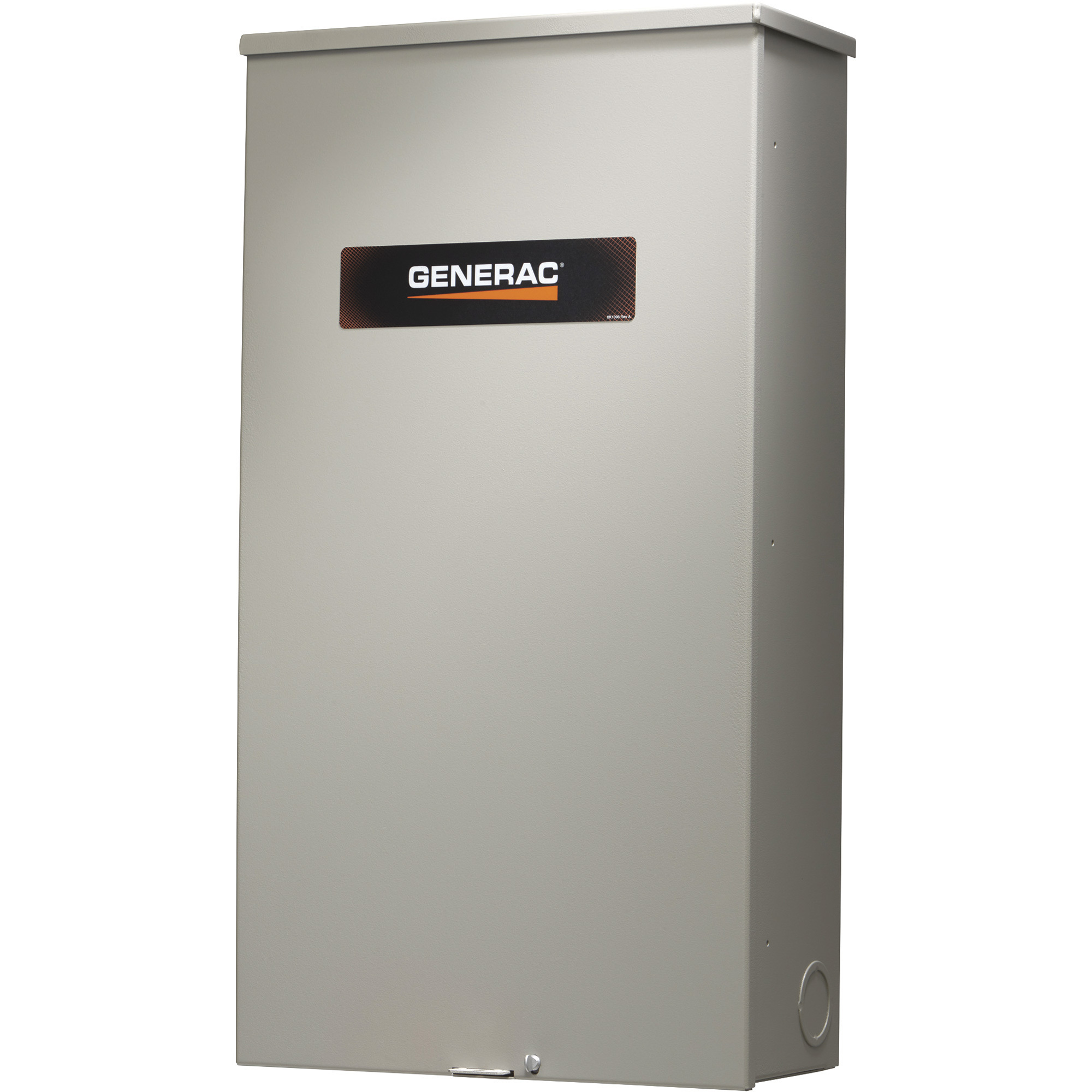

Generac Service Entrance Rated Automatic Transfer Switch, 200 Amps, 120/240 Volts, Single Phase, Model# RXSW200A3

Item# 37850
"Generac Service Entrance Rated Automatic Transfer Switch, 200 Amps, 120/240 Volts, Single Phase, Model# RXSW200A3"
Generac Service Entrance Rated Automatic Transfer Switch, 200 Amps, 120/240 Volts, Single Phase, Model# RXSW200A3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Generac Service Entrance Rated Automatic Transfer Switch, 200 Amps, 120/240 Volts, Single Phase, Model# RXSW200A3

Click or Tap image to Zoom

  • Able to manage 4 individual HVAC loads with no additional hardware
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor/outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
  • Gain even more flexibility when used in tandem with Smart Management Modules
  • Smart A/C Module manages loads by shedding the connected loads in the event of a drop in generator frequency (overload)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Generac Automatic Transfer Switch is used for transferring an electrical load from a utility power source to a generator power source.

What's Included

    (1) Automatic transfer switch, Model# RXSW200A3

Downloads

Product Manual Product Manual2

Features + Benefits

  • Able to manage 4 individual HVAC loads with no additional hardware
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor/outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
  • Gain even more flexibility when used in tandem with Smart Management Modules
  • Smart A/C Module manages loads by shedding the connected loads in the event of a drop in generator frequency (overload)

Key Specs

AttributeSpecification

item#

37850

Brand

Generac

Manufacturer's Warranty

5 year limited warranty

Ship Weight

30.0 LB
AttributeSpecification

Amps

200

Volts

120/240

Phase

Single-phase

UL Listed

Yes

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Will this transfer switch work with any gasoline genaric generator? If so, what sizes?

    1. The transfer switch is designed for use with single phase generators that utilize an Evolution or Nexus Controller. The switch is designed for standby generators only using propane or natural gas.

      Helpful?

    2. None of Generac’s portable generators are compatible with the RTSY200A3 transfer switch.

      Helpful?

    3. As long as the generator is sized appropriately for your particular application, the RTSY200A3 transfer switch is compatible with all current permanently installed 1-phase, 120/240v Generac brand generators featuring our Evolution or Nexus controllers. Furthermore, none of Generac’s portable generators are compatible with the RTSY200A3 transfer switch. We recommend working with a local certified dealer to ensure that you are utilizing the proper transfer switch for your desired configuration.

      Helpful?

  2. May I use it to transfer power from utility service to solar panel or battery instead generator?

    1 answer

    1. The transfer switch is designed specifically for the Generac automatic stand by generators. It will not work with a solar panel or battery set up.

      Helpful?

  3. Can the switch be operated manually if desired? Another words, can I engage to excercise the generator the  resume to normal operation

    1 answer

    1. This transfer switch can be operated manually.

      Helpful?

  4. Will this connect to wifi the  200amp transfer switch model rxsw200a3

    1 answer

    1. Yes, as long as the Generac Standby Generator it is being used with is wi-fi compatible.

      Helpful?

  5. Can I use two of these in parallel off of the same generator?

    1 answer

    1. You would need to check with your installer or a certified electrician for your local codes and ordinances to see if this could be done.

      Helpful?

  6. What is the maximum startup delay?

    The documentation stated that the factory default start-up delay (after power outage is detected) is 10 seconds. Can a longer delay be programmed to prevent nuisance start-ups in areas with frequent short duration (i.e. 5 minutes) power losses.

    1 answer

    1. Start up delay is a 10 second factory set, adjustable between 2-1500 seconds by a qualified dealer.

      Helpful?

  7. Is this the same Transfer Switch that come with the 11K unit that NorthernTools as a package

    1 answer

    1. This Generac transfer switch that comes with this standby generator is the same as the single transfer switch.

      Helpful?

  8. which transfer switch should I use?

    I have a 2008 17 kw guardian that I need a 200 amp switch for. My house is all electric with one central heat and air unit. I want to be able too power the whole house if needed, but my main concern is the heat pump, fridge, and freezer, just in case the power goes out while we are away. which transfer switch would be best, with the least amount of wiring?

    1 answer

    1. Due to the fact that various factors will determine which automatic standby generator and automatic transfer switch should be utilized in your home’s configuration, we would recommend working with a certified electrician to determine the appropriate product’s for your home’s configuration. While a 200-amp automatic transfer switch may be applicable for application, we recommend you verify this with a certified electrician.

      Helpful?

  9. where are the knockouts on the box? what sizes?

    1 answer

    1. The transfer switch has 3 knockouts on it. One in the back top center is a 1 1/2" and 2" knockout. One on the left side at the bottom, if facing the box, it has a 1 1/2" and 2" knockout. The 3rd knockout is in the center on the bottom and is a 3/4" and 1" knockout.

      Helpful?

  10. How many circuits does the RTSY200A3 Smart Automatic Transfer Switch have ?

    1 answer

    1. This does not feature any pre-wired circuits. The switch is designed to be installed prior to the home’s main panel to provide whole-house protection for your backup power needs.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
