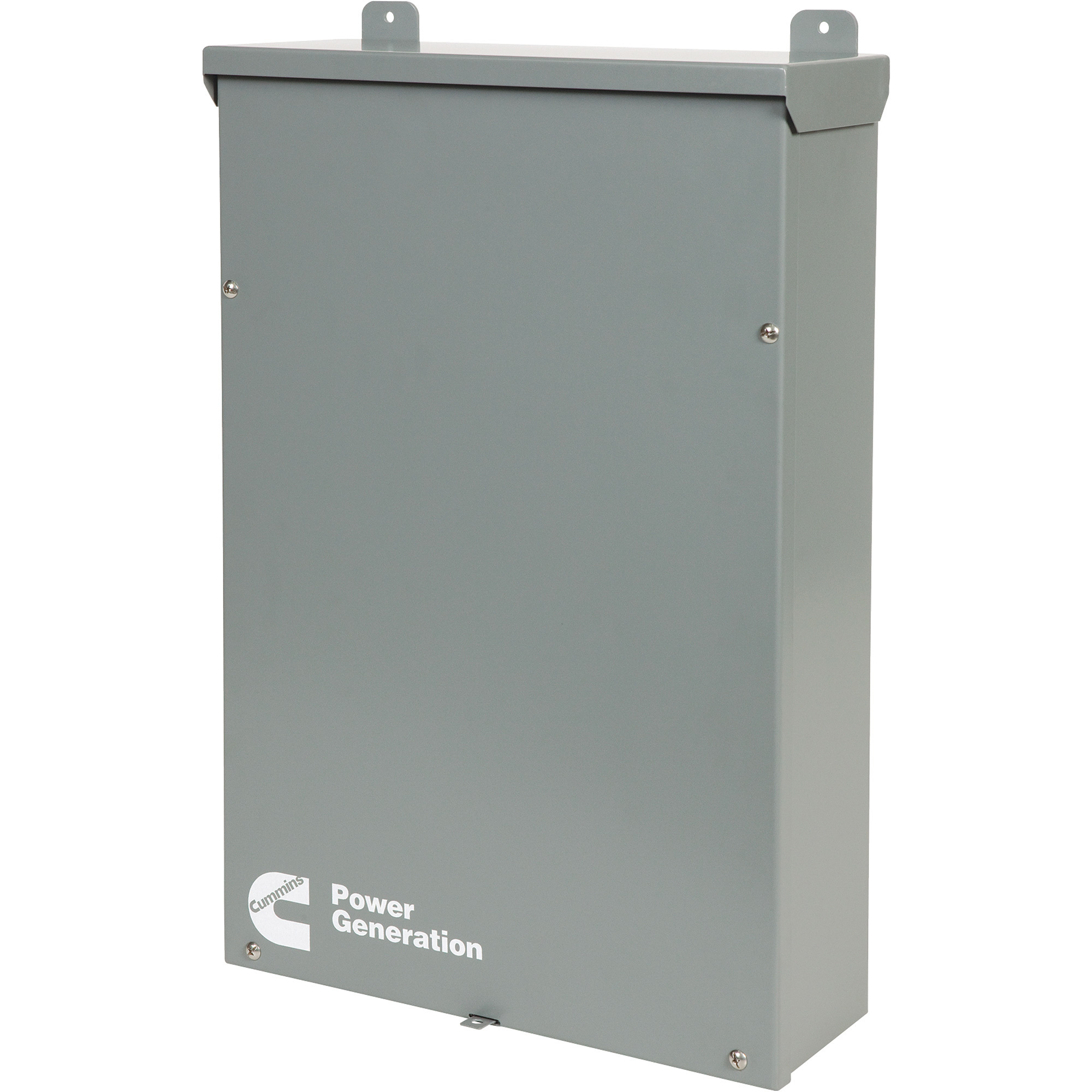

Cummins Automatic Transfer Switch, 200 Amps, Model# RA200 NSE

Item# 79059
Cummins Automatic Transfer Switch, 200 Amps, Model# RA200 NSE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cummins Automatic Transfer Switch, 200 Amps, Model# RA200 NSE

Click or Tap image to Zoom

$809.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed for an easier, quicker installation
  • NEMA 3R enclosure (indoor/outdoor)
  • Mechanically interlocked contactor
  • Solid bus bar connection
  • Neutral and ground bar

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Cummins® Automatic Transfer Switch provides around-the-clock monitoring of utility power. If utility power fails or is unsatisfactory, this switch automatically transfers the load to your generator and then transfers it back when stable utility power returns.

What's Included

    (1) Transfer switch

Downloads

Product Manual

Features + Benefits

  • Designed for an easier, quicker installation
  • NEMA 3R enclosure (indoor/outdoor)
  • Mechanically interlocked contactor
  • Solid bus bar connection
  • Neutral and ground bar
  • Easy screw-type terminals
  • UL 489 listed circuit breaker available with the Service Entrance version
  • Model: RA212N3

Key Specs

AttributeSpecification

item#

79059

Brand

Cummins Power

Manufacturer's Warranty

2 year limited warranty

Ship Weight

53.0 LB

Circuits (qty.)

1

Amps

200

Volts

120/240
AttributeSpecification

Phase

Single-phase

NEMA Enclosure Type

NEMA 3R

UL Listed

Yes

OSHA Approved

No

Expandable Circuits

Yes

Indoor-Outdoor Use

Indoor and Outdoor

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What are the dimensions? Length, height and width

    1 answer

    1. The dimensions on the transfer switch is 27.1" H x 18.2" W x 7.1" D.

      Helpful?

  2. Will this transfer switch provide two-wire start signal for a two-wire start genrator? Is the logic for transfer and generator start incorporated in transfer switch?

    1 answer

    1. The RA 200 will work with a two wire start generator. It does require an external pilot signal from the generator. It does not have transfer logic. The switch is designed for use with the Cummins Connect series generators.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
