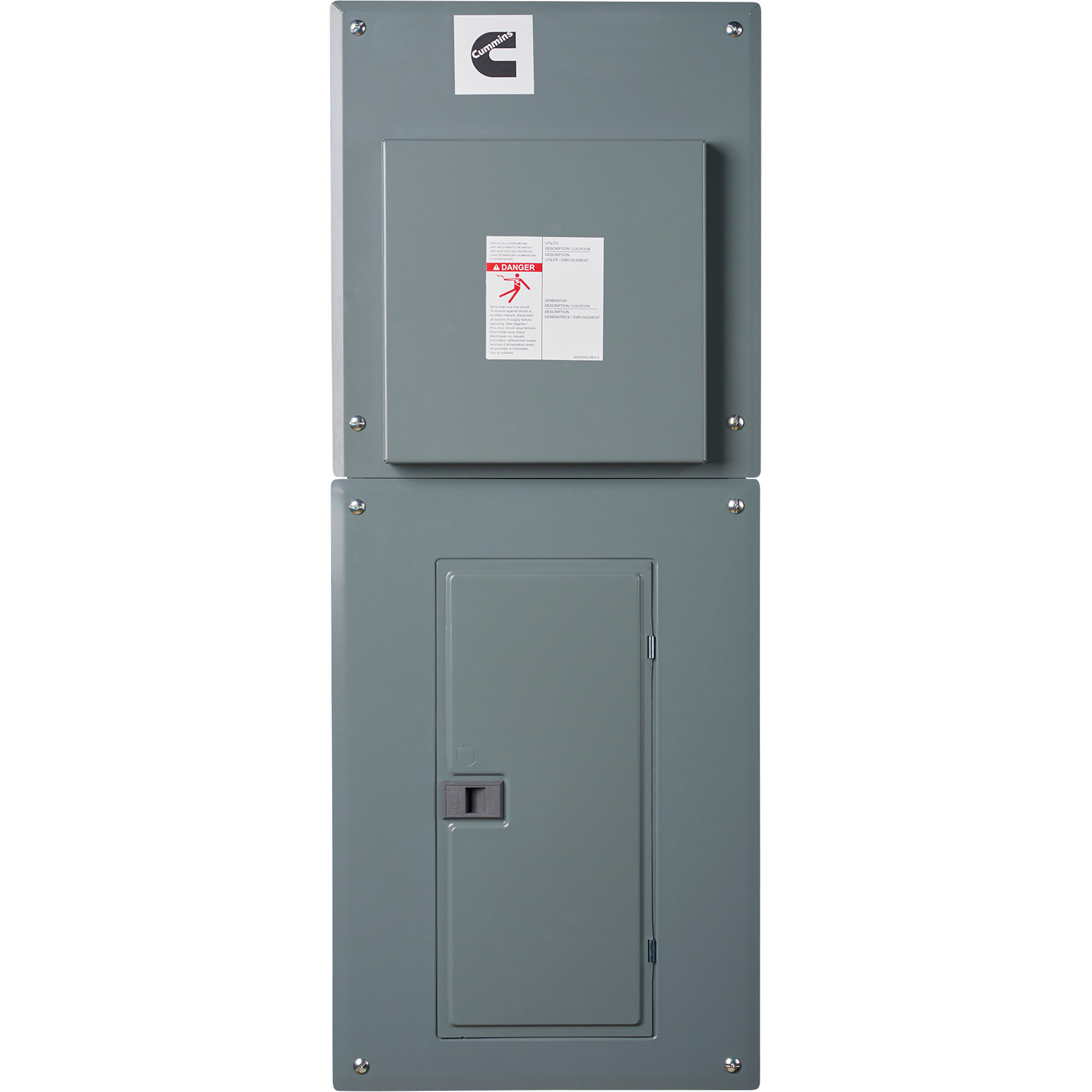

Cummins Automatic Generator Transfer Switch with Load Center, 100 Amps, Model# A051C991

Item# 79062
Cummins Automatic Generator Transfer Switch with Load Center, 100 Amps, Model# A051C991

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cummins Automatic Generator Transfer Switch with Load Center, 100 Amps, Model# A051C991

Click or Tap image to Zoom

$763.42

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Mounts flush between wall studs or on wall
  • Integrated branch circuit breaker panel
  • 20 spaces, allows 24 circuits with 4 tandem breakers
  • Square D, QO series breaker compatible
  • Independent break-before-make action is common for 2-pole

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Cummins® Automatic Generator Transfer Switch with Load Center includes 20 spaces for breakers and a transfer switch in one enclosure. It provides around-the-clock monitoring of utility power. If utility power fails or is unsatisfactory, this switch automatically transfers the load to your generator and then transfers it back when stable utility power returns.

What's Included

    (1) Automatic transfer switch with load center

Features + Benefits

  • Mounts flush between wall studs or on wall
  • Integrated branch circuit breaker panel
  • 20 spaces, allows 24 circuits with 4 tandem breakers
  • Square D, QO series breaker compatible
  • Independent break-before-make action is common for 2-pole
  • Mechanical interlock prevents simultaneous closing of normal and emergency contacts
  • Electrical interlocks prevent simultaneous closing signals to normal and emergency contacts and interconnection of normal and emergency sources through the control wiring
  • Long-life, high pressure, silver alloy contacts resist burning and pitting
  • Contacts are mechanically held in both normal and emergency positions for reliable, quiet operation

Key Specs

AttributeSpecification

item#

79062

Brand

Cummins Power

Manufacturer's Warranty

2 year limited warranty

Ship Weight

52.0 LB

Circuits (qty.)

20

Amps

100
AttributeSpecification

Volts

120/240

Phase

Single-phase

UL Listed

Yes

OSHA Approved

No

Expandable Circuits

No

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. Instead of generator, Can I sue this transfer switch to transfer between grid and roof solar power?

    1 answer

    1. This transfer switch could not be used to transfer between the grid and roof solar power.

      Helpful?

  2. can this be mounted upside down?

    1 answer

    1. This transfer switch could not be mounted upside down.

      Helpful?

  3. What is the total height and width and depth of this transfer switch?

    1 answer

    1. This item measures 38'' high, 14.25'' wide, and 4'' deep.

      Helpful?

  4. Is this single phase

    1 answer

    1. This is a single phase transfer switch.

      Helpful?

  5. Is this compatible with any 2 wire start generator

    Hi,

    Is this combo system compatible with any 2 wire start generator. I know that a lot of transfer switches/ combo panels are generator specific.

    1 answer

    1. This Cummins automatic transfer switch is designed to only be used with certain Cummins standby generator sets.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
