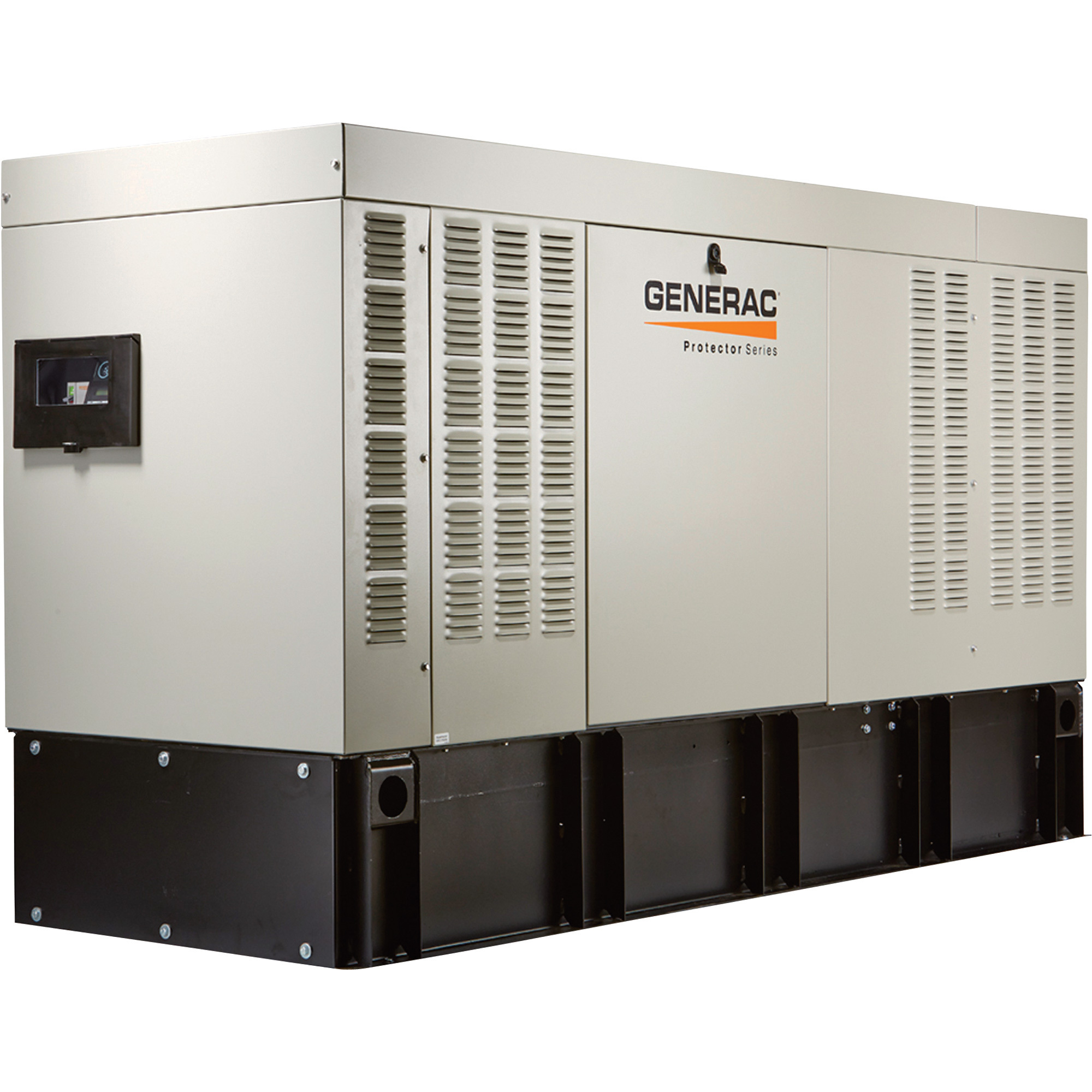

Generac Protector Series Diesel Home Standby Generator, 30kW, 120/240 Volts, 3-Phase, Model# RD03024JDAE

Item# 43417
Generac Protector Series Diesel Home Standby Generator, 30kW, 120/240 Volts, 3-Phase, Model# RD03024JDAE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Generac Protector Series Diesel Home Standby Generator, 30kW, 120/240 Volts, 3-Phase, Model# RD03024JDAE

Click or Tap image to Zoom

  • Code Ready, a set of popular preconfigured options and a range of code-driven accessories
  • External vent and fill, UL/CUL 142-listed, double-walled tank with leak sensor
  • Alarm is issued and generator shuts down in event of fuel leak
  • Secondary tank basin contains leaks, preventing fuel from entering environment
  • External viewing window provides easy inspection of generator status and breaker position

See full description

Availability Varies

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Generac Protector® Series Diesel Home Standby Generator features Code Ready, a set of popular preconfigured options and a range of code-driven accessories, so you can feel confident that your generator will be able to conform to the required local codes which can vary from one region to another. Compatible with a variety of environments, the Protector Series is versatile, adaptable and meets UL requirements, making it an affordable choice for residential and light commercial applications for your backup power needs. Transfer switch sold separately. Assembled in U.S.A. Not intended for use as primary power in place of utility or in life-support applications. Read the owner's manual in its entirety before using this product.

What's Included

    (1) Home standby generator

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Code Ready, a set of popular preconfigured options and a range of code-driven accessories
  • External vent and fill, UL/CUL 142-listed, double-walled tank with leak sensor
  • Alarm is issued and generator shuts down in event of fuel leak
  • Secondary tank basin contains leaks, preventing fuel from entering environment
  • External viewing window provides easy inspection of generator status and breaker position
  • Removable doors offer easy service and fuel fill access
  • Built-in hour meter adds convenience
  • Quiet-Test™ weekly self-test mode runs at a lower RPM, is quieter, and consumes less fuel
  • Intuitive Evolution™ Controller features a multilingual, two-line LCD display for easy monitoring and management of generator functions
  • Transfer switch sold separately
  • 5-year limited warranty

Key Specs

AttributeSpecification

item#

43417

Brand

Generac

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1865.0 LB

Voltage

120/240

Max. Amps

90

Fuel Type

Diesel

Engine Brand

Generac

Engine Model

In-line
AttributeSpecification

Engine Displacement

2,400 cc

Enclosure Material

Aluminum

Start Type

Automatic

Fuel Capacity

62 Gal

Battery Required

Yes

Battery Included

No

Auto Shutdown

Yes

Product Weight

lb

Dimensions L x W x H (in.)

95.4 x 35.0 x 55.4 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is this generator 120/240? I don't need 3 face

    1 answer

    1. This model RA03022JDAE generator is 120/240 volt and is 3-phase. The item #43415, model RD03024ADAE would be 120/240 volt in single phase.

      Helpful?

  2. Does this unit have to  operate on a transfer switch and can I run single phase 240 off of this.  I plan on manually turning unit on and off

    1 answer

    1. This generator will require a transfer switch for operation. Please consult a certified electrician for installation and single phase use.

      Helpful?

  3. What is the run time on a full 61 gallon tank of fuel?

    1 answer

    1. At a half load, this consumes 1.45 gallons per hour allowing it to run for approximately 42 hours. At a full load, this consumes 2.74 gallons per hour which allows it to run just over 22 hours.

      Helpful?

  4. how big is the fuel tank

    1 answer

    1. The Generac 30 KW Diesel unit has a 57 gallon fuel tank.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

5 year limited warranty
