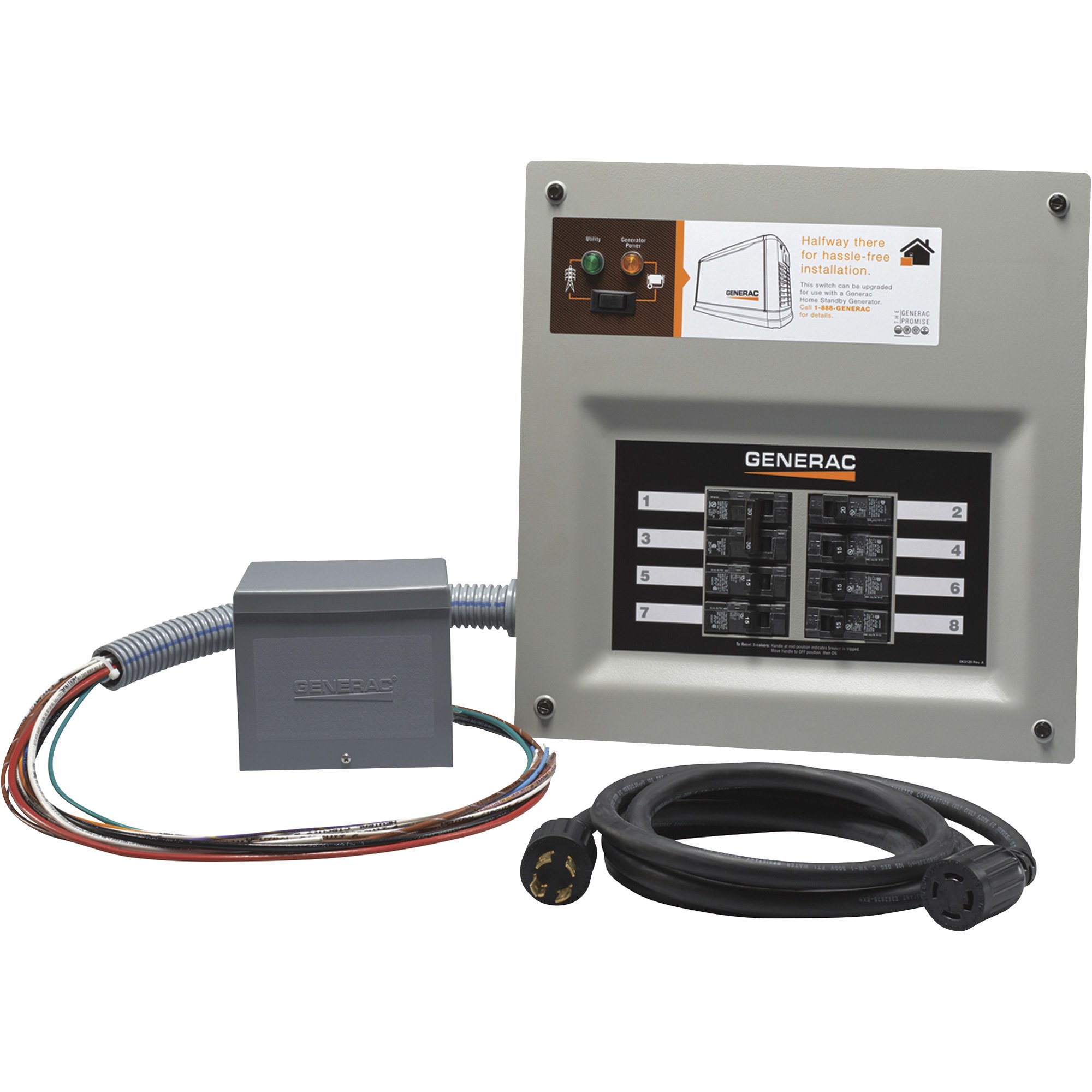

Generac HomeLink Prewired Manual Generator Transfer Switch Kit, 30 Amps, 8 Circuits, Resin Box, Model# 6853

Item# 48453
"Generac HomeLink Prewired Manual Generator Transfer Switch Kit, 30 Amps, 8 Circuits, Resin Box, Model# 6853"
Generac HomeLink Prewired Manual Generator Transfer Switch Kit, 30 Amps, 8 Circuits, Resin Box, Model# 6853

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Generac HomeLink Prewired Manual Generator Transfer Switch Kit, 30 Amps, 8 Circuits, Resin Box, Model# 6853

Click or Tap image to Zoom

  • Prewired for quick, easy installation
  • Accepts standard, tandem, GFCI and Arc Fault breakers
  • 8 circuits, expandable to 10 circuits
  • Includes durable resin power inlet box and 10ft. 10/4 cord with L14-30 ends

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Generac HomeLink Prewired Manual Generator Transfer Switch Kit includes what you need to maintain power to hardwired appliances during a power outage. With the push of a button you can access power from your portable generator to keep appliances such as your furnace, well pump or lights running. Prewired for quick, easy installation, this transfer switch installs next to your home's circuit panel. Plus, it can be used if you decide to upgrade to an automatic home standby generator.

What's Included

  • (1) Prewired transfer switch
  • (1) 10ft. cord
  • (1) Resin power inlet box
  • (1) Wiring harness

Features + Benefits

  • Prewired for quick, easy installation
  • Accepts standard, tandem, GFCI and Arc Fault breakers
  • 8 circuits, expandable to 10 circuits
  • Includes durable resin power inlet box and 10ft. 10/4 cord with L14-30 ends

Key Specs

AttributeSpecification

item#

48453

Brand

Generac

Manufacturer's Warranty

5 year limited warranty
AttributeSpecification

Ship Weight

27.5 LB

Circuits (qty.)

8

Amps

30

Reviews

Questions & Answers

152 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Is this transfer switch FLUSH wall mountable?

    Will this transfer switch mount between studs on a basement wall? Will it be flush with the sheet rock on a finished wall?

    1. Yes it is! I mounted mine flush next to my existing panel.

      Helpful?

    2. This transfer switch can be mounted between the studs on a basement wall. It will also be flush mountable with the sheet rock on a finished wall.

      Helpful?

  2. Do I need to pull a permit to install this?

    1 answer

    1. Please check with a local electrician or codes enforcer in your area.

      Helpful?

  3. How many watts will this transfer switch be able to handle. I'm looking at purchasing Generac's portable generator that provides 17,500 watts. Will this switch work with that generator?

    1 answer

    1. This transfer switch would not work for a generator that has a 50 amp receptacle. It can only be used with generators that have a 30 amp L14-30 receptacle. We do not carry a Generac Homelink manual transfer switch for 50 amps.

      Helpful?

  4. I have a Generac iq3500, will it work with this transfer switch? the iq3500 has a L5-30 outlet, so is there a different cord or adapter I could use since this transfer switch uses a L14-30?

    1 answer

    1. This transfer switch can be used with the Generac iq3500 with a power adapter. Northern Tool does not currently offer an adapter for L5-30 to L14-30.

      Helpful?

  5. Can this panel panel handle 9500 running watts at 30A?

    1 answer

    1. The maximum wattage at 30 amps 240 volt is 7200 watts.

      Helpful?

  6. Are the breakers replaceable - I need a 2 pole 20a breaker, not the 30a 2 pole that is shown in the picture

    1 answer

    1. The breakers are replaceable. The breakers shall not exceed 50 amps rating.

      Helpful?

  7. What is the minimum running watts required?

    1 answer

    1. The transfer switch would work with any generator that has a 30 amp L14-30 receptacle.

      Helpful?

  8. can i extend or buy a longer cord for the generator to switch

    I am wondering if i can extend the cord on the switch from 10 to 30 or 50 feet, is that possible?

    1 answer

    1. A 10 foot cord is included with the kit. We offer longer cords: item 100015 (20'), item 100016 (40'), and item 49559 (50').

      Helpful?

  9. Can I purchase product without cord and outlet?

    I just need the transfer switch

    1 answer

    1. We do offer the item# 48452, Generac HomeLink Prewired Manual Transfer Switch — 30 Amps, 8 Circuits, Model# 6852. Please see below for this model.

      Helpful?

  10. outdoor rated?

    My main panel is outdoors. Can I install this transfer switch outdoors next to my main panel? Is there any documentation available for this?

    1 answer

    1. The transfer switch is not rated for outdoor use. A manual is included with the purchase that will have information on how to install the unit. It would be best to reach out to the manufacturer for further assistance with installation questions.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
