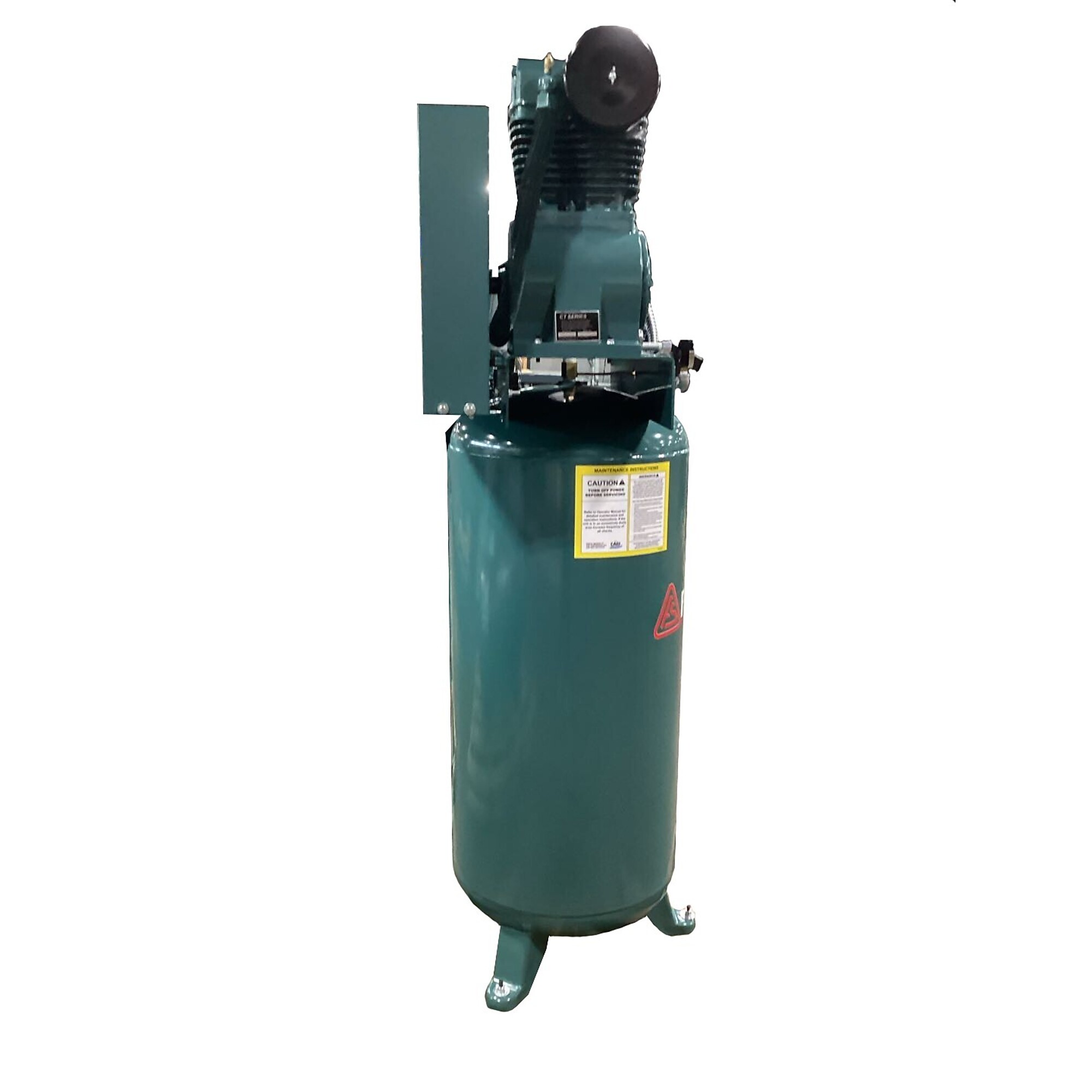

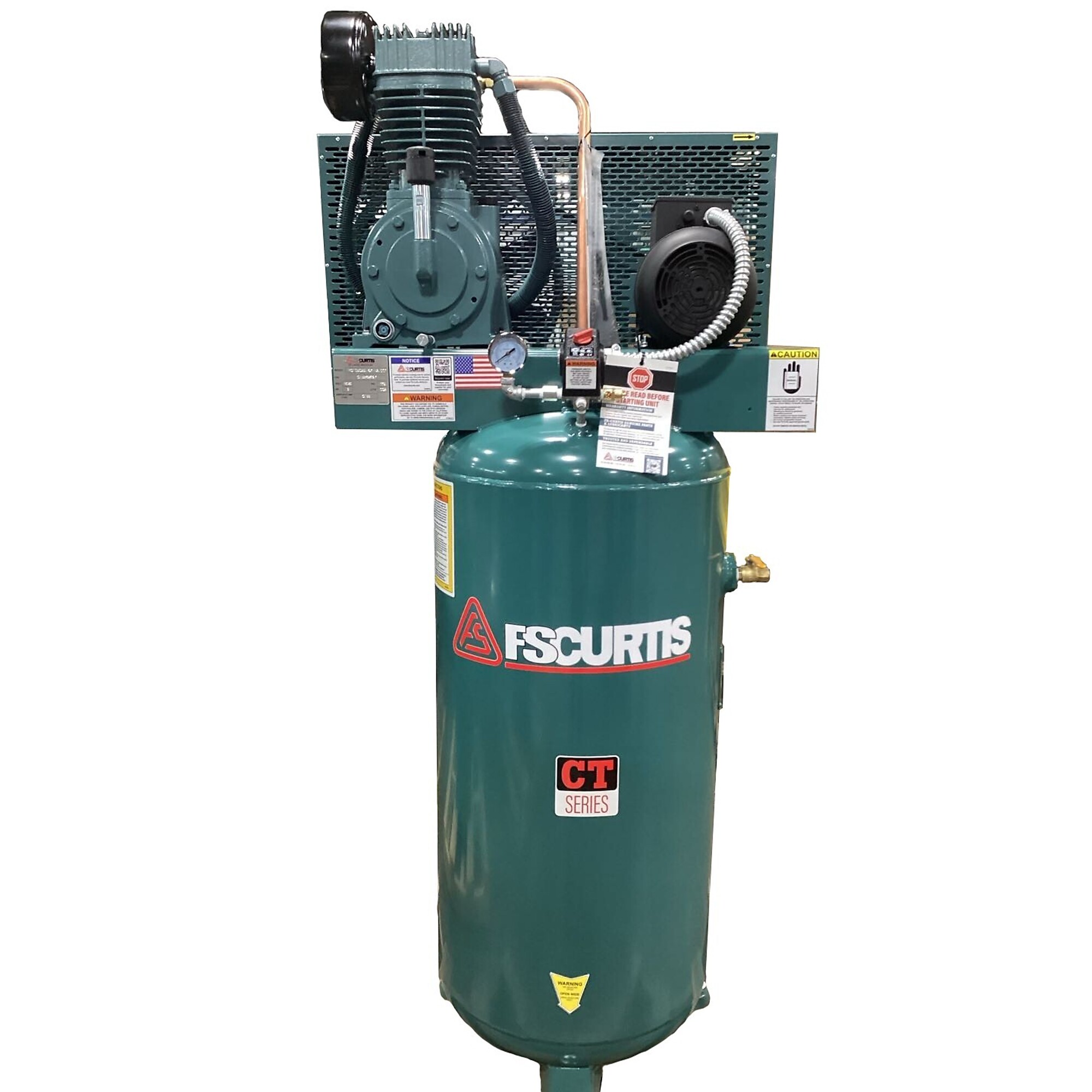

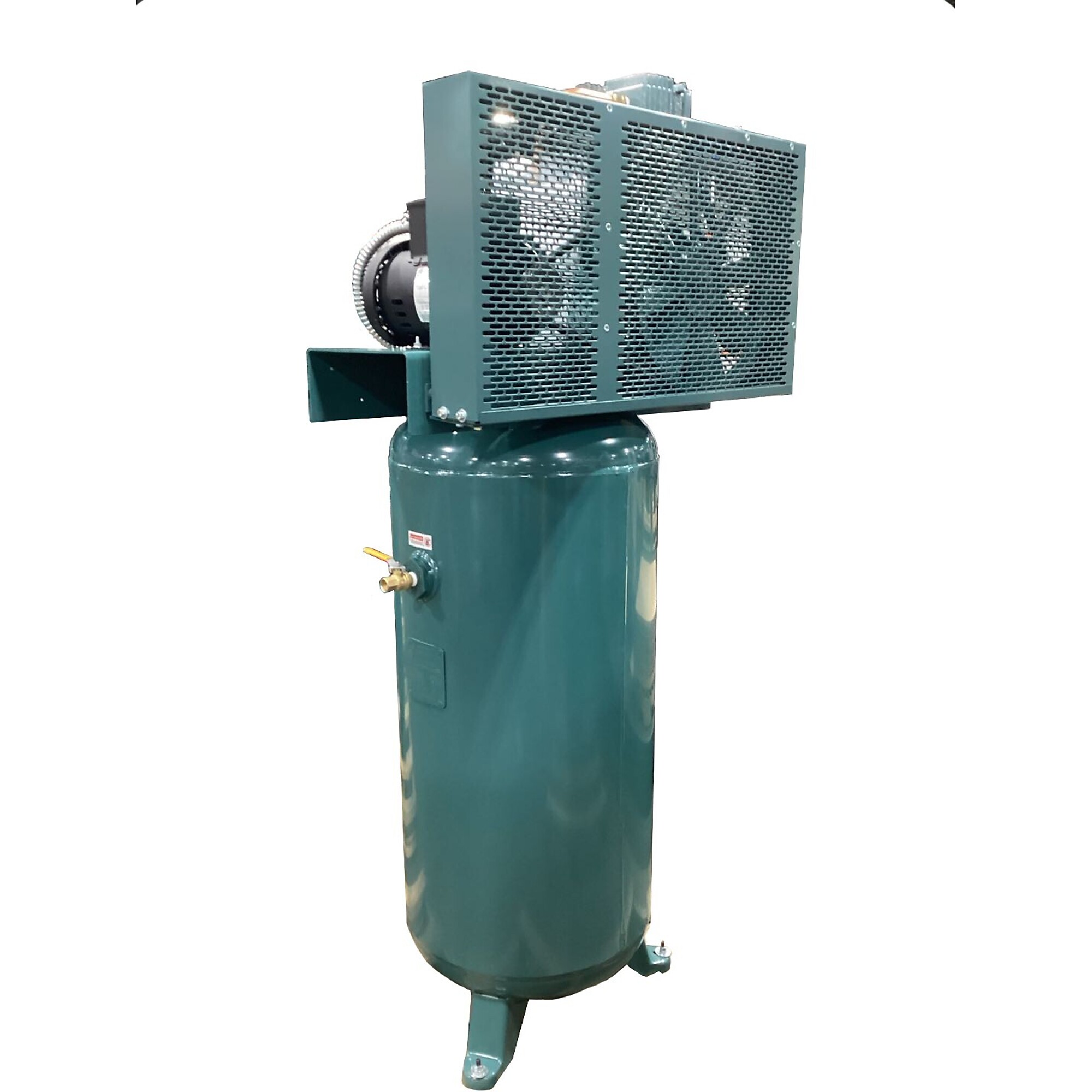

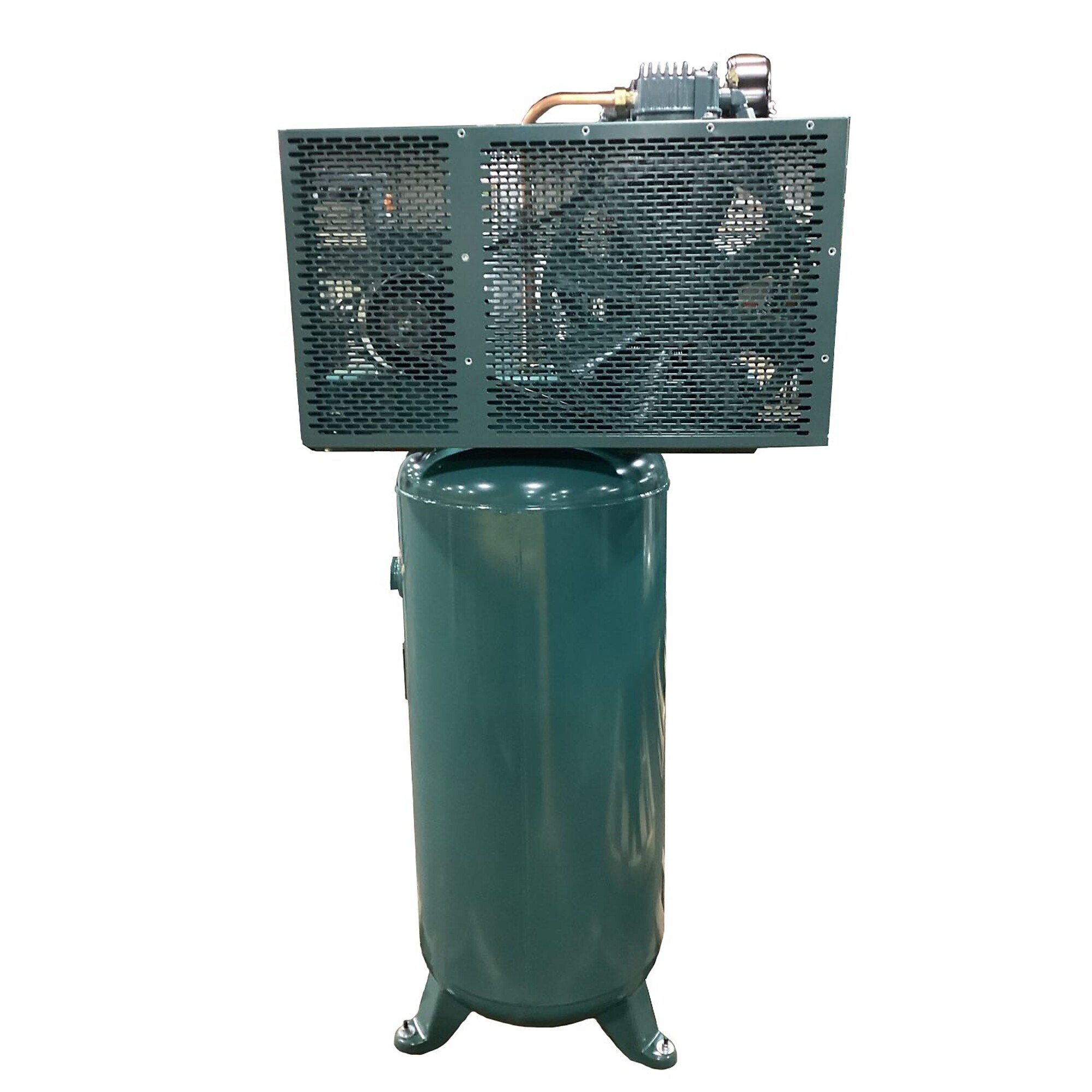

FS-Curtis CT05, 5 HP, 2 Stage Electric Air Compressor, 60 Gallon, 175 PSI, 15.9 CFM

Item# 7320197
New
FS-Curtis CT05, 5 HP, 2 Stage Electric Air Compressor, 60 Gallon, 175 PSI, 15.9 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

FS-Curtis CT05, 5 HP, 2 Stage Electric Air Compressor, 60 Gallon, 175 PSI, 15.9 CFM

Click or Tap image to Zoom

$2613.64

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy duty cast iron components for long life
  • Two stage cast iron pump for added durability
  • Deep-finned cast-iron cylinders and heads for cooler operation
  • Industry-leading cast-iron cylinders and high-pressure pistons for extreme durability
  • Ductile iron crankshaft adds strength and durability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The FS-Curtis CT 5HP simplex air compressor delivers reliable compressed air for demanding work environments that need industrial performance at an affordable price. Built with a straightforward design and rugged construction, it is an ideal choice for users who want dependable air power without unnecessary extras. Designed as part of the CT Series standard package, this two stage reciprocating compressor combines signature FS-Curtis performance and reliability with a simple industrial design. The 60 gallon vertical tank helps save floor space, while low pump speeds and the elimination of commonly used plastic parts support long service life and dependable operation in busy shop environments. Built for the kind of work that does not slow down, the CT5 is ready to deliver dependable air power day after day. Its rugged design and industrial quality construction make it a smart choice for users who need a compressor that can keep up with the demands of the job. It provides the durability, value, and performance professionals expect. FS-Curtis, trusted and dependable since 1854.

What's Included

    (1) Air Compressor

Downloads

Product Manual
Additional Product Info Additional Product Info2

Features + Benefits

  • Heavy duty cast iron components for long life
  • Two stage cast iron pump for added durability
  • Deep-finned cast-iron cylinders and heads for cooler operation
  • Industry-leading cast-iron cylinders and high-pressure pistons for extreme durability
  • Ductile iron crankshaft adds strength and durability
  • High-flow, heavy-duty stainless steel channel valve system delivers more cfm per horsepower
  • Precision-fit, industrial-grade main roller bearings promote longer pump life
  • Robust intercooler increases compressor efficiency
  • Oil level sight glass is conveniently located for easy monitoring
  • Metal intake filter/silencer is superior to plastic
  • Value-minded industrial design – robust performance at a lower cost
  • Provides higher pressures and longer life than single-stage pumps
  • Slow turning pump increases pump life
  • Robust design sets the CT Series apart from comparable entry-level models
  • Follows the same world-class quality design standards as other FS-Curtis products

Key Specs

AttributeSpecification

item#

7320197

Brand

FS Curtis

Manufacturer's Warranty

1 year limited warranty

Ship Weight

475.0 LB

Air Tank Size

60 Gal

Volts

230

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

22

Duty Cycle

70 %

Motor RPM

3,550
AttributeSpecification

Working Pressure

175 PSI

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

CFM at Max. PSI

15.9

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Product Weight

475.0000 lb

Dimensions L x W x H (in.)

34.0 x 24.0 x 74.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
