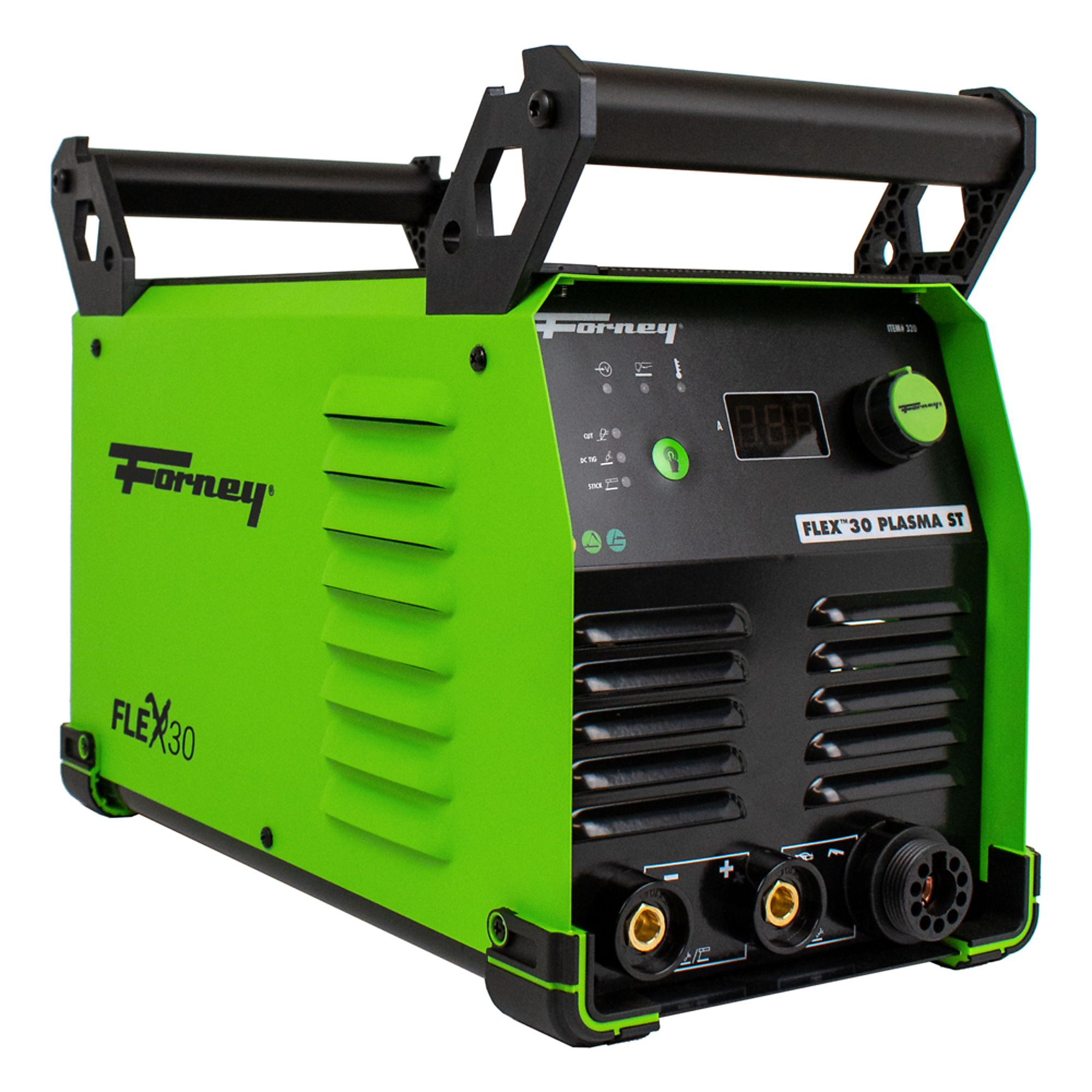

Forney, Flex 30 Plasma/Stick welder, Volts 120/240 Max. Amps 160 Model# 320

Item# 6030825
"Forney, Flex 30 Plasma/Stick welder, Volts 120/240 Max. Amps 160 Model# 320"
Forney, Flex 30 Plasma/Stick welder, Volts 120/240 Max. Amps 160 Model# 320

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Forney, Flex 30 Plasma/Stick welder, Volts 120/240 Max. Amps 160 Model# 320

Click or Tap image to Zoom

$1299.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Input Voltage: 120V/240V
  • Output Power (Welding): 120V @ 85A | 240V @ 160A (DC output only)
  • Output Power (Cutting): 120V @ 20A | 240V @ 30A
  • Electrode Diameter: Up to 5/32”
  • Plate Thickness: Up to 3/8”

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Forney Flex 30™ Plasma ST is an all-in-one welding and cutting machine! It’s portable, easy to use, generator-friendly, and features innovative inverter technology – making this one of the most efficient machines in the market. This powerful, dual-voltage plasma cutter and stick/TIG welder also allows you to work wherever 120V and 240V power is available.

What's Included

    (1) Forney Flex 30 Plasma/Stick welder (1) Additional set of consumables , 6ft power cable , 8ft stick electrode holder , 8ft ground cable and clamp , 15ft removable plasma torch with Euro Connect , 120V-240V adapter cord.

Features + Benefits

  • Input Voltage: 120V/240V
  • Output Power (Welding): 120V @ 85A | 240V @ 160A (DC output only)
  • Output Power (Cutting): 120V @ 20A | 240V @ 30A
  • Electrode Diameter: Up to 5/32”
  • Plate Thickness: Up to 3/8”
  • Cutting Capacity: 3/8” clean cut | 5/8” sever cut
  • Duty Cycle (TIG): 120V: 30% @ 85A | 240V: 30% @ 160A
  • Duty Cycle (Stick): 120V: 30% @ 80A @ 30% | 240V: 25% @ 160A
  • Duty Cycle (Plasma): 120V: 35% @ 20A | 240V: 60% @ 30A
  • Amperage Range (TIG): 120V: 10A-85A | 240V: 10A-160A
  • Amperage Range (Stick): 120V: 10A-80A | 240V: 10A-160A
  • Amperage Range (Plasma): 120V: 10A-20A | 240V: 10A-30A
  • Recommended Air Supply Flow Rate: 4.5 CFM
  • Lift Arc TIG capable. Requires TIG Torch (Forney ITEM# 85659).
  • Warranty: 3-year (power source), 1-year (torch)
  • Dual-Voltage: Provides the operator flexibility for where their machine can be used.
  • All-In-One Metalworking Solution: Cut and weld up to 3/8” thick material with one small, powerful machine.
  • Unit Weight: 19.65 lbs. (8,62 Kg)

Key Specs

AttributeSpecification

item#

6030825

Brand

Forney

Manufacturer's Warranty

3 year limited warranty

Ship Weight

31.0 LB

Volts

120/240

Max. Amps

160

Power Type

AC

Multi-process

No

Spool Gun Included

No

Max. Weld Thickness

0.38 in

Duty Cycle

30% at 80 Amps
AttributeSpecification

Min. Amps

30

Cart Included

No

Mig Ready

No

Power Cord Length

6 ft

Clamp Cable Length

8 ft

Electrode Cable Length

8 ft

Regulator and Gas Hose Included

No

Shielding Gas Required

No

Product Weight

31.0000 lb

Dimensions L x W x H (in.)

19.4 x 15.5 x 12.4 in
