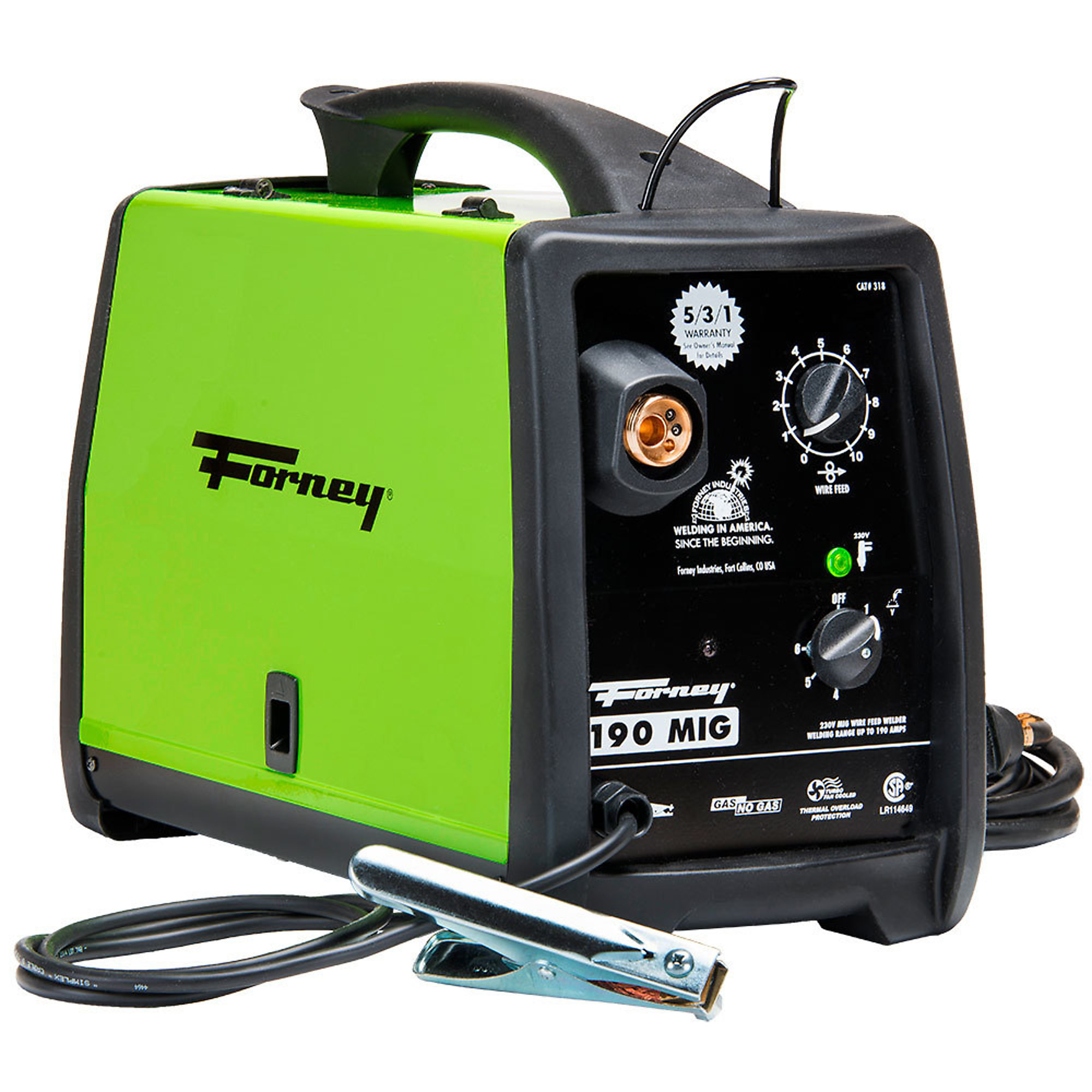

Forney, 190 MIG Welder, Volts 230 Max. Amps 190 Mig Ready, Model# 318

Item# 6030737
"Forney, 190 MIG Welder, Volts 230 Max. Amps 190 Mig Ready, Model# 318"
Forney, 190 MIG Welder, Volts 230 Max. Amps 190 Mig Ready, Model# 318

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Forney, 190 MIG Welder, Volts 230 Max. Amps 190 Mig Ready, Model# 318

Click or Tap image to Zoom

$1099.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Easy to use with fast disconnect to swap out torch and clean the liner

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

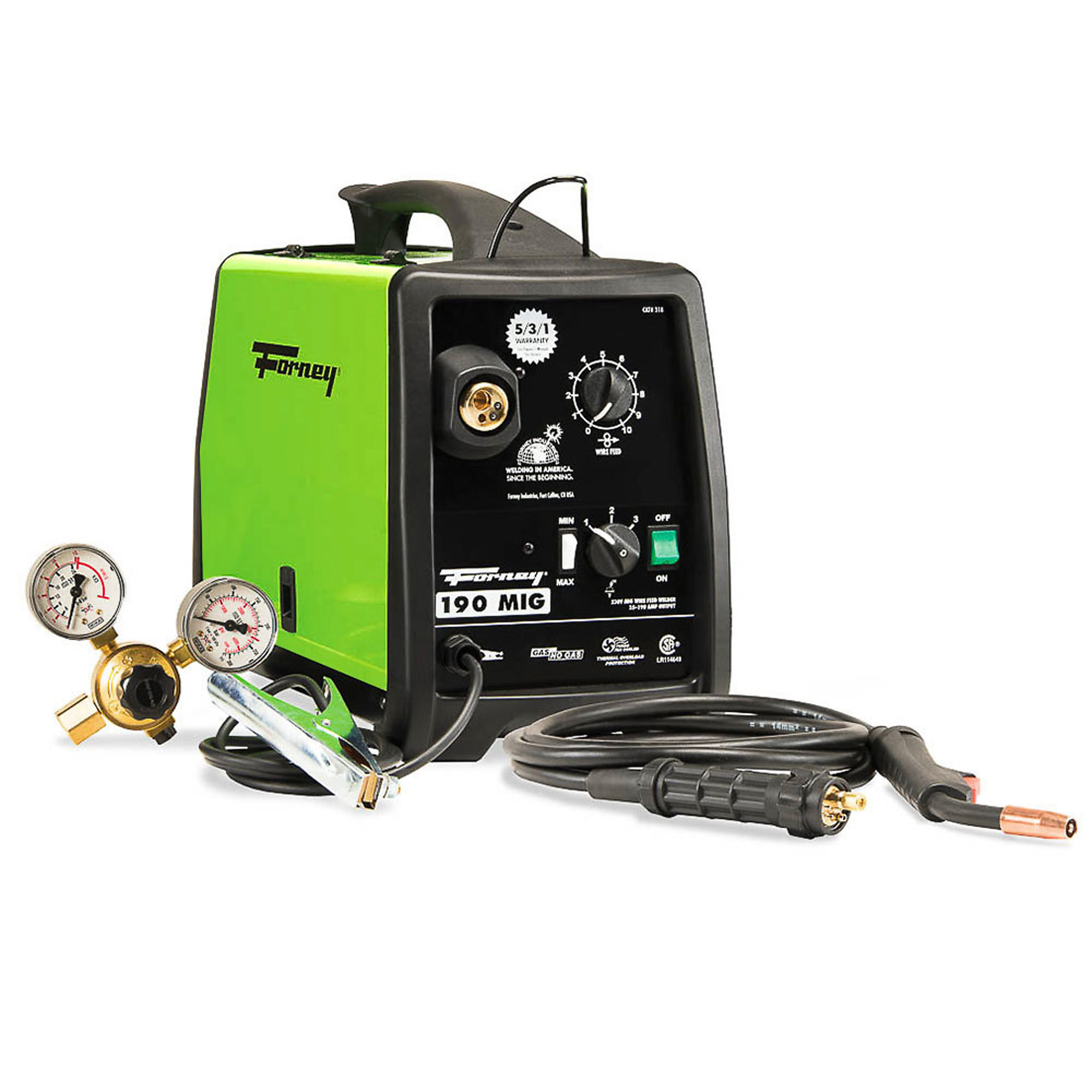

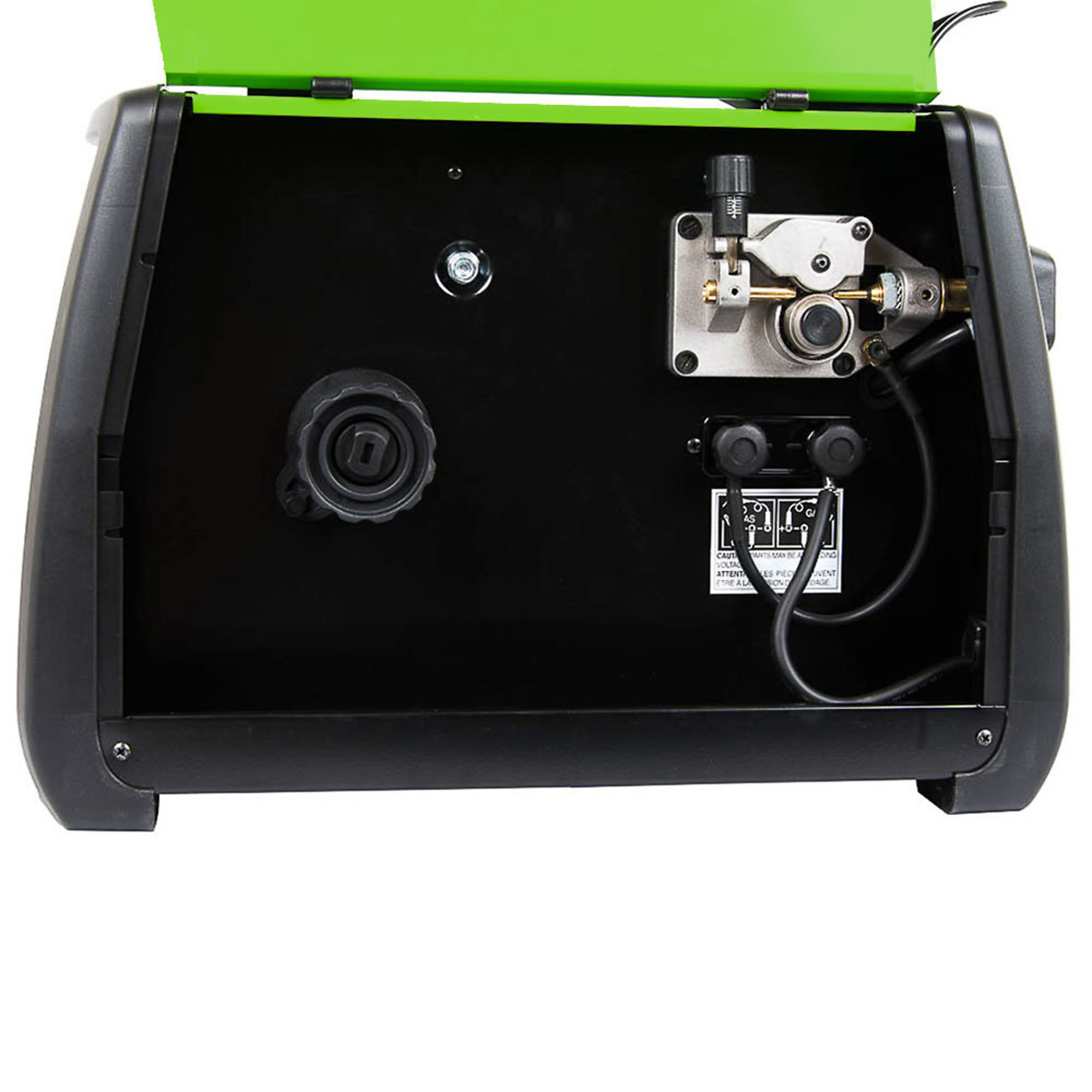

The Forney 190 MIG welder is easy to use with fast disconnect to swap out torch and clean the liner. Applications include do-it-yourself, metal fabrication, maintenance and repair, farm and ranch and automotive. Includes a 10ft. MIG gun with 10ft. lead, 10ft. ground cable and clamp and a gas hose and regulator. Features a larger cabinet for easy access to 4in. (1-2 lbs.) and 8in. (10-11 lbs.) spools, upgraded cast aluminum wire drive system and geared idler and drive roll with better de-spooler. Product Specifications: * Dimensions: 16in. x 27.07in. x 11.55in. * Weight: 74 lbs. (33.57 kilograms (kg)) * Integrated feet * Torch with built in strain relief extends cable life * Processes: MIG (GMAW); Flux Cored (FCAW) * Amperage range: 35 to 190 AMPs * Wire diameter range: .024in. - .035in. * Rated output: 120 AMP 25% duty cycle * Plate thickness range: 24-gauge - 3/8in.

What's Included

    (1) Forney 190 MIG Welder

Features + Benefits

  • Easy to use with fast disconnect to swap out torch and clean the liner

Key Specs

AttributeSpecification

item#

6030737

Brand

Forney

Manufacturer's Warranty

3 year limited warranty

Ship Weight

73.35 LB

Volts

230

Max. Amps

190

Power Type

AC

Multi-process

No

Spool Gun Included

No

Welding Processes

Flux-Core, MIG

Max. Weld Thickness

0.38 in

Max. Welding Wire Diameter

0.35 in
AttributeSpecification

Duty Cycle

25% at 120 Amps

Min. Amps

30

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Power Cord Length

15 ft

Clamp Cable Length

10 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

No

Product Weight

73.3500 lb

Dimensions L x W x H (in.)

27.0 x 11.62 x 16.1 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Can you add a spool gun to a forney 190 model 318

    1 answer

    1. The model 190 MIG 318 is not compatible with a spool gun.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
