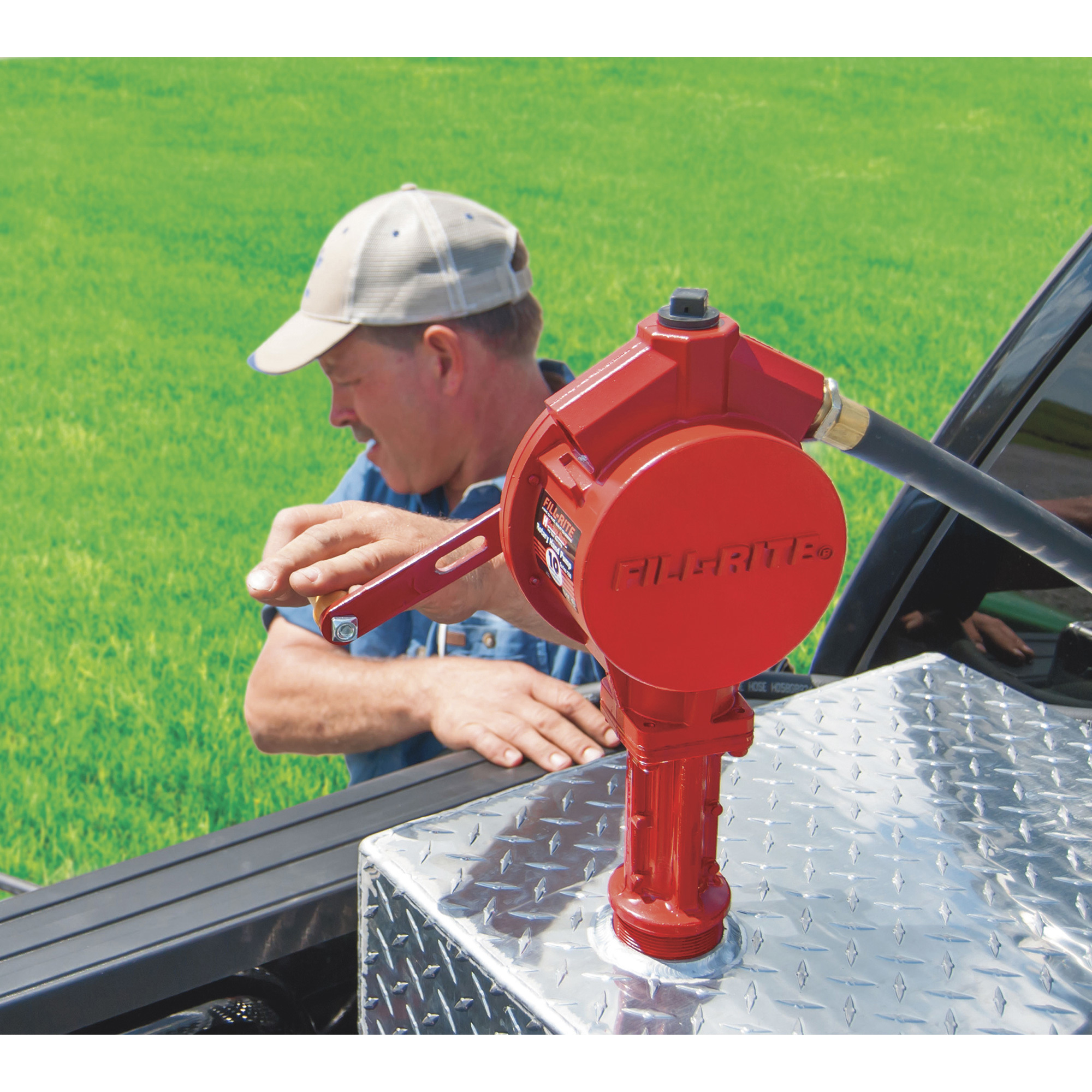

Fill-Rite Cast Aluminum Heavy-Duty Rotary Drum Pump, Model# FR112

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- Built to last with rugged, corrosion-resistant cast-aluminum construction
- Reversible flow design allows you to fuel and drain vehicle fuel tanks
- No electricity needed -- ideal for low-volume applications where access to power is not available
- Designed for stationary or mobile use
- Padlock-compatible handle adds security to protect your investment
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) Rotary hand pump
Downloads

Features + Benefits

- Built to last with rugged, corrosion-resistant cast-aluminum construction
- Reversible flow design allows you to fuel and drain vehicle fuel tanks
- No electricity needed -- ideal for low-volume applications where access to power is not available
- Designed for stationary or mobile use
- Padlock-compatible handle adds security to protect your investment
- Included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage
- Included strainer keeps large particulate contaminants out of your equipment
Key Specs
| Attribute | Specification |
|---|---|
item# | 109574 |
Brand | Fill-Rite |
Manufacturer's Warranty | 2 year limited warranty |
Ship Weight | 17.8 LB |
Pump Style | Rotary |
| Attribute | Specification |
|---|---|
GPM | 10 |
For Use With | Gas, Diesel |
Inlet Port | 1 in |
Outlet Port | 3/4 in |
Material | Cast Aluminum |
Reviews
Questions & Answers
Questions
-
· 11 years ago
Does this need an adapter to fit a standard 55 gallon drum?
-
Burtman58· 11 years ago
Helpful?
-
ProductExpert41· 11 years ago
This pump will fit all standard 55 gallon drum without any adapters.
Helpful?
-
-
· 11 years ago
Can this pump survive biodiesel. I notice it's not listed in your specs.
-
ProductExpert19· 11 years ago
This pump can handle up to B20 (20% bio-diesel blended with 80% diesel fuel). It's not designed to pump used vegetable oi.
Helpful?
-
Fill-Rite Product Support· 11 years ago
If, when you say bio-diesel, you are referring to refined bio-diesel, then yes, this pump can handle up to B20 (20% bio-diesel blended with 80% diesel fuel). However, if you are referring to used vegetable oil, then no, the FR112 is not designed for this product. Thanks for the great question.
Helpful?
-
-
· 11 years ago
I'm fueling an aircraft. Is there a grounding wire from the pump with an alligator clip that I can attach to the plane's exhaust pipe?
-
ProductExpert23· 11 years ago
This Fill-Rite Cast Aluminum Heavy-Duty Rotary Drum Pump is not designed to be used for fueling aircraft. It does not include a grounding wire available.
Helpful?
-
Fill-Rite Product Support· 11 years ago
Thanks for your question.
We do not recommend using any of our pumps for use with fueling aircraft, so no, there is not a ground wire with an alligator clip to attach to your plane.
Please do not use the pump for this purpose.
Thanks and Best Regards,
Helpful?
-
-
· 12 years ago
A longer output hose ?
Does Northern sell a longer output hose than can be used instead of the short 8 inch that comes with the item ?
-
ProductExpert19· 12 years ago
You can use item numbers 155066 or 38995 with this pump. Please see below.
Helpful?
-
Fill-Rite Product Support· 12 years ago
Thanks for your question.
You can use Northern Tools item numbers 155066 or 38995 with this pump.
Because the operator needs to be at the hand pump to pump fuel, keeping the hose at 8 feet ensures that they are close enough to see what is happening while dispensing.
If you increase your hose length, be sure that you know what is happening at the dispensing nozzle. If you cannot see the nozzle, you will spill fuel as you won't know when the tank is full, or worse, the dispensing nozzle falls out of the tank.
One last point; if you go with a different hose than those I have mentioned, make sure the hose contains a static wire to bleed off any static electricity that builds in the hose. If the hose does not have a static wire, you will get a static spark at the nozzle.
Best Regards,
Helpful?
-
-
· 12 years ago
on the rotary hand pump can you add a flow meter to it.
-
ProductExpert19· 12 years ago
You can add a meter to the hand pump. Item # 109589 will work great. Make sure you pump at a minimum rate of 5 GPM.
Helpful?
-
Fill-Rite Product Support· 12 years ago
Thanks for your inquiry on the FR112NT hand pump!
Yes, you can add a meter to the hand pump. Use the Fill-Rite Model 807CMK. Just make sure you pump at a minimum rate of 5 GPM. Meter accuracy is negatively affected by pumping at a rate of less than 5 GPM. If the rate is too low, the meter may not register at all.
To install the meter, you will need to remove the vacuum breaker from the top of the pump and install it in the side port (where the hose normally goes). Using the nipple and street elbow that are included in the 807CMK, you will mount the meter in the top port of the pump.
Let us know if you have any further questions.
Best Regards,
Helpful?
-
-
· 13 years ago
when connected to a "gas caddy" will this pump leak if laying on its side?
-
Fill-Rite Product Support· 13 years ago
Thanks for the question. If the gas caddy is laying on its side and the suction pipe is under the liquid level in the tank, fuel will leak from the spout that comes with the pump.
Helpful?
-
ProductExpert37· 13 years ago
This Fill-Rite Rotary Hand Pump is meant to be used upright. If it will be permanently mounted on its side, it won’t leak, but it will not pump.
Helpful?
-
-
· 2 years ago
My diesel tank is 48” deep will this pump work with the suction pipe only being 38” long?
1 answer-
ProductExpert11· 2 years ago
The maximum suction on the pump is 48". You may replace the suction tube with a black or galvanized pipe in the length needed. The thread size will be a 1" MNPT.
Helpful?
-
-
· 3 years ago
The wooden handle broke on my pump, do you carry these - or am I able to order one? Dan R~
1 answer-
ProductExpert6· 3 years ago
You would contact the manufacturer direct for replacement parts.
Helpful?
-
-
· 10 years ago
Would this pump work for pumping urethane (polyol and/or isocyanate)?
1 answer-
ProductExpert11· 10 years ago
This rotary drum pump cannot be used to transfer urethane. Northern Tool doesn't carry a similar pump that's designed/approved for urethane.
Helpful?
-
-
· 12 years ago
Can this pump be adapted or is it feasible to draw from a fuel caddy with a 3/4" fixed suction pipe?
1 answer-
ProductExpert6· 12 years ago
The pump can be adapted to be used with a fuel caddy.
Helpful?
-
Warranty
Manufacturer's Warranty
2 year limited warranty
