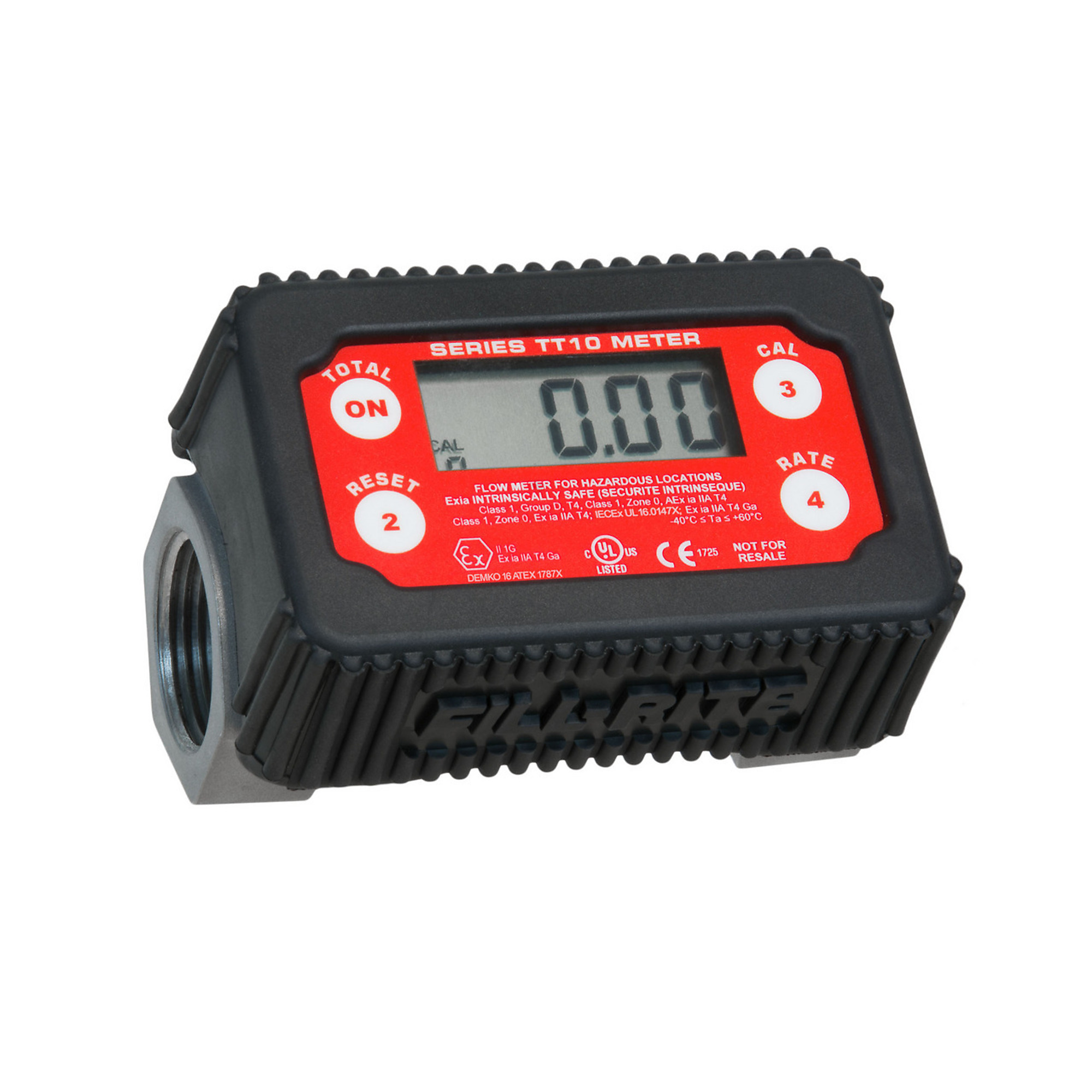

Fill-Rite, 2-35 GPM 4-Digit Digital Turbine Meter, Model# TT10ABC

Item# 6150923
Fill-Rite, 2-35 GPM 4-Digit Digital Turbine Meter, Model# TT10ABC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite, 2-35 GPM 4-Digit Digital Turbine Meter, Model# TT10ABC

Click or Tap image to Zoom

$259.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible.
  • In-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience.
  • Track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts.
  • Factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration.
  • External rubber boot provides maximum protection and impact resistance for tougher applications,

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TT10ABC is a 4-digit digital fuel transfer meter. This meter is equipped with 1in. Nickel Plated Aluminum BSPP threads and is designed to register 2-35 gallons per minute at +/-1% accuracy. This meter bundle includes (2) 0.75in. reducer bushings. For use with E85, B100 Biodiesel, Non-Potable Water.

What's Included

    (3) One Digital Meter and two reducer bushings.

Features + Benefits

  • Measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible.
  • In-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience.
  • Track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts.
  • Factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration.
  • External rubber boot provides maximum protection and impact resistance for tougher applications,
  • Non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced.

Key Specs

AttributeSpecification

item#

6150923

Brand

Fill-Rite

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.3 LB

Min. Flow Rate

2 GPM

Max. Flow Rate

35 GPM

Max. PSI

50

Product Type

Fuel Meters
AttributeSpecification

Inlet Port

1 in. NPT

Outlet Port

1 in. NPT

Min. Temperature

0 °F

Max. Temperature

140 °F

Display

Digital

Product Weight

0.8000 lb

Dimensions L x W x H (in.)

3.0 x 4.0 x 2.6 in
