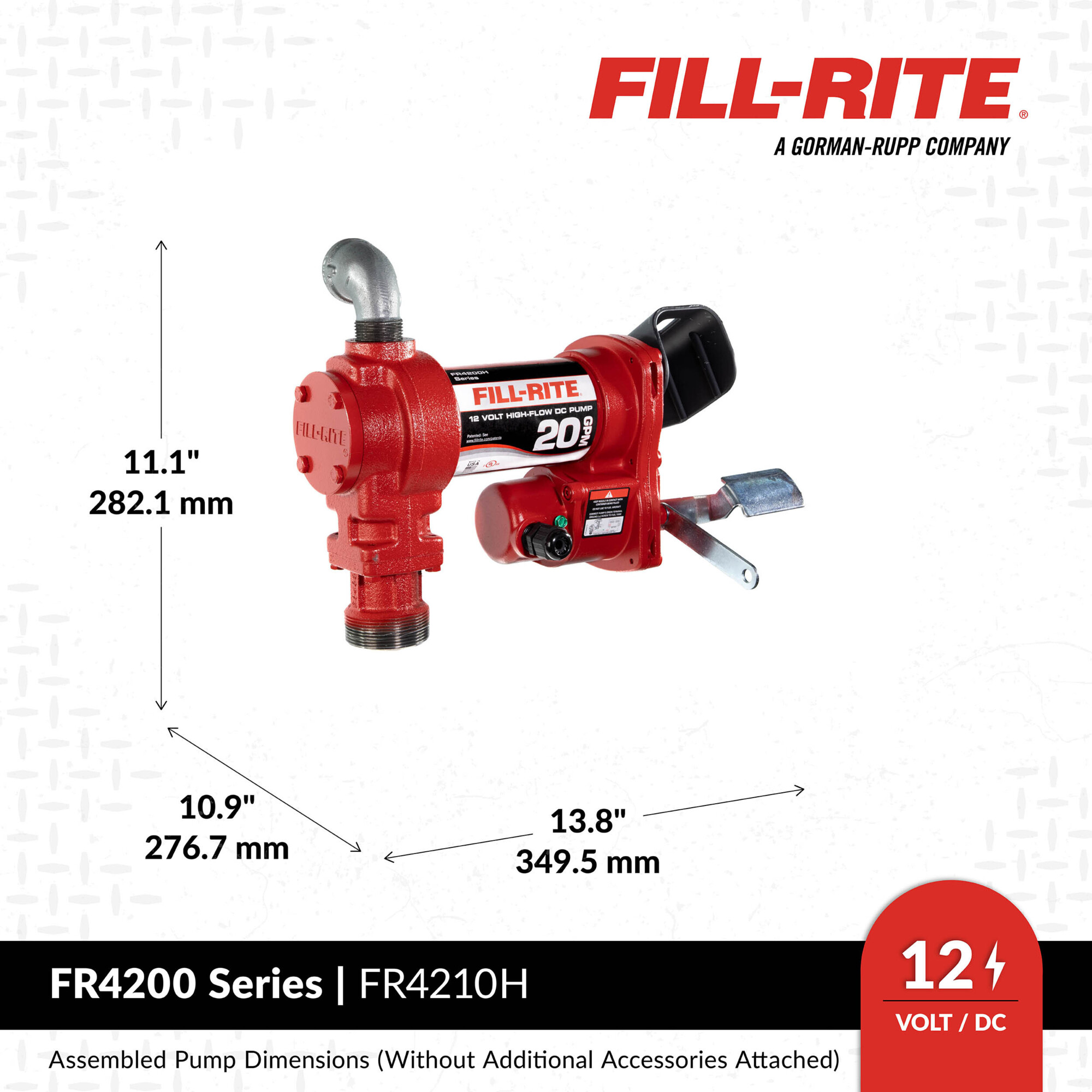

Fill-Rite 12V DC Fuel Transfer Pump Kit, 20 GPM, 1in. Manual Nozzle, 1in. x 12ft. Hose, Model# FR4210H
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Durable cast iron construction withstands heavy everyday use and extreme weather exposure
- Adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
- Thermally-protected 1/4 HP, 12V motor prevents overheating for longer pump life
- Built-in strainer filters out particulates and prevents fuel contamination from damaging equipment
- Reliable on/off switch lever with cast metal stopping arm prevents premature failure from repeated use
See full description
$644.98

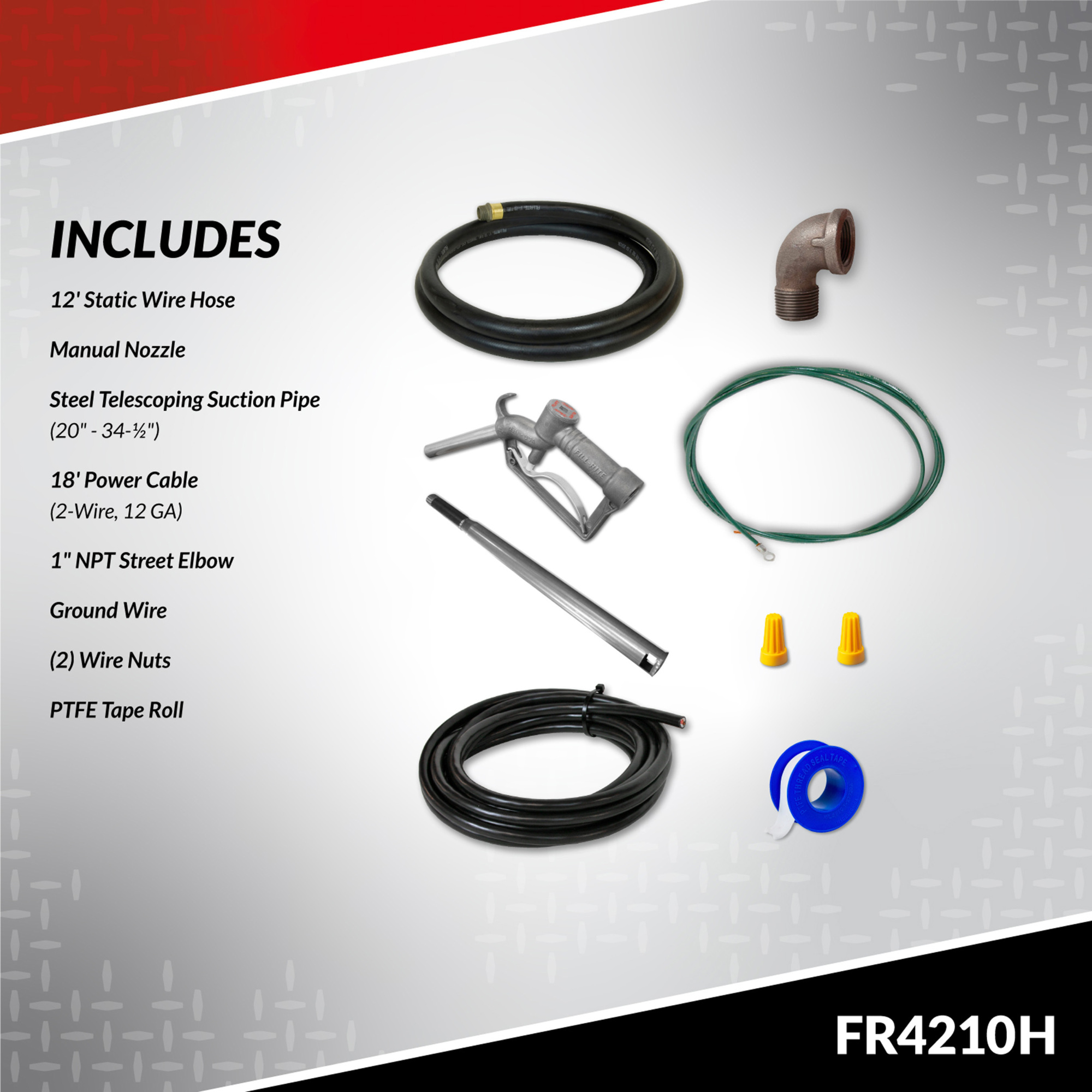

What's Included
- (1) 12V fuel pump (1) Manual nozzle (1) Discharge hose (1) Suction pipe (1) Ground wire (1) Battery cable
Features + Benefits
- Durable cast iron construction withstands heavy everyday use and extreme weather exposure
- Adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
- Thermally-protected 1/4 HP, 12V motor prevents overheating for longer pump life
- Built-in strainer filters out particulates and prevents fuel contamination from damaging equipment
- Reliable on/off switch lever with cast metal stopping arm prevents premature failure from repeated use
- Pumps up to 20 gallons per minute
- 2in. threaded base for tank mounting
- Includes 1in. aluminum manual nozzle, 1in. x 12ft. discharge hose, 20in.-34 1/2in. steel suction pipe, 5ft., 12-gauge ground wire and 18ft., 12-gauge 2-wire battery cable
- For use with diesel, gasoline, kerosene, E15, and biodiesel up to B20
- UL and cUL certified to ensure quality
- Limited lifetime warranty
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All DC Powered Fuel Pumps
See All Fill-Rite DC Powered Fuel Pumps
Currently Viewing This Product
Specifications
20
25
25
25
12
-
-
-
Manual
Automatic
Automatic
-
8 ft
-
-
-
1 in
1-1/4 in
1-1/4 in
1-1/4 in
1 in
1 in
1 in
1 in
37 ft
18 ft
18 ft
-
Yes
Yes
Yes
Yes
12 ft
18 ft
18 ft
-
30 min
-
-
-
Yes
Yes
Yes
Yes
19.1000 lb
lb
lb
lb
12.0 x 10.0 x 14.0 in
22.0 x 20.0 x 11.0 in
22.0 x 20.0 x 11.0 in
18.5 x 15.5 x 11.0 in
-
48 ft
48 ft
48 ft
-
29
29
29
-
1 1/4 NPT
1 1/4 NPT
1 1/4 NPT
-
1 NPT
1 NPT
1 NPT
-
3,500 rpm
3,500 rpm
3,500 rpm
-
18
18
-
-
1 x 18
1 x 18
-
-
0.33 HP
0.3 HP
0.33 HP
-
400–3,500
400–3,500
400–3,500
