Fill-Rite 12V DC Fuel Transfer Pump, 15 GPM, Pump Only, Model# FR1204H

Item# 114304
Fill-Rite 12V DC Fuel Transfer Pump, 15 GPM, Pump Only, Model# FR1204H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite 12V DC Fuel Transfer Pump, 15 GPM, Pump Only, Model# FR1204H

Click or Tap image to Zoom

$369.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction withstands heavy everyday use and extreme weather exposure
  • Adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
  • Thermally-protected 1/4 HP, 12V motor prevents overheating for longer pump life
  • Built-in strainer filters out particulates and prevents fuel contamination from damaging equipment
  • Reliable on/off switch lever with cast metal stopping arm prevents premature failure from repeated use

See full description

Complete Your Solution

  • Fill-Rite 12V DC Fuel Transfer Pump, 15 GPM, Pump Only, Model# FR1204H
  • Fill-Rite Fuel Transfer Hose with Static Ground Wire, 3/4in. x 14ft., Model# FRH07514
  • Fill-Rite Fuel Transfer Hose with Static Ground Wire, 3/4in. x 20ft., Model# FRH07520
Price for all three:

$489.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Fill-Rite® 12V DC, 15 GPM Fuel Transfer Pump is made of durable cast iron with cast bronze rotors and vanes to provide heavy-duty performance and withstand daily use in mobile tank applications. The pump features an adjustable electrical rotatable junction box for easy installation, a thermally-protected motor to prevent overheating and a built-in strainer to filter out particulates and prevent fuel contamination. Pump only.

What's Included

    (1) 12V DC fuel transfer pump

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Durable cast iron construction withstands heavy everyday use and extreme weather exposure
  • Adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
  • Thermally-protected 1/4 HP, 12V motor prevents overheating for longer pump life
  • Built-in strainer filters out particulates and prevents fuel contamination from damaging equipment
  • Reliable on/off switch lever with cast metal stopping arm prevents premature failure from repeated use
  • Manual nozzle holder
  • Pumps 15 gallons per minute
  • For use with diesel, gasoline, kerosene, E15 and biodiesel up to B20
  • UL and cUL certified to ensure quality
  • Limited lifetime warranty

Key Specs

AttributeSpecification

item#

114304

Brand

Fill-Rite

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

21.0 LB

GPM

15

Volts

12

Amps

20

Inlet Port

1 in
AttributeSpecification

Outlet Port

3/4 in

Discharge

16 ft

Duty Cycle

30 min

Bypass Valve

Yes

Horsepower

0.25 HP

Product Weight

22.5000 lb

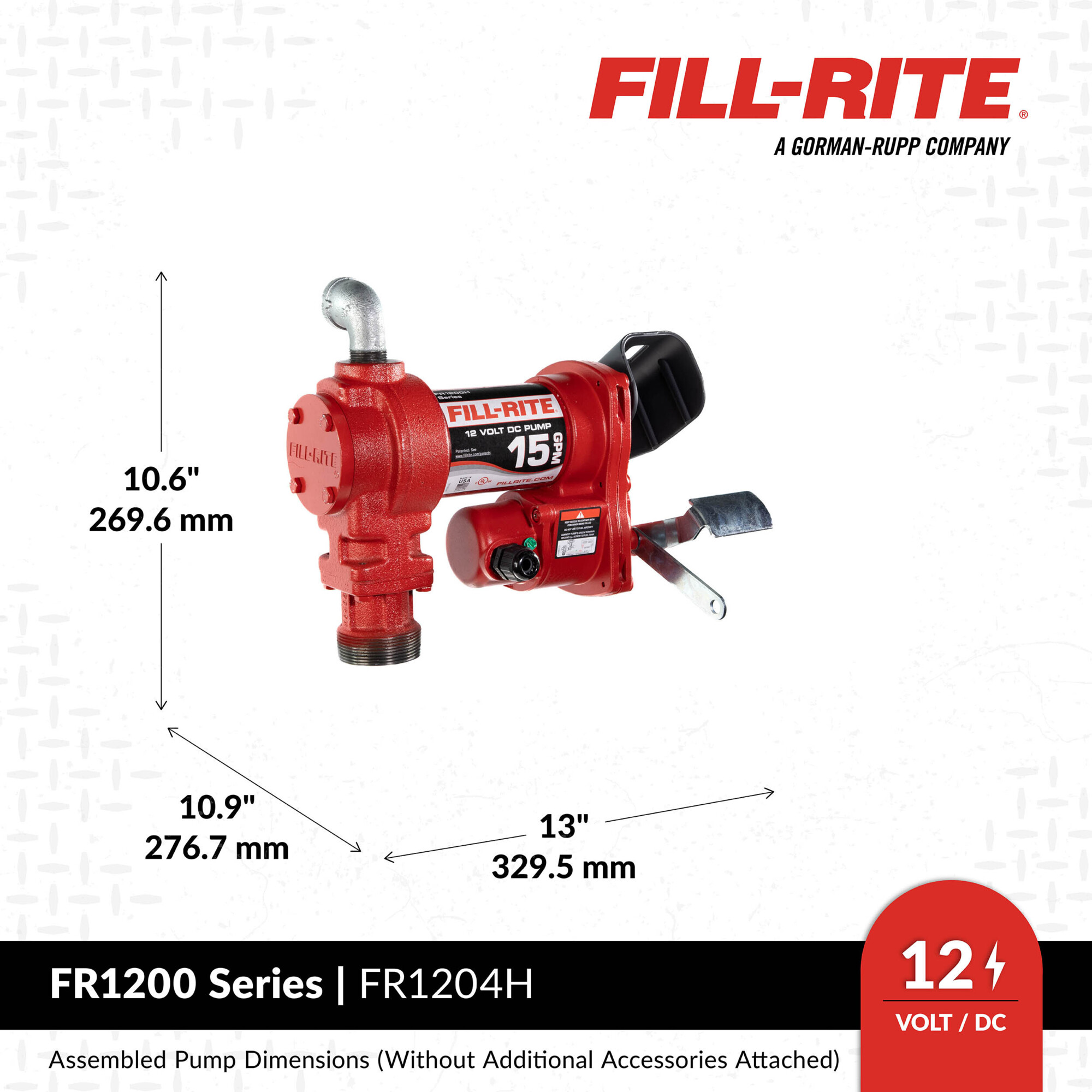

Dimensions L x W x H (in.)

15.5 x 13.0 x 7.3 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What size is the inlet port? Where can I buy this fitting to weld to my tank?

    1 answer

    1. The inlet flange (KIT120BG, Northern Tool Item# 6207811) uses a dual‑thread design: its 2″ NPT male thread installs into a 2″ NPT female tank bung, and the suction pipe threads into the internal 1″ NPT female port.

      Helpful?

  2. Can you take the filter out and run a thicker fluid through it?

    1 answer

    1. It would not be recommended to remove the filter on this fuel transfer pump.

      Helpful?

  3. Does this pump come with a suction pipe on pump?

    1 answer

    1. This model would be just the pump only, it would not come with a suction tube.

      Helpful?

  4. How long is the electric cord?

    1 answer

    1. The pump would have an 18 ft cord length.

      Helpful?

  5. It shows pump only. But will the pump come with the pick up tube?

    1 answer

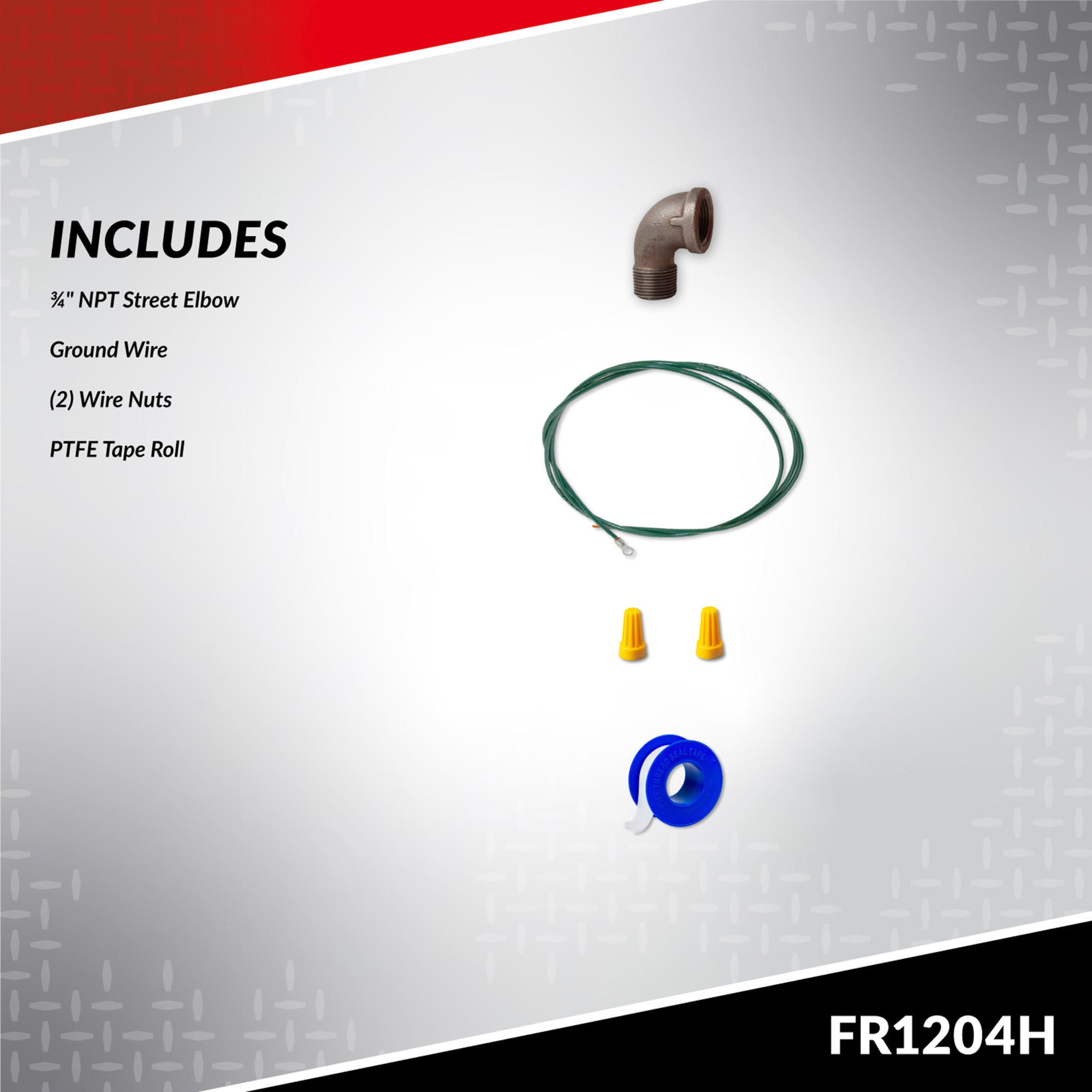

    1. This pump will include a 3/4 in. elbow, 5 ft. 12-Gauge ground wire. No additional accessories are included.

      Helpful?

  6. Can this pump be installed vertically?  Instead of placing on top of fuel bulk tank can it be mounted on the side and piped to tank?

    1 answer

    1. The pump can be mounted on the side of the tank and piped to it. However, the motor should remain in a horizontal position, not a vertical one. The armature in the motor is not designed with enough support to mount the motor vertically.

      Helpful?

  7. Can you buy replacement parts for this pump

    1 answer

    1. Replacement parts can be purchased through the manufacturer directly.

      Helpful?
