The pump will fit a 2 inch bung. It would screw into a 55 gallon drum that has a 2 inch opening.

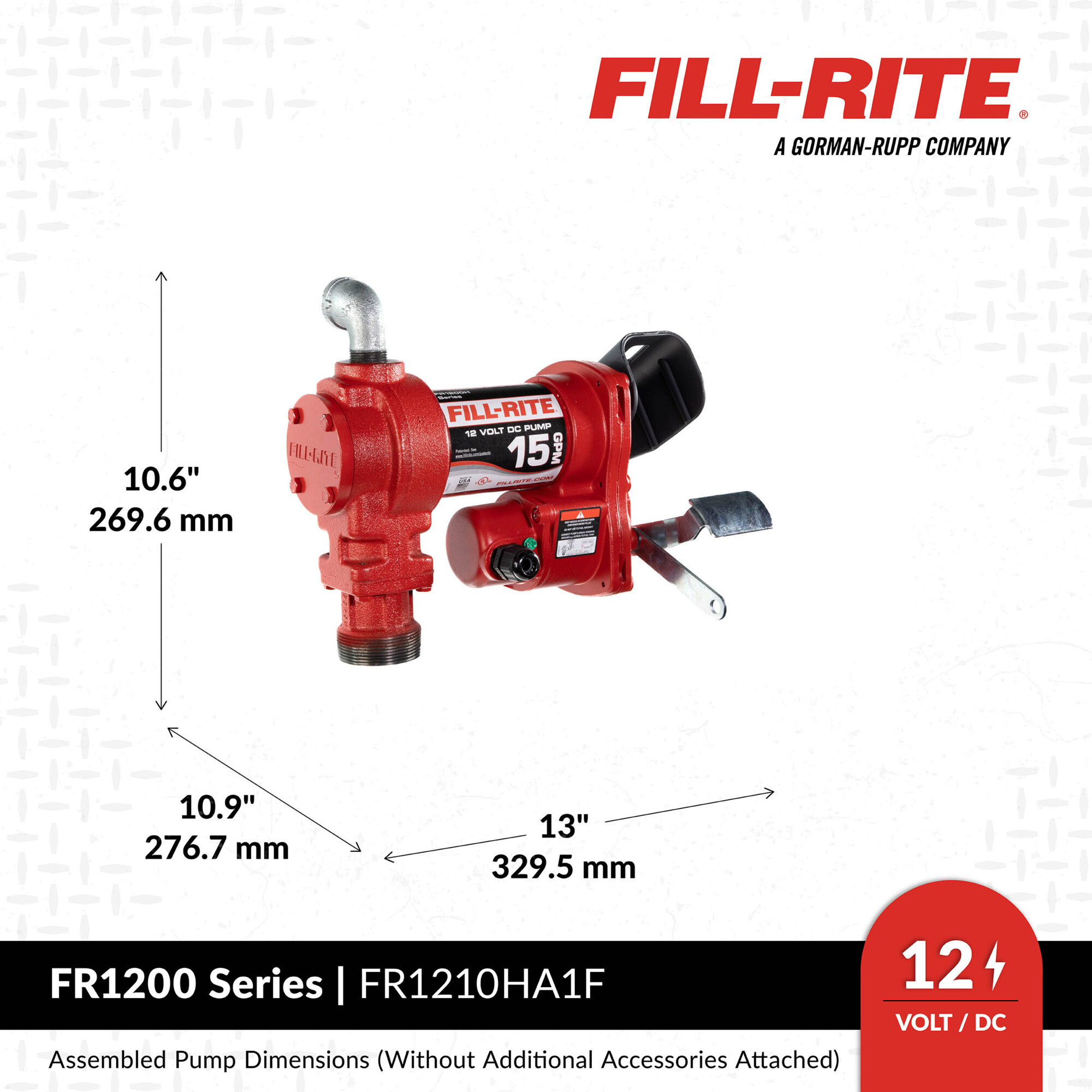

Fill-Rite Heavy-Duty Fuel Transfer Pump - 12V, 15 GPM, Automatic Nozzle, Cast-Iron, Model# FR1210HA1F
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$599.99
- Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons.
- Powered by a 12V motor and equipped with a 2-inch bung mount, this pump is ideal for wiring to 12-volt batteries and installing onto transfer tanks in truck beds.
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits.
- Adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces.
- Thermally protected motor prevents overheating, ensuring your pump performs for years worry free.
Prop 65 Warning: See Details
See full description
What's Included

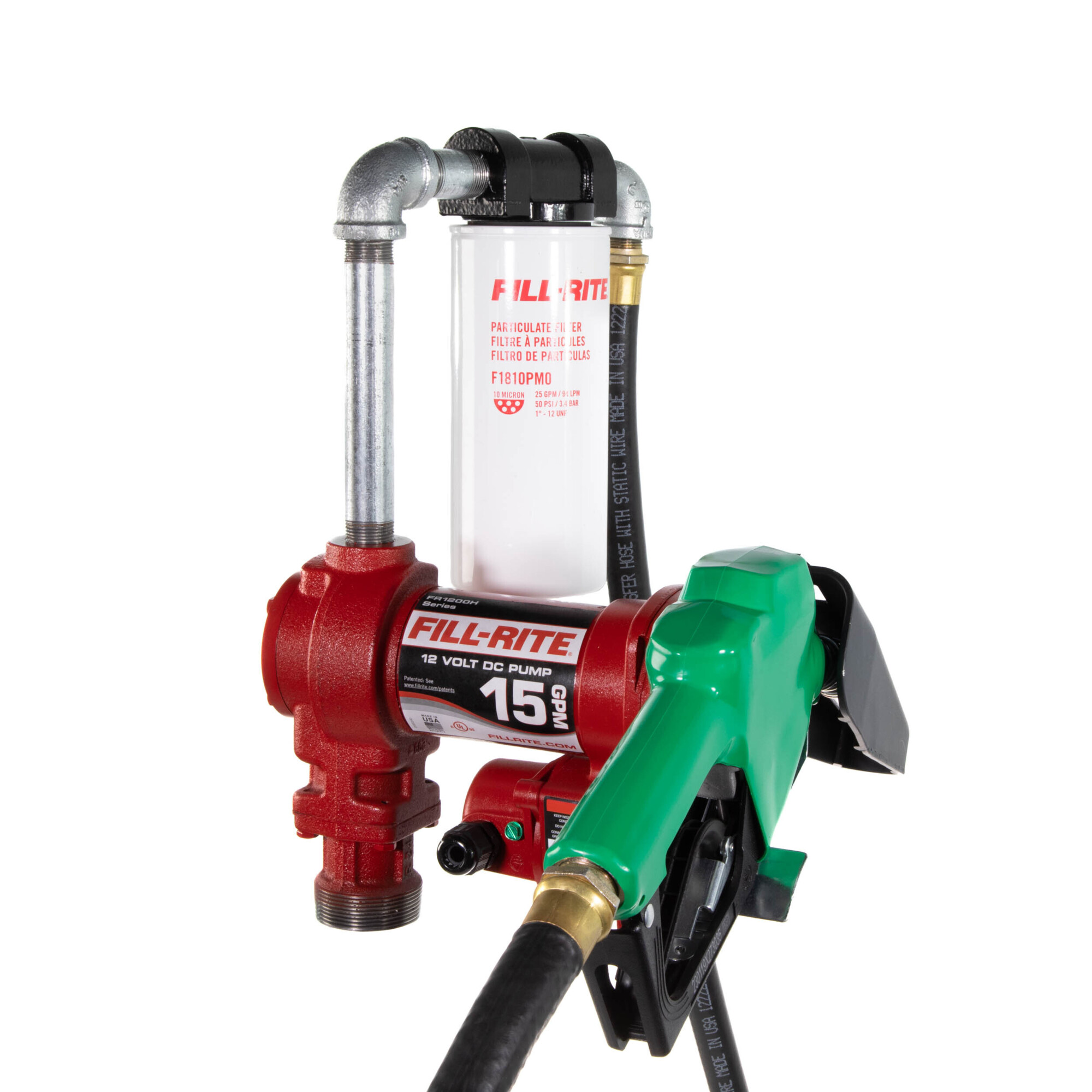

- (11) 12V DC 15 GPM Pump, ¾” X 12’ Hose, ¾” Automatic Nozzle, Filter, Filter Head, 20”– 34 ½” Suction Pipe, 2-Wire 12 GA 18’ Power Cable, ¾” NPT Street Elbow, Ground Wire, (2) Wire Nuts, PTFE Tape Roll
Features + Benefits
- Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons.
- Powered by a 12V motor and equipped with a 2-inch bung mount, this pump is ideal for wiring to 12-volt batteries and installing onto transfer tanks in truck beds.
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits.
- Adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces.
- Thermally protected motor prevents overheating, ensuring your pump performs for years worry free.
- Built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment.
- On-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use.
- We stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment.
See All DC Powered Fuel Pumps
See All Fill-Rite DC Powered Fuel Pumps
Currently Viewing This Product
Specifications
Specifications
Fill-Rite Heavy-Duty Fuel Transfer Pump - 12V, 15 GPM, Automatic Nozzle, Cast-Iron, Model# FR1210HA1F
GPI 18 GPM Fuel Transfer Pump — 12V, Manual Nozzle, Model# M-180S-ML
Roughneck Heavy-Duty Fuel Transfer Pump, 20 GPM, 12 Volt DC, Auto Nozzle, Gasoline Compatible
Western Global 12 Volt DC, 15 GPM Pump Kit, Model# M150SAUK
GPM
Same
15
18
20
15 GPM
Volts
Same
12
-
-
12
Nozzle Type
Same
Automatic
Manual
Automatic
Automatic
Max. Suction Lift
Same
8 ft
-
6.5 ft
4.8 ft
Max. Total Head
Same
37 ft
25 ft
25 ft
-
Amps
Same
26
20
25
18
Inlet Port
Same
1 in
1 in
1 in
1 in
Outlet Port
Same
3/4 in
1 in
1 in
3/4 in
Discharge
Same
37 ft
19.5 ft
14 ft
12 ft
Self-Priming
Same
Yes
Yes
Yes
Yes
Hose Length
Same
12 ft
12 ft
14 ft
12 ft
Duty Cycle
Same
30 min
30 min
30 min
30 min
Bypass Valve
Same
Yes
Yes
Yes
Yes
Product Weight
Same
19.1000 lb
lb
lb
-
Dimensions L x W x H (in.)
Same
6.5 x 13.0 x 8.4 in
19.0 x 16.0 x 9.0 in
8.0 x 10.0 x 14.0 in
18 x 18 x 12 in
Watts
Same
-
250
200
150
Inlet Port (in.)
Same
-
1
1
1 FNPT
Outlet Port (in.)
Same
-
1
1
3/4 FNPT
Speed
Same
-
2,000 rpm
3,200 rpm
1,900 rpm
Discharge (ft.)
Same
-
19.5
14
12
Hose (in. x ft.)
Same
-
1 x 12
1 x 14
3/4 x 12
Horsepower
Same
-
0.25 HP
0.3 HP
0.5 HP
Speed (RPM)
Same
-
2,000
3,200
1,900
