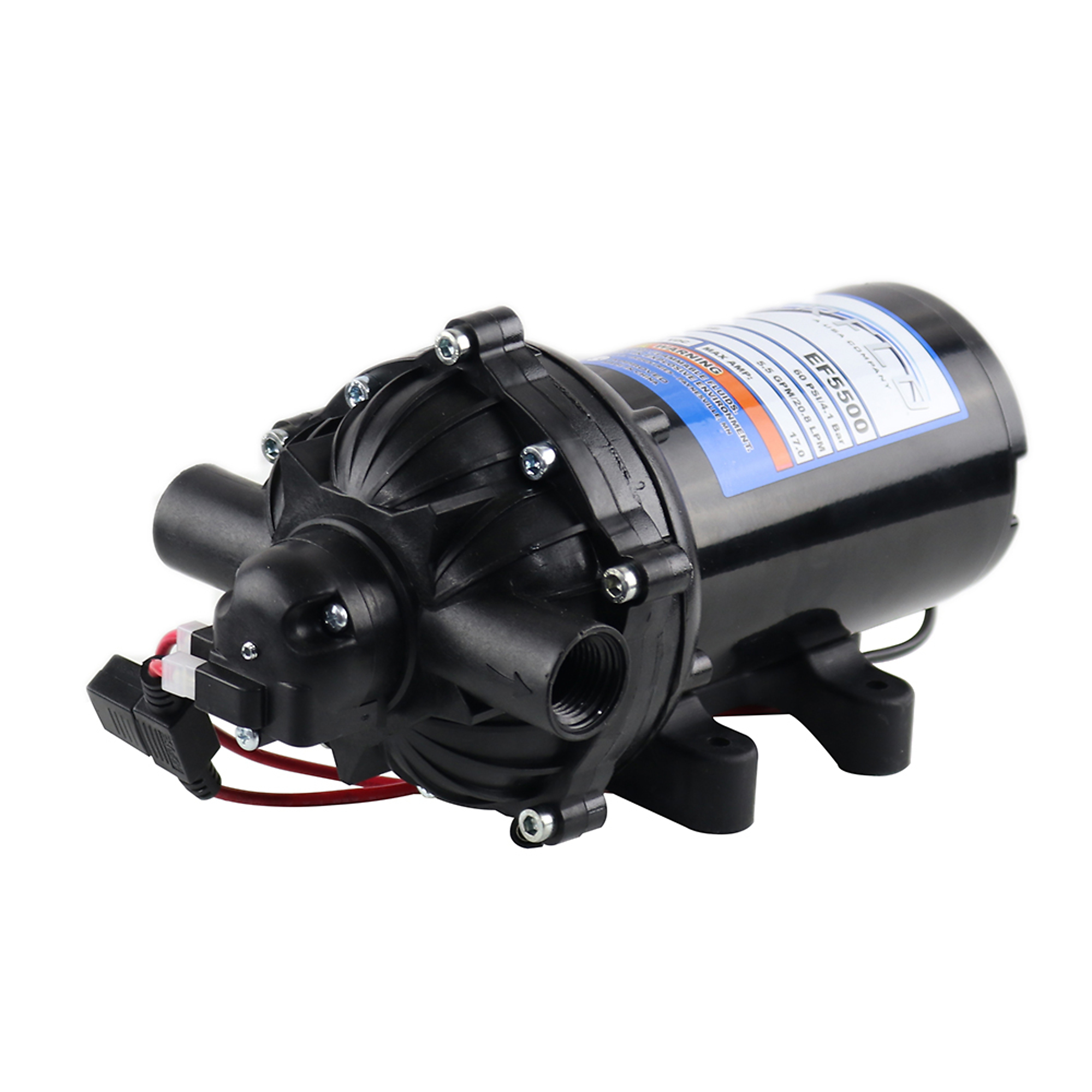

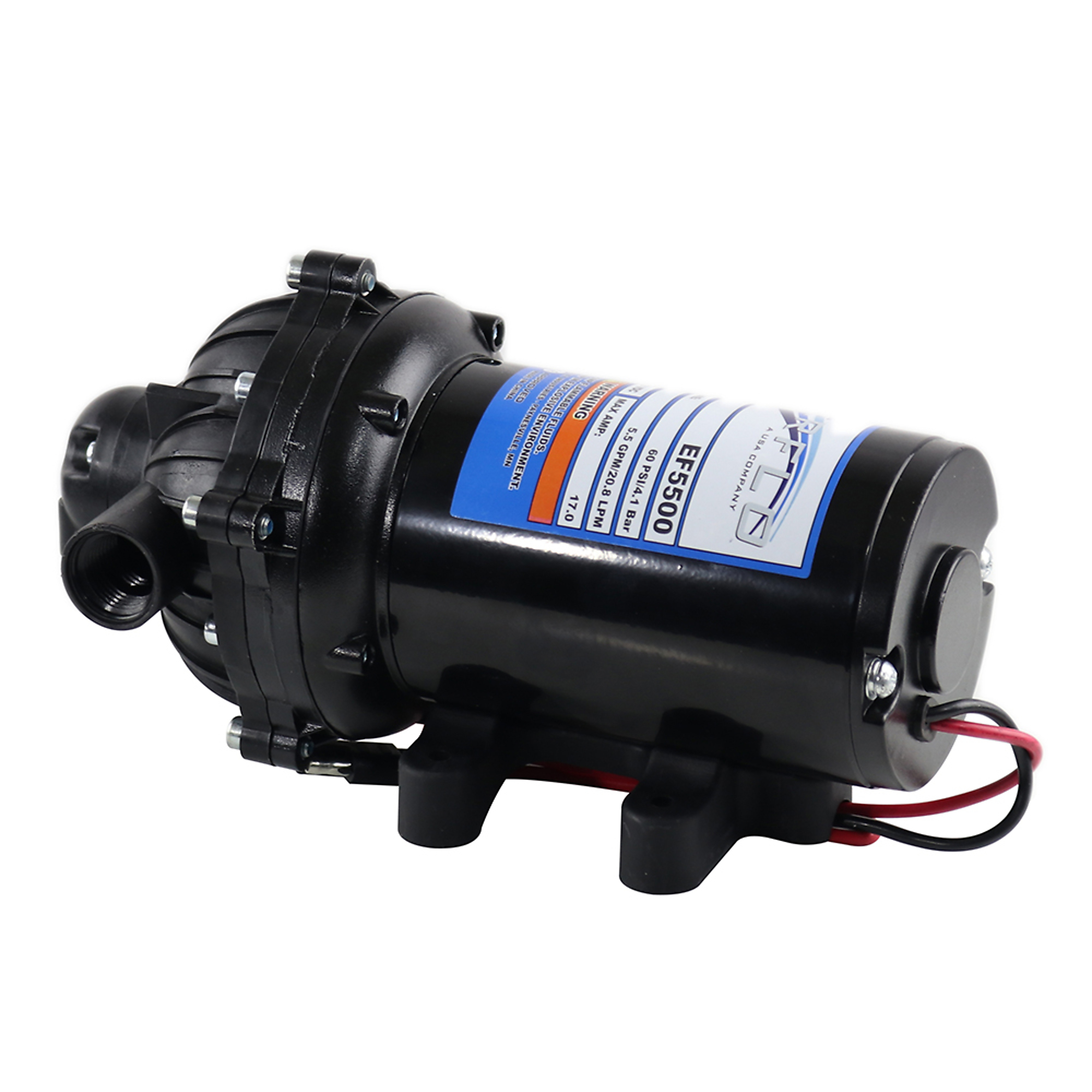

Everflo 12V On-Demand Diaphragm Pump - 5.5GPM, 60 PSI Max, 1/2" FNPT Ports Model #EF5500-BOX

Item# 7009024
Everflo 12V On-Demand Diaphragm Pump - 5.5GPM, 60 PSI Max, 1/2" FNPT Ports Model #EF5500-BOX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Everflo 12V On-Demand Diaphragm Pump - 5.5GPM, 60 PSI Max, 1/2" FNPT Ports Model #EF5500-BOX

Click or Tap image to Zoom

$159.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • On-demand design that provides up to 5.5 GPM and 60 PSI Max
  • 17-amp max draw for efficient power consumption and compatibility with 12V systems
  • CE approved for compliance with international safety and performance standards
  • 100% continuous duty rating with no cool down period
  • Honeywell MICRO SWITCH™ for quick starts

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Everflo EF5000 12V Diaphragm Pump delivers up to 5.5 GPM at 60 PSI, offering reliable, on-demand performance for fluid transfer tasks. Built with a chemical-resistant design, it features a durable diaphragm, automatic shut-off, and 1/2in. FNPT ports. Ideal for spraying, de-icing, irrigation, and more, it’s compatible with agricultural chemicals and backed by a 2-year warranty.

What's Included

    (1) 12V Diaphragm Pump

Features + Benefits

  • On-demand design that provides up to 5.5 GPM and 60 PSI Max
  • 17-amp max draw for efficient power consumption and compatibility with 12V systems
  • CE approved for compliance with international safety and performance standards
  • 100% continuous duty rating with no cool down period
  • Honeywell MICRO SWITCH™ for quick starts
  • Automatically turns off when no flow is required
  • Inline fuse for added electrical protection
  • Features a two-pin SAE connector for quick and secure power connections
  • Smooth self-primes up to 12-feet above liquid level
  • Handles a maximum fluid temperature of 140°F, offering versatility for various applications
  • Santoprene™ diaphragm & Viton® valves for long-lasting durability
  • Fiberglass reinforced polypropylene pump manifold for increased chemical resistance

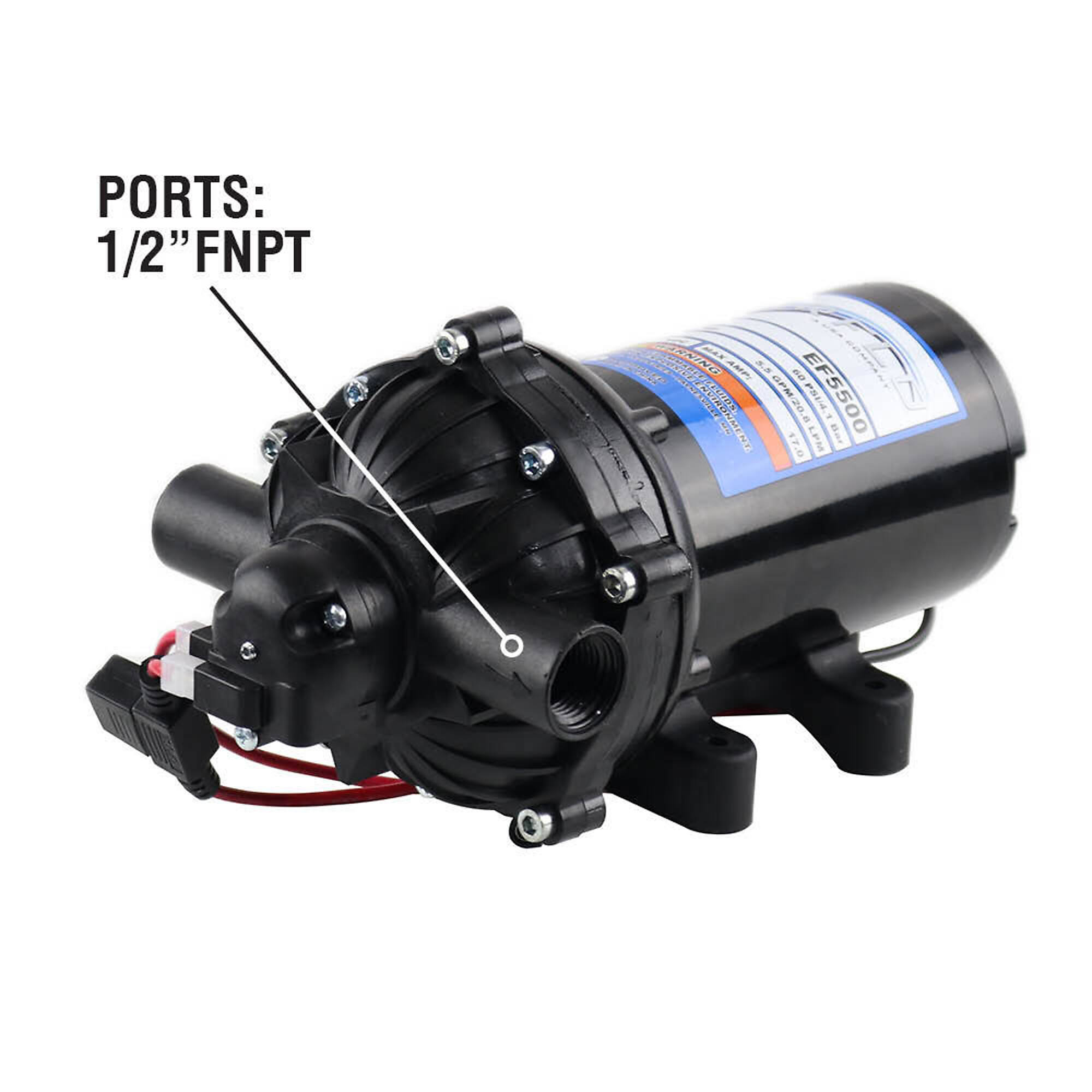

  • 1/2" FNPT inlet and outlet for quick connections
  • Rubber feet with standard mounting pattern for effortless installation
  • Approved for use with Round-Up® & other agricultural brand herbicides & insecticides
  • Universal compatibility with Master Mfg® sprayers and other manufactured sprayer brands
  • Perfect for a wide range of fluid applications including agricultural spraying, de-icing (salt brine), mobile pressure washing and water transferring
  • Backed by a two-year manufacturer warranty on defects

Key Specs

AttributeSpecification

item#

7009024

Brand

Everflo

Manufacturer's Warranty

2 year limited warranty

Ship Weight

7.0 LB

Material

Polypropylene

Max. PSI

60

Max. Flow Rate

5.5 GPM

Max. Temperature

140 °F

Pump Type

Diaphragm
AttributeSpecification

Volts

12

Amps

13

Inlet Port

1/2

Outlet Port

1/2

Self-Priming

Yes

Seal Type

Viton

Product Weight

5.6000 lb

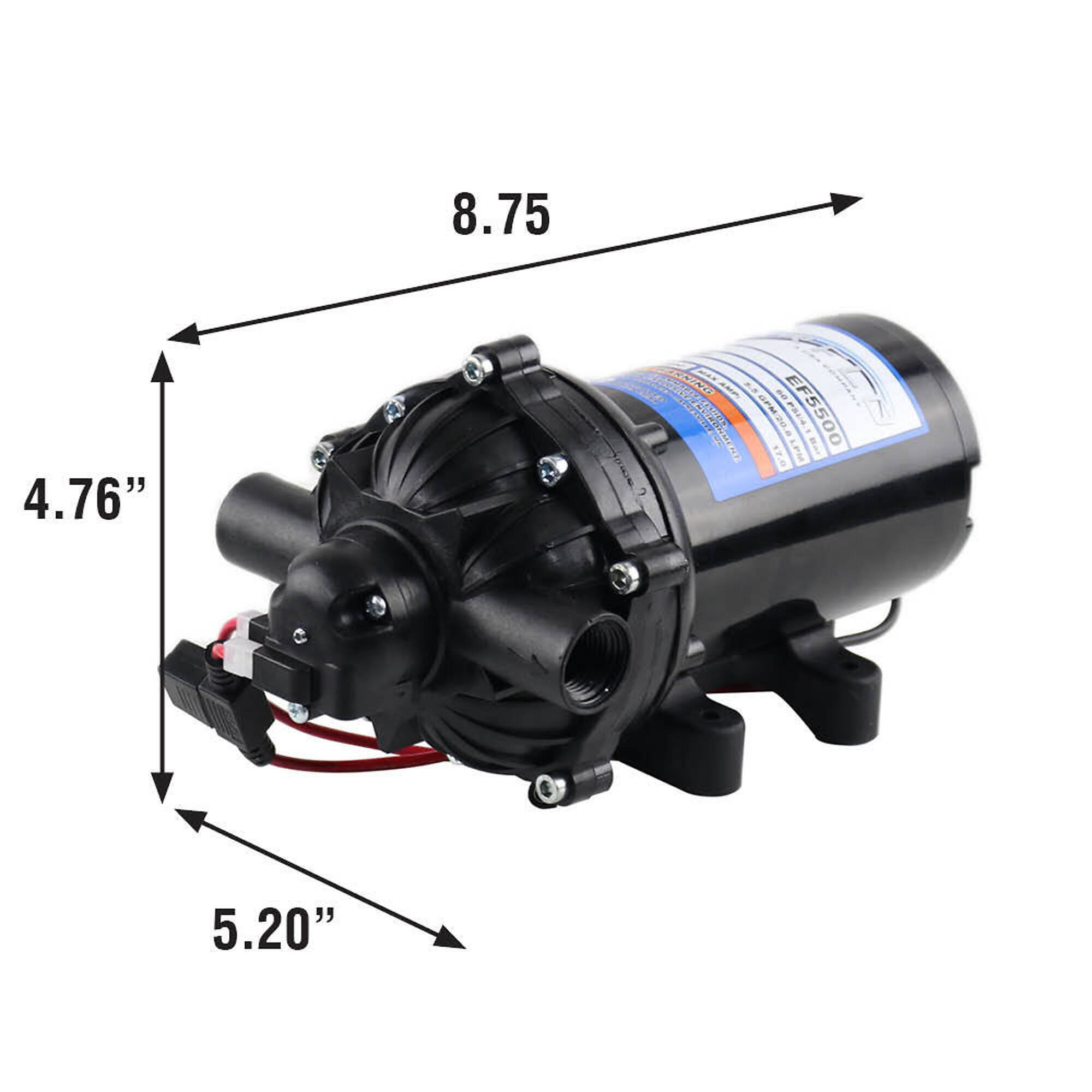

Dimensions L x W x H (in.)

9.26 x 5.2 x 4.92 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. If paired with a pressure tank, What pressure turns on the pump and what pressure shuts it off .

    1 answer

    1. The Everflo EF5500 automatically cycles ON at approximately 50–55 PSI and OFF at 60 PSI to maintain hose pressure.

      Helpful?

  2. Will this pump last a couple of years pumping 12% bleach rinsing with water after every use.

    1 answer

    1. The pump cannot be used with bleach. Using bleach can damage internal parts and would void the warranty.

      Helpful?

  3. How far down can the pump suck water? I do not mean the theoretical depth of 25 ft.

    1 answer

    1. The pump would have a suction lift of 8 feet.

      Helpful?

  4. Is the on/off pressure switch adjustable?

    1 answer

    1. The pump will come preset from the manufacturer, but would feature an adjustable on and off pressure switch.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
