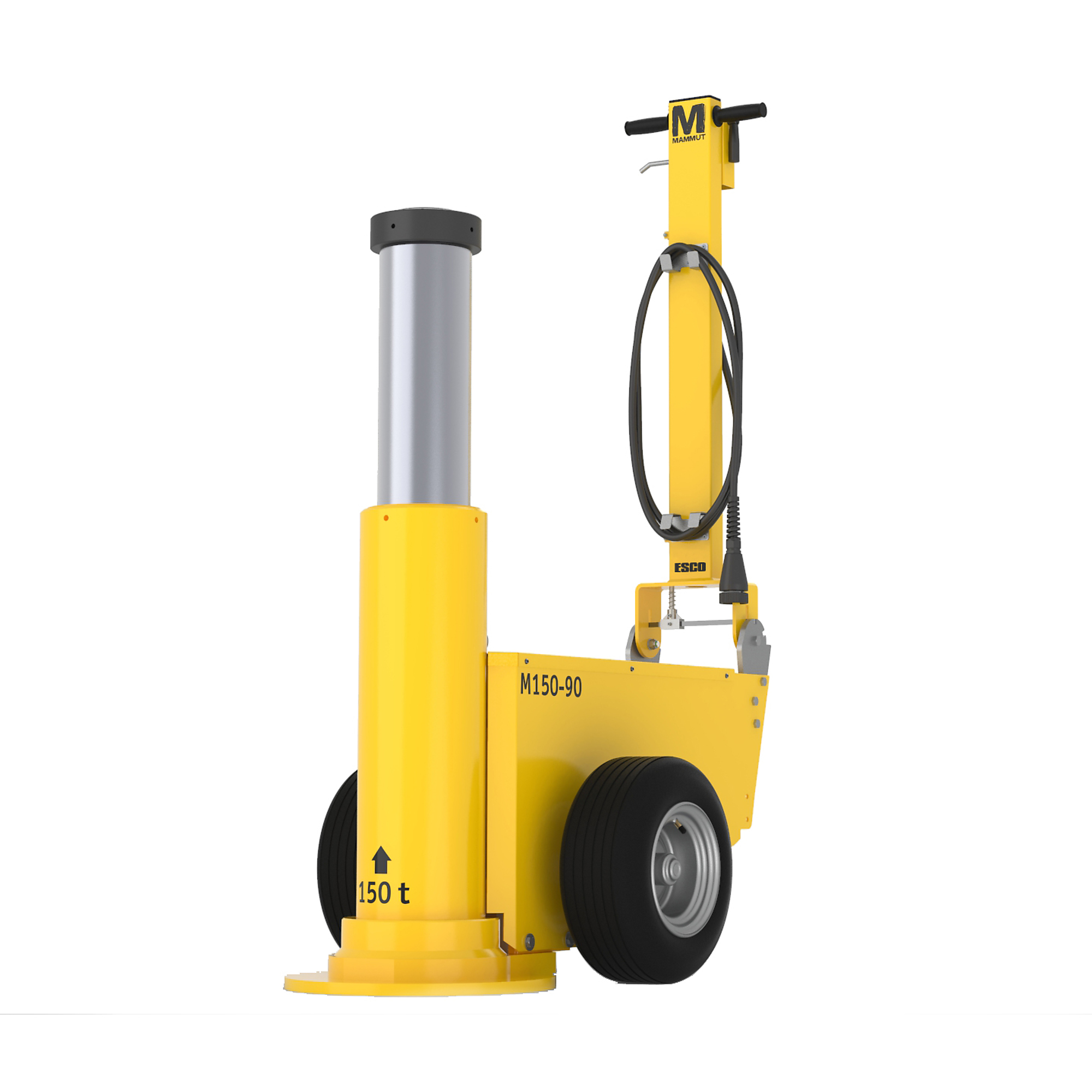

ESCO Mammut, Mammut 165 Ton Jack, Lift Capacity 165 Tons, Max. Lift Height 57.2 in, Power Source Air/Hydraulic, Model# 91005

Item# 5828085
ESCO Mammut, Mammut 165 Ton Jack, Lift Capacity 165 Tons, Max. Lift Height 57.2 in, Power Source Air/Hydraulic, Model# 91005

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESCO Mammut, Mammut 165 Ton Jack, Lift Capacity 165 Tons, Max. Lift Height 57.2 in, Power Source Air/Hydraulic, Model# 91005

Click or Tap image to Zoom

$26,427.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Model Number 91005 Product Description Mammut 165 Ton Jack Style M150-90 Capacity 165 ton | 150 t Net Weight 831 lb | 377 kg Working Air Pressure 145-174 psi | 10-12 bar Air Consumption 600 nl/min Max. Height 57.2 in | 1455 mm Min Height 35.4 | 901 mm Number of Pistons 1 Stroke 21.8 in | 554 mm Application Mine and oil field, Construction site, Industrial assembly, Agricultural, Railway applications, Military UPC 816904023607

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Mammut range of jacks offers service professionals a solution that is safe and easy to use, for all those operations to lift earthmoving, construction, quarry, and mining machinery, where maintenance requires professional skills and expertise. All models are air/hydraulic operated and equipped with a dual descent valve for greater control when bearing weight and automatic piston return; they can also be fitted with a manual emergency pump (on request).

What's Included

    (1) Service Jack

Features + Benefits

  • Model Number 91005 Product Description Mammut 165 Ton Jack Style M150-90 Capacity 165 ton | 150 t Net Weight 831 lb | 377 kg Working Air Pressure 145-174 psi | 10-12 bar Air Consumption 600 nl/min Max. Height 57.2 in | 1455 mm Min Height 35.4 | 901 mm Number of Pistons 1 Stroke 21.8 in | 554 mm Application Mine and oil field, Construction site, Industrial assembly, Agricultural, Railway applications, Military UPC 816904023607

Key Specs

AttributeSpecification

item#

5828085

Brand

ESCO

Manufacturer's Warranty

1 year limited warranty

Ship Weight

831.0 LB

Lift Capacity

165 Tons

Max. Lift Height

57.2 in

Power Source

Air/Hydraulic

Low Profile

No
AttributeSpecification

Material

Steel

Product Type

Service Jack

Min. Lift Height

35.4 in

Handle Included

Yes

Safety Valve

Yes

Product Weight

831.0000 lb

Dimensions L x W x H (in.)

51.0 x 32.0 x 59.0 in
