ESAB Rogue ES 130i Stick Welder, 120/230 Volts, 130 Amp Output, Model# 0700500091

Item# 109435
ESAB Rogue ES 130i Stick Welder, 120/230 Volts, 130 Amp Output, Model# 0700500091

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESAB Rogue ES 130i Stick Welder, 120/230 Volts, 130 Amp Output, Model# 0700500091

Click or Tap image to Zoom

  • 10-130 Amperage range
  • Dual voltage 120/230 Volt input supply offers the flexibility to use any place on a single phase plug
  • Superior Arc characteristics provide smooth and stable performance (including special mode for stick 6010)
  • Generator-compliant design is suitable for use with generators (7kW recommended)
  • Easy-to-use operation, just set the welding current and weld with excellent results

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ESAB Rogue ES 130i Stick Welder is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high-performance power electronics and digital control that helps ensure a precise, consistent arc. Smooth DC (Direct Current) welding power allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel and cast iron. The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job. The digital micro-processor precisely controls all functions and provides best-in-class welding performance across the amperage range of the machine. Operates with electrodes up to 3.2 mm (1/8in.). Easily performs TIG welding using a "Live TIG" start. The power source can be equipped with an optional TIG Torch, which has a built-in gas valve and a regulator, plus a bottle of gas to weld mild steel or stainless steel, with or without filler material. (TIG torch and welding gas are sold separately.)

What's Included

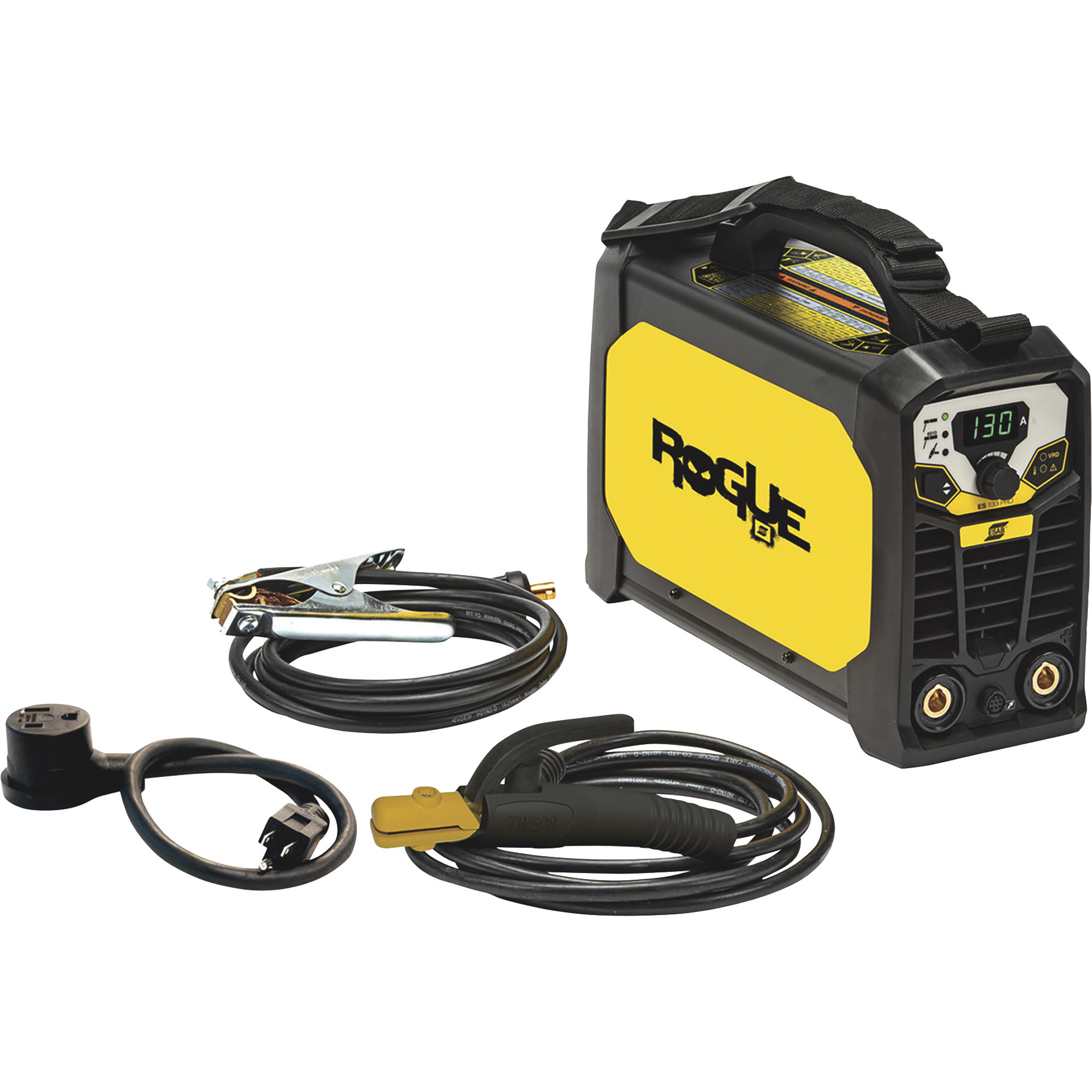

    (1) Welding power source (1) 10ft. main cable and plug (N6-50P) (1) Shoulder strap (1) Electrode holder with 10ft. cable (1) 10ft. return cable and clamp

Downloads

Product Manual Product Manual2

Features + Benefits

  • 10-130 Amperage range
  • Dual voltage 120/230 Volt input supply offers the flexibility to use any place on a single phase plug
  • Superior Arc characteristics provide smooth and stable performance (including special mode for stick 6010)
  • Generator-compliant design is suitable for use with generators (7kW recommended)
  • Easy-to-use operation, just set the welding current and weld with excellent results
  • Practical design makes the power source easy to carry, enabling use at almost any work site
  • Designed for use in fabrication shops or on-site applications
  • PFC ensures a stable arc that's resistant to power fluctuations, even while working on long extension cables up to 300 feet (12 AWG size)
  • Optional analog remote control (Optional hand remote control MMA4, sold separately)
  • Handles electrodes up to 3.2mm (1/8in.)
  • DC (Direct Current) welding power provides smooth welding of alloyed and non alloyed steel, stainless steel, cast iron and a variety of other metals
  • Adjustable Arc Force and Hot Start Settings

Key Specs

AttributeSpecification

item#

109435

Brand

ESAB

Manufacturer's Warranty

3 year limited warranty

Ship Weight

18.0 LB

Volts

Multi

Max. Amps

130

Multi-process

Yes

Duty Cycle

SMAW 120V: 60% at 58A; SMAW 230V: 60% at 84A; GTAW (120V): 60% at 84A; GTAW 230V: 60% at 84A
AttributeSpecification

Min. Amps

10

Power Cord Length

10 ft

Clamp Cable Length

10 ft

Electrode Cable Length

10 ft

Regulator and Gas Hose Included

No

Product Weight

18.2 lb

Dimensions L x W x H (in.)

13.5 x 6 x 10.4 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Can this welder do both stick and tig welding

    1 answer

    1. The welder is able to do both stick and TIG welding. The TIG torch model 35857 and TIG foot control model W4014450 can be purchased through the manufacturer separately.

      Helpful?

  2. Will this weld aluminum

    1 answer

    1. The stick welder is not able to weld aluminum. It is designed to weld alloyed and non alloyed steel, stainless steel and cast iron.

      Helpful?

  3. how thick can the metal be to weld

    1 answer

    1. This will weld up to 1/8" mild steel.

      Helpful?

  4. How much genator wattage is required to weld with this machine

    1 answer

    1. On 120V this welder requires 2470 watts at maximum current. On 230V it requires 2170 watts at maximum current.

      Helpful?
