ESAB, Rebel EMP 285ic Multi-Process Welder, Volts 120/230 Max. Amps 300 Mig Ready, Model# 0558102554

Item# 6140493
ESAB, Rebel EMP 285ic Multi-Process Welder, Volts 120/230 Max. Amps 300 Mig Ready, Model# 0558102554

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESAB, Rebel EMP 285ic Multi-Process Welder, Volts 120/230 Max. Amps 300 Mig Ready, Model# 0558102554

Click or Tap image to Zoom

$4268.06

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Power to Perform – with 285A @ 40% (1ph model) you’ll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm)
  • sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.
  • With ESAB’s new 4 Roll Drive System, weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in.(1.6 mm) cored wire. Plus, electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm).
  • Unmatched Portability/Mobility – weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage. Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site.
  • TFT Multilingual Display – packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The ESAB Rebel EMP 285ic Single Phase systems is the most powerful industrial Rebel yet for excellent performance on MIG Flux-Cored TIG and Stick applications. Capable of welding up to 350A this TRUE multi-process multi-voltage industrial welding machine runs the full range of .035in. (0.9 mm) and .045in. (1.2 mm) wires. It's the most portable mobile welder in its class and has the power and performance to crush even the most demanding industrial jobs.

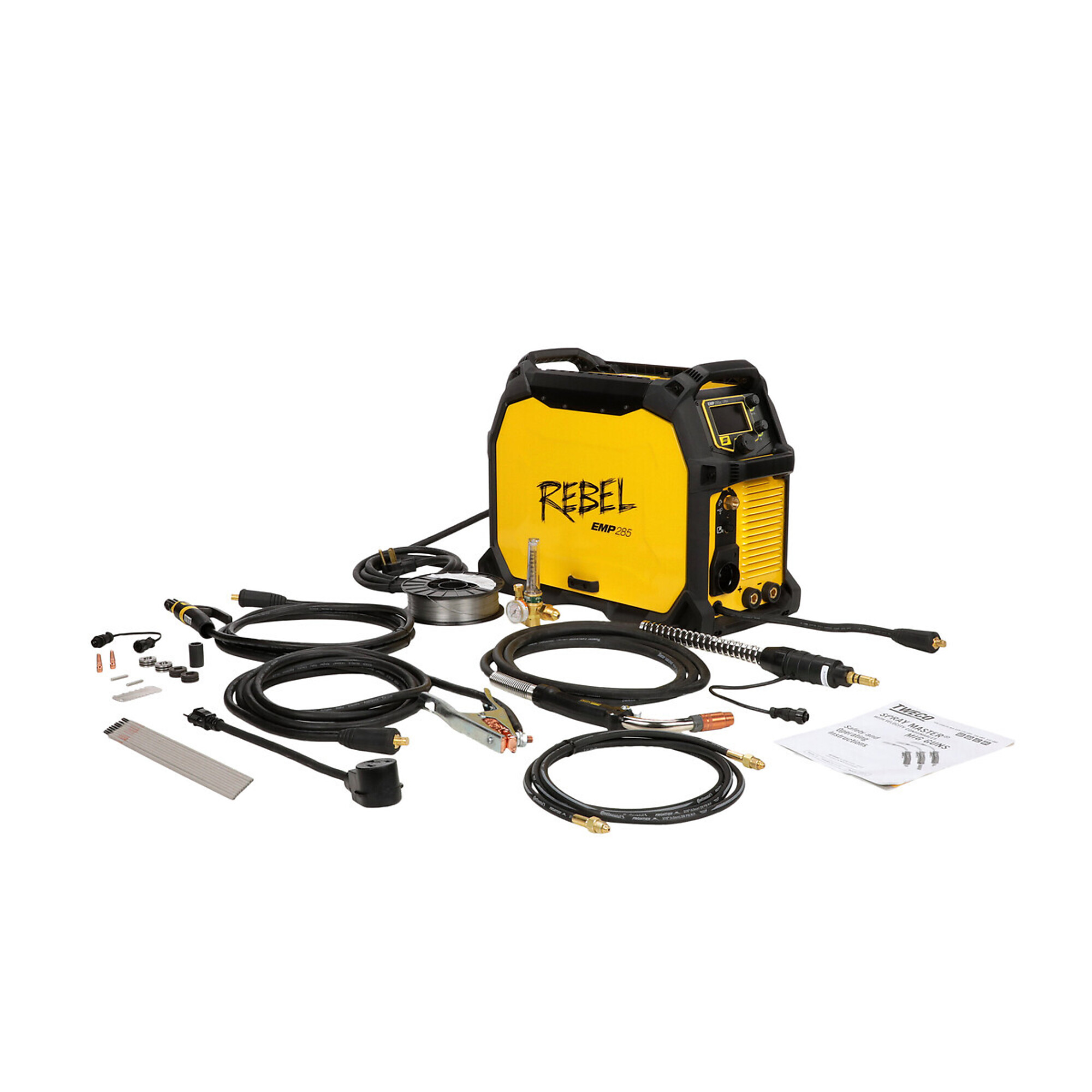

What's Included

    (1) Power supply | 15' 250A MIG gun | 10' 200A electrode holder | 10' ground clamp with leads | Argon flow gauge regulator with 12.5' gas hose | 7018 Stick Electrodes, qty 10 | 70S-6 .035 10-lb spool of wire | Spare nozzle, diffuser, 2 contact tips | Drive ro

Features + Benefits

  • Power to Perform – with 285A @ 40% (1ph model) you’ll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm)
  • sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.
  • With ESAB’s new 4 Roll Drive System, weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in.(1.6 mm) cored wire. Plus, electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm).
  • Unmatched Portability/Mobility – weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage. Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site.
  • TFT Multilingual Display – packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance.

Key Specs

AttributeSpecification

item#

6140493

Brand

ESAB

Manufacturer's Warranty

3 year limited warranty

Ship Weight

83.0 LB

Volts

120/230

Max. Amps

300

Power Type

DC

Multi-process

Yes

Spool Gun Included

No

Welding Processes

Flux-Core, MIG, Stick, TIG

Max. Weld Thickness

0.5 in

Max. Welding Wire Diameter

0.063 in

Duty Cycle

CV: MIG/Flux Cored - 230 VAC - 285 Amps At 28.25V - 40% Duty Cycle | CC: Stick - 120 VAC - 90 Amps At 23.4 V - 40% Duty Cycle | CC: Stick - 230 VAC - 260 Amps At 30.4 V - 40% Duty Cycle | CC: TIG - 1
AttributeSpecification

Weldable Materials

Mild Steel, Steel, Aluminum

Min. Amps

5

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Power Cord Length

10 ft

Clamp Cable Length

6.5 ft

Electrode Cable Length

13 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

Yes

Product Weight

70.0000 lb

Dimensions L x W x H (in.)

26.5 x 19.5 x 11.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
