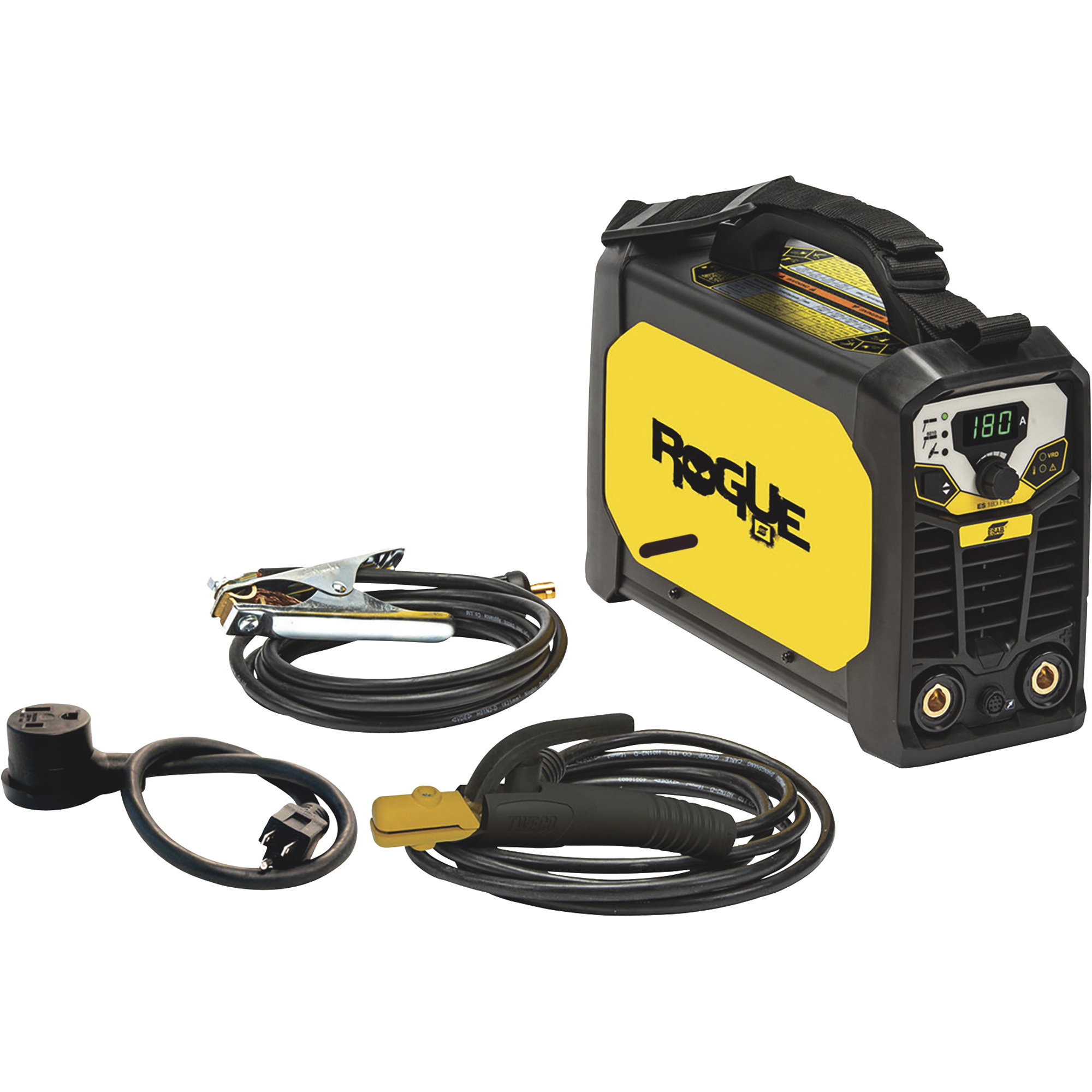

ESAB MiniArc Rogue ES 180I PRO Stick Welder, 120/230 Volts, 180 Amp Output, Model# 0700500070

Item# 109445
"ESAB MiniArc Rogue ES 180I PRO Stick Welder, 120/230 Volts, 180 Amp Output, Model# 0700500070"
ESAB MiniArc Rogue ES 180I PRO Stick Welder, 120/230 Volts, 180 Amp Output, Model# 0700500070

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESAB MiniArc Rogue ES 180I PRO Stick Welder, 120/230 Volts, 180 Amp Output, Model# 0700500070

Click or Tap image to Zoom

  • 10-180 Amperage range
  • Dual voltage 120/230 Volt input supply offers the flexibility to use any place on a single phase plug
  • Superior arc characteristics provide smooth and stable performance (including special mode for stick 6010)
  • Generator compliant design is suitable for use with generators (7kW recommended)
  • Easy-to-use operation, just set the welding current and weld with excellent results

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ESAB MiniArc Rogue ES 180I PRO Stick Welder is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high-performance power electronics and digital control that helps ensure a precise, consistent arc. Smooth DC (Direct Current) welding power allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel and cast iron. The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job. The digital micro-processor precisely controls all functions and provides best-in-class welding performance across the amperage range of the machine. Operates with electrodes up to 4.0mm (5/32in.). Easily performs TIG welding using a "Live TIG" start. The power source can be equipped with an optional TIG Torch, which has a built-in gas valve and a regulator, plus a bottle of gas to weld mild steel or stainless steel, with or without filler material. (TIG torch and welding gas are sold separately.)

What's Included

    (1) Welding power source (1) 10ft. main cable and plug (N6-50P) (1) Shoulder strap (1) Electrode holder with 10ft. cable (1) 10ft. return cable and clamp

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 10-180 Amperage range
  • Dual voltage 120/230 Volt input supply offers the flexibility to use any place on a single phase plug
  • Superior arc characteristics provide smooth and stable performance (including special mode for stick 6010)
  • Generator compliant design is suitable for use with generators (7kW recommended)
  • Easy-to-use operation, just set the welding current and weld with excellent results
  • Practical design makes the power source easy to carry, enabling use at almost any work site
  • Designed for use in fabrication shops or on-site applications
  • PFC ensures a stable arc that's resistant to power fluctuations, even while working on long extension cables up to 300 feet (12 AWG size)
  • Optional analog remote control (optional hand remote control MMA4, sold separately)
  • Handles electrodes up to 4.0mm (5/32in.)
  • DC (Direct Current) welding power provides smooth welding of alloyed and non alloyed steel, stainless steel, cast iron and a variety of other metals
  • Adjustable Arc Force and Hot Start Settings

Key Specs

AttributeSpecification

item#

109445

Brand

ESAB

Manufacturer's Warranty

3 year limited warranty

Ship Weight

18.0 LB

Volts

120/230

Max. Amps

180

Multi-process

Yes

Duty Cycle

SMAW 120V: 60% at 70A; 230V: 60% at 116A; GTAW 120V: 60% at 90A; 230V: 60% at 116A
AttributeSpecification

Weldable Materials

Steel, stainless steel, cast iron

Min. Amps

10

Power Cord Length

10 ft

Clamp Cable Length

10 ft

Electrode Cable Length

10 ft

Product Weight

18.2 lb

Dimensions L x W x H (in.)

13.5 x 6 x 10.4 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. what is minimum amperage input for 120 and 240

    1 answer

    1. The amperage required at 120 volt is 25.7 amps. The amperage required at 230 volt is 26 amps. The wire will need to be 14 gauge. A 40 amp breaker is required.

      Helpful?

  2. Can the welder run 7018 1/8?

    1 answer

    1. This welder is compatible with 1/8" 7018 rods.

      Helpful?

  3. Do you sell the foot pedal for this machine?

    1 answer

    1. The foot control part # W4014450 can be purchased through the manufacturer direct.

      Helpful?

  4. How can I buy just the cables?!

    1 answer

    1. Northern Tool does not offer the cables separately.

      Helpful?

  5. Are the electrode/return cables made of copper or copper-clad aluminum?

    1 answer

    1. The electrode/return cables on this stick welder are copper.

      Helpful?

  6. Does it have a lift arc feature?

    1 answer

    1. The ES 180I stick welder would have the lift arc feature.

      Helpful?

  7. How thick steel can you weld?

    1 answer

    1. The welder can weld up to 1/2" thickness steel.

      Helpful?

  8. Who makes this product

    1 answer

    1. This is made by ESAB Welding and Cutting.

      Helpful?

  9. I see that the Rogue ES 180i is suitable for use with a generator. I have a generator that is above 7kW, but only has a 30Amp breaker for 220 use. Does the Rogue require a 50amp breaker like a lot of small welders?

    1 answer

    1. The welder would require a 50 amp breaker.

      Helpful?

  10. Can you run 6010 electrodes ?

    1 answer

    1. The stick welder can be used with 6010 electrodes.

      Helpful?
