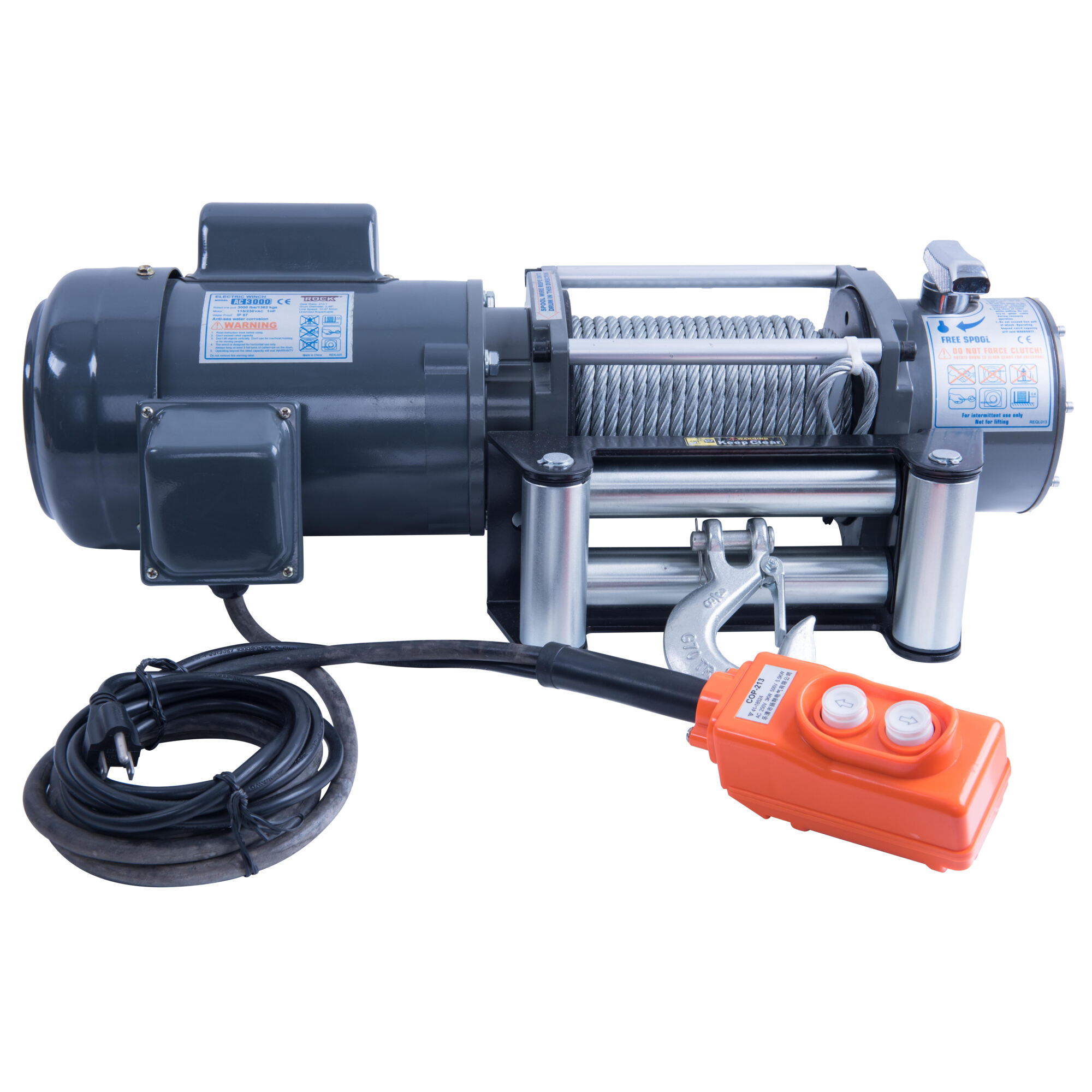

Endurance Marine, Crane Drum Winch Auto Brake (Bare Drum) Cable Not Included, Capacity (Line Pull) 3000 lb, Volts 115/230 Max. Amps 8 Model# AC3000

Item# 6055694
Endurance Marine, Crane Drum Winch Auto Brake (Bare Drum) Cable Not Included, Capacity (Line Pull) 3000 lb, Volts 115/230 Max. Amps 8 Model# AC3000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Endurance Marine, Crane Drum Winch Auto Brake (Bare Drum) Cable Not Included, Capacity (Line Pull) 3000 lb, Volts 115/230 Max. Amps 8 Model# AC3000

Click or Tap image to Zoom

$1533.50

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3,000 lbs / 1,362 kgs deadlift capability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Hoist /Crane Drum Winch

What's Included

    (1) Hoist/crane drum winch (bare drum) (1) Roller fairlead (1) Wired remote control

Features + Benefits

  • 3,000 lbs / 1,362 kgs deadlift capability

Key Specs

AttributeSpecification

item#

6055694

Brand

Endurance Marine

Manufacturer's Warranty

6 month limited warranty

Ship Weight

87.5 LB

Horsepower

1 HP

Capacity (Line Pull)

3,000 lb

Volts

115/230

Max. Amps

8

Application

Marine

Line Speed

13 ft./min.
AttributeSpecification

Gear Ratio

210:1

Brake Type

Automatic

Remote

Yes

Automatic Load Holding

Yes

Freespooling

Yes

Underwater Use

No

Mounting Hardware Included

No

Dimensions L x W x H (in.)

25.0 x 8.81 x 8.85 in

Product Weight

63.0000 lb

Reviews

Questions & Answers

Questions

  1. 450 AMPS? This model says it draws a max of 450 amps.  I was planning on running it off of a 120V, 30 amps breaker.  Will that work? Seems like I am missing something here, my welder doesn't pull that many amps.  Could you clarify a little please?

    1 answer

    1. The AC3000 can be wired for 115 volt or 230 volt. At 115 volt with 3000 lb. line pull the amp draw is 18 amps. At 230 volt it is 8 amps. Suggested breaker is 50 amps.

      Helpful?

Warranty

Manufacturer's Warranty

6 month limited warranty
