The winch would still have a pulling capacity of 2000 pounds, if mounted to concrete. Whatever it is mounted to, it needs to be securely mounted for it to handle the 2000 pounds.
Discount Details
- The promo code 290262 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $250 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax, & shipping.
- Promo code not valid on prior purchases or on Honda & Stihl products, and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited time offer. Subject to change without notice.
Endurance Marine Adjustable Winch Stand, Model# RSS2000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- Adjustable stand allows user to elevate winch for easy of use and extended applications
- Allows user to fit winch into compact areas

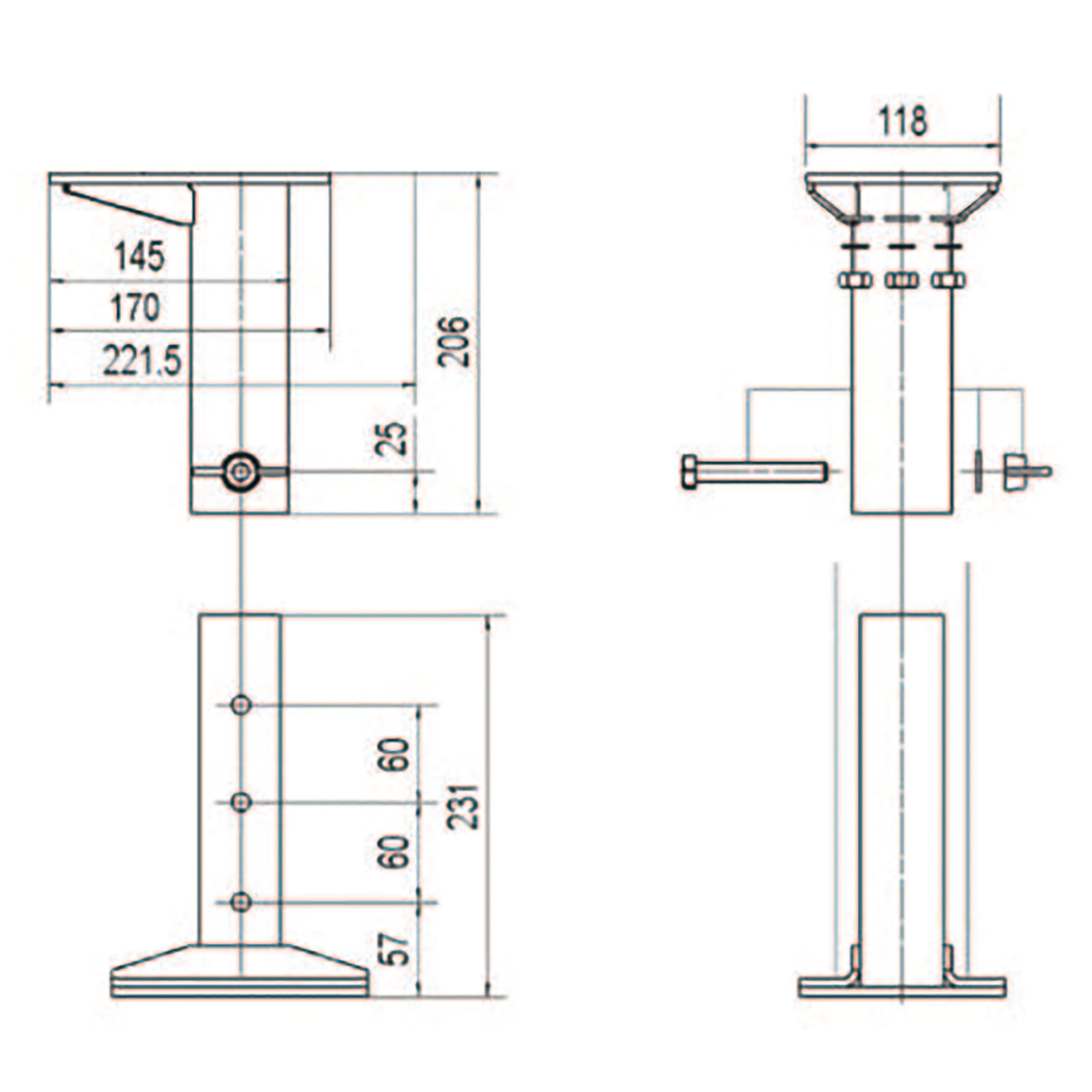

- Precise adjustment holes allow the telescoping unit to be set to 3 heights: 9in., 11.5in. and 14in.
- Mounting plate has a universal bolt pattern which will fit most small electric winches and hand winches
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) Base (1) Top plate (1) Through bolt
Downloads
Features + Benefits
- Adjustable stand allows user to elevate winch for easy of use and extended applications
- Allows user to fit winch into compact areas
- Precise adjustment holes allow the telescoping unit to be set to 3 heights: 9in., 11.5in. and 14in.
- Mounting plate has a universal bolt pattern which will fit most small electric winches and hand winches
Key Specs
| Attribute | Specification |
|---|---|
item# | 97101 |
Brand | Endurance Marine |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 11.0 LB |
| Attribute | Specification |
|---|---|
Product Type | Stand |
Product Weight | 11.0000 lb |
Dimensions L x W x H (in.) | 8.0 x 9.5 x 5.5 in |
Reviews
Questions & Answers
Questions
-
· 2 years ago
Model rss2000 once mounted in concrete when you add an electric winch to the winch stand how many tow able pounds can you tow?
1 answer-
ProductExpert6· 2 years ago
Helpful?
-
-
· 4 years ago
How tall is this fully extended top to bottom
1 answer-
ProductExpert38· 4 years ago
The highest setting for this would make it 14" tall.
Helpful?
-
-
· 5 years ago
What size U bolts are required for the mounting base (ie hole size and spacing)?
1 answer-
ProductExpert10· 5 years ago
The hole size is 1/2" and the bolt spacing is 3-7/8" center to center by 5 inches center to center. The bolt sizes can vary based on the mount.
Helpful?
-
-
· 5 years ago
What country is this manufactured in?
1 answer-
ProductExpert18· 5 years ago
This Endurance winch stand is made in China.
Helpful?
-
-
· 5 years ago
what are the upper and lower plate dimensions
1 answer-
ProductExpert12· 5 years ago
The upper plate measures 6.75" x 4.65". The lower plate measures 5" x 6.125".
Helpful?
-
-
· 5 years ago
Does this fit with Endurance Marine Hand Winch With Auto Brake — 1000-Lb. Capacity, Model# RBW1000? If not, which hand winch does it fit?
1 answer-
ProductExpert29· 5 years ago
The RBW1000 hand winch will fit this stand.
Helpful?
-
-
· 5 years ago
what is the bolt and thread size needed for the 2 middle winch mounting Threded Holes?
1 answer-
ProductExpert29· 5 years ago
The front 3 mounting bolt holes fit up to a 3/8" mounting bolt. The threaded bolt holes are metric. An M10 bolt fits the larger bolt hole and an M8 bolt fits in the smaller bolt hole.
Helpful?
-
-
· 6 years ago
Base measurements please
1 answer-
ProductExpert18· 6 years ago
The base on this Endurance Marine winch stand is 125 mm wide and 155 mm deep.
Helpful?
-
-
· 7 years ago
What mounting hardware is included?
1 answer-
ProductExpert7· 7 years ago
This does not include any mounting hardware. The through bolt is all that is included.
Helpful?
-
Warranty
Manufacturer's Warranty
1 year limited warranty
